Track Cable Cylinders
Track cable cylinders provide a pre-engineered guide and support system.
A track cable actuator’s guide and support system can offer greater bearing surface than other types of cable cylinders and carry larger loads.
- Aluminum bearing block guides and support loads
- Precision linear ball bearings with hardened ground steel shafts
- Bore sizes from .5 to 1 inch (13 to 25.4 mm)
- Aluminum or steel tube
- Optional 3-ported heads for convenient air connection
- Other options include auto tensioners, caliper disc brake, Viton® seals and switches
Size | TC 05 | TC 07 | TC 10 | TC 15 |
---|---|---|---|---|
Standard | 0.50 in | 0.75 in | 1.00 in | 1.50 in |
Metric | 13 mm | 19 mm | 25 mm | 38 mm |
Size | TC 05 | TC 07 | TC 10 | TC 15 |
---|---|---|---|---|
Standard | 67 in | 80 in | 80 in | 80 in |
Metric | 1,702 mm | 2,032 mm | 2,032 mm | 2,032 mm |
Size | TC 05 | TC 07 | TC 10 | TC 15 |
---|---|---|---|---|
Standard | 19 lbf | 43 lbf | 78 lbf | 174 lbf |
Metric | 85 N | 191 N | 347 N | 774 N |
Size | TC 05 | TC 07 | TC 10 | TC 15 |
---|---|---|---|---|
Standard | 60 lbs | 60 lbs | 60 lbs | 15 lbs |
Metric | 27 kg | 27 kg | 27 kg | 7 kg |
TC 05/07/10 Specs
![](https://www.tolomatic.com/wp-content/uploads/2022/06/a399d39eb3ac4ae4a46370fcb395e9bf-orig-1024x821.jpg)
TC 15 Specs
![](https://www.tolomatic.com/wp-content/uploads/2022/06/855882e4dea54d189bc951927ed3163f-orig-1024x943.jpg)

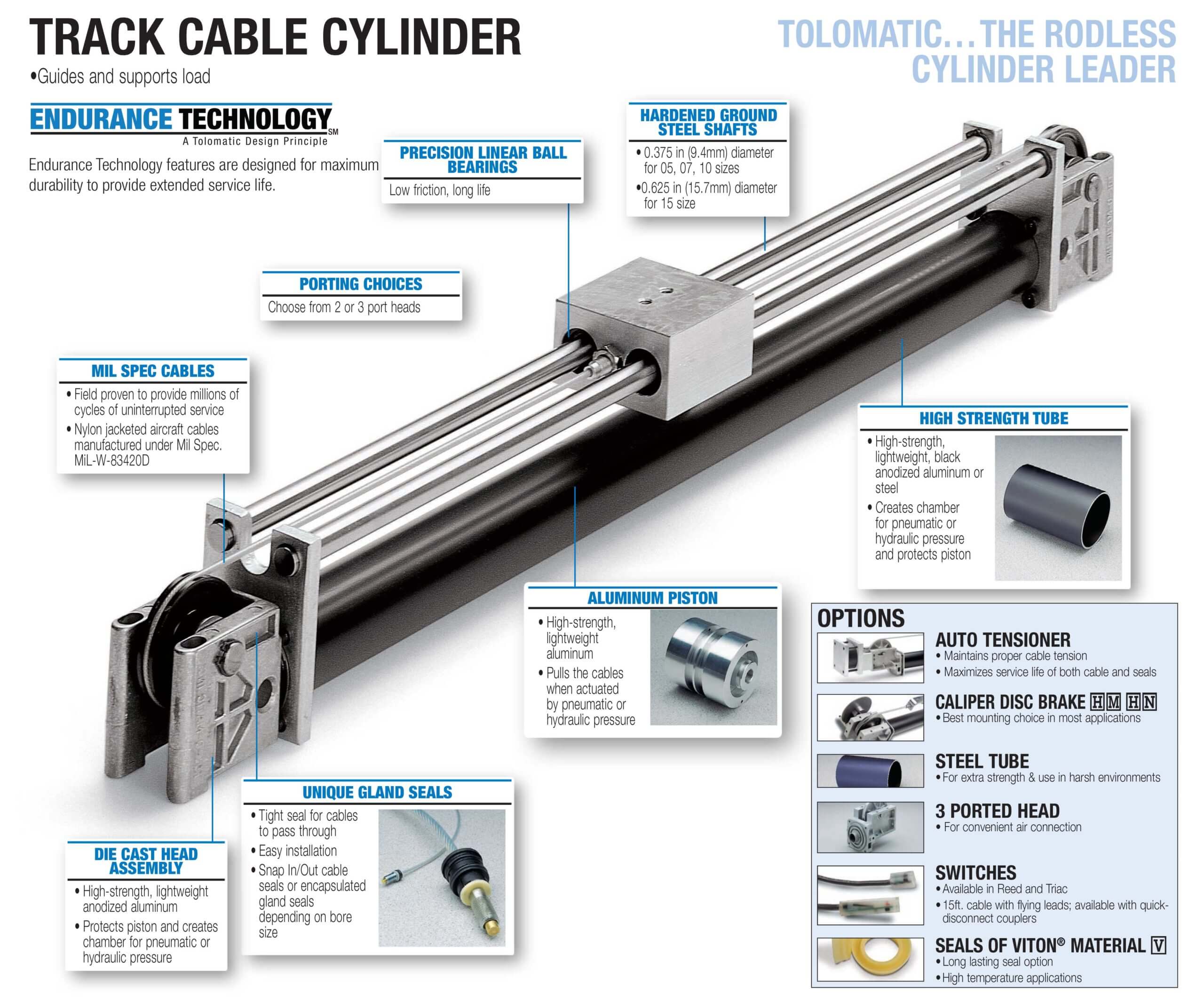

TC Features & Options
![](https://www.tolomatic.com/wp-content/uploads/2022/06/1e3b513396a5475bb56928bcd60ff7e0-orig-959x1024.jpg)

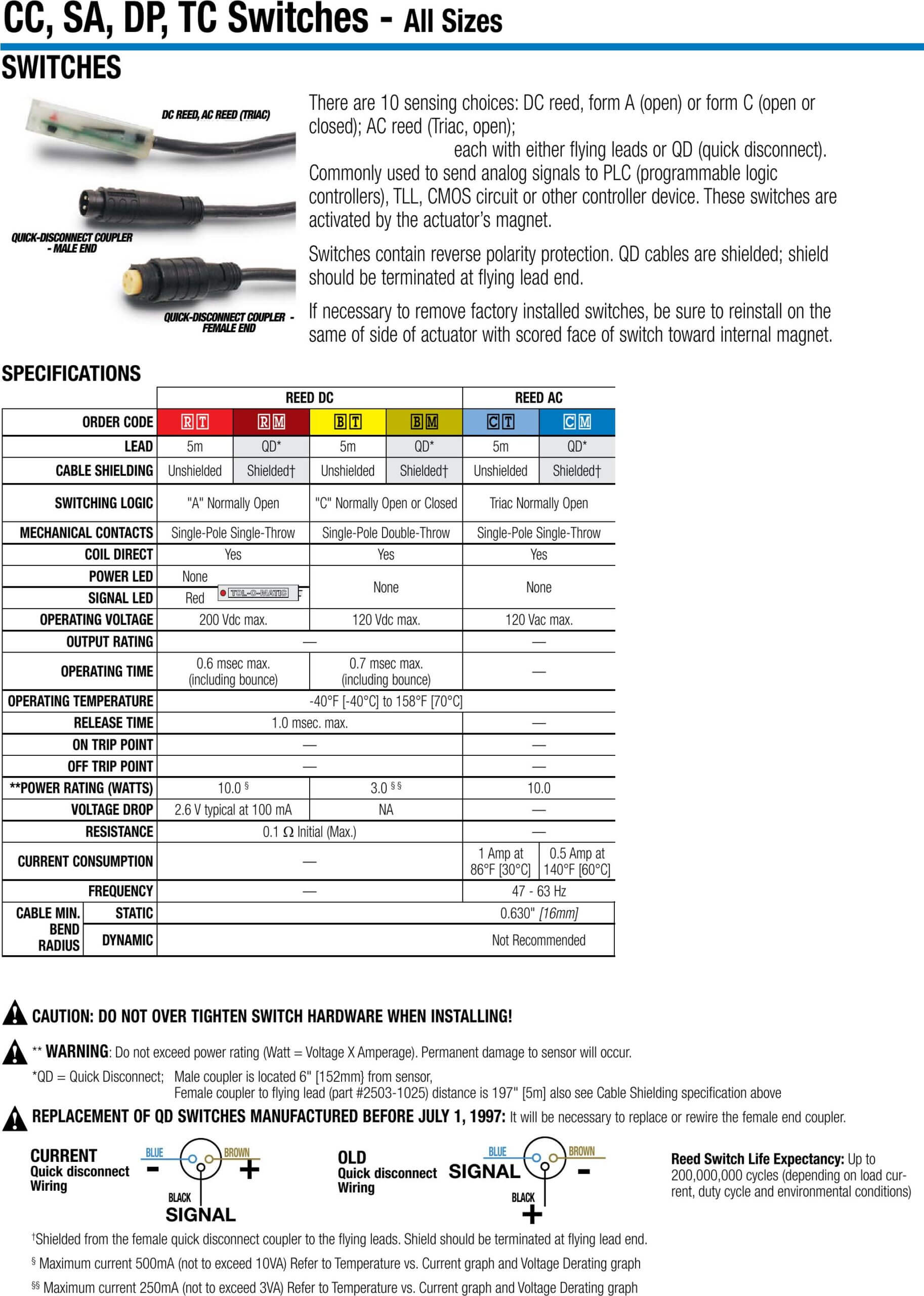

TC Switch Specs
![](https://www.tolomatic.com/wp-content/uploads/2022/06/5186677d4e294f20b8f590351894e5fa-orig-730x1024.jpg)
TC Switches Performance, Wiring & Dimensions
![](https://www.tolomatic.com/wp-content/uploads/2022/06/684975a0f93f48a6bd8a6d086dcc83a4-orig-774x1024.jpg)
Cable Lubrication Guidelines
![](https://www.tolomatic.com/wp-content/uploads/2022/06/ce70933124194ce2998fcf0e0e693024-orig-1024x475.png)
TC 05/07/10 Dimensions
![](https://www.tolomatic.com/wp-content/uploads/2022/06/f14c342cc30643d4867a499835bea800-orig-1024x448.jpg)
TC 15 Dimensions
![](https://www.tolomatic.com/wp-content/uploads/2022/06/f3fa0aed5d3a422fbc1efa3152e2297b-orig-1024x488.jpg)
Information Center:
English
Chinese
German
Spanish
Catalogs & Brochures
Flyers
Guides
Parts & Maintenance Sheets
Repair Kits
Terms & Conditions
Use the links below to locate a Tolomatic distributor in your area, find out more information on how to specify and configure your actuator, service parts information, and selection guidelines and tips.
Find a Tolomatic distributor
TC Selection Guidelines & Bending Moments
![](https://www.tolomatic.com/wp-content/uploads/2022/06/350362187f1a4fb7bd4d40cc42b197f5-orig-805x1024.jpg)

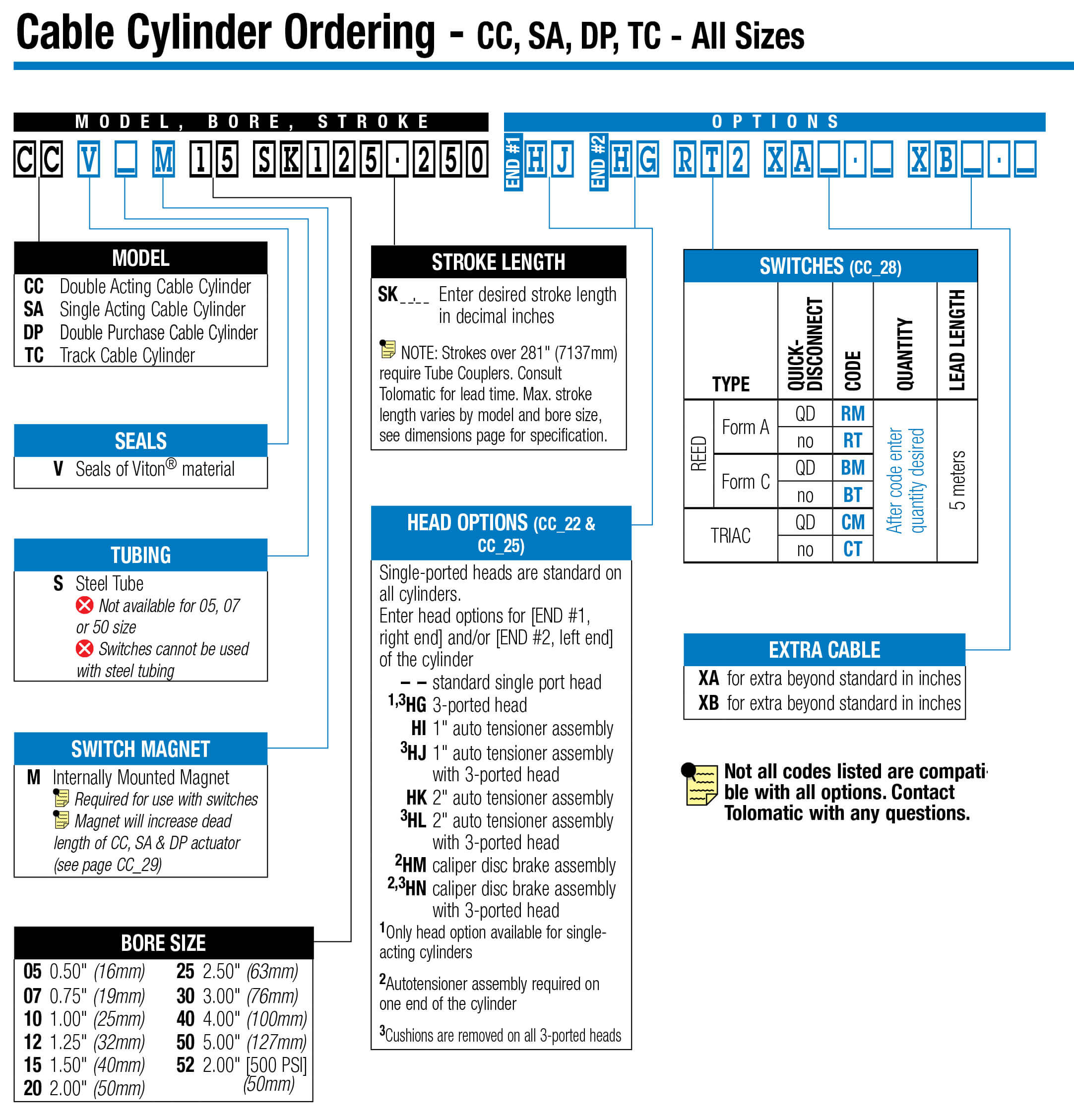

TC Ordering
![](https://www.tolomatic.com/wp-content/uploads/2022/06/7c3b808e8e654617a36513a68d58ed10-orig-982x1024.jpg)
TC Service Parts Ordering
![](https://www.tolomatic.com/wp-content/uploads/2022/06/ab9f04e565a64486bc56591a8ab7cee0-orig-739x1024.jpg)
