JVL Integrated Servo & Stepper Motors

Tolomatic and JVL Partnership

Tolomatic has partnered with JVL to provide integrated servo and stepper motors paired with Tolomatic’s broad range of configurable actuators. JVL’s innovative motors are integrated with the drive control electronics, providing a flexible motion control solution that can exist outside of the control cabinet.

JVL Integrated Motor Features:

  • High efficiency, quiet and maintenance free operation
  • Fast installation with fewer opportunities for wiring errors
  • Easy setup and configuration, featuring JVL’s MacTalk® software
  • Broad range of communication option
  • Added features like Safe-Torque-Off and Absolute multi-turn encoders on listed premium configurations

JVL Resources

JVL MAC Flyer

JVL MIS Flyer

User Manual for All MAC Motors + All BASIC Communication Modules

User Manual for All Closed Loop MIS motors + All BASIC Communication Options

Supplementary User Manual for Industrial Ethernet Communication

User Manual for Open Loop MIS Motors

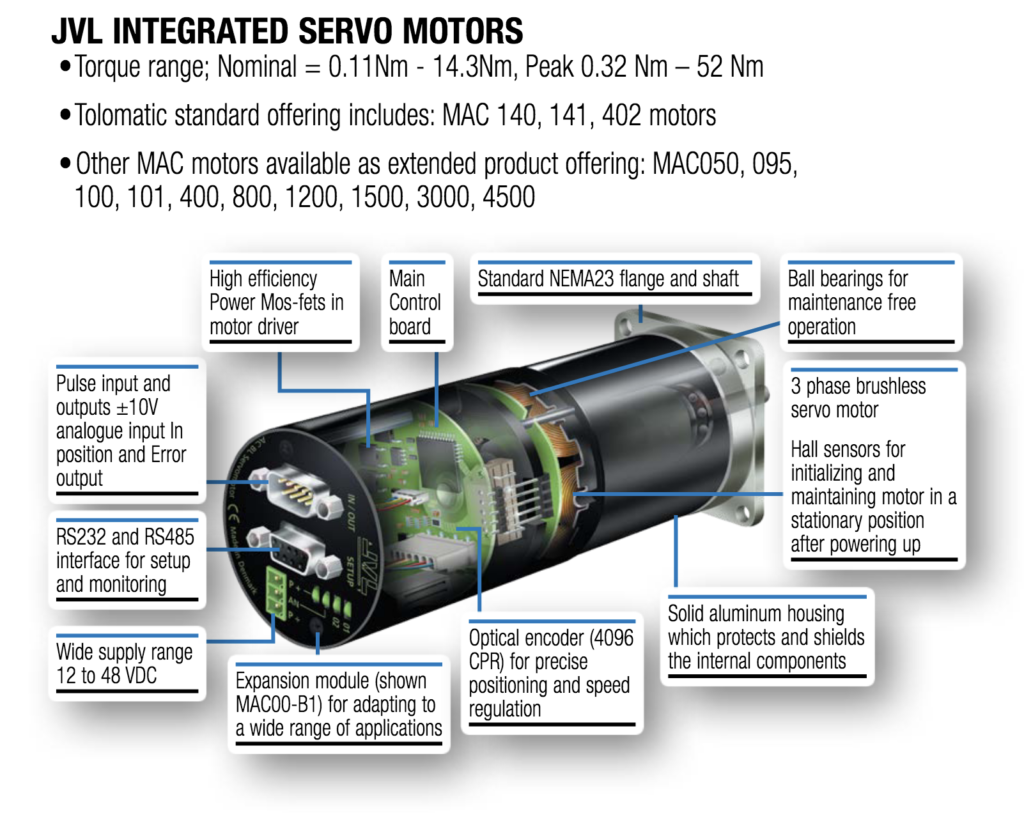

JVL Integrated Servo Motor Features

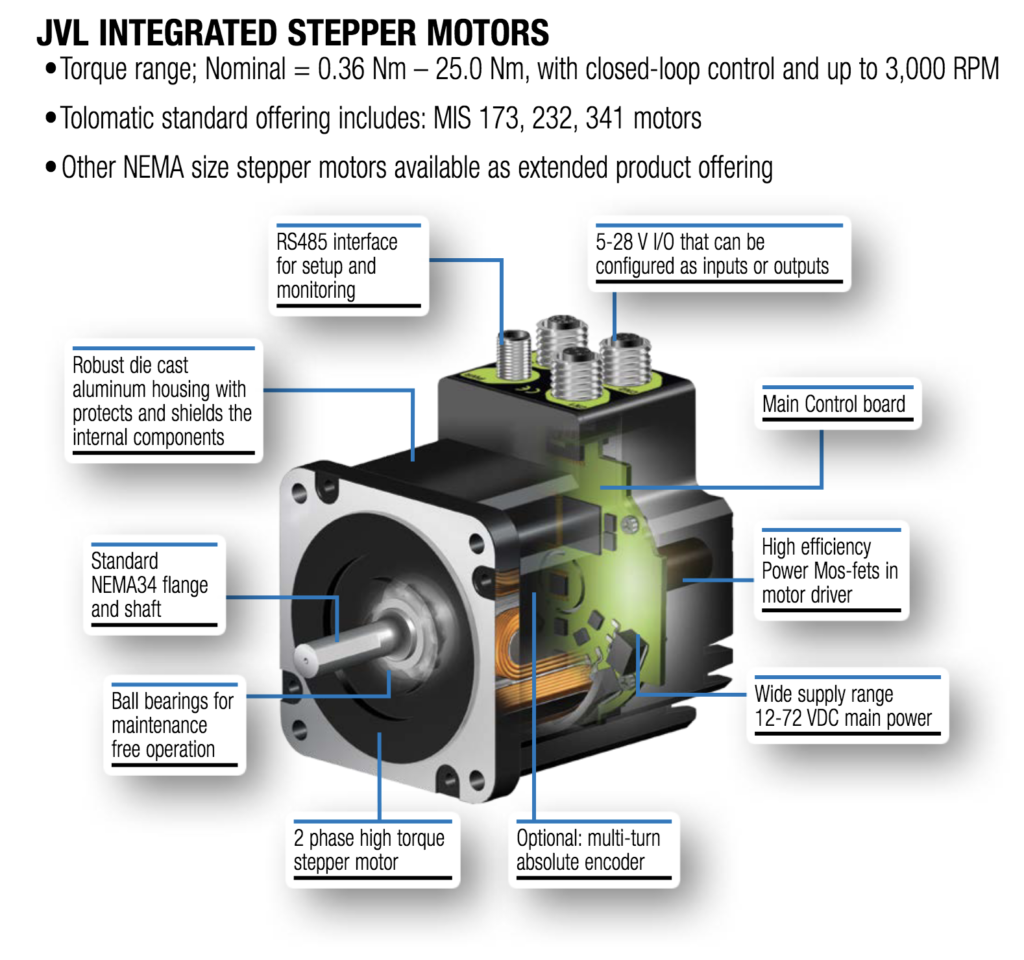

JVL Integrated Stepper Motor Features

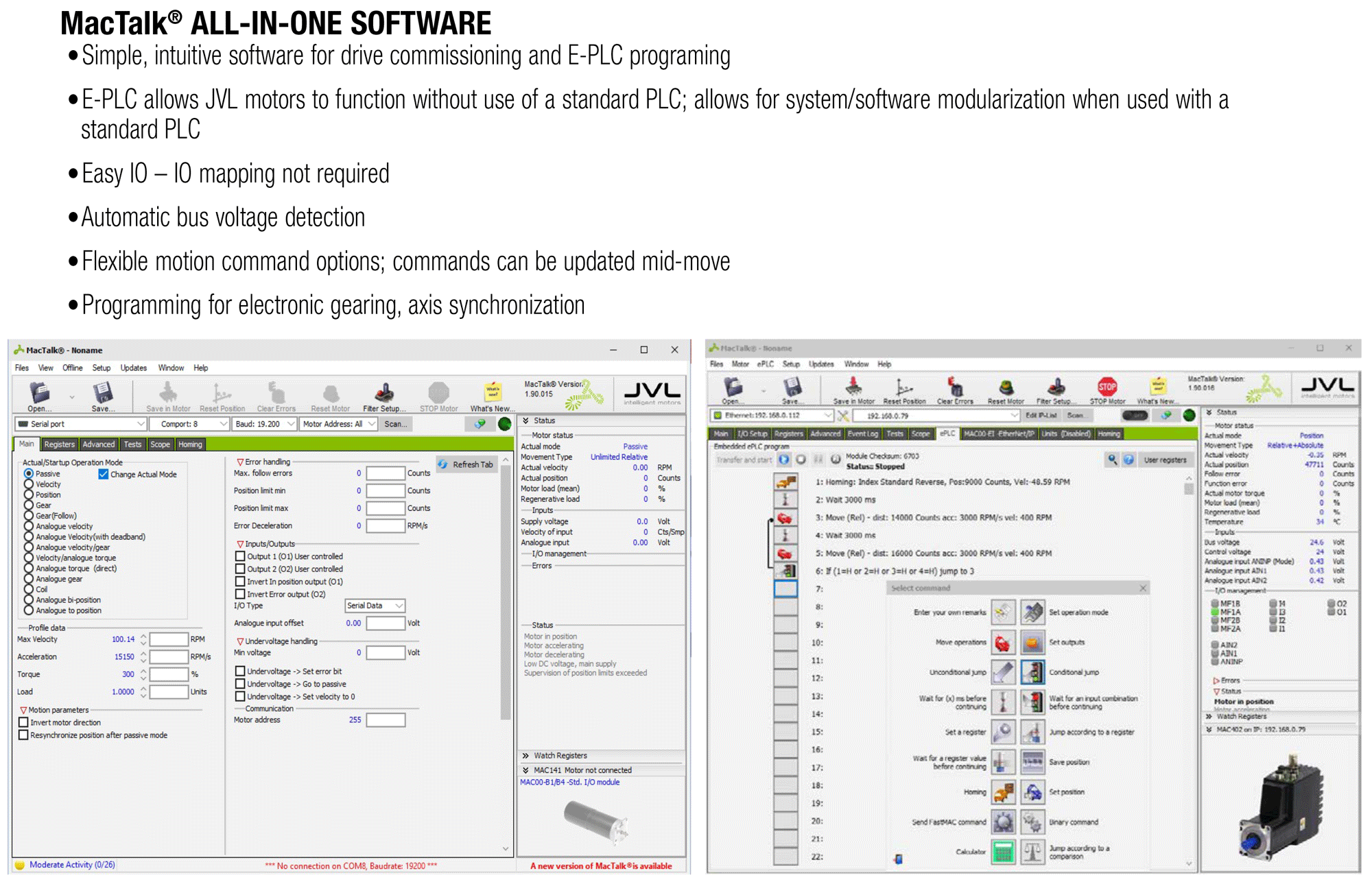

MacTalk® All-in-One Software Feature

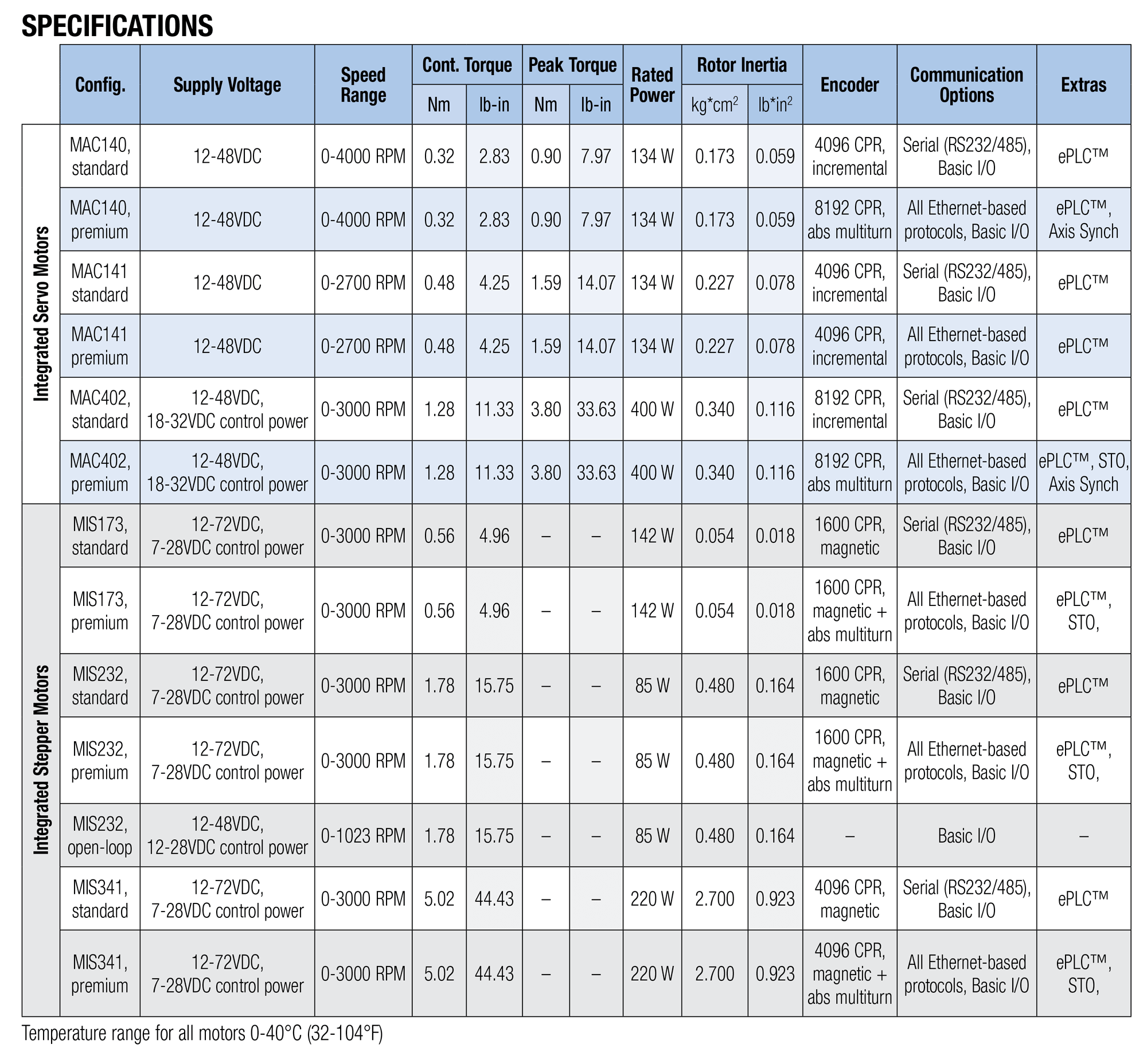

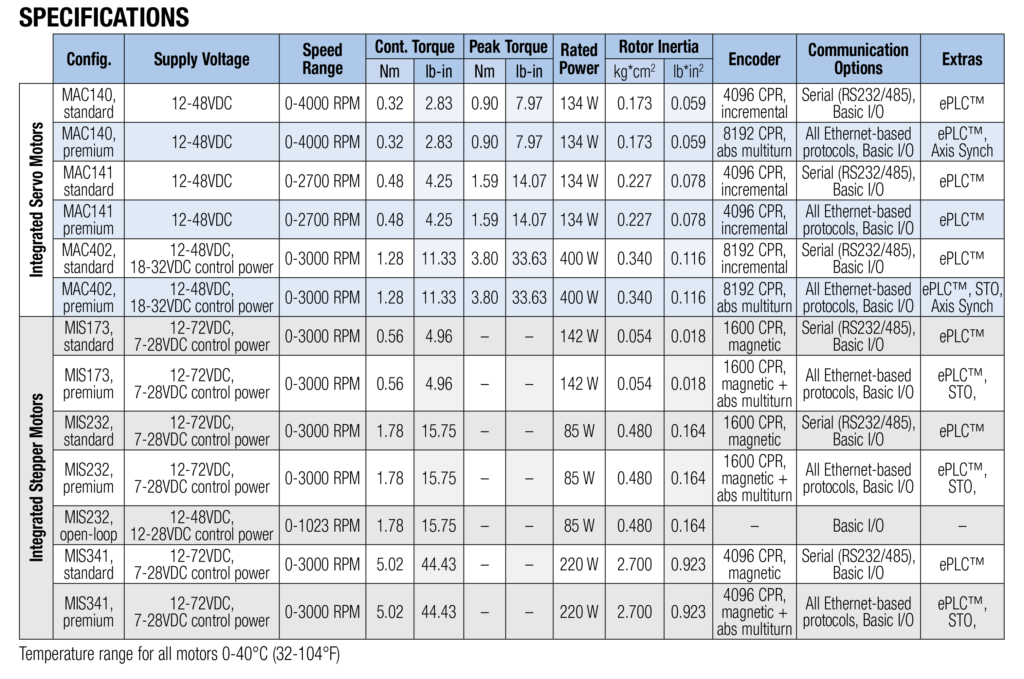

JVL Specifications

MAC140 standard motor torque graph

MAC140 premium motor torque graph

MAC141 motor torque graph

MAC402 motor torque graph

MIS173 motor torque graph

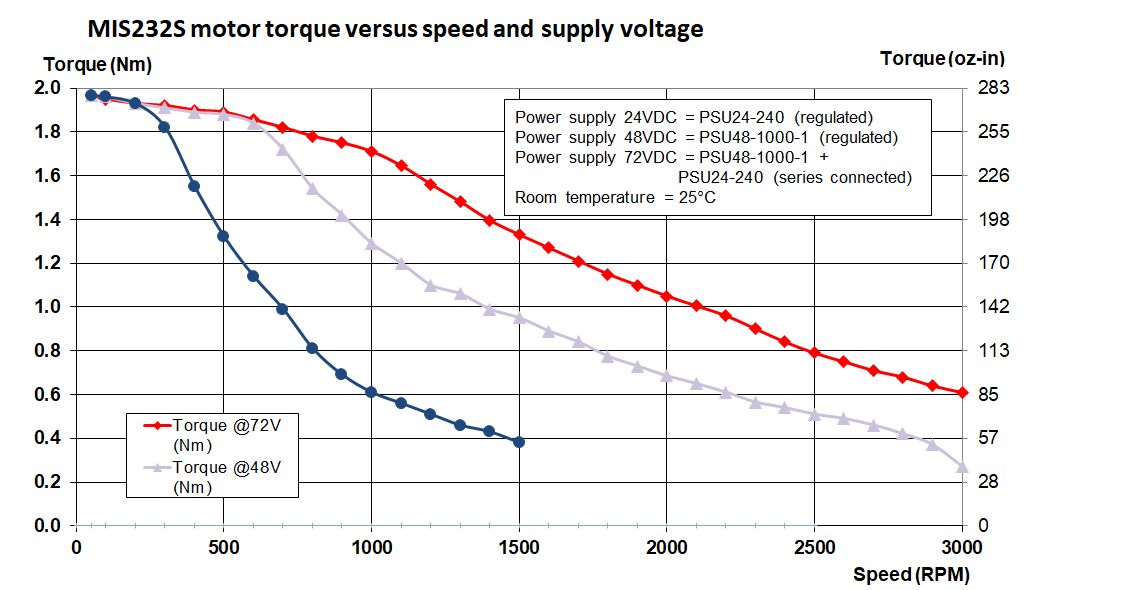

MIS232 motor torque graph

MIS232 open loop motor torque graph

MIS341 motor torque graph

JVL Cables & JVL Codes

Animatronic Camera for Attraction

Product Family: Electric
Product Used: JVL Integrated Servo Motor and ERD Actuator

Small Engine Assembly

Product Family: Electric
Product Used: JVL Servo Motor and RSA Actuator

Can Lid Transfer

Challenge: Pick and place can lid transfer for handling and packaging equipment
Product Family: Electric
Product Used: MXB, JVL

Case Positioning

Challenge: Case positioning of empty bottles for preparation of filling process
Product Family: Electric
Product Used: ERD Electric Actuator with JVL motor/drive

Palletizing Can Lids

Challenge: Indexing can lids in preparation for palletizing by a pick & place robot.
Product Family: Electric
Product Used: MXB Rodless Belt-Drive Actuator with JVL Integrated Servo Motor

Powder Filling

Challenge: Filling a variety of container sizes.
Product Family: Electric
Product Used: JVL integrated motor and RSA Electric Rod-Style Actuator

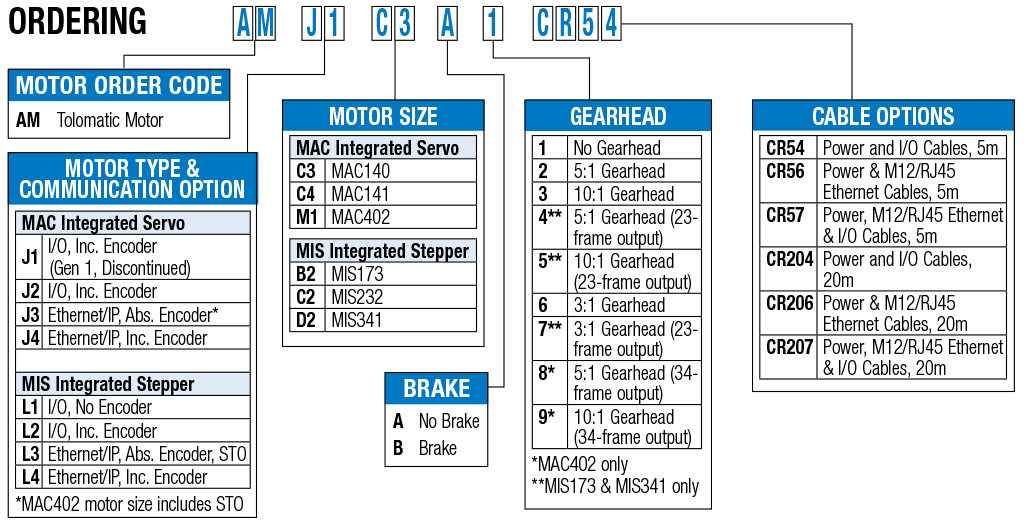

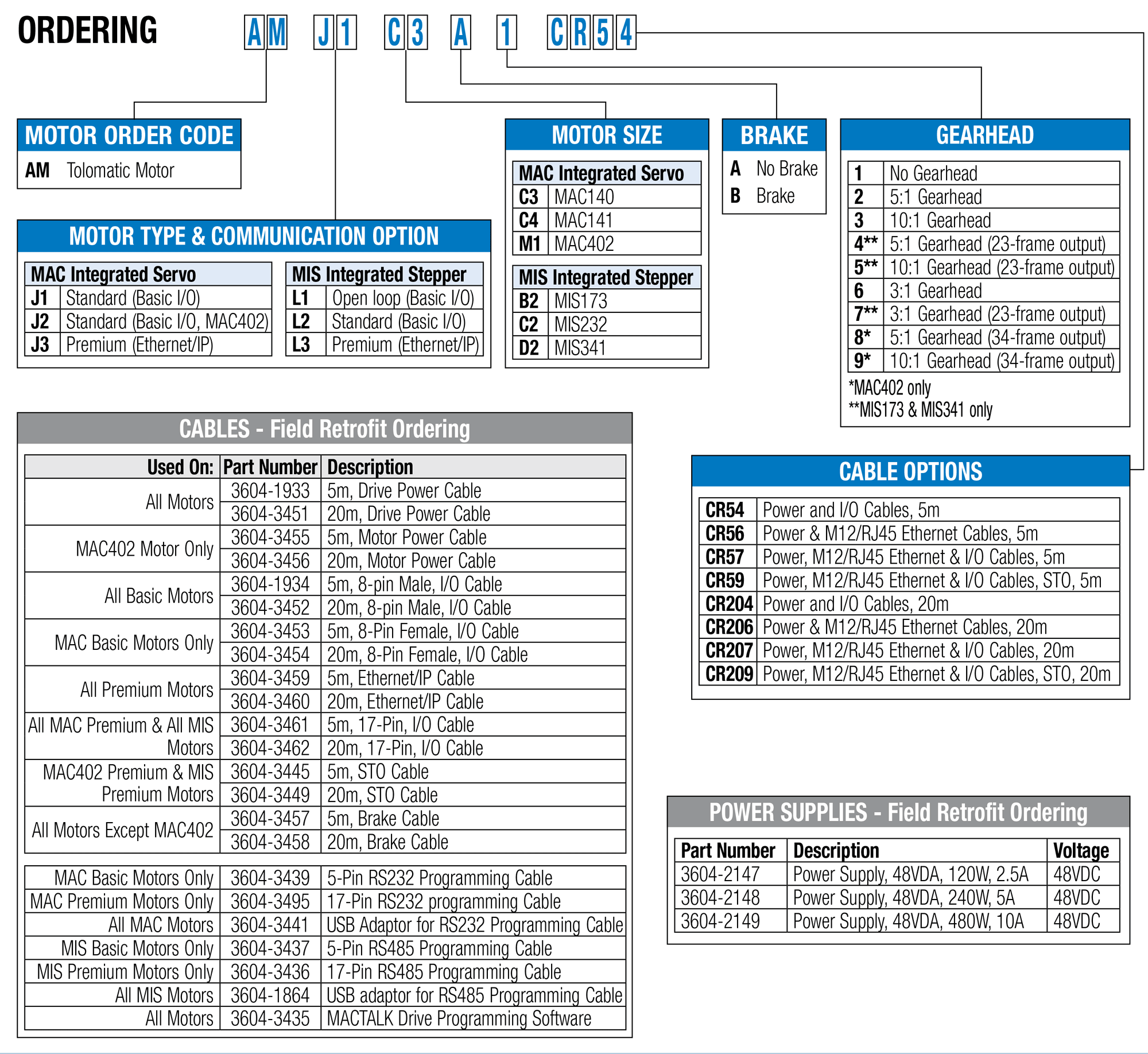

JVL Ordering

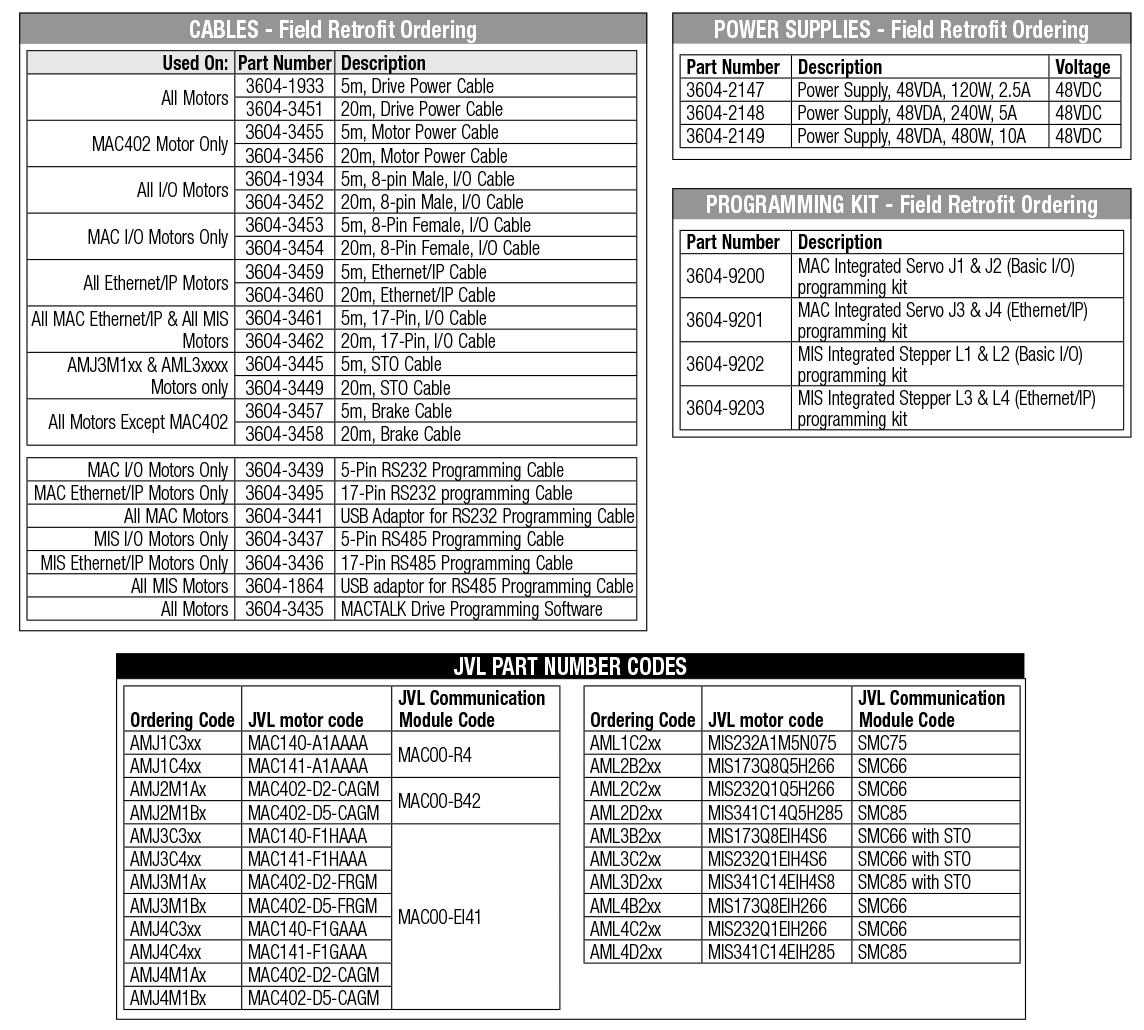

JVL Cables & JVL Codes
