TKB Precision Linear Stages
TKS precision linear actuators offer a dual profile rail with wide, low profile base ideal for XY tables/stages and XYZ systems.
The TKS precision linear actuator is designed for applications carrying moderate load and requiring high precision in parameters such as flatness, straightness and accuracy. XY or XYZ tables/stages can easily be created using the TKS Precision Linear Actuator. Two parallel profiled rails with four recirculating ball linear guides provide consistent and precise performance to the TKS Precision Linear Actuator.
- 3 Compact actuators with corresponding belt sizes.
- System payloads ranging from 100 to 750 lb
- Strokes in any incremental length up to 96"
TKB Features

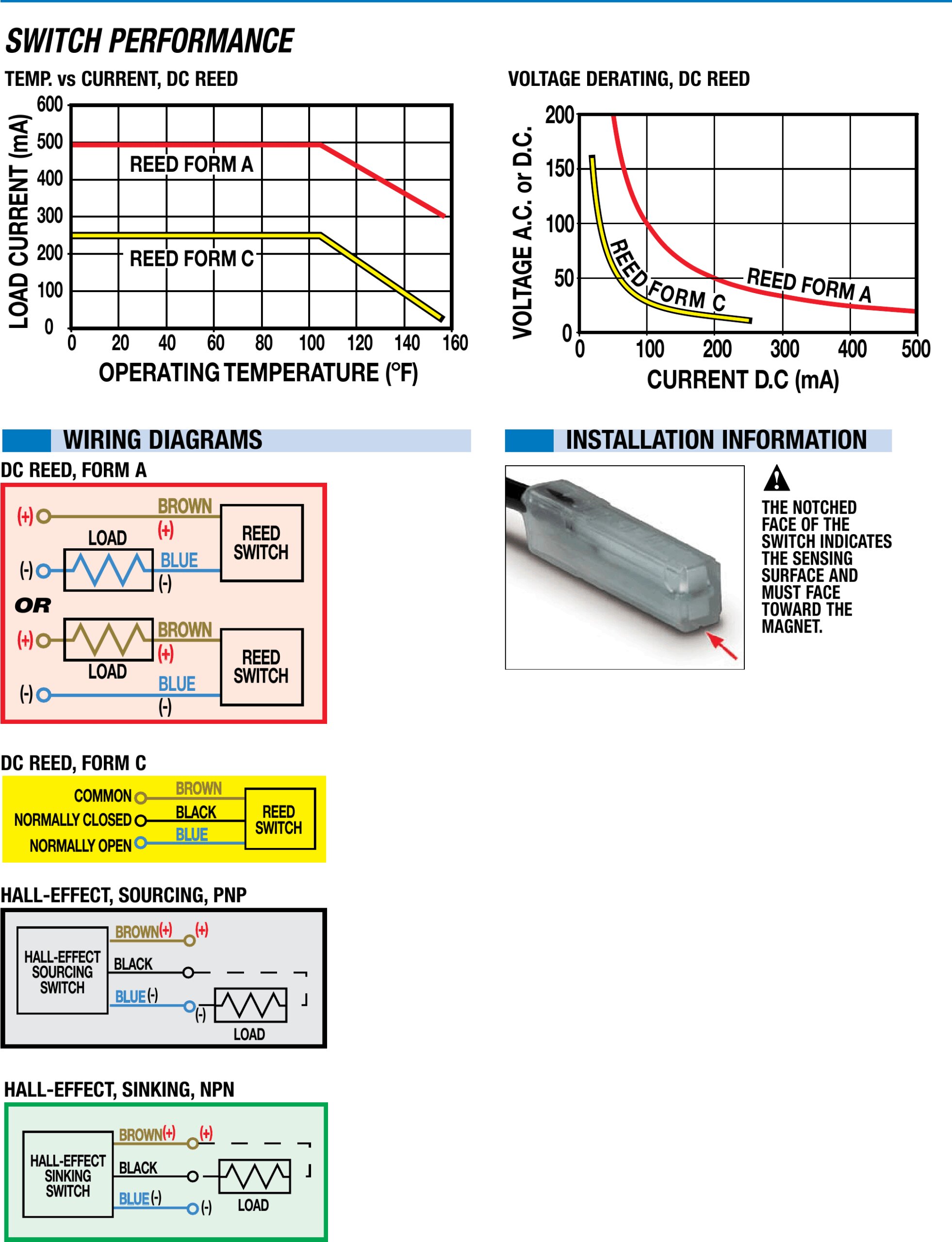

TKB Switch Performance & Wiring
TKB Load Deflection & Auxiliary Bending
TKB Belt & Speed Specifications

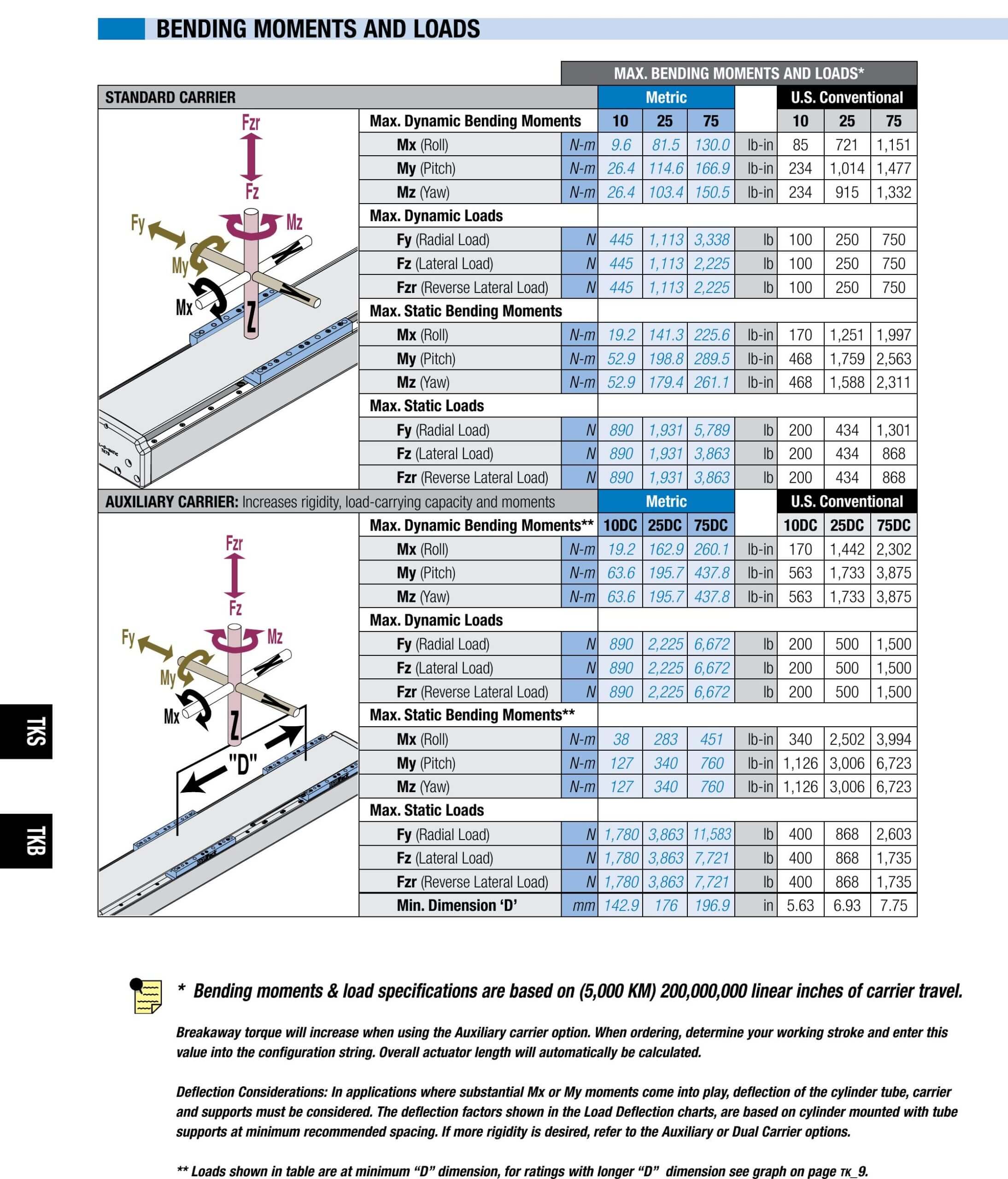

TKB Bending Moments & Loads

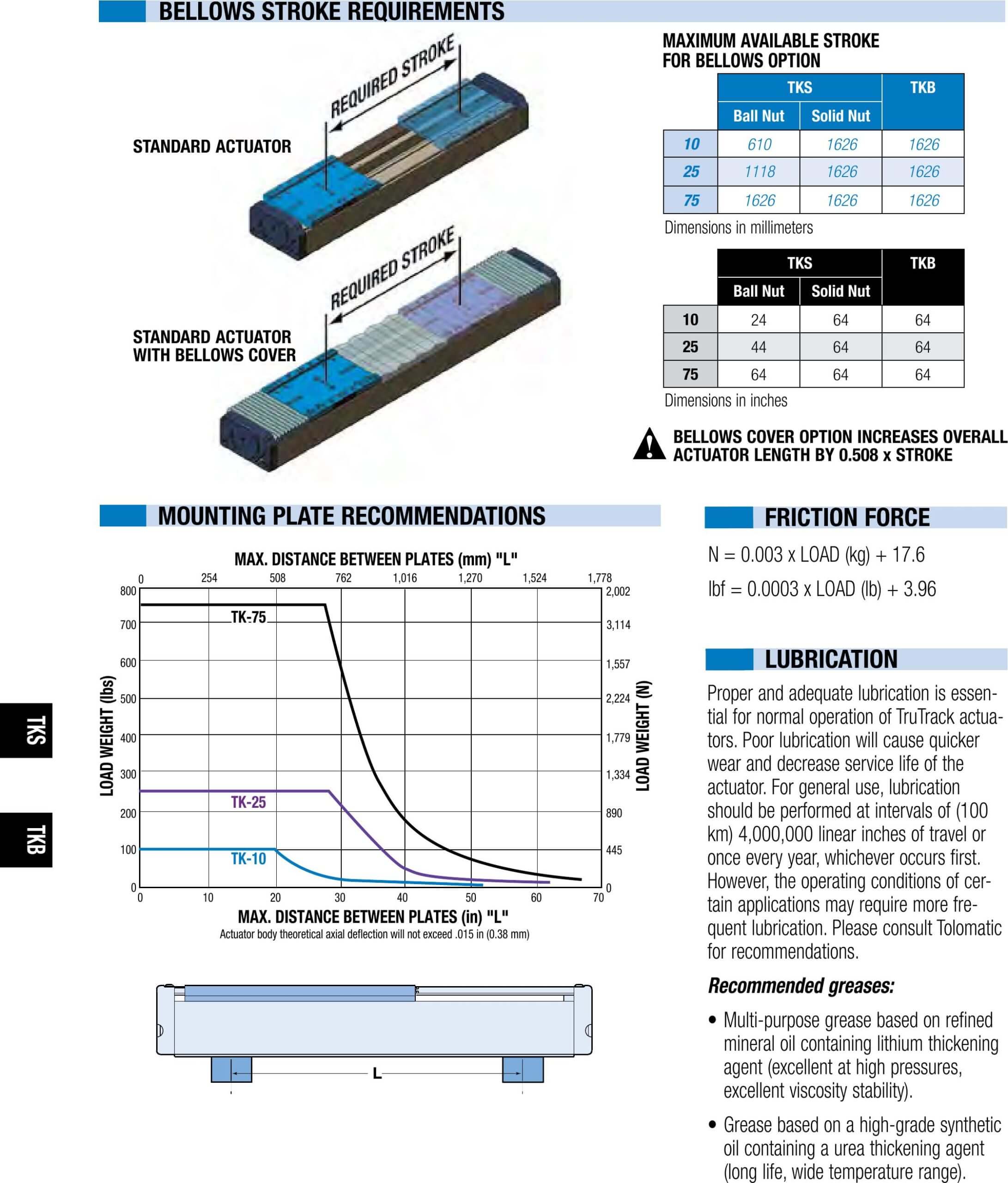

TKB Bellow Stroke & Mounting Plate
TKB Inertia, Torque & General Specifications
TKB Switch Specs
universal switch specifications
TKB Actuator Dimensions
TKB Mounting Dimensions
TKB Reduction Drive Motor Mounting Dimensions
