RSH Hygienic Electric Actuators

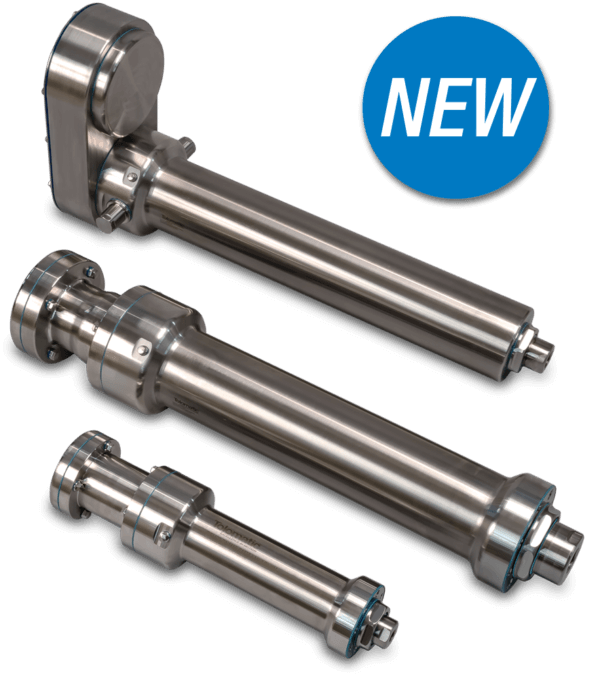

RSH hygienic electric actuators feature 316 stainless steel construction and an IP69K ingress rating.
Tolomatic’s RSH line of hygienically designed stainless steel electric actuators are the perfect solution for food and beverage applications where higher forces are required for pressing, pumping, cutting or slicing. Standard motor mounts for a wide variety of stainless steel servo motor manufacturers, to make your system a complete Stainless Solution.
- 3 body sizes with 316 series stainless steel construction
- Force/thrust capabilities up to 7,943 lbf (35.3 kN)
- Stroke lengths up to 48 inches (1.2 m)
- Ball and roller screw options
- IP69K standard protection against high pressure washdown
Features & Ordering
Download the RSH Brochure for full details on features

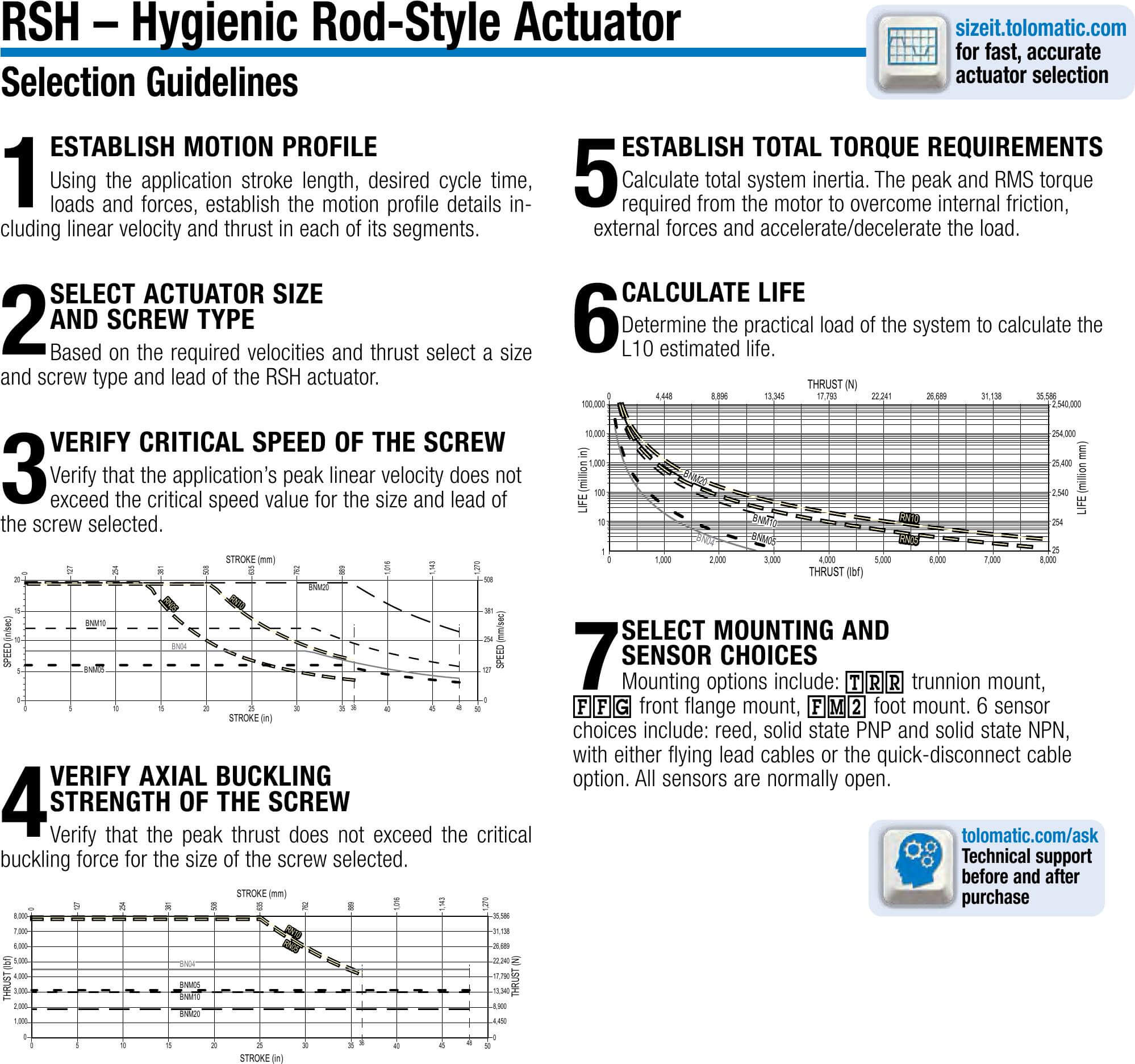

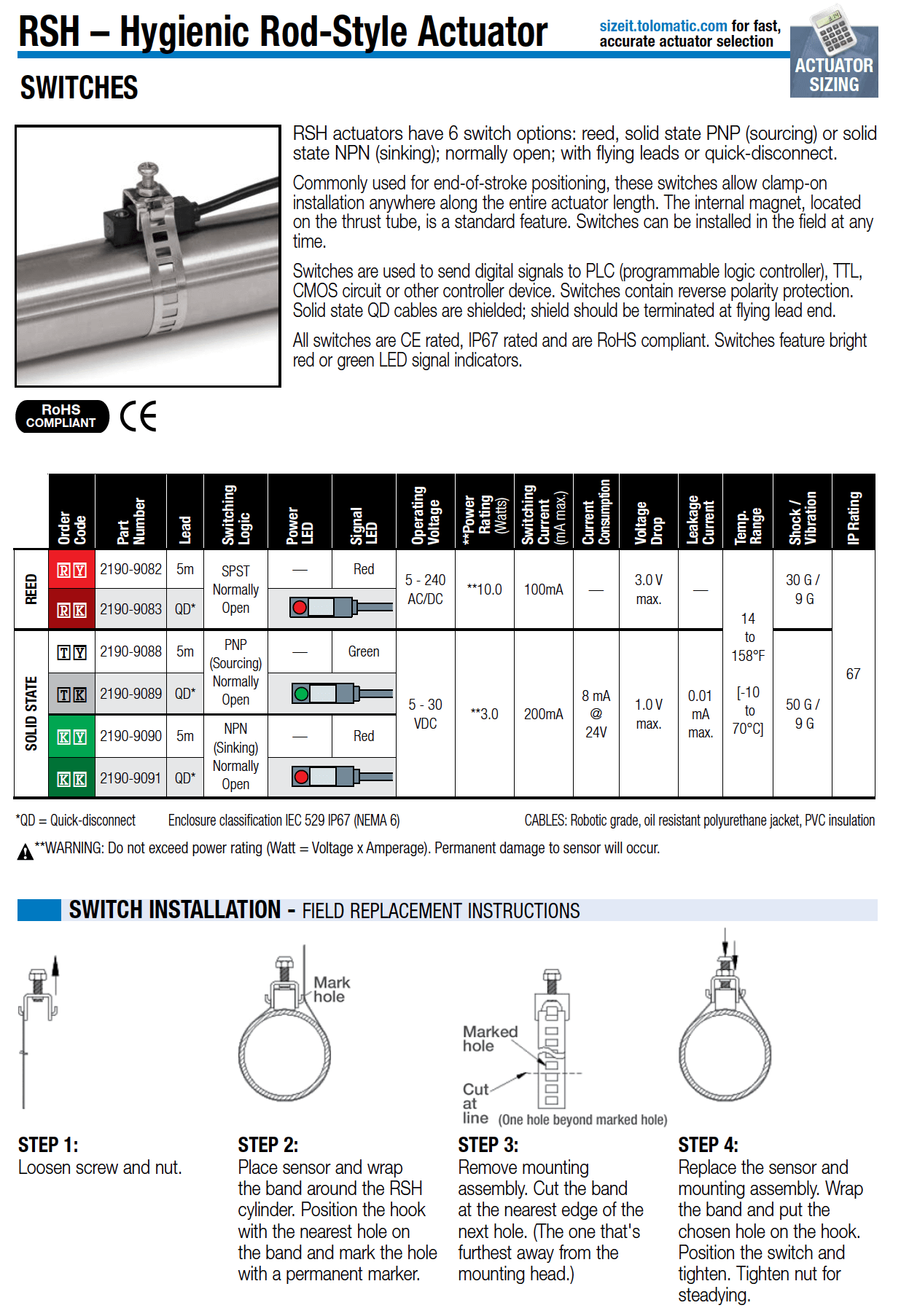

RSH Features

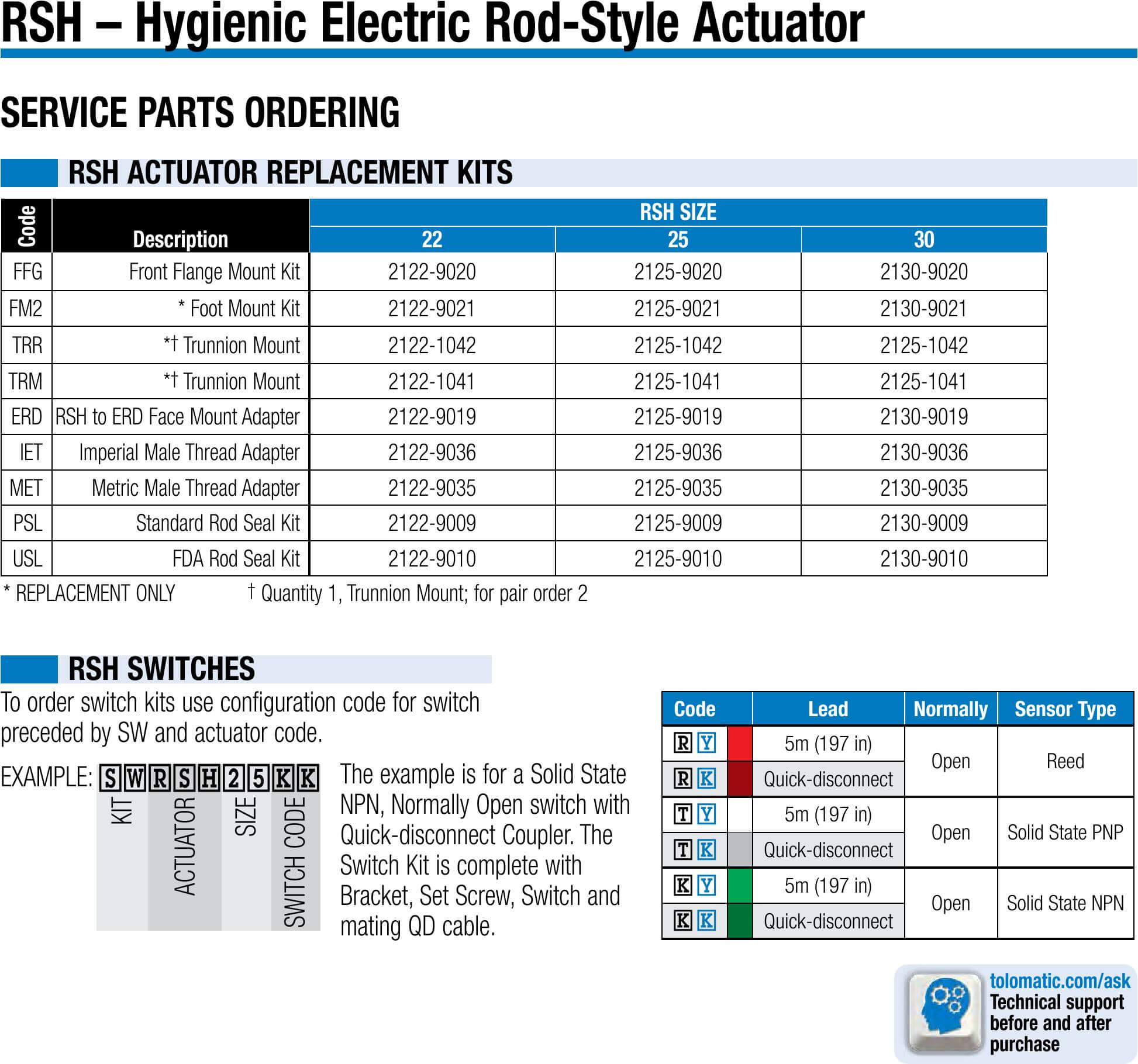

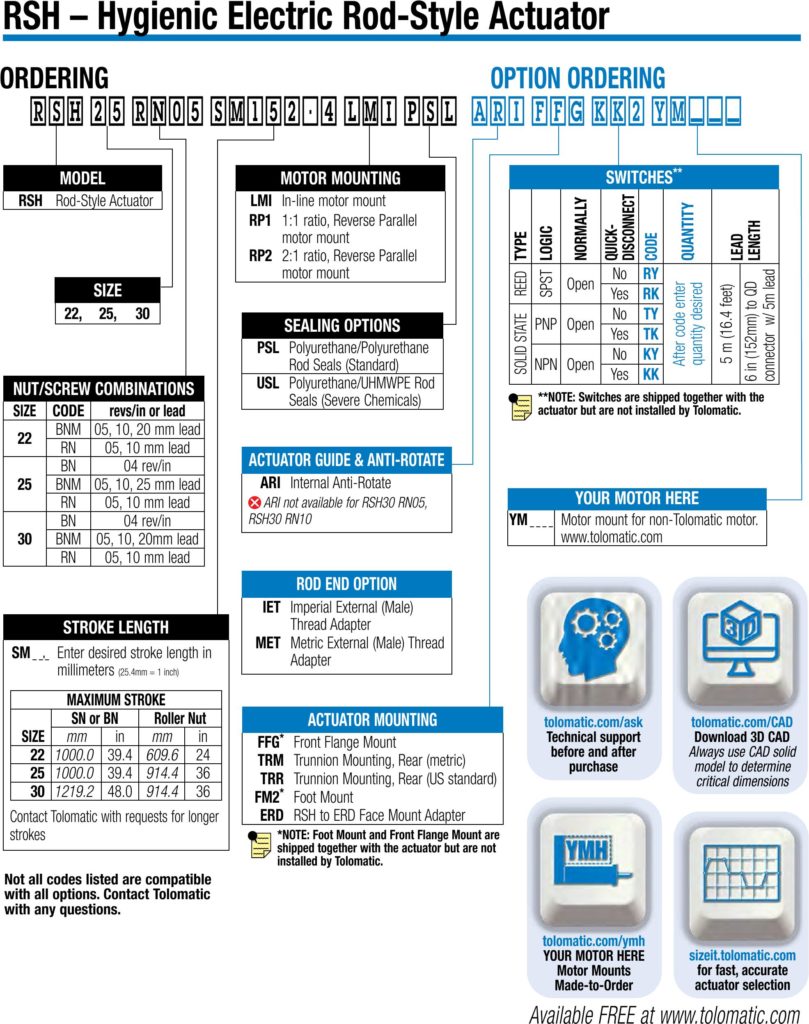

RSH Ordering

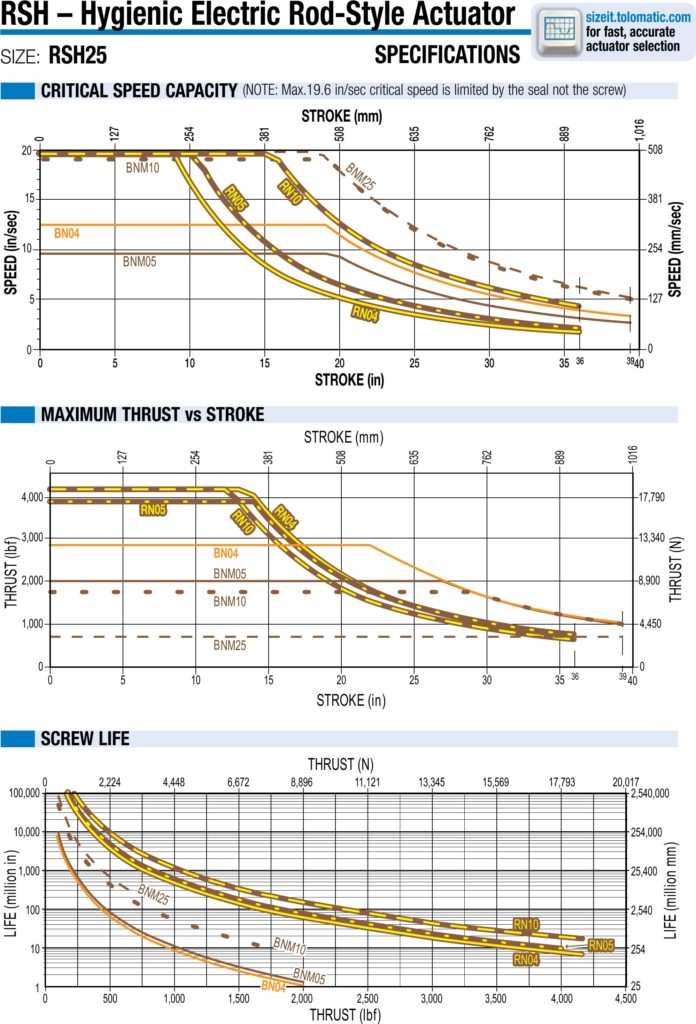

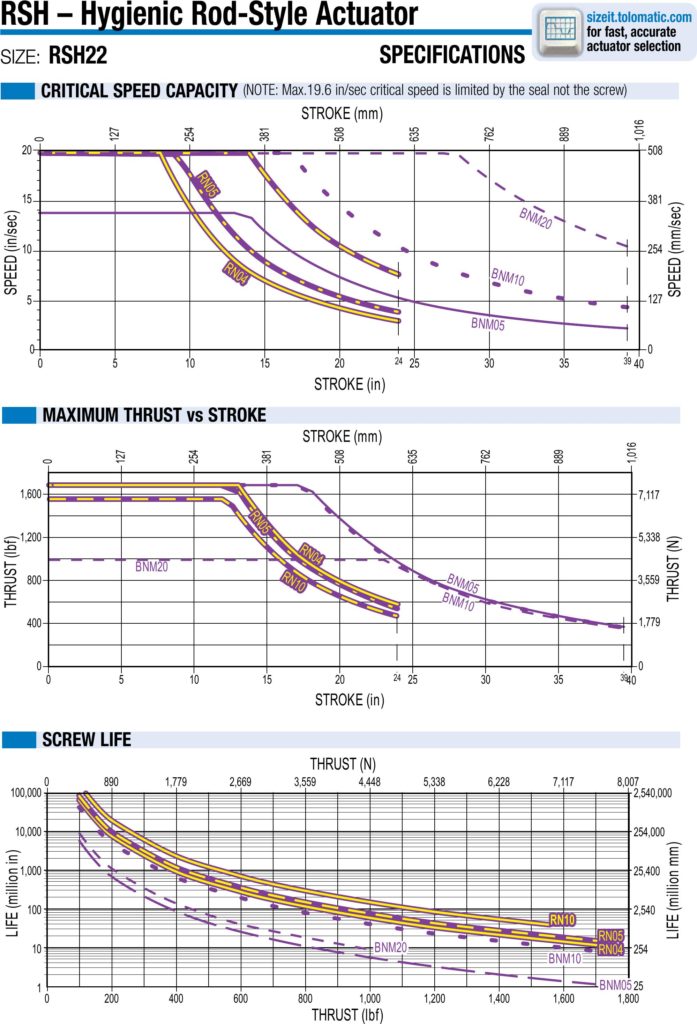

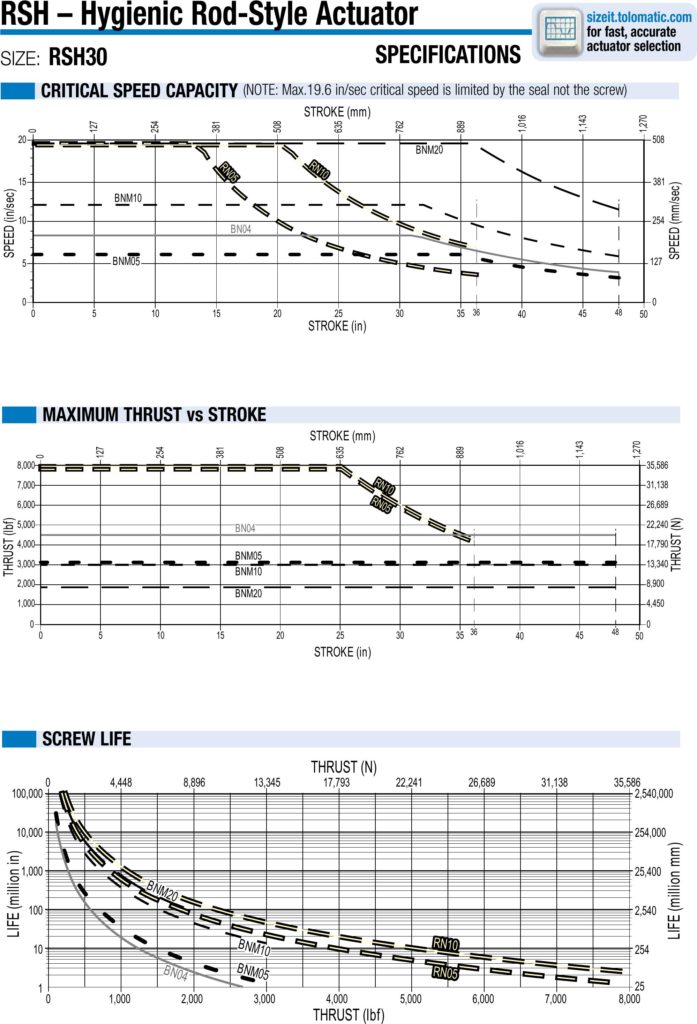

Specifications
| Size | RSH 22 | RSH 25 | RSH 30 |
|---|---|---|---|
| Standard | 39.4 in. | 39.4 in. | 48 in. |
| Metric | 1,000 mm | 1,000 mm | 1,219 mm |
| Size | RSH 22 | RSH 25 | RSH 30 |
|---|---|---|---|
| Standard | 1,700 lbf | 4,159 lbf | 7,943 lbf |
| Metric | 7,562 N | 18,500 N | 35,330 N |
| Size | RSH 22 | RSH 25 | RSH 30 |
|---|---|---|---|
| Standard | 19.6 in/sec | 19.6 in/sec | 19.6 in/sec |
| Metric | 498 mm/sec | 498 mm/sec | 498 mm/sec |

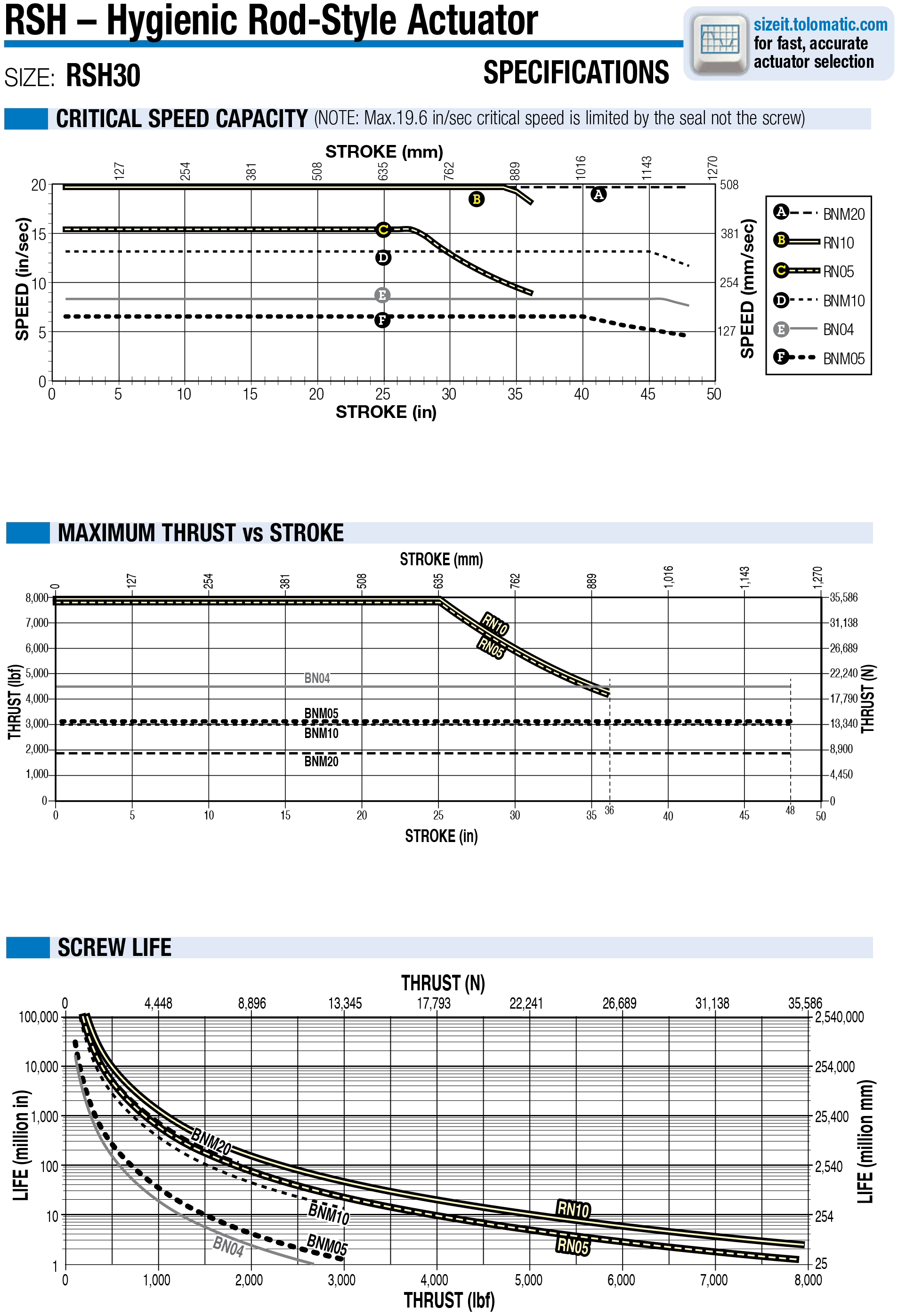

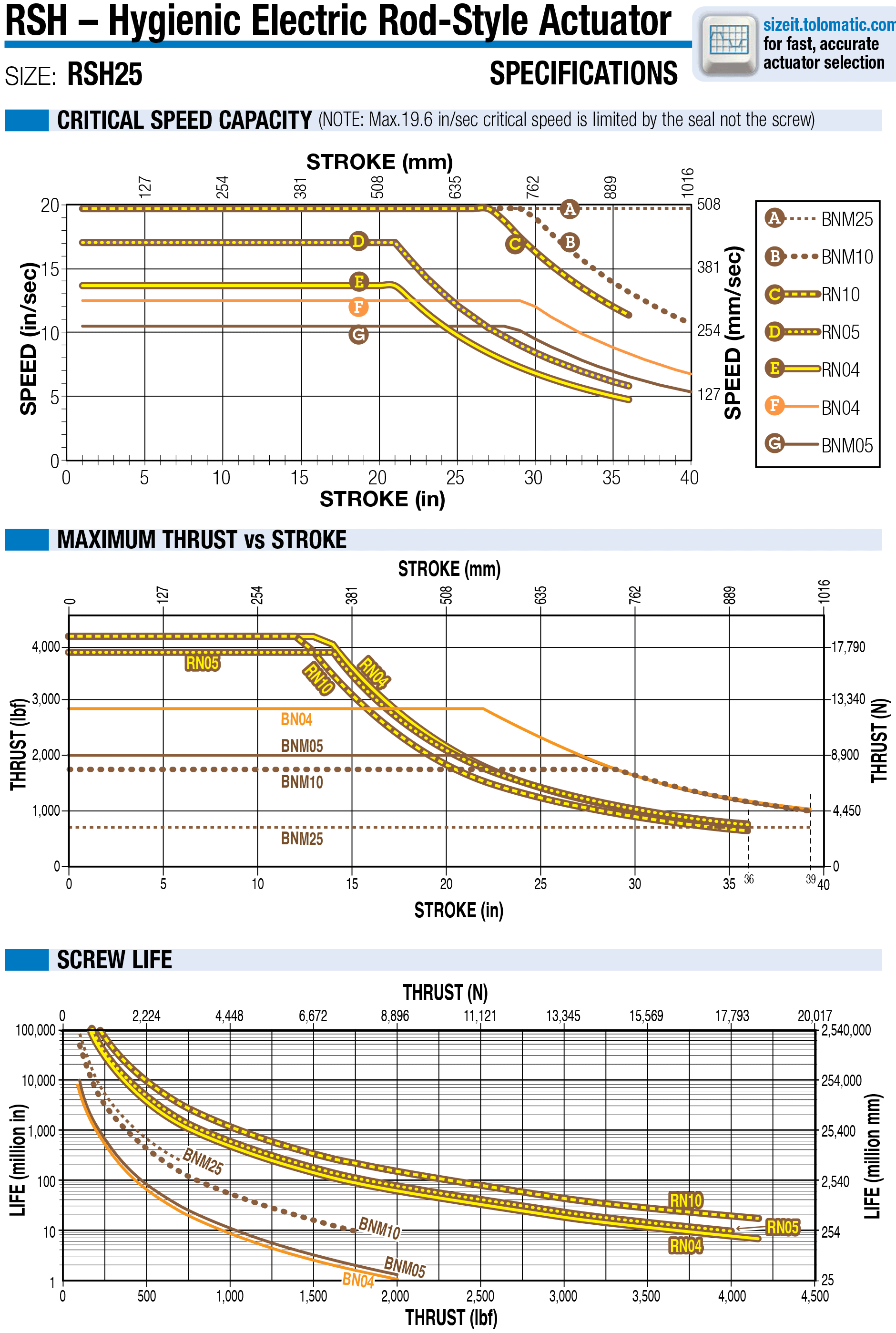

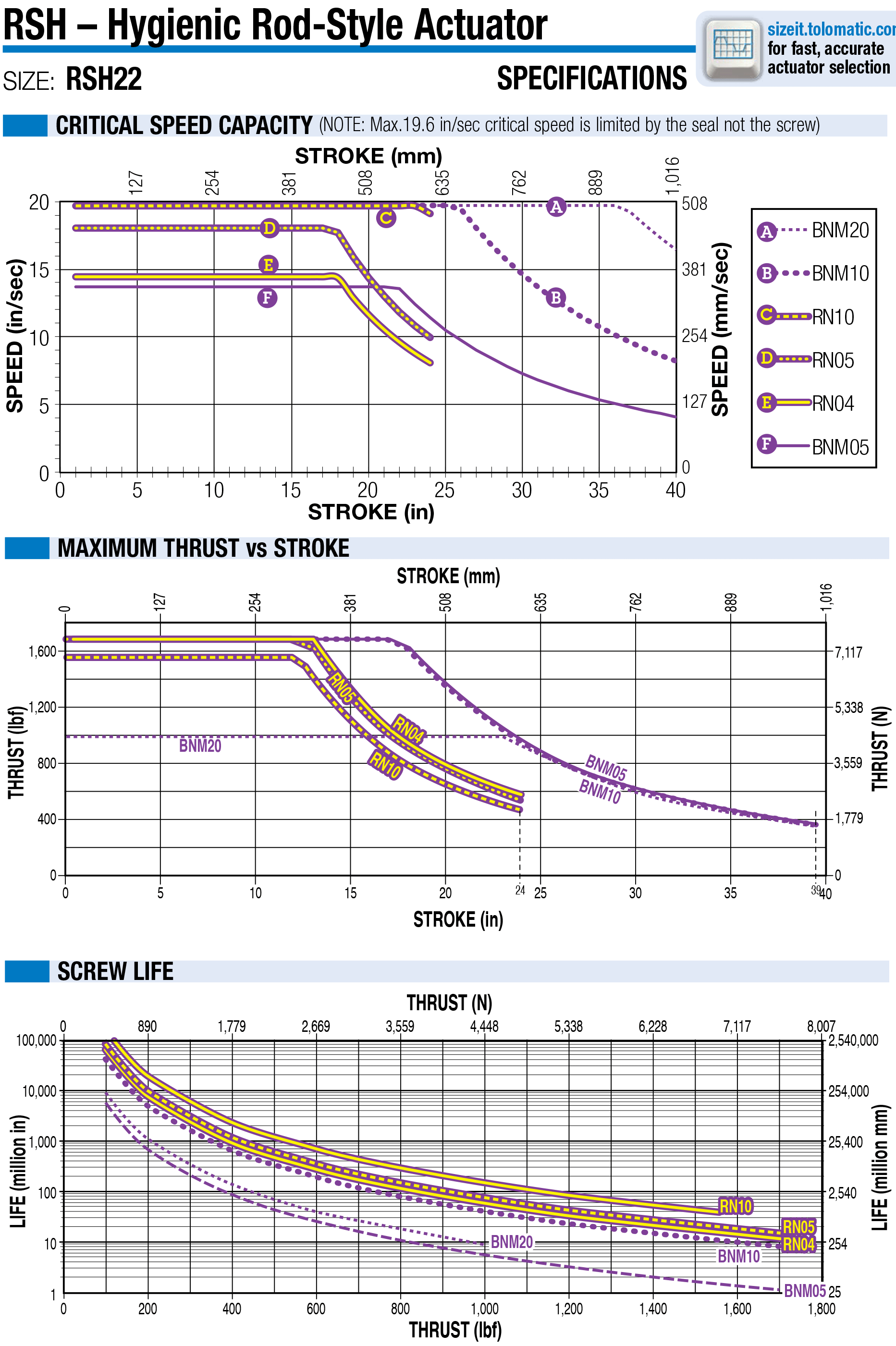

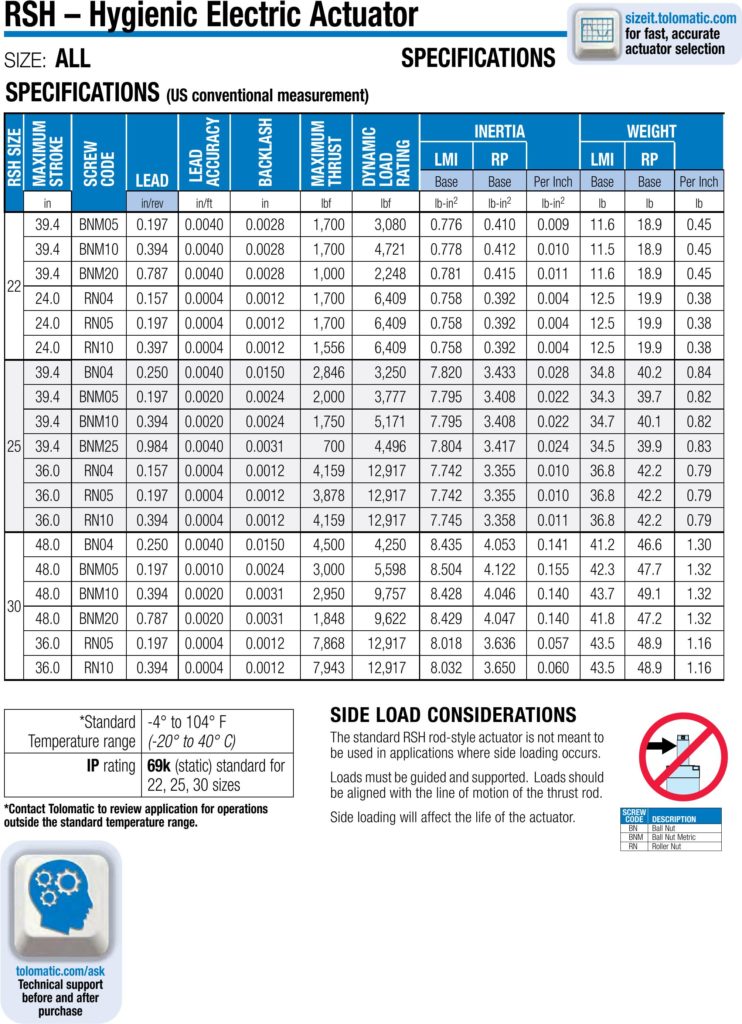

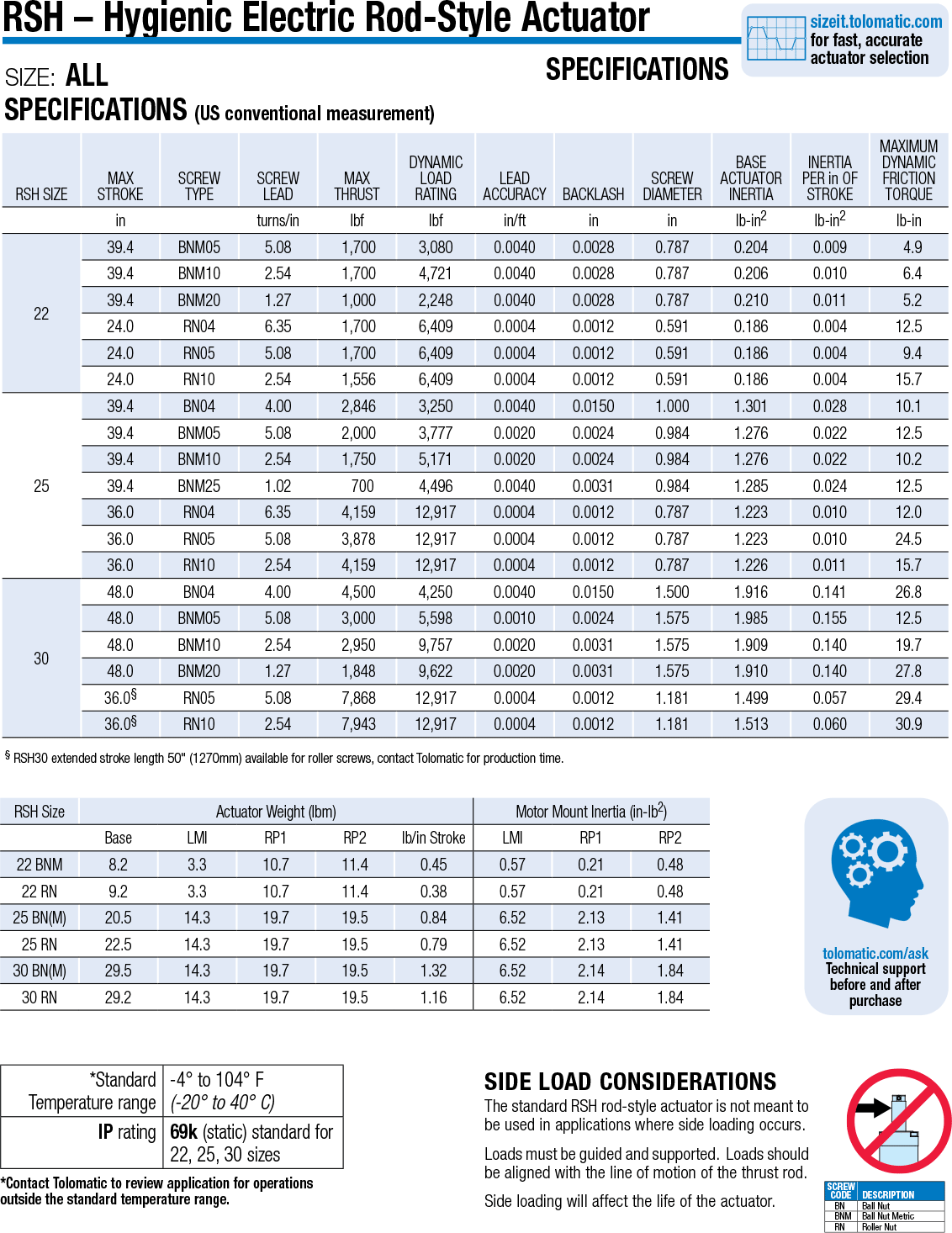

Specifications RSH Hygienic US Measurements

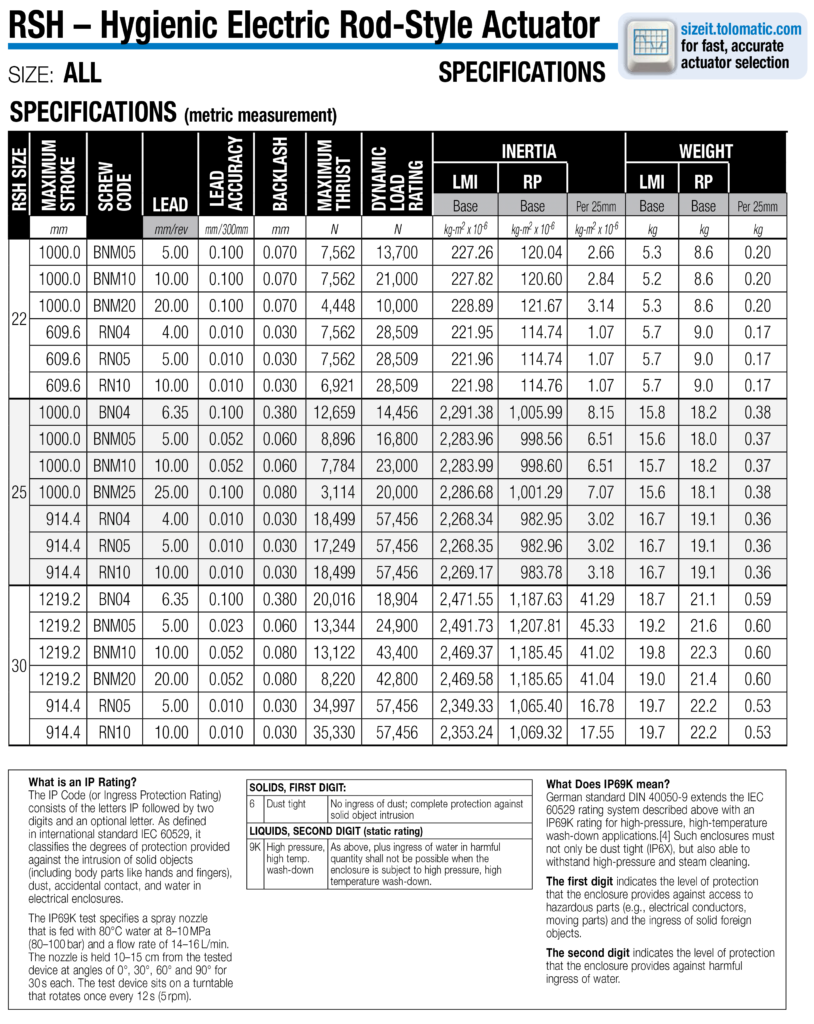

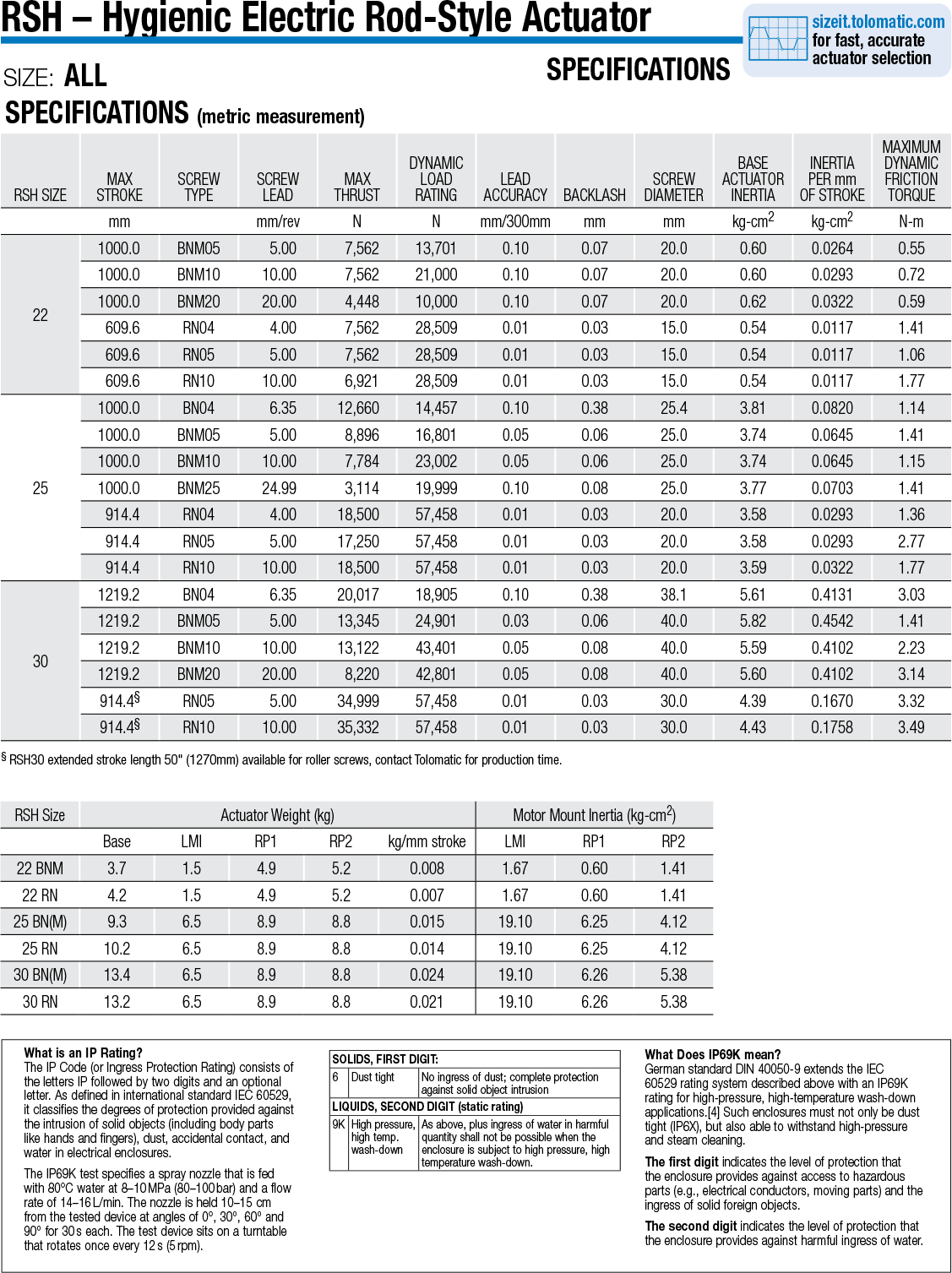

Specifications RSH Hygienic Metric Measurements

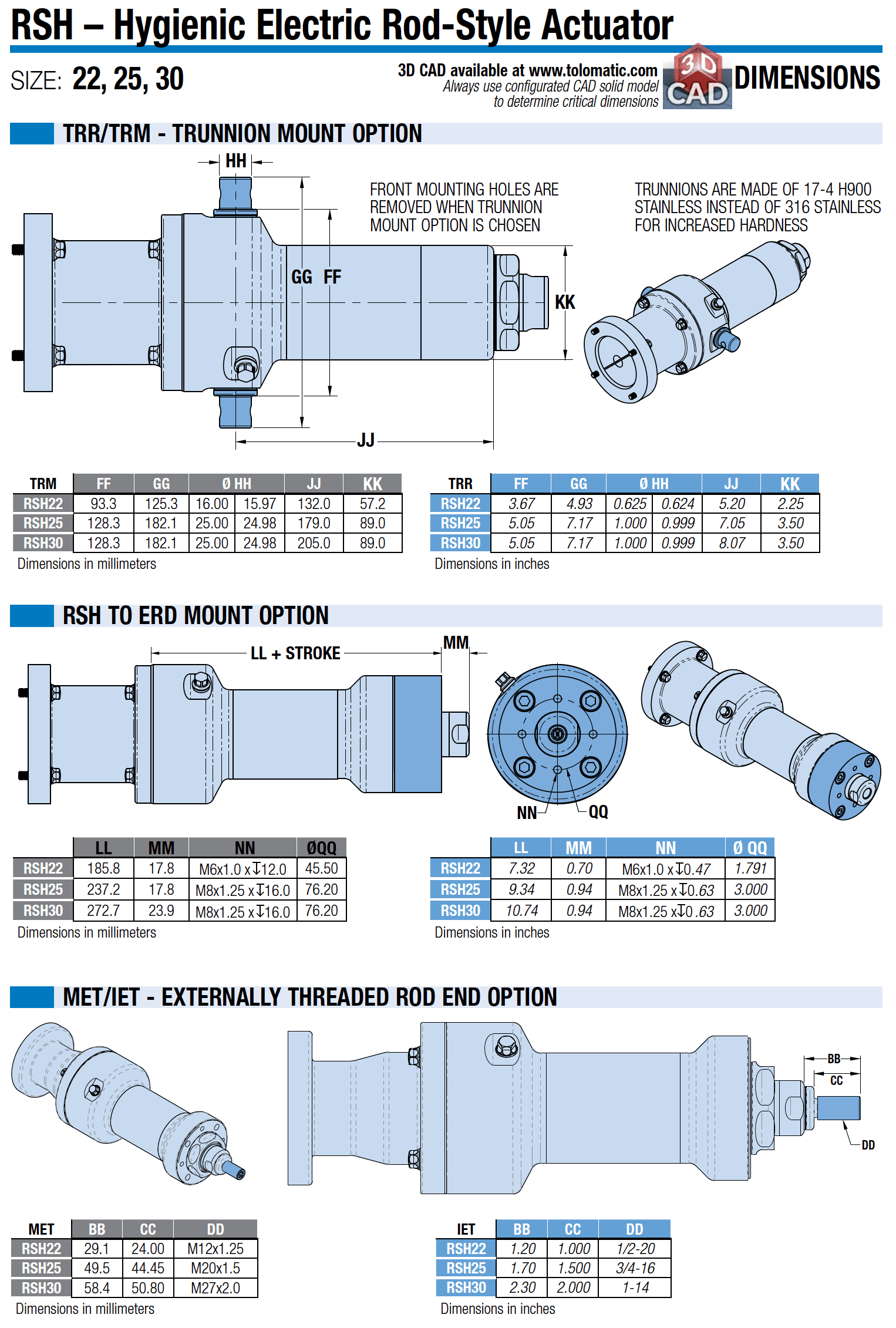

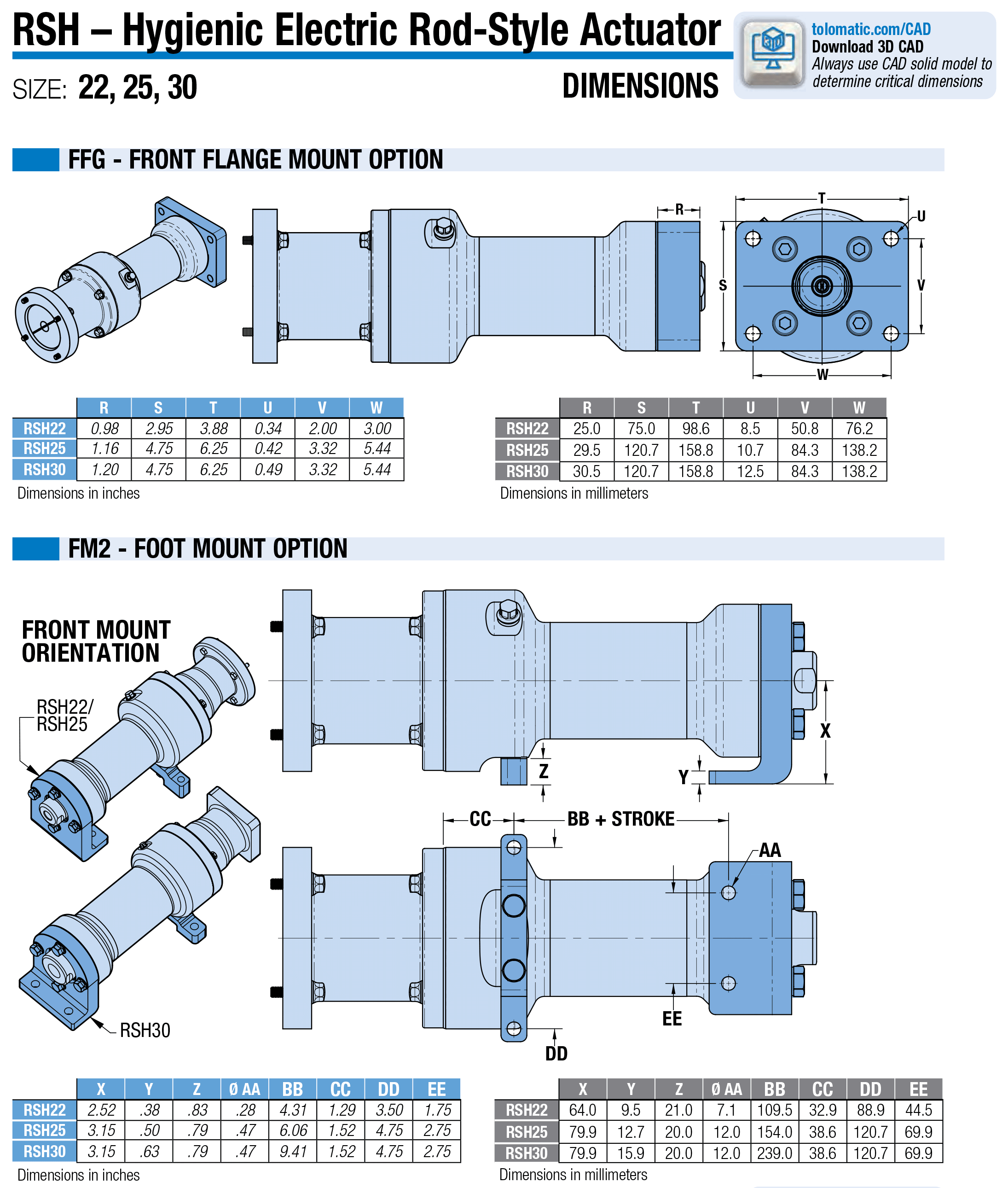

Dimensions

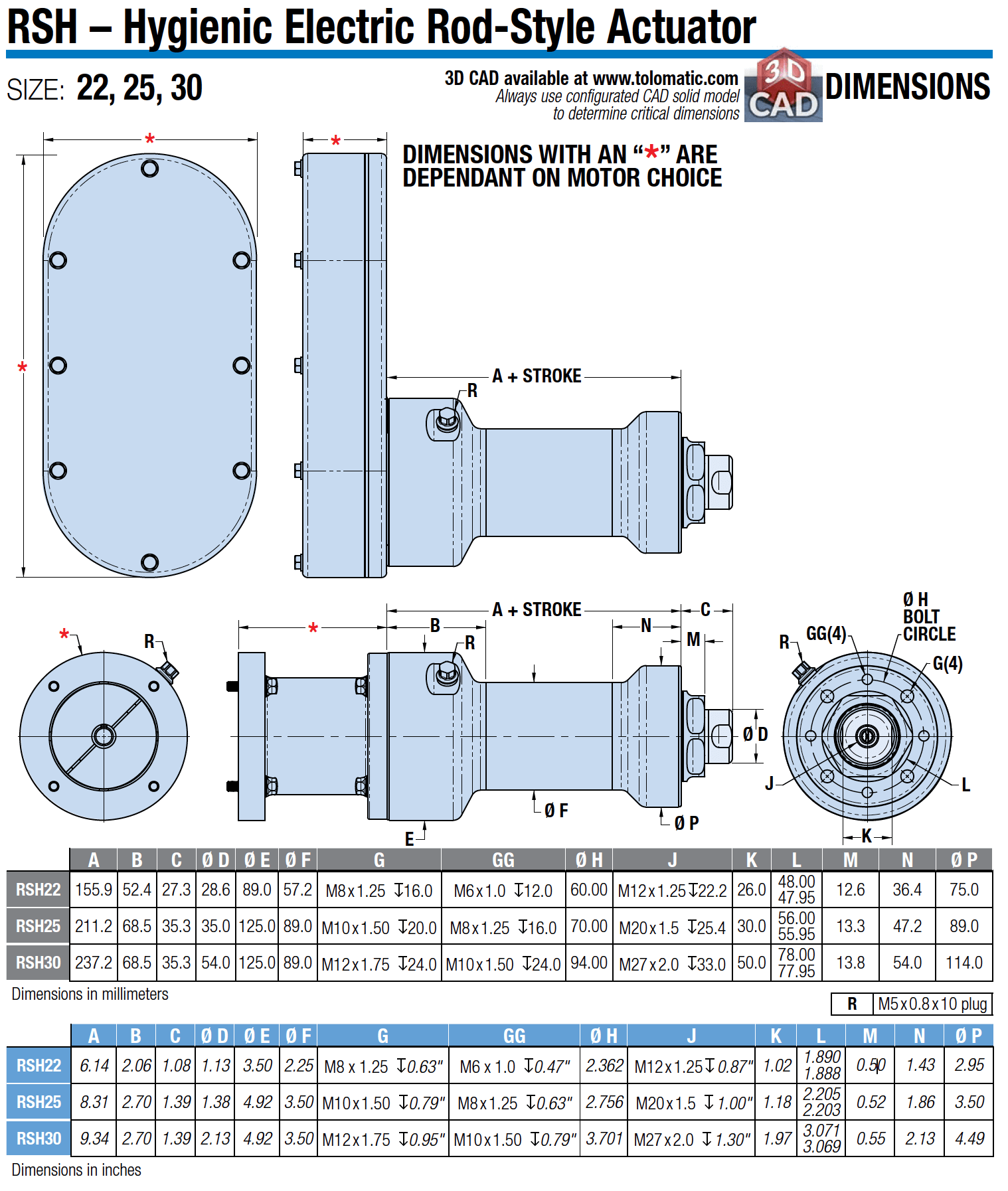

RSH 22, 25, 30 Dimensions
Get CAD
