RSA Electric Linear Actuators
The RSA Electric Linear Rod Actuator combines excellent accuracy with a low-to-high thrust capacity in tough environments
RSA electric linear rod actuators feature accurate and high force performance, making them ideal for replacing pneumatic & hydraulic cylinders. These electric linear actuators feature acme, ball or roller screw selections, with enhanced high thrust bearings and heavy duty internal bumpers. A rigid, strong aluminum housing allows for easy mounting of switches and sensors. The standard grease zerk on HT units extends screw life by making relubrication easy and convenient without disassembly. RSA actuators are suitable for general motion control, valve actuation, punch press, injection molding and many more applications.
- 6 body sizes with built-to-order stroke lengths and mounting options
- Stroke lengths up to 60 inches (1,524 mm)
- Forces up to 13,039 lbf (58,001 N)
- Acme, Ball, and Roller Screw options
- IP67 option to protect against dust and water ingress
- Flexible mounting options
- Need faster delivery? Quick ship configurations now available below

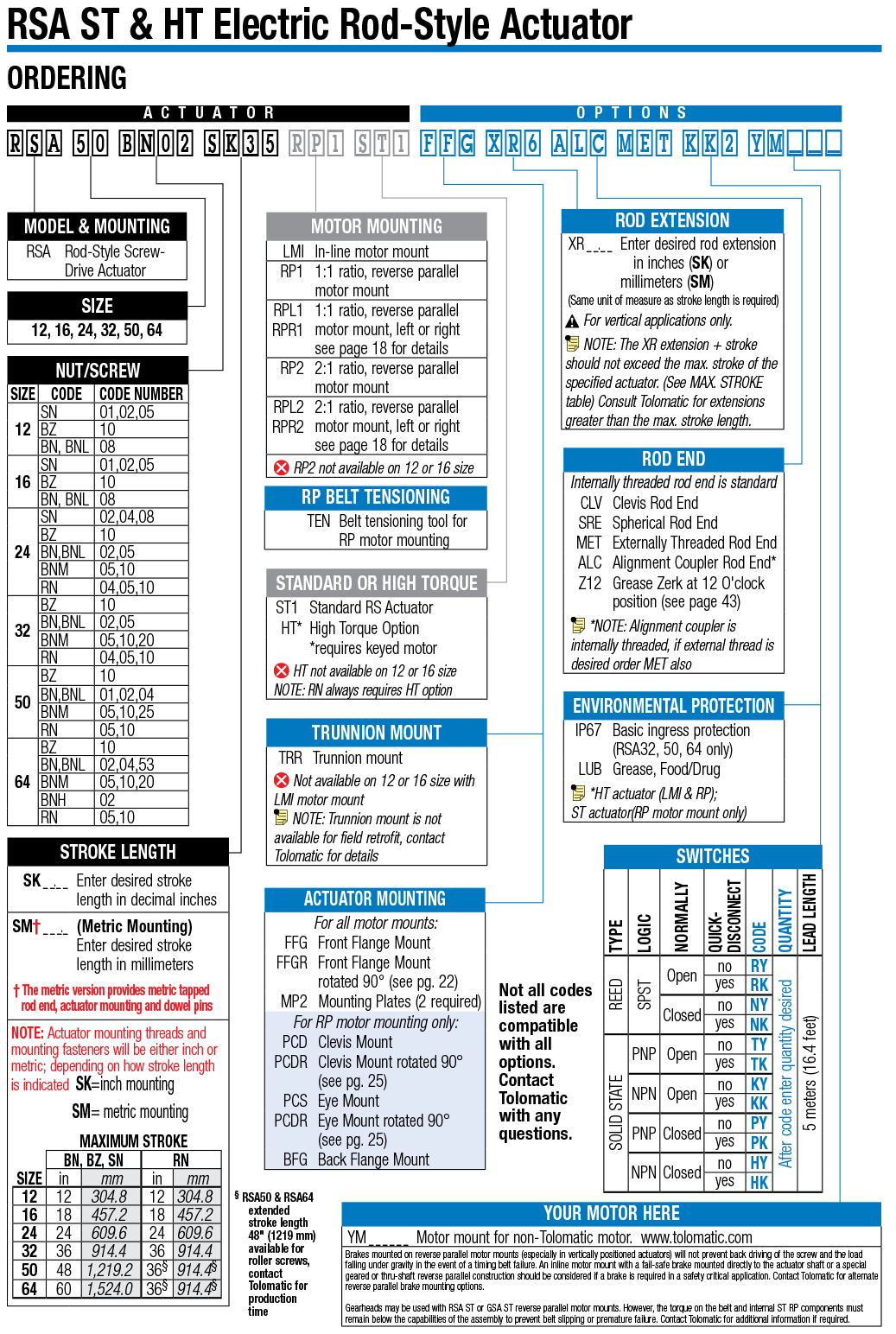

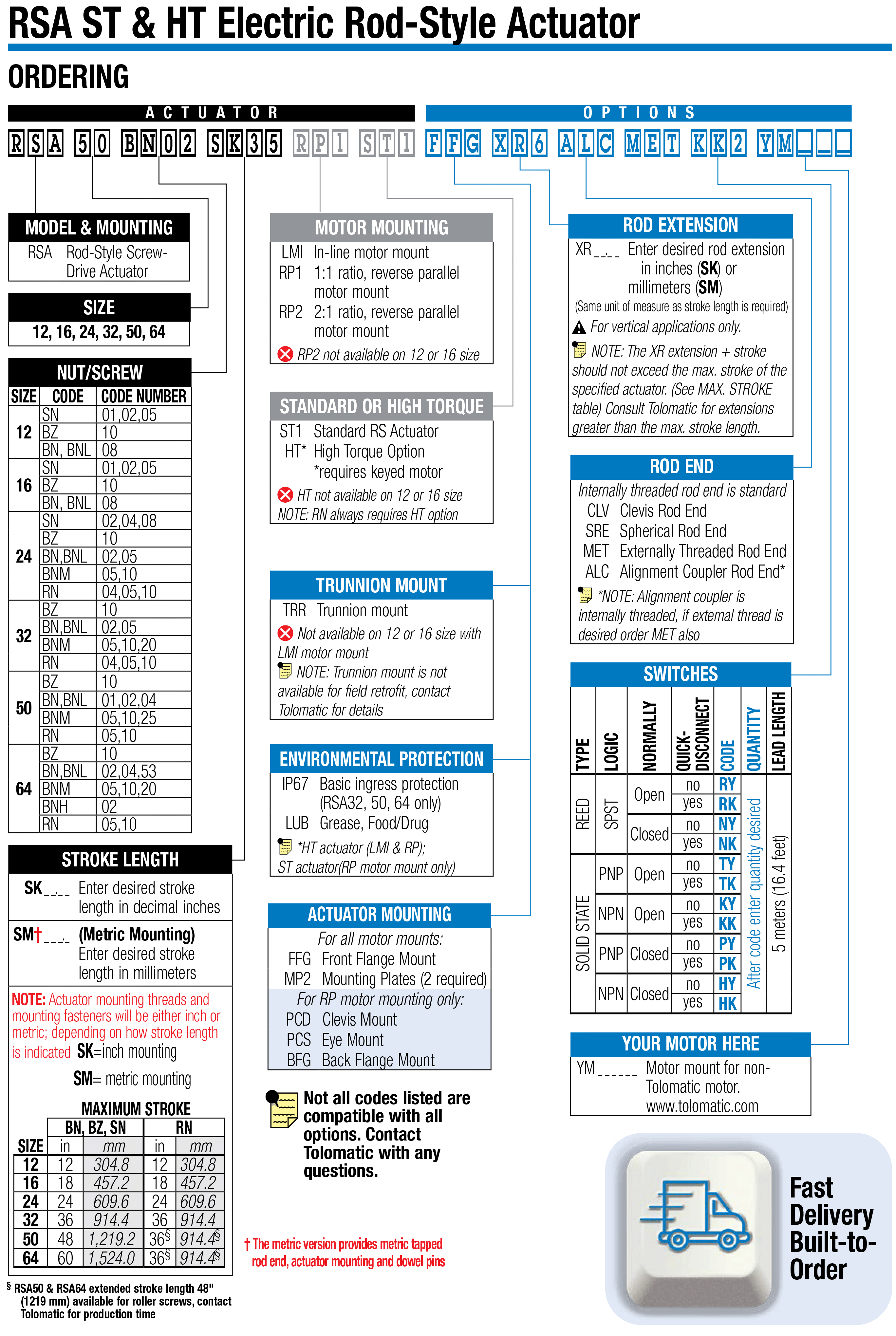

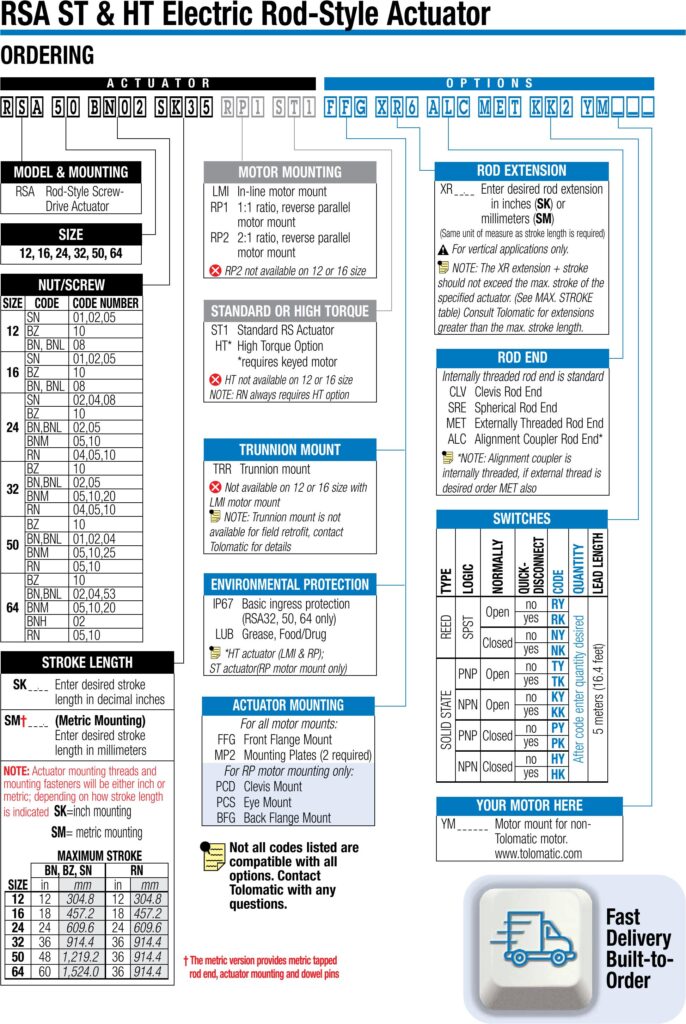

Order RSA 32
| Size | RSA12 | RSA16 | RSA24 | RSA32 | RSA50 | RSA64 |
|---|---|---|---|---|---|---|
| Standard | 12 in. | 18 in. | 24 in. | 36 in. | 48 in. | 60 in. |
| Metric | 305 mm | 457 mm | 610 mm | 914 mm | 1,219 mm | 1,524 mm |
| Size | RSA12 | RSA16 | RSA24 | RSA32 | RSA50 | RSA64 |
|---|---|---|---|---|---|---|
| Standard | 130 lbf | 130 lbf | 1,700 lbf | 4,159 lbf | 7,868 lbf | 13,039 lbf |
| Metric | 578 N | 578 N | 7,562 N | 18,500 N | 35,000 N | 58,000 N |
| Size | RSA12 | RSA16 | RSA24 | RSA32 | RSA50 | RSA64 |
|---|---|---|---|---|---|---|
| Standard | 123 in/s | 123 in/s | 50 in/s | 52 in/s | 52 in/s | 62 in/s |
| Metric | 3,120 mm/s | 3,120 mm/s | 1,270 mm/s | 1,320 mm/s | 1,320 mm/s | 1,570 mm/s |
RSA-ST Electric Rod Actuator Features

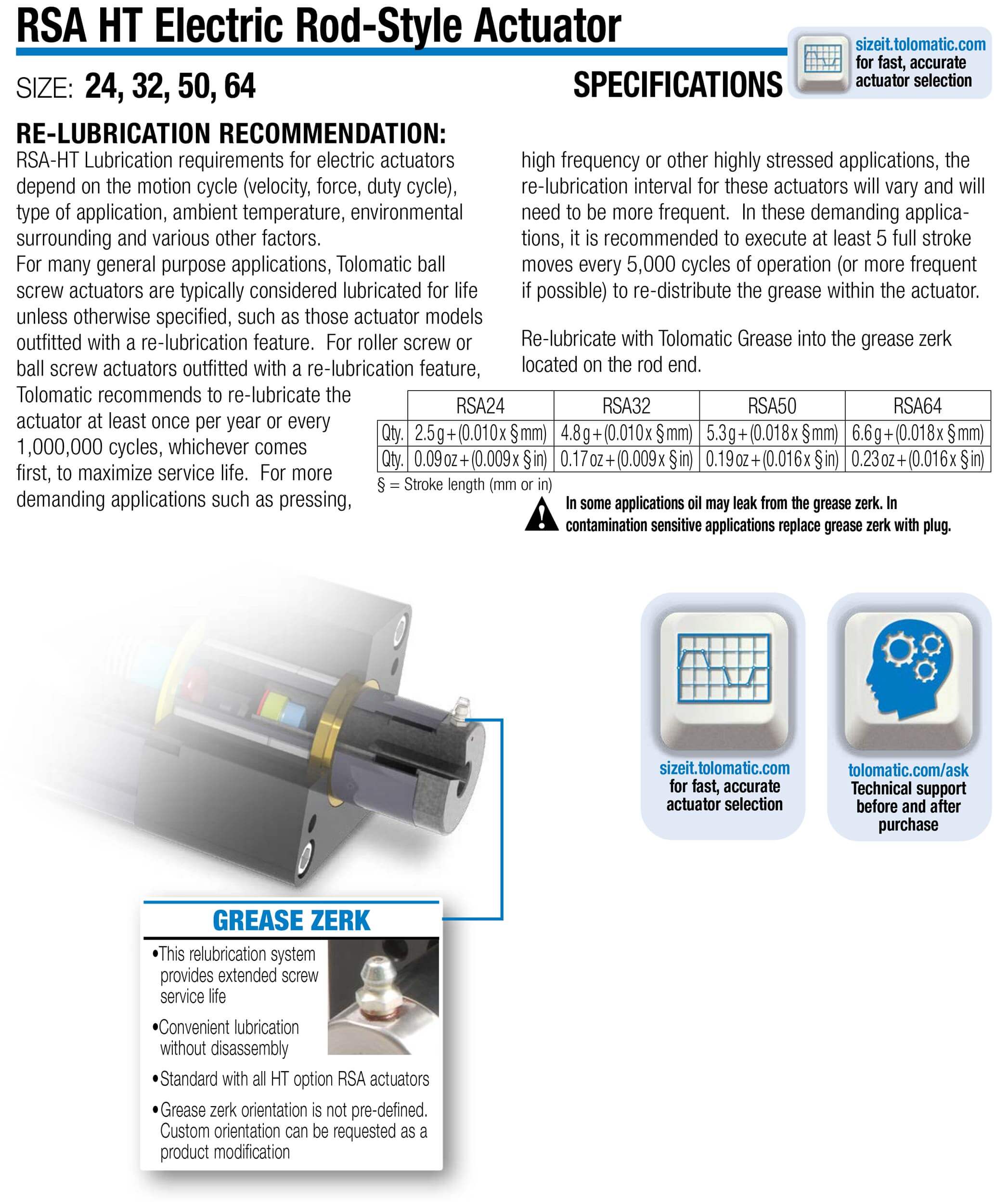

RSA-HT Electric Rod Actuator Features

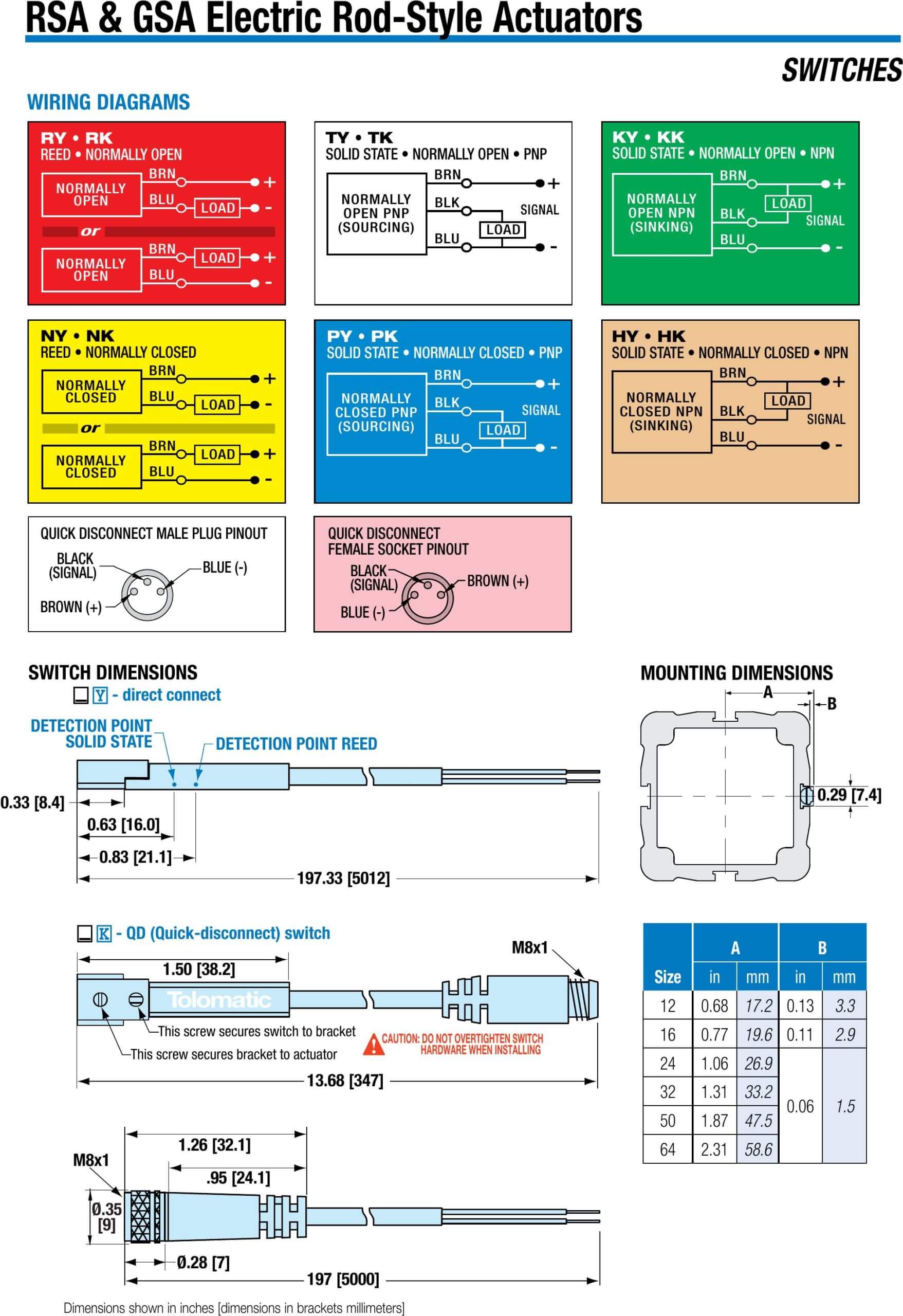

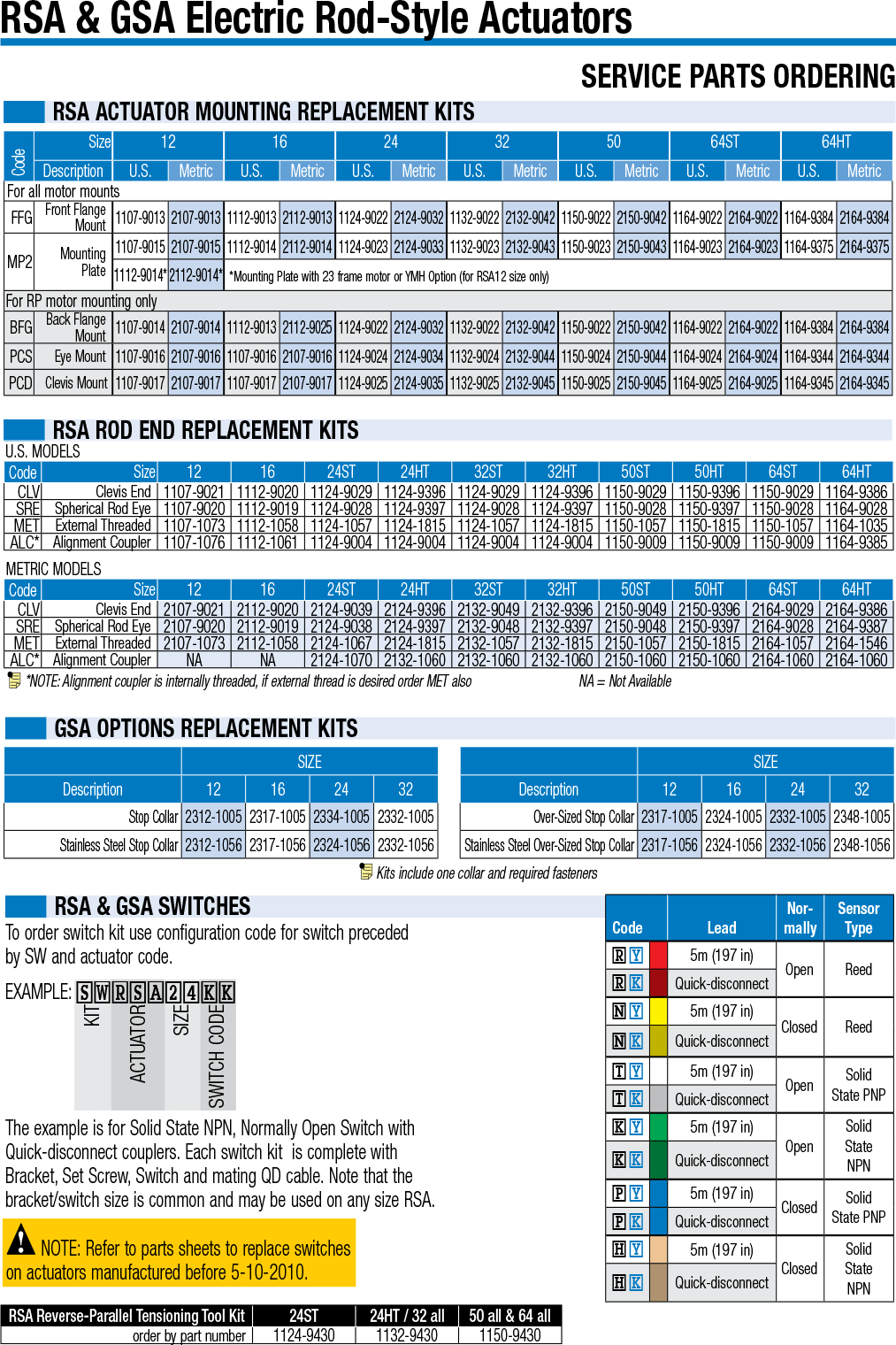

RSA Options
| Size | RSA12 | RSA16 | RSA24 | RSA32 | RSA50 | RSA64 |
|---|---|---|---|---|---|---|
| Standard | 12 in. | 18 in. | 24 in. | 36 in. | 48 in. | 60 in. |
| Metric | 305 mm | 457 mm | 610 mm | 914 mm | 1,219 mm | 1,524 mm |
| Size | RSA12 | RSA16 | RSA24 | RSA32 | RSA50 | RSA64 |
|---|---|---|---|---|---|---|
| Standard | 130 lbf | 130 lbf | 1,700 lbf | 4,159 lbf | 7,868 lbf | 13,039 lbf |
| Metric | 578 N | 578 N | 7,562 N | 18,500 N | 35,000 N | 58,000 N |
| Size | RSA12 | RSA16 | RSA24 | RSA32 | RSA50 | RSA64 |
|---|---|---|---|---|---|---|
| Standard | 123 in/s | 123 in/s | 50 in/s | 52 in/s | 52 in/s | 62 in/s |
| Metric | 3,120 mm/s | 3,120 mm/s | 1,270 mm/s | 1,320 mm/s | 1,320 mm/s | 1,570 mm/s |
RSA-ST Actuator Specs (US Conv.)
RSA-ST Actuator Specs (Metric)
RSA-ST Actuator Weights
RSA-ST 12, 16, 24 Critical Speed Capacities
RSA-ST 32, 50 Critical Speed Capacities
RSA-ST 64 Critical Speed Capacities
RSA-ST 12.16 PV Limits (Solid Nuts)
RSA-ST 24, 32, 50, 64PV Limits (Solid and Bronze Nuts)
RSA-ST Screw Buckling Load
RSA-ST Ball Screw Life Graphs

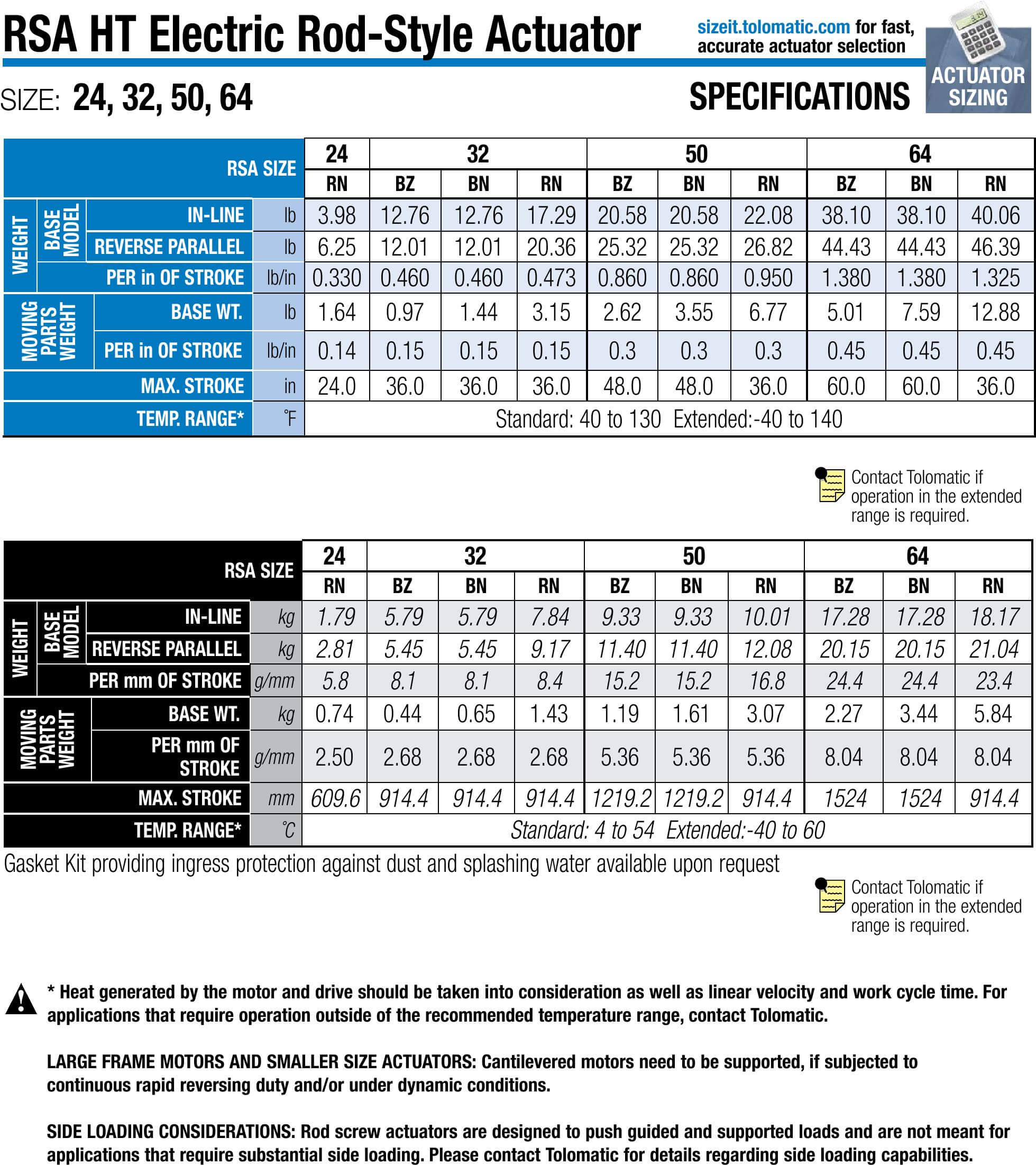

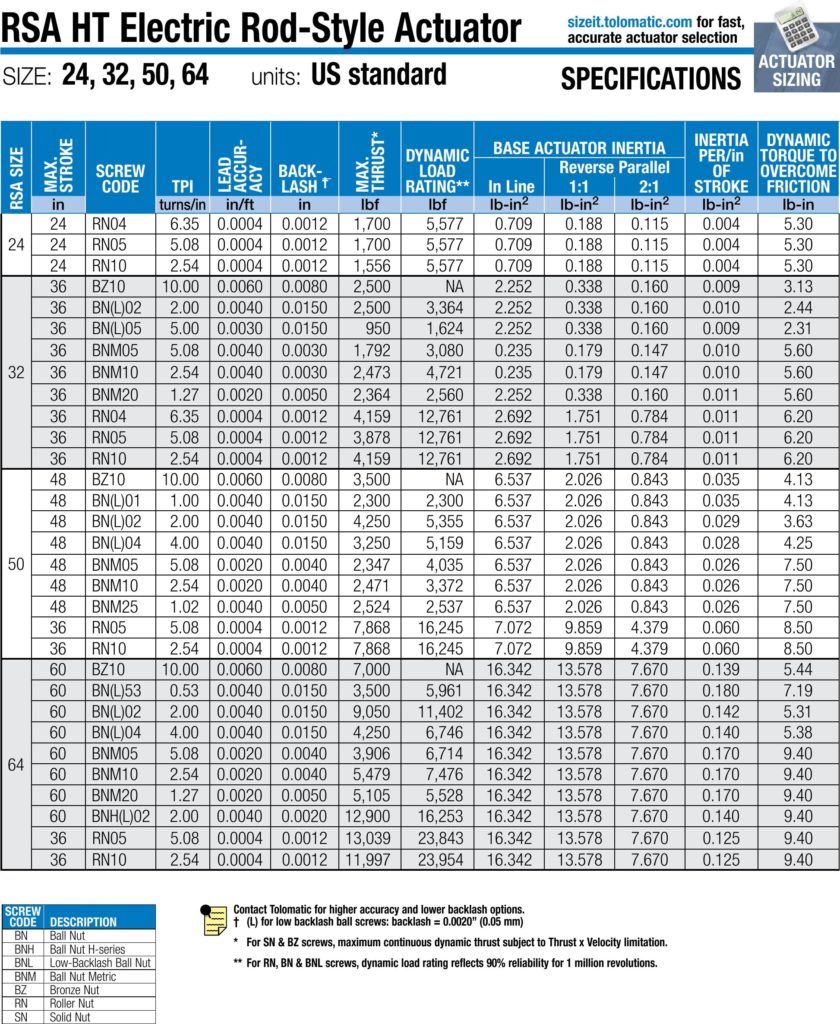

RSA-HT Actuator Specifications (US Conv.)

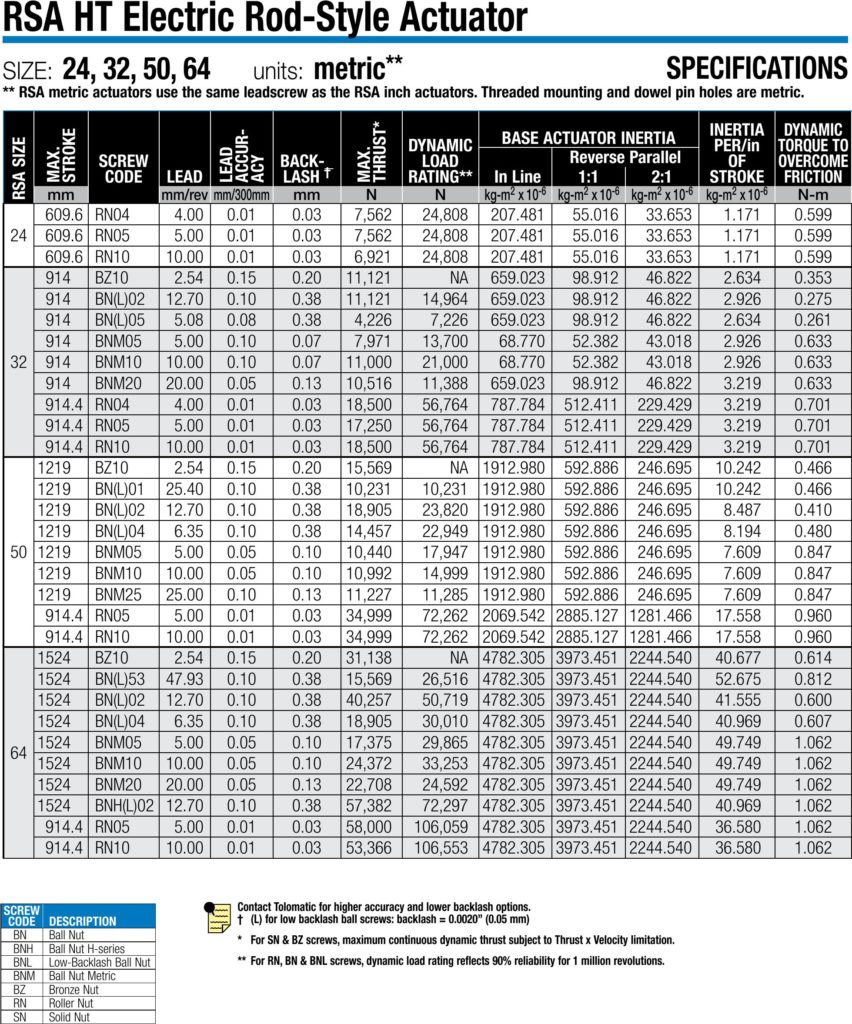

RSA-HT Actuator Specifications (Metric)
RSA-HT Actuator Weights

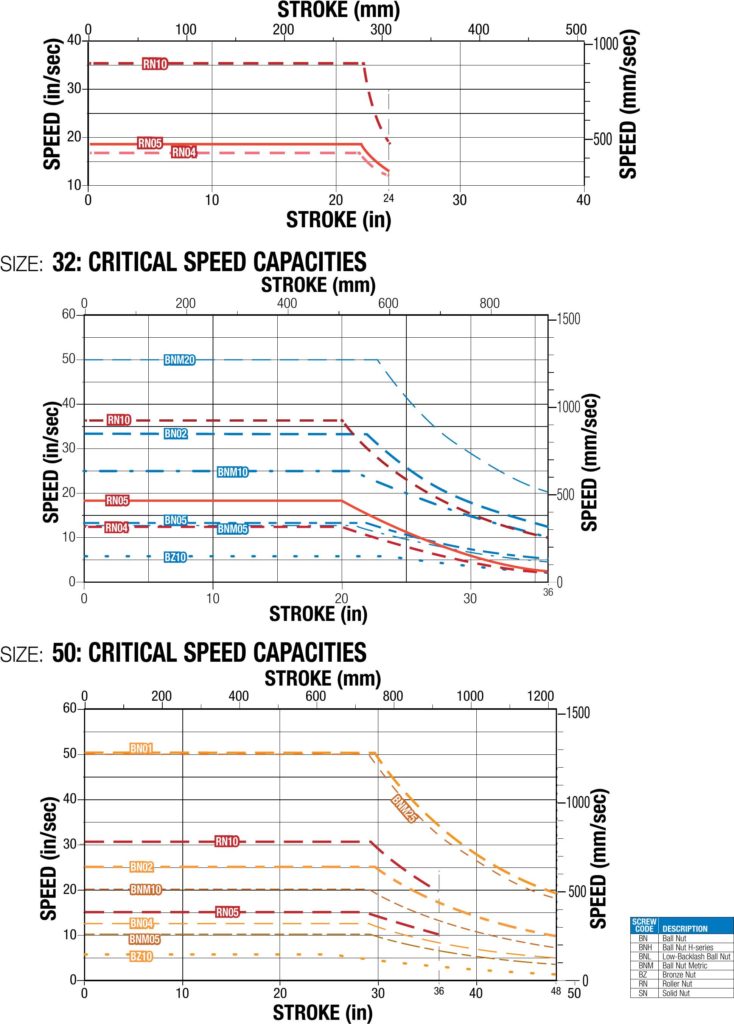

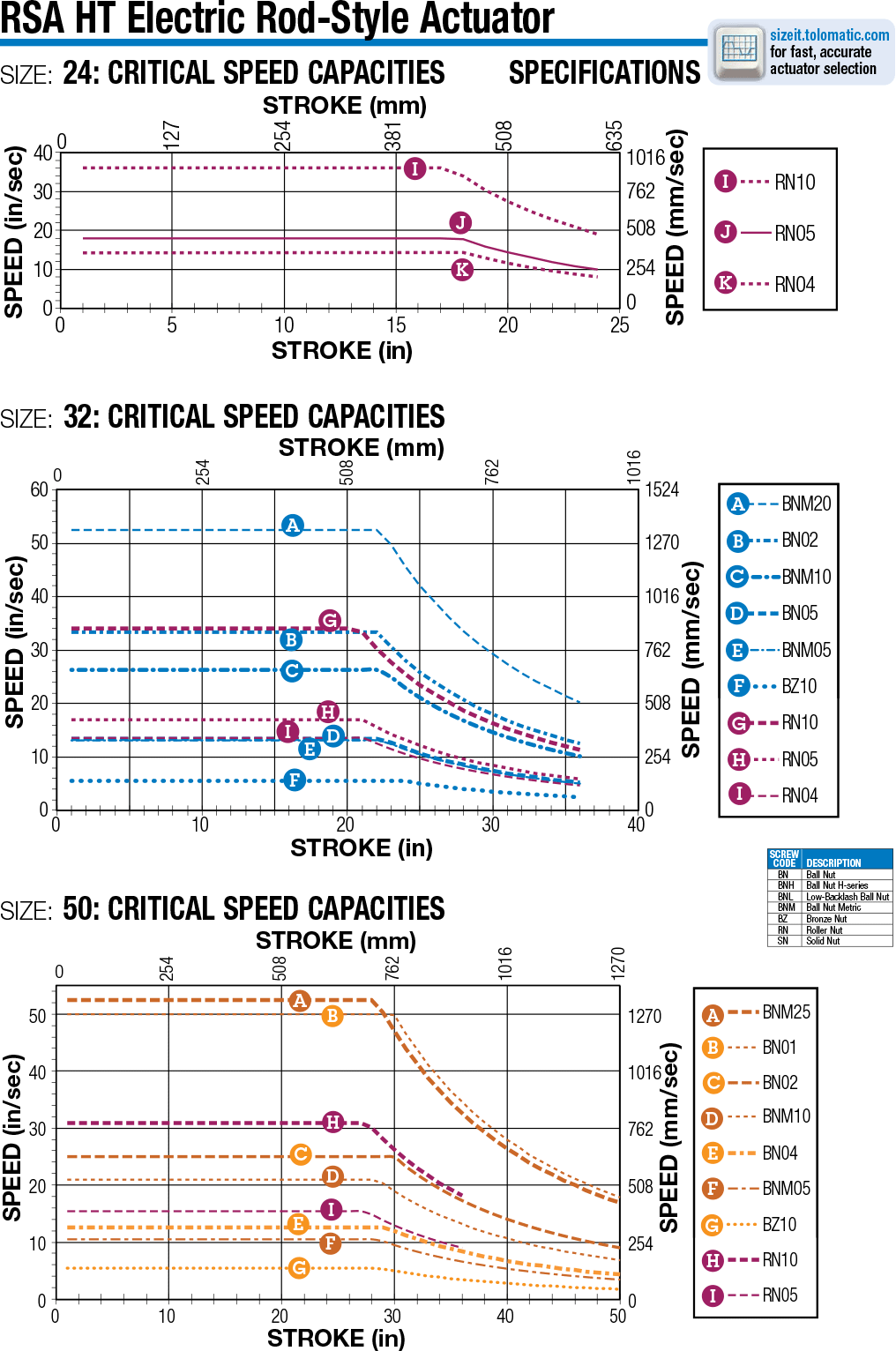

RSA-HT 24, 32, 50 Critical Speed Capacities

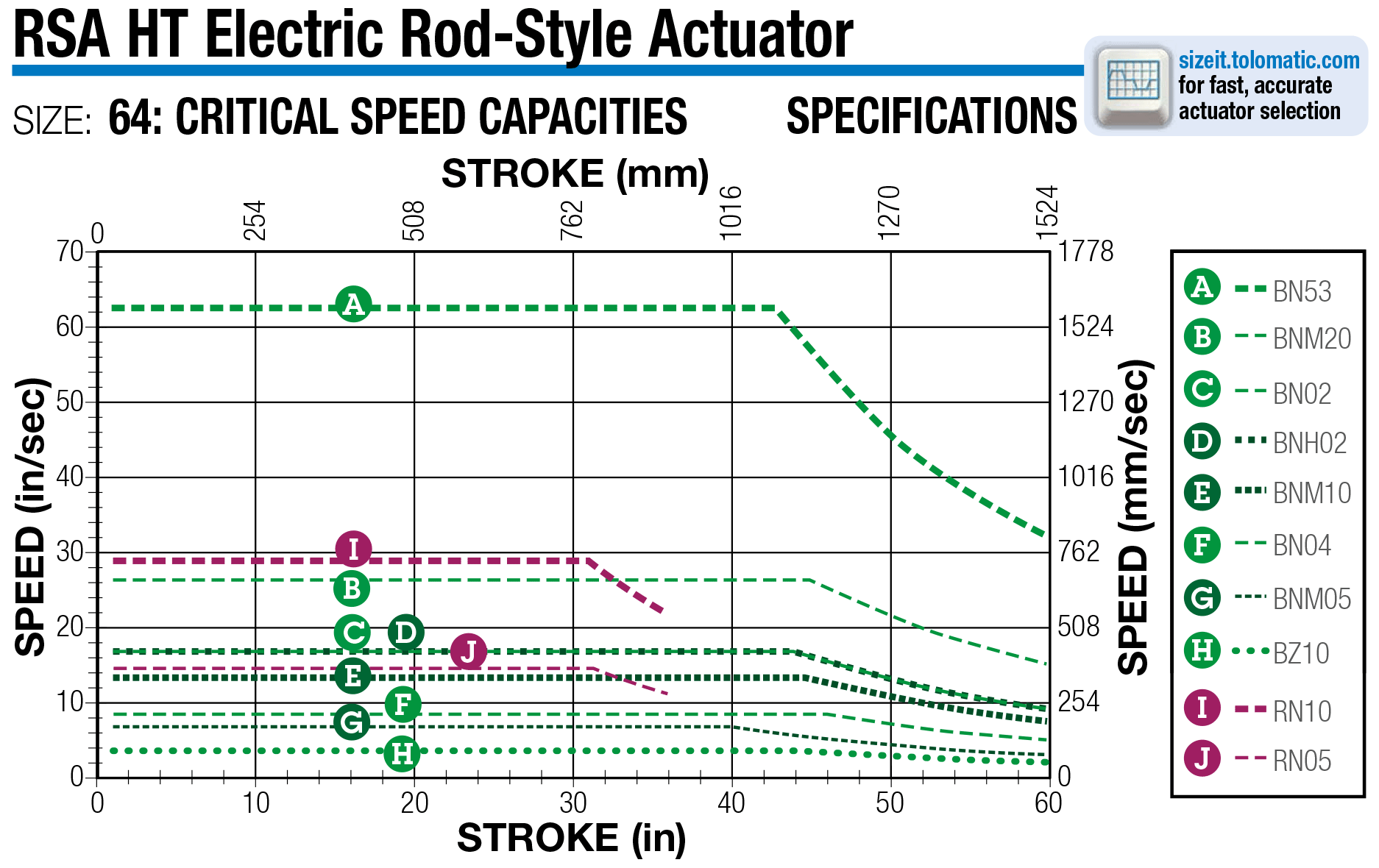

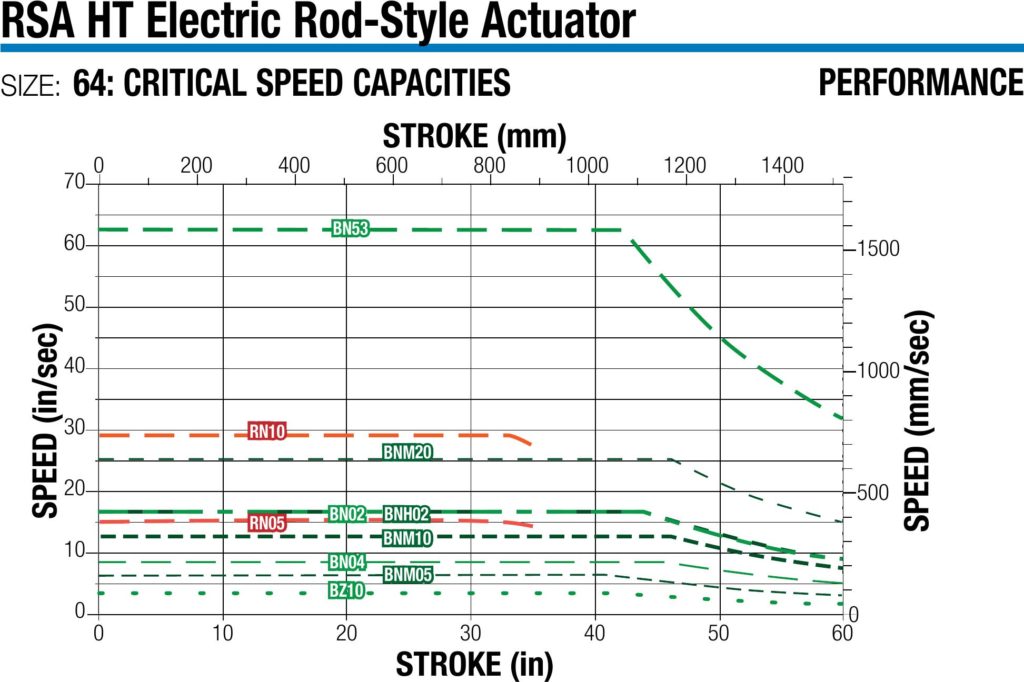

RSA-HT 64 Critical Speed Capacities

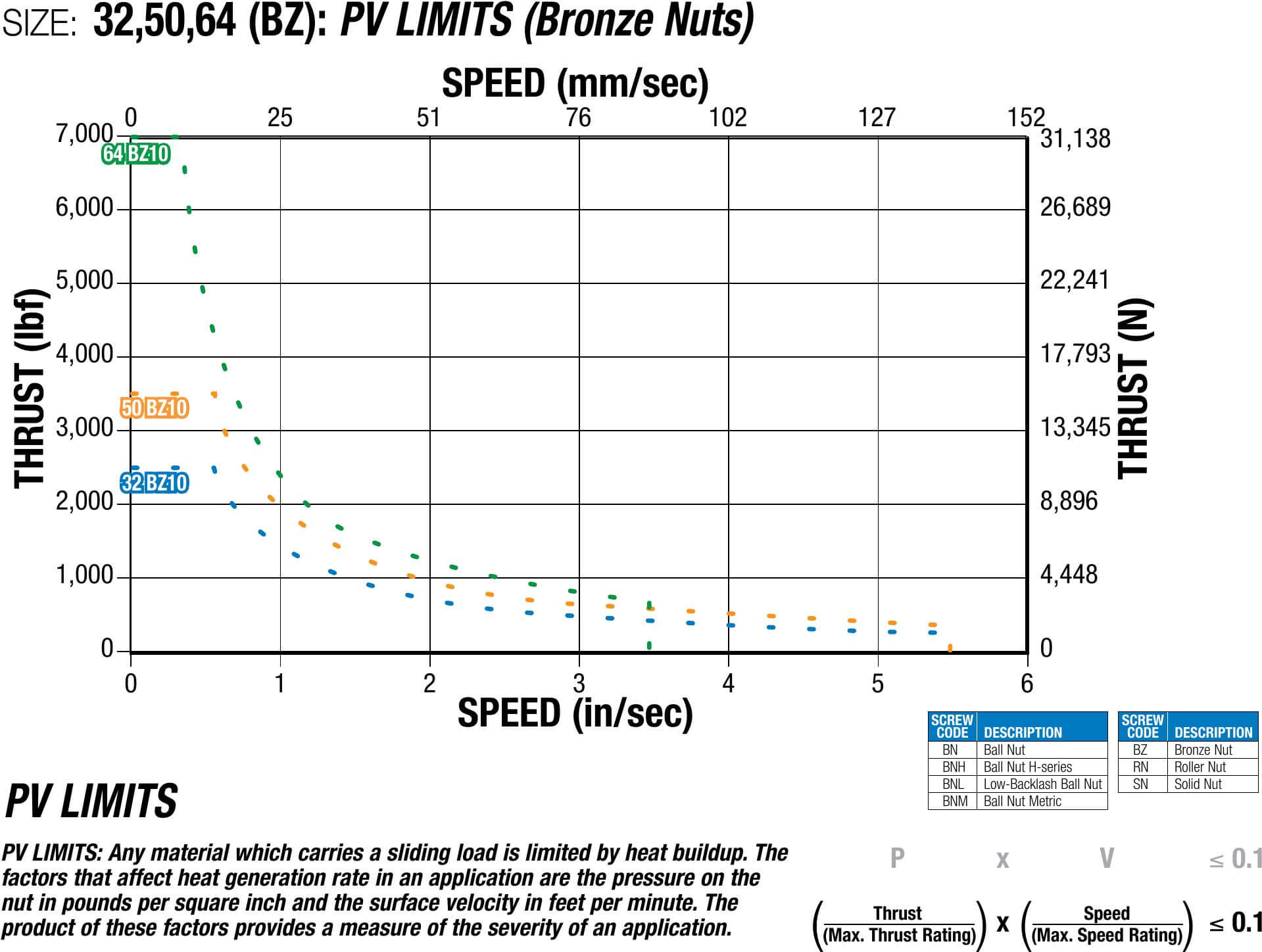

RSA-HT 32, 50, 64 PV Limits (Bronze Nuts)

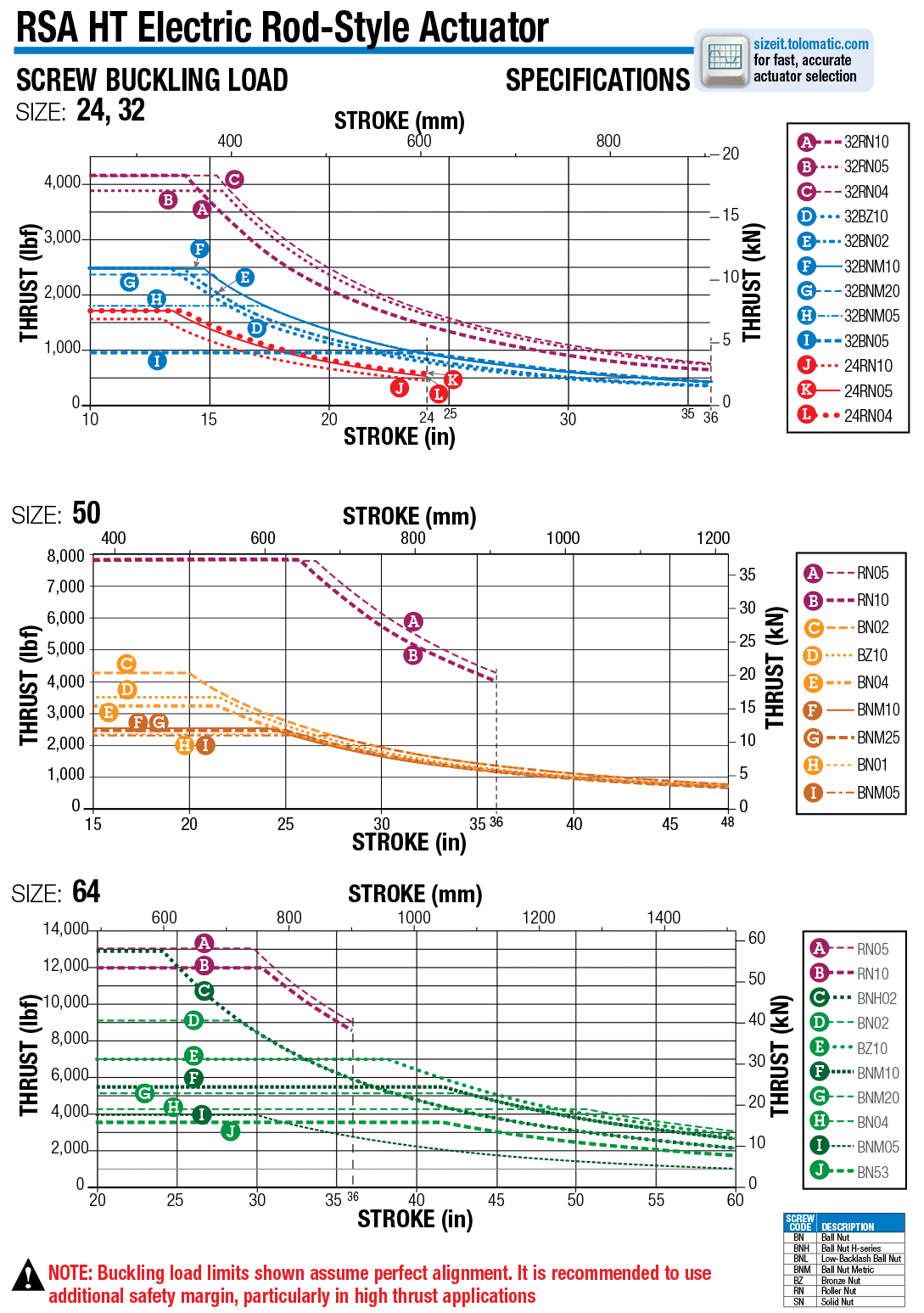

RSA-HT Screw Buckling Load

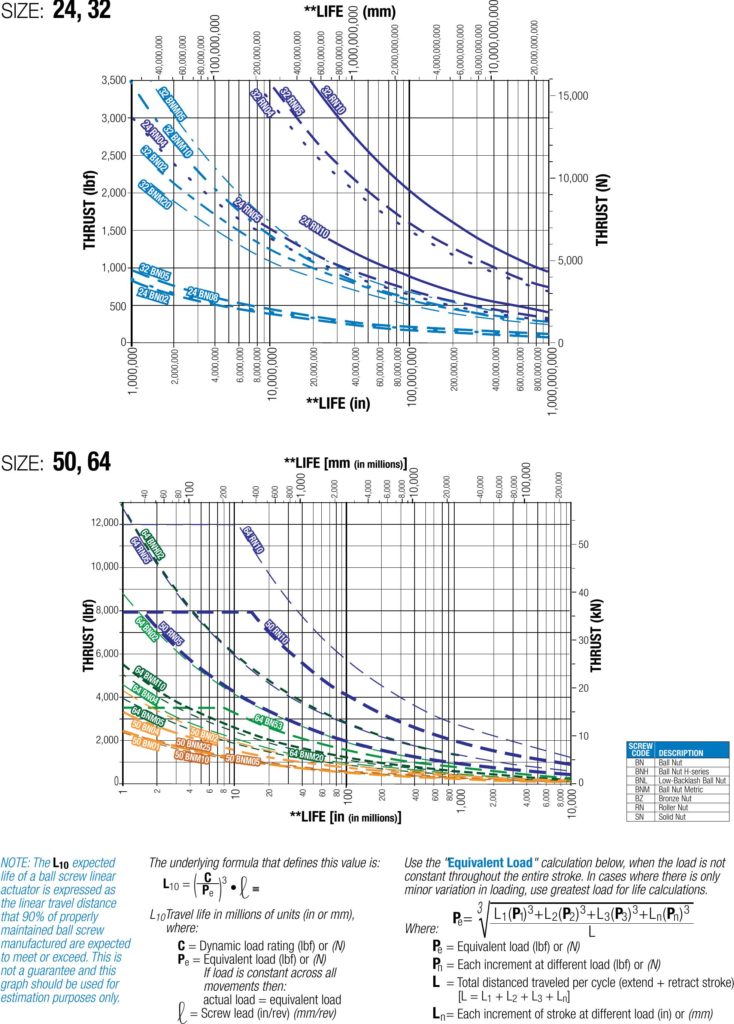

RSA-HT Ball & Roller Screw Life Graphs
RSA-ST Actuator Dimensions
RSA-ST Rod End Options: Spherical and Clevis
RSA-ST Rod End Options: Alignment Coupler and Externally Threaded
RSA-ST Mounting Options: Eye, Clevis
RSA-ST Mounting Options: Foot, Rod Extention

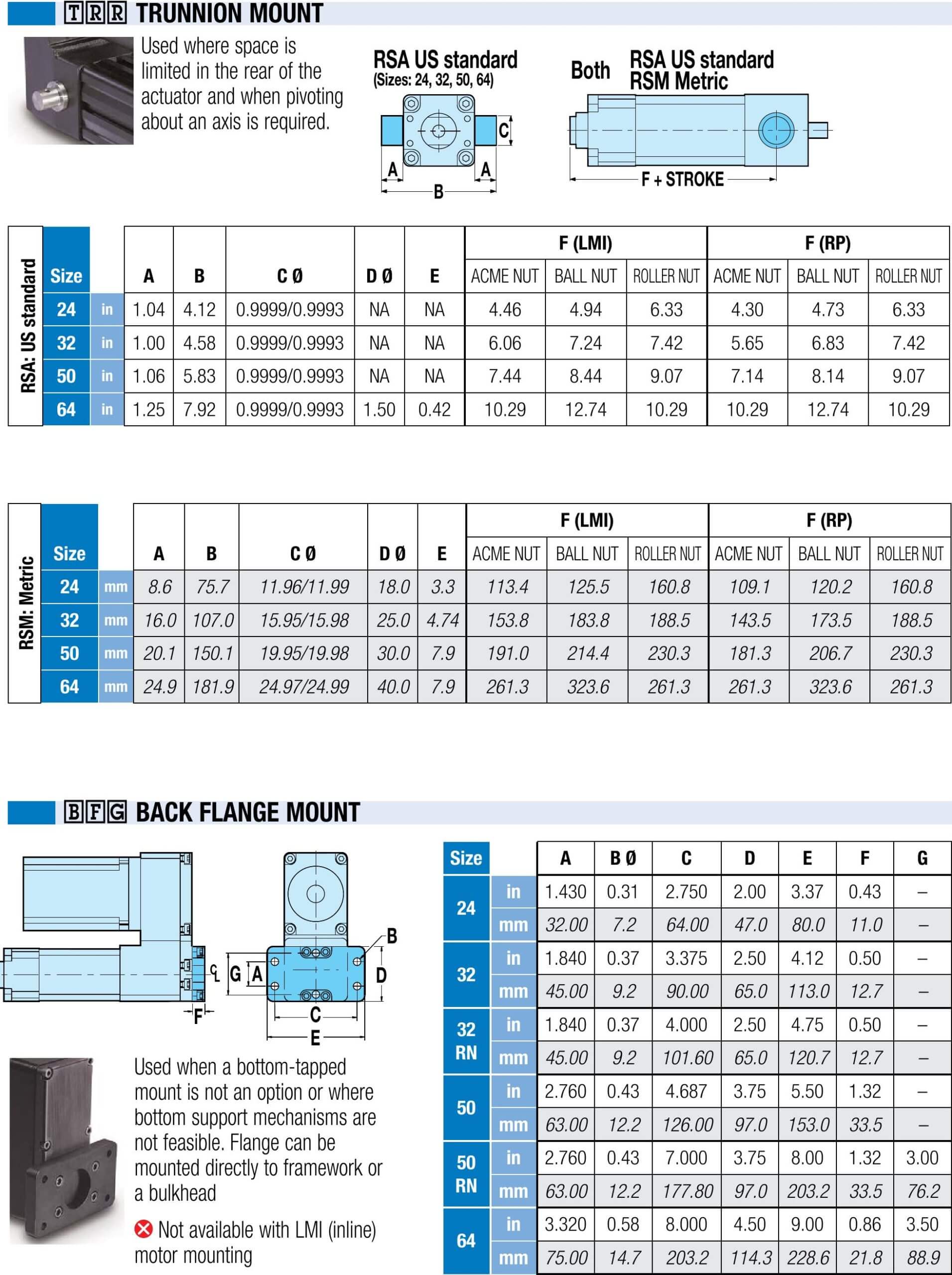

RSA-ST Mounting Options: Trunnion, Back Flange
RSA-ST Mounting Options: Front Flange, Mounting Plate

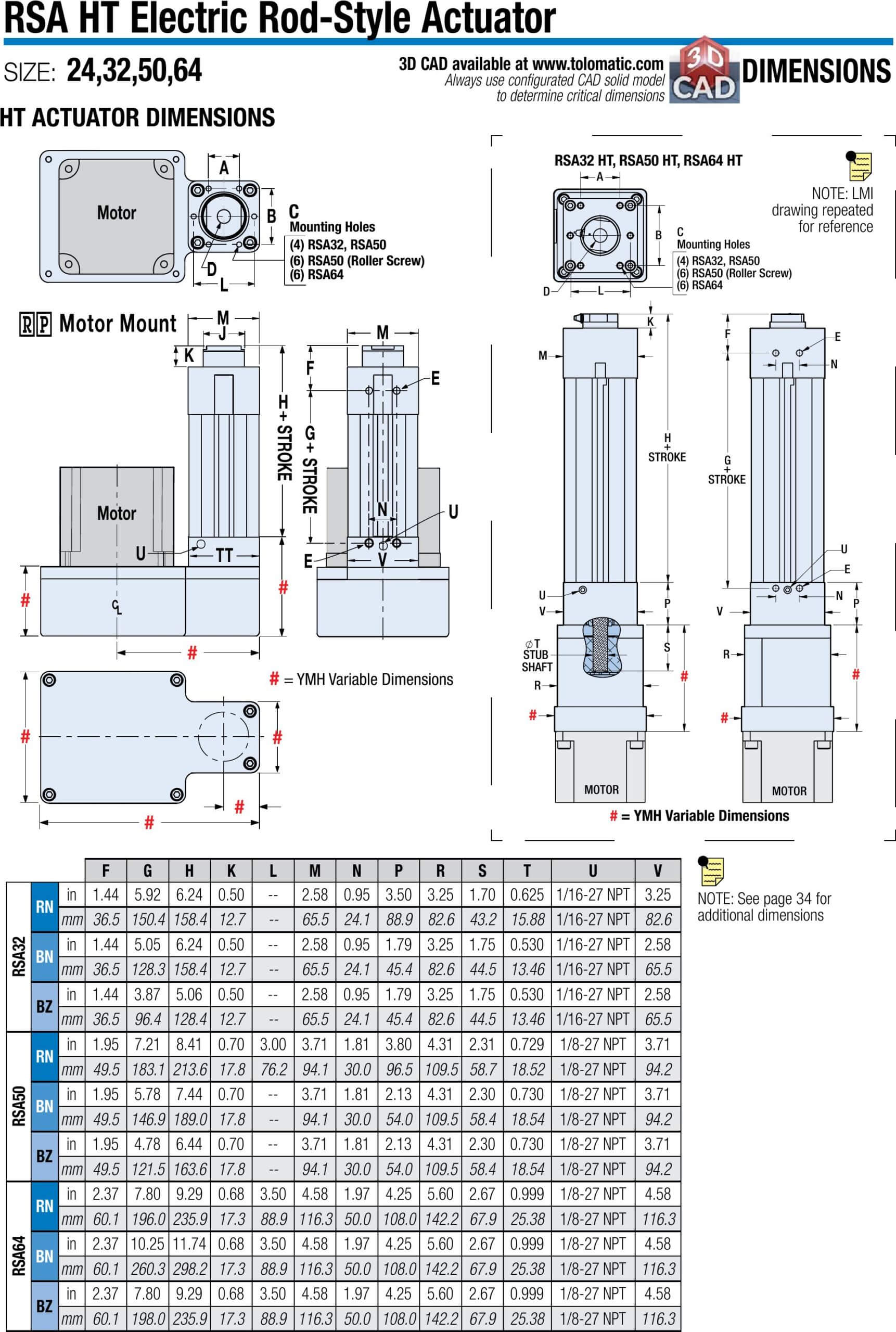

RSA-HT Actuator Dimensions
