RSA Electric Linear Actuators
The RSA Electric Linear Rod Actuator combines excellent accuracy with a low-to-high thrust capacity in tough environments
RSA electric linear rod actuators feature accurate and high force performance, making them ideal for replacing pneumatic & hydraulic cylinders. These electric linear actuators feature acme, ball or roller screw selections, with enhanced high thrust bearings and heavy duty internal bumpers. A rigid, strong aluminum housing allows for easy mounting of switches and sensors. The standard grease zerk on HT units extends screw life by making relubrication easy and convenient without disassembly. RSA actuators are suitable for general motion control, valve actuation, punch press, injection molding and many more applications.

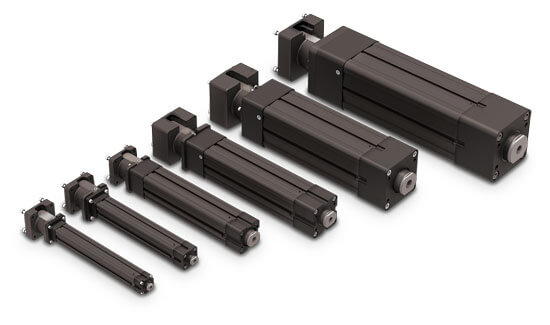

- 6 body sizes with built-to-order stroke lengths and mounting options
- Stroke lengths up to 60 inches (1,524 mm)
- Forces up to 13,039 lbf (58,001 N)
- Acme, Ball, and Roller Screw options
- IP67 option to protect against dust and water ingress
- Flexible mounting options
- Need faster delivery? Quick ship configurations now available below
Learn about roller screw and ball screw technologies
Order RSA 32
USD
USD
USD
USD
RSA Service Parts Ordering
RSA Ordering
RSA Selection Guidelines
RSA Options
RSA-HT Electric Rod Actuator Features
RSA-ST Electric Rod Actuator Features
| Size | RSA12 | RSA16 | RSA24 | RSA32 | RSA50 | RSA64 |
|---|---|---|---|---|---|---|
| Standard | 12 in. | 18 in. | 24 in. | 36 in. | 48 in. | 60 in. |
| Metric | 305 mm | 457 mm | 610 mm | 914 mm | 1,219 mm | 1,524 mm |
| Size | RSA12 | RSA16 | RSA24 | RSA32 | RSA50 | RSA64 |
|---|---|---|---|---|---|---|
| Standard | 130 lbf | 130 lbf | 1,700 lbf | 4,159 lbf | 7,868 lbf | 13,039 lbf |
| Metric | 578 N | 578 N | 7,562 N | 18,500 N | 35,000 N | 58,000 N |
| Size | RSA12 | RSA16 | RSA24 | RSA32 | RSA50 | RSA64 |
|---|---|---|---|---|---|---|
| Standard | 123 in/s | 123 in/s | 50 in/s | 52 in/s | 52 in/s | 62 in/s |
| Metric | 3,120 mm/s | 3,120 mm/s | 1,270 mm/s | 1,320 mm/s | 1,320 mm/s | 1,570 mm/s |
RSA-ST Actuator Specs (US Conv.)

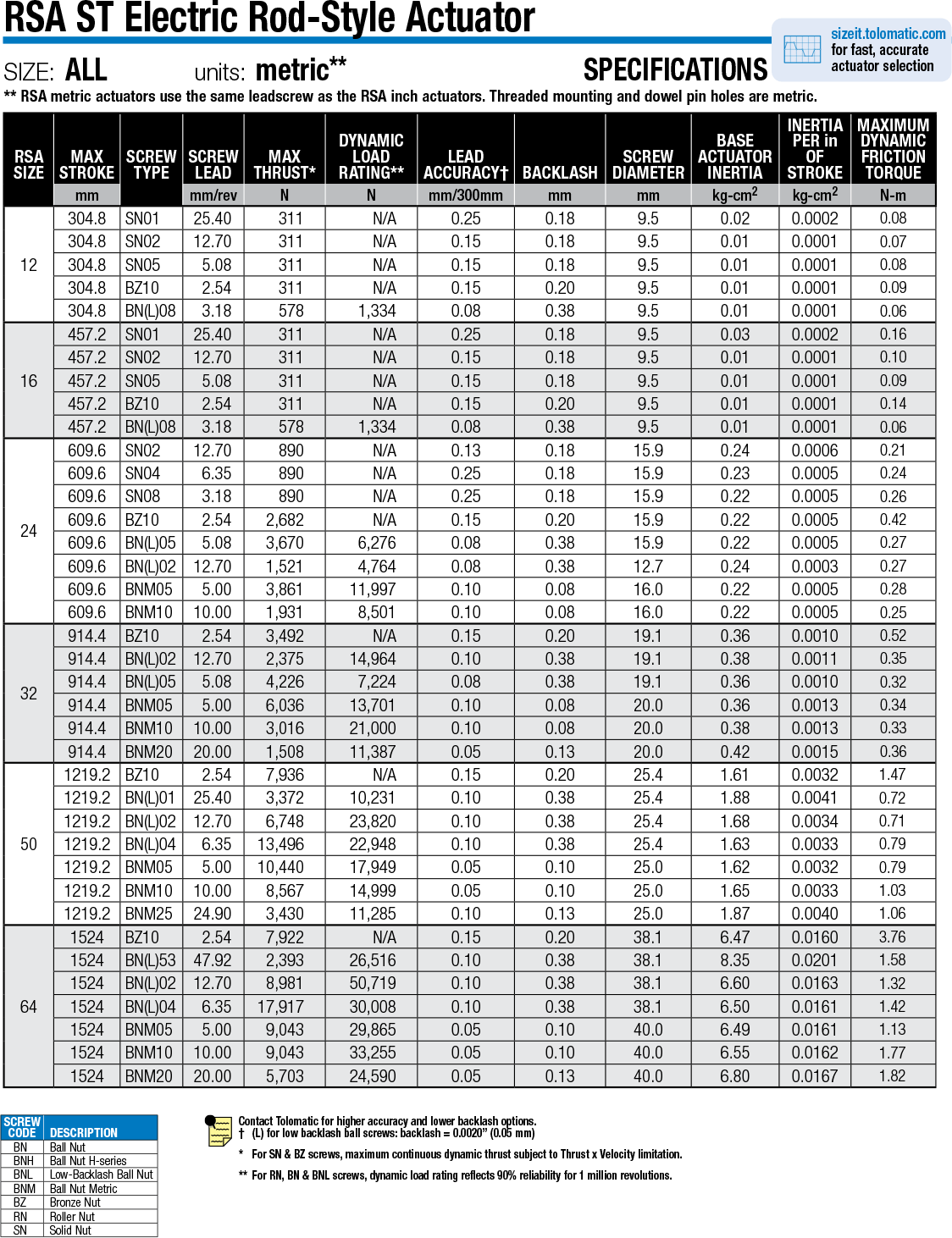

RSA-ST Actuator Specs (Metric)
RSA-HT Actuator Specifications (US Conv.)

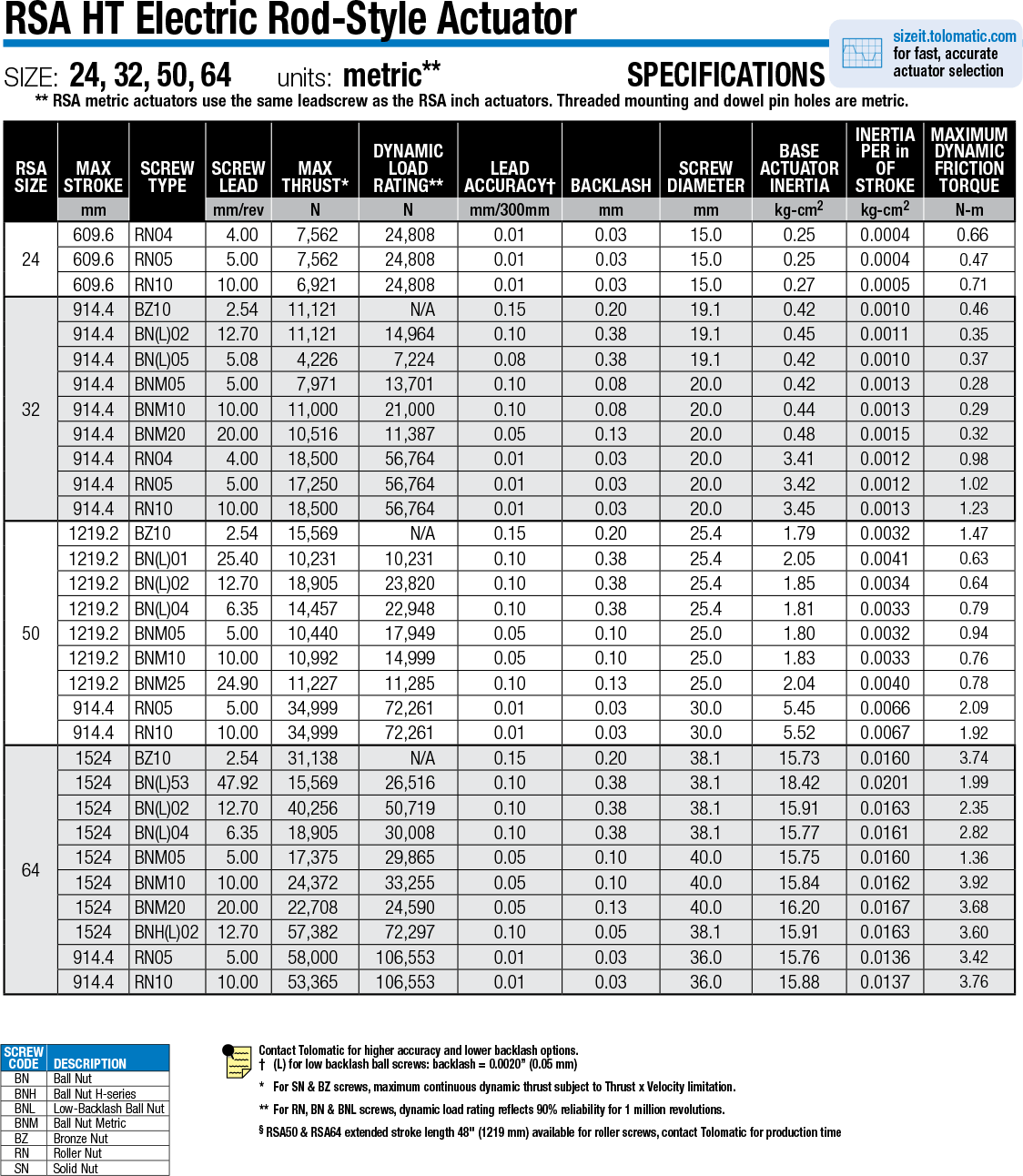

RSA-HT Actuator Specifications (Metric)
RSA-ST Specs Weights
RSA 12, 16, 24 Critical Speed Graphs
RSA 32, 50 Critical Speed Graphs
RSA Ball & Roller Screw Life Graphs
RSA PV Limits with Bronze & Solid Nuts: 24, 32, 50, & 64 sizes
RSA PV Limits: 12 & 16 sizes
RSA Roller Screw Speed vs Thrust: 24, 32, 50 & 64 sizes
RSA Screw Buckling Load
RSA Switch Specifications
RSA Switch Specifications and Installation
RSA Switch Wiring Diagrams and Dimensions
RSA Switch Wiring Diagrams and Dimensions-old
RSA Switch Wiring and Dimensions
RSA-HT 24, 32, 50 Critical Speed Capacities
RSA-HT 32, 50, 64 PV Limits (Bronze Nuts)
RSA-HT 64 Critical Speed Capacities
RSA-HT Actuator Weights
RSA-HT Ball & Roller Screw Life Graphs
RSA-HT Screw Buckling Load
RSA-ST 12, 16, 24 Critical Speed Capacities
RSA-ST 12.16 PV Limits (Solid Nuts)
RSA-ST 24, 32, 50, 64PV Limits (Solid and Bronze Nuts)
RSA-ST 32, 50 Critical Speed Capacities
RSA-ST 64 Critical Speed Capacities
RSA-ST Actuator Weights, RP Mounting Order Codes
RSA-ST Ball Screw Life Graphs
RSA-ST Screw Buckling Load
RSA64 Critical Speed Capacities
RSA-ST Actuator Dimensions
RSA-HT Actuator Dimensions
RSA-RP Mounting Additional Codes
RSA-RP Mounting Codes
RSA-HT Actuator Dimensions - 1
RSA-HT Actuator Dimensions - 2
RSA-HT Mounting Options: Front Flange & Mounting Plate
RSA-HT Mounting Options: Front Flange & Mounting Plate
RSA-HT Mounting Options: Front Flange & Mounting Plate
RSA-ST Mounting Options: Front Flange, Mounting Plate
RSA-HT Mounting Options: Front Flange & Mounting Plate
RSA-ST Mounting Options: Front Flange, Mounting Plate
RSA-ST Mounting Options: Front Flange, Mounting Plate
RSA-ST Mounting Options: Trunnion, Back Flange
RSA-HT Mounting Options: Trunnion & Back Flange
RSA-ST Mounting Options: Foot, Rod Extention
RSA-HT Optional Rod Extension
RSA Eye, Clevis Mounts & Rod Extension Option
RSA-ST Rod End Options: Spherical and Clevis
RSA-ST Rod End Options: Alignment Coupler and Externally Threaded
RSA-HT Rod End Options: Spherical & Clevis
RSA-HT Rod End Options: Alignment Coupler & Externally Threaded
RSA-HT Mounting Options: Eye & Clevis
RSA Front Flange & Mounting Plate
RSA-HT Actuator Dimensions
RSA-ST Mounting Options: Eye, Clevis
RSA Trunnion & Back Flange Mounting
RSA Rod Ends: Spherical & Clevis
RSA Rod Ends: Alignment Coupler & Externally Threaded Rod
RSA Foot Mounts
