Power-Block Pneumatic Linear Thruster
The Power-Block pneumatic linear thruster features two precision steel guide rods with composite bearings to provide positive load support.
Loaded with standard features, the Power-Block pneumatic linear thruster is the ideal solution to a wide variety of short-stroke applications. Use alone or in conjunction with other Tolomatic linear actuators.
- Force output up to 120 lbs (534 N)
- Maximum stroke of 3 inches (76 mm)
- Durable and tough lightweight extruded aluminum design offers low profile
- Options include stop collar/bumper kit, dual tooling plates and switches
| Size | PB 17 | PB 20 |
|---|---|---|
| Standard | 1.06 in | 1.25 in |
| Metric | 27 mm | 32 mm |
| Size | PB 17 | PB 20 |
|---|---|---|
| Standard | 1.06 in | 1.25 in |
| Metric | 27 mm | 32 mm |
| Size | PB 17 | PB 20 |
|---|---|---|
| Standard | 88 lbf | 123 lbf |
| Metric | 391 N | 547 N |
| Size | PB 17 | PB 20 |
|---|---|---|
| Standard | 20 lbs | 25 lbs |
| Metric | 76 kg | 89 kg |

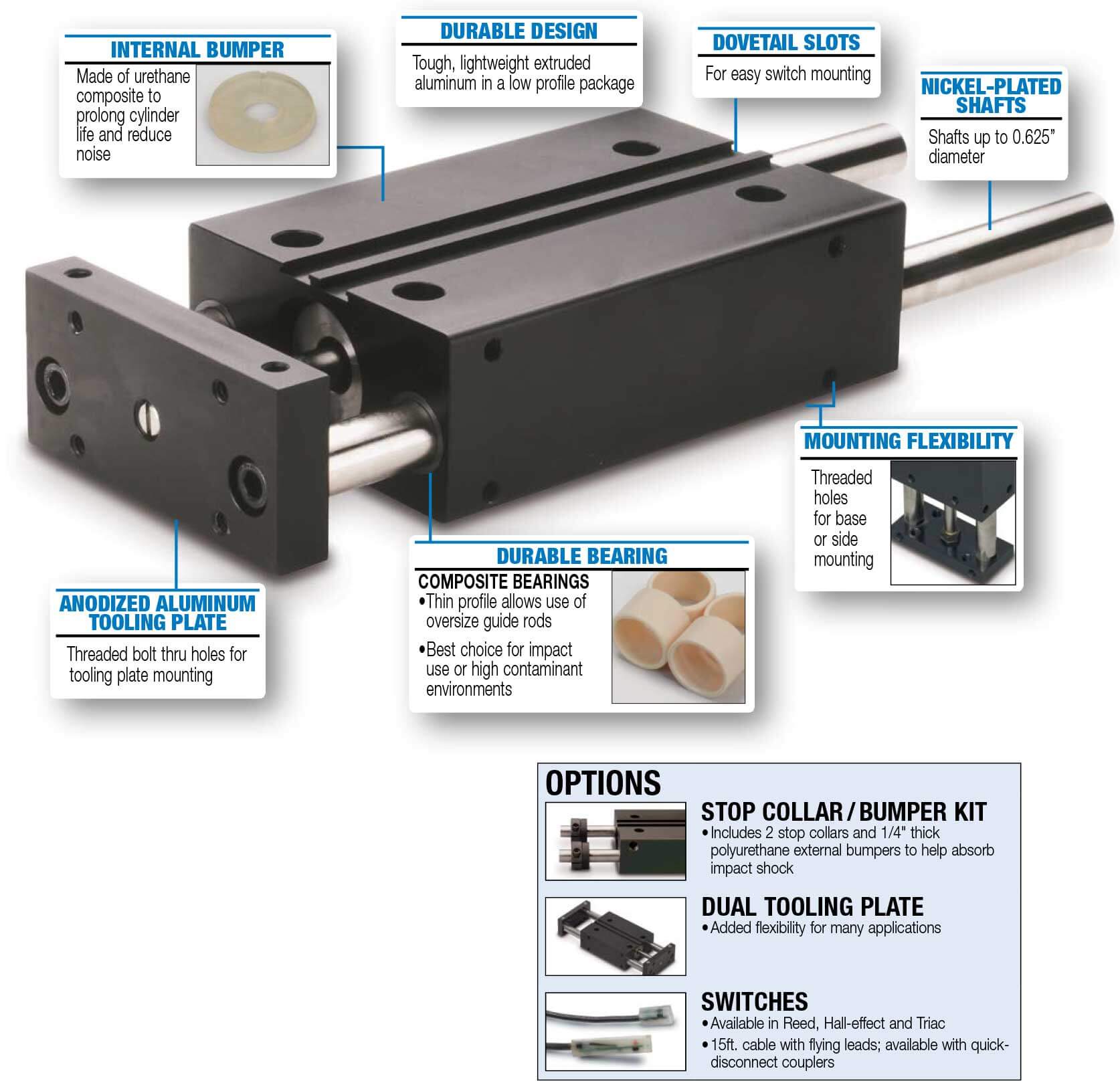

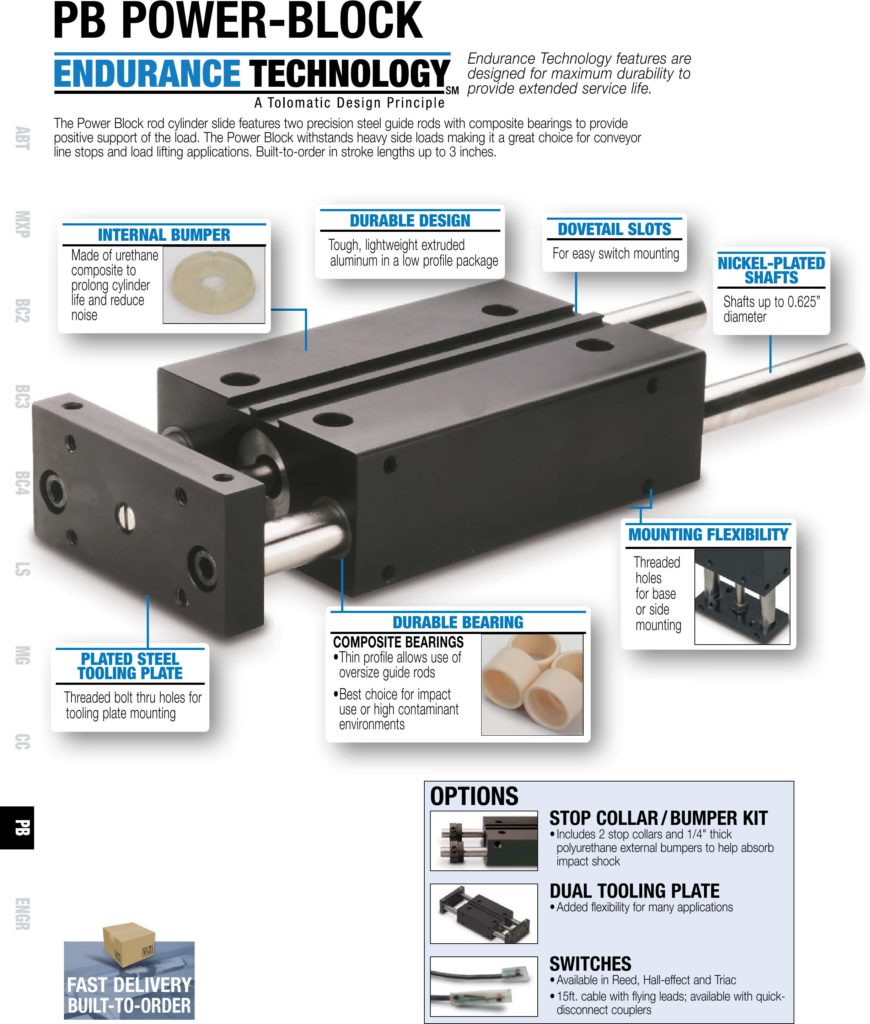

PB Features
| Size | PB 17 | PB 20 |
|---|---|---|
| Standard | 1.06 in | 1.25 in |
| Metric | 27 mm | 32 mm |
| Size | PB 17 | PB 20 |
|---|---|---|
| Standard | 1.06 in | 1.25 in |
| Metric | 27 mm | 32 mm |
| Size | PB 17 | PB 20 |
|---|---|---|
| Standard | 88 lbf | 123 lbf |
| Metric | 391 N | 547 N |
| Size | PB 17 | PB 20 |
|---|---|---|
| Standard | 20 lbs | 25 lbs |
| Metric | 76 kg | 89 kg |

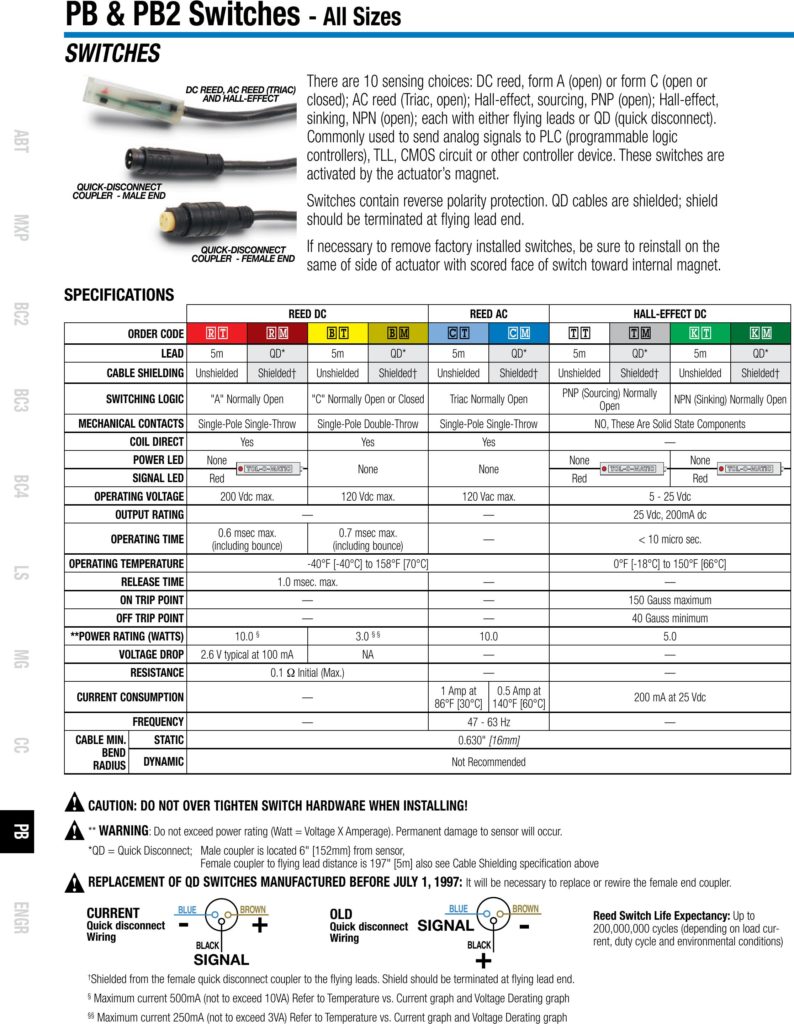

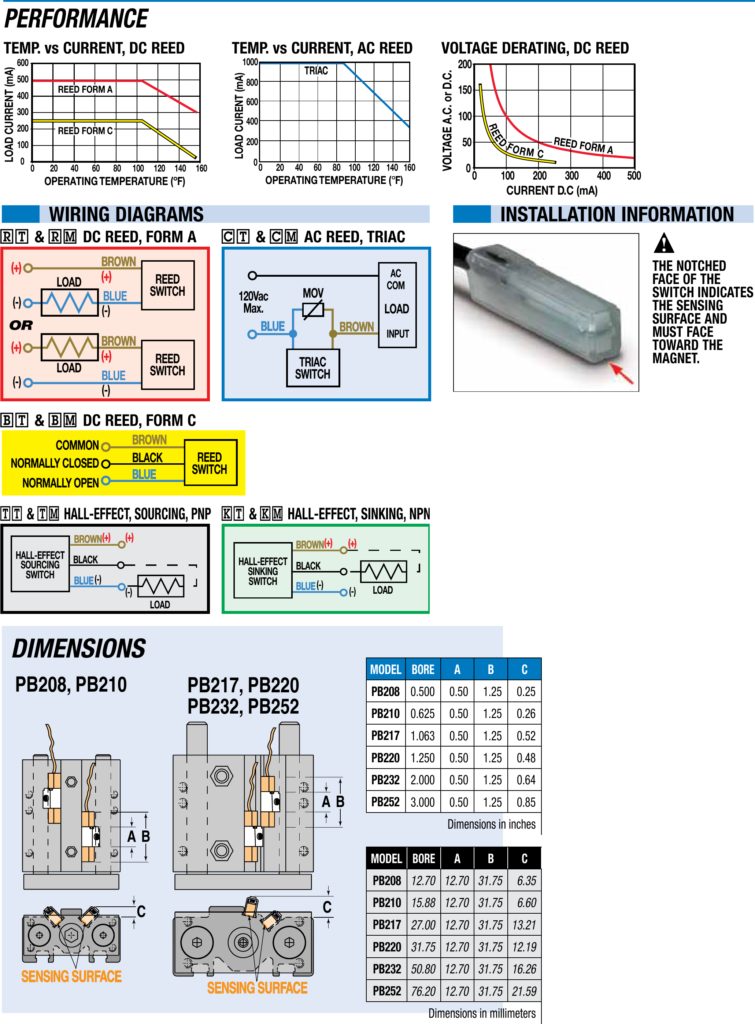

PB & PB2 Switches Performance, Wiring & Dimensions
PB & PB2 Switches

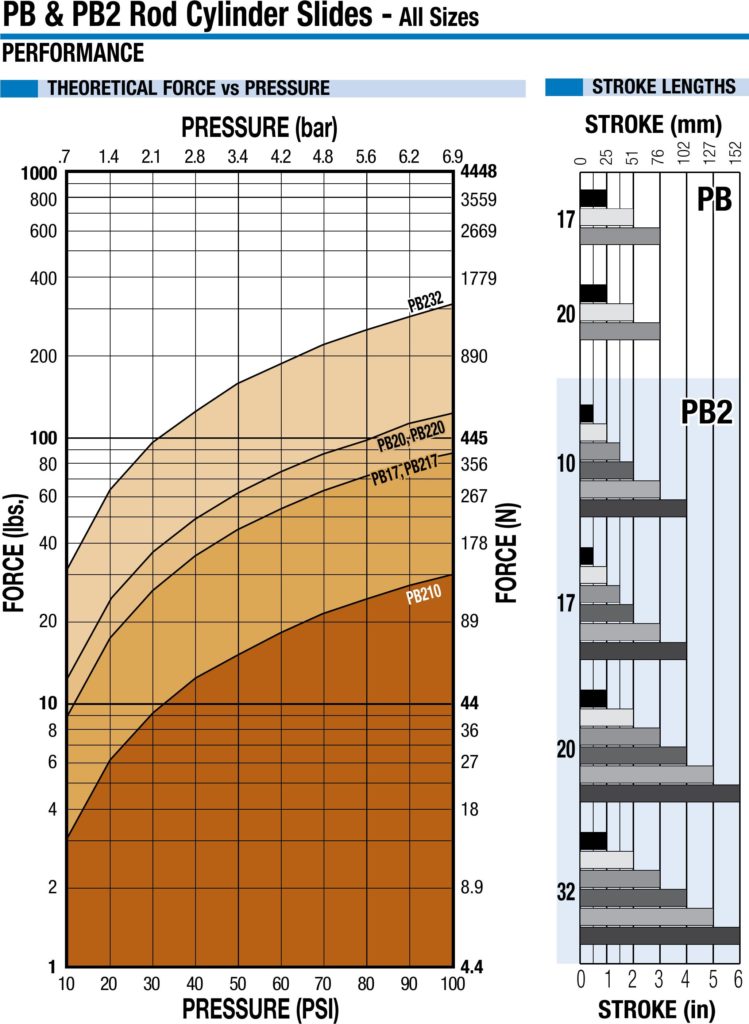

PB17, PB20 Performance

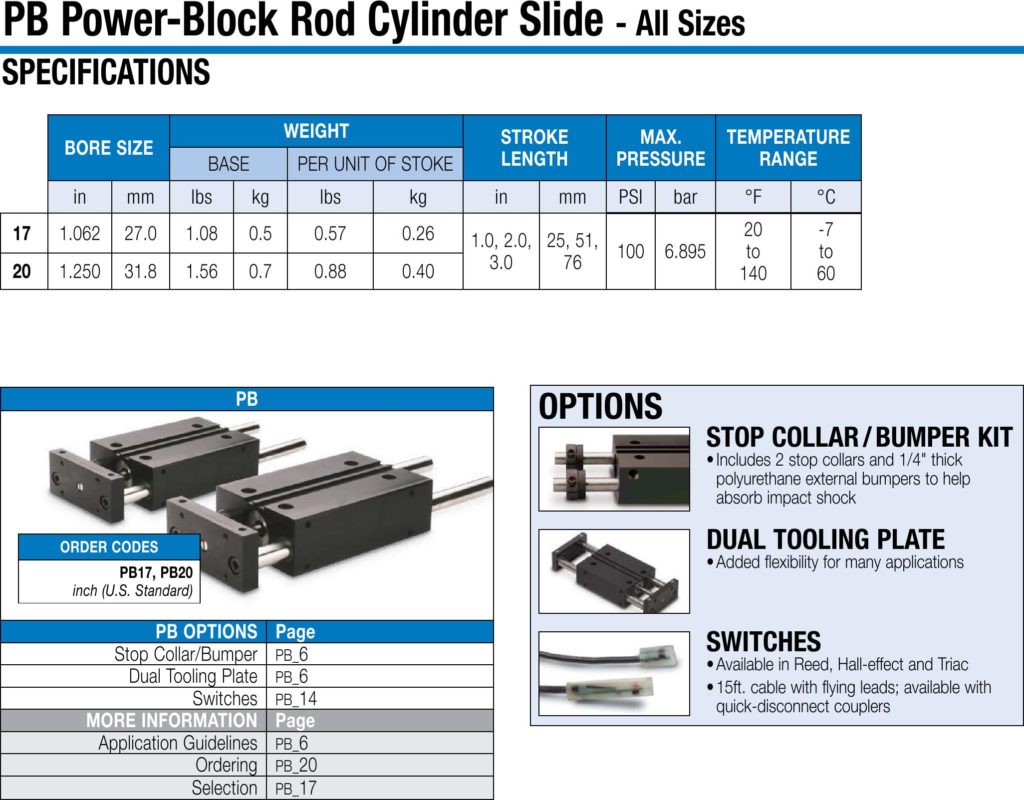

PB Specifications

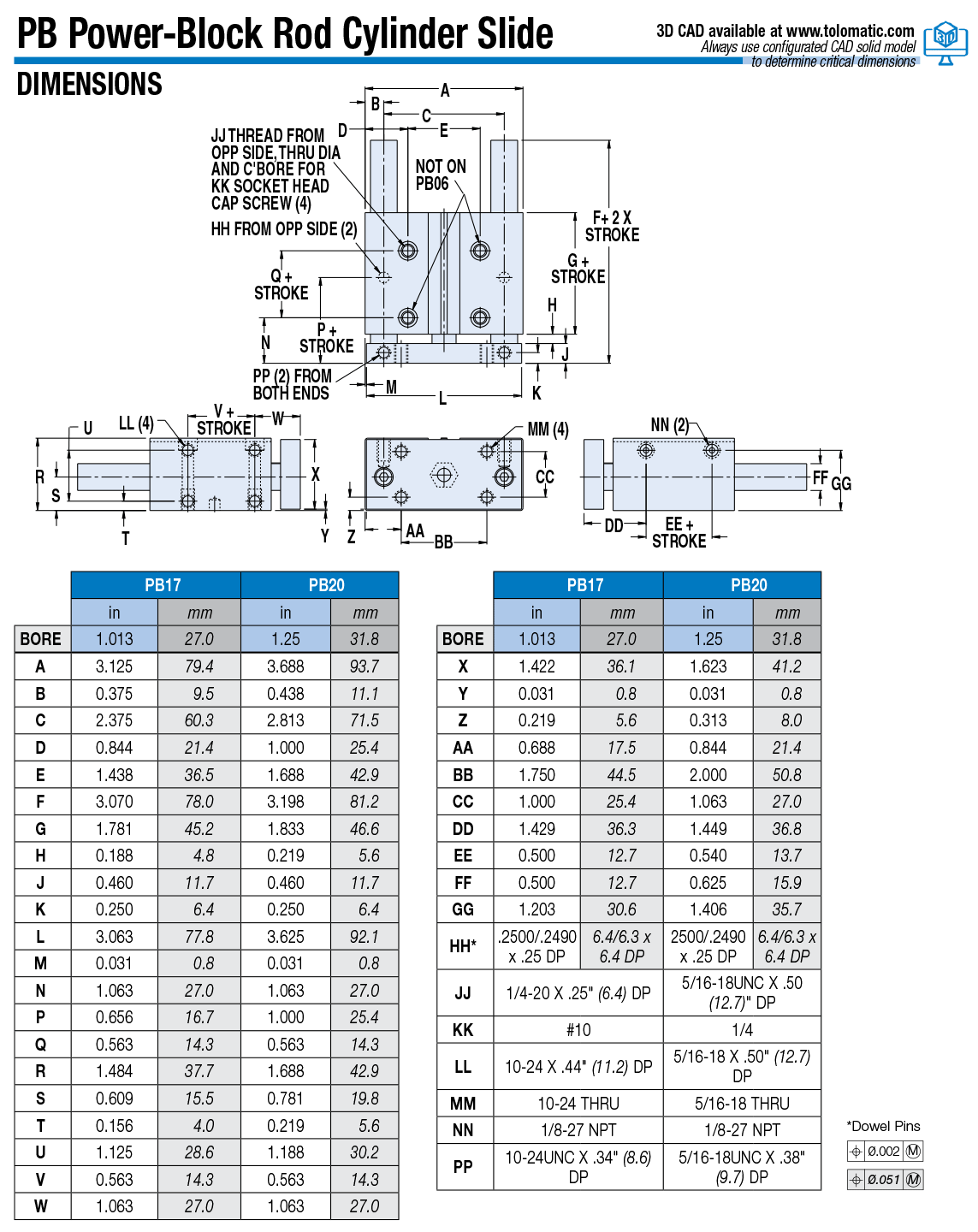

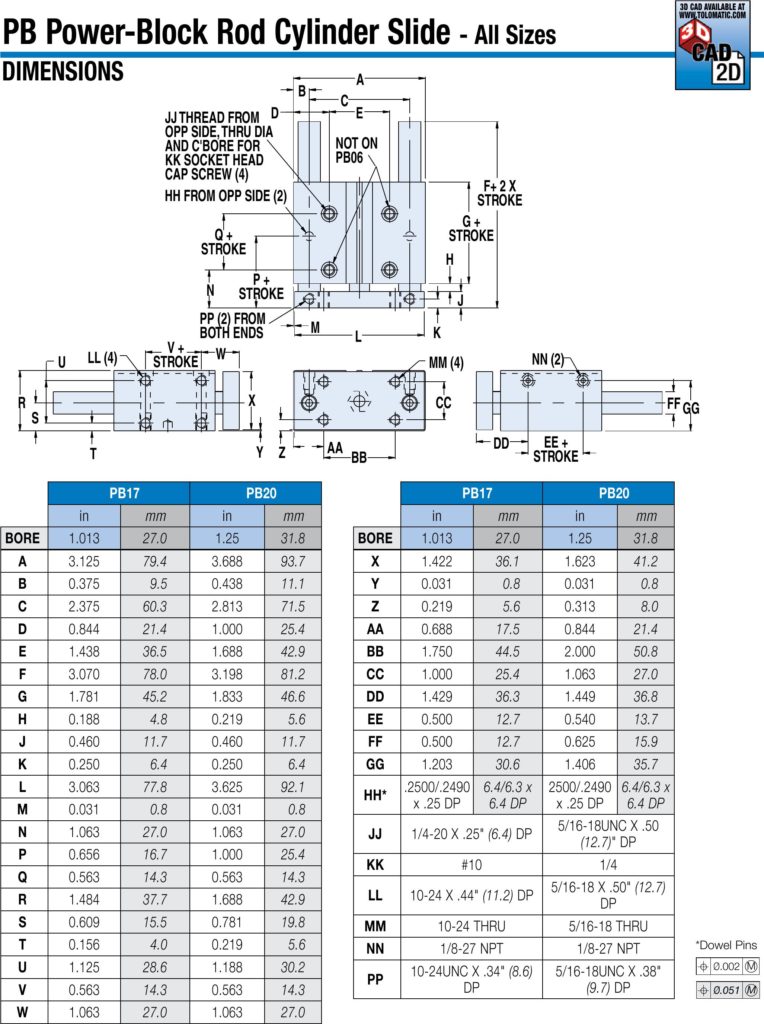

PB Dimensions
Information Center:
English
Chinese
German
Spanish
Catalogs & Brochures
- Power-Block, PB2 Catalog
- Pneumatic Actuator Catalog
- SOLUCIONES DE CONTROL DE MOVIMIENTO (Spanish, Corporate Overview-Motion Control Solutions Brochure)
- OEM Actuator Solutions Brochure
- Brochure sur l'entreprise Tolomatic (French, Corporate Overview-Linear Motion Solutions Brochure)
- Unternehmensübersicht (German, Corporate Overview brochure)
Parts & Maintenance Sheets
Terms & Conditions
Application Checklists
Use the links below to locate a Tolomatic distributor in your area, find out more information on how to specify and configure your actuator, service parts information, and selection guidelines and tips.
Find a Tolomatic distributor

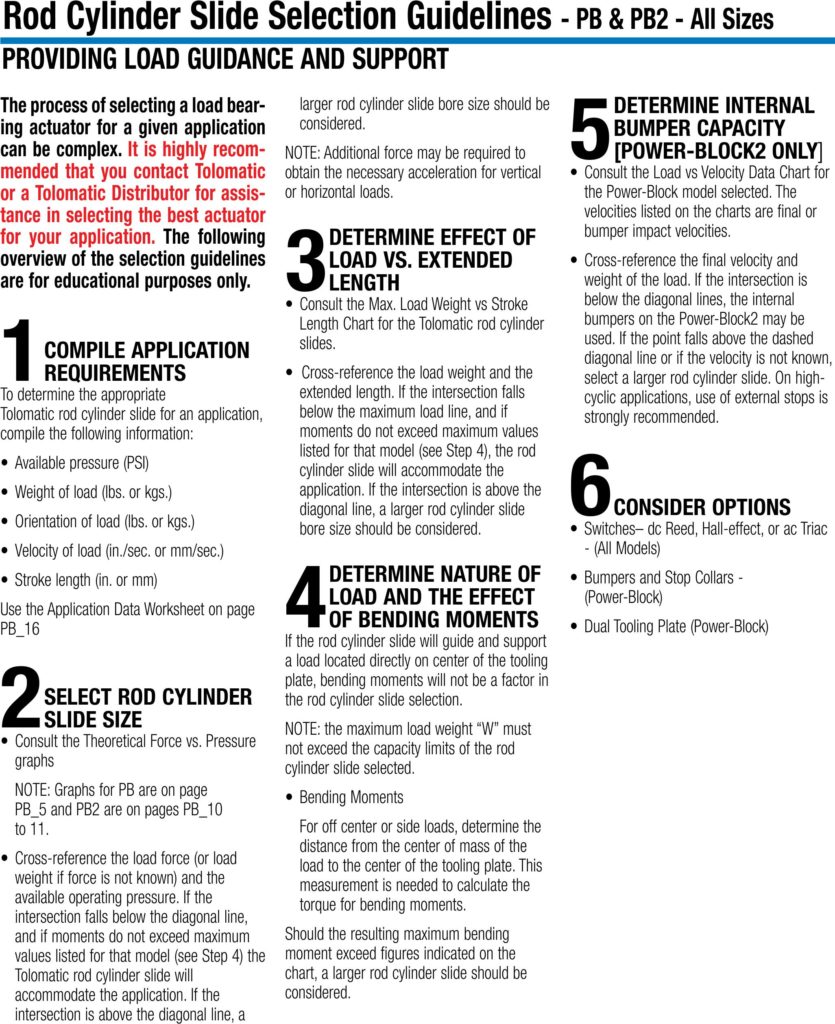

PB & PB2 Selection Guidelines

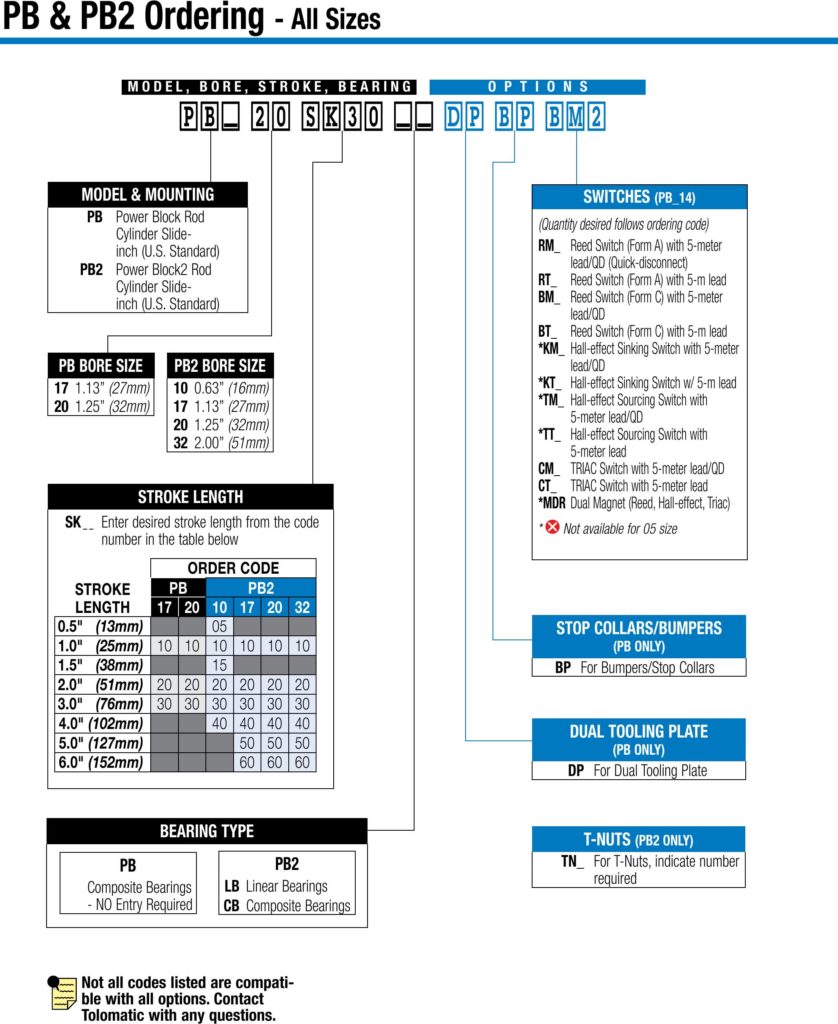

PB & PB2 Ordering

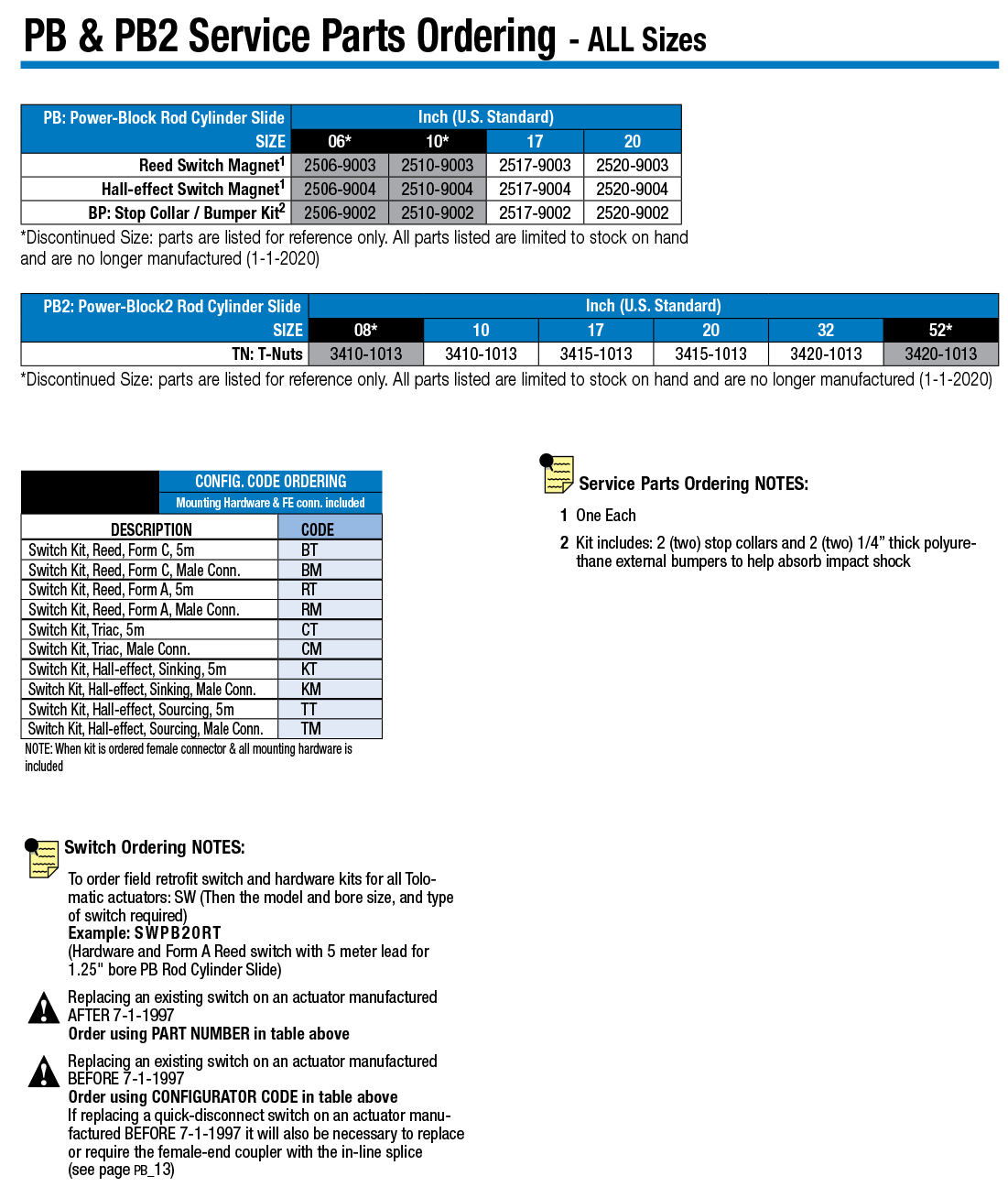

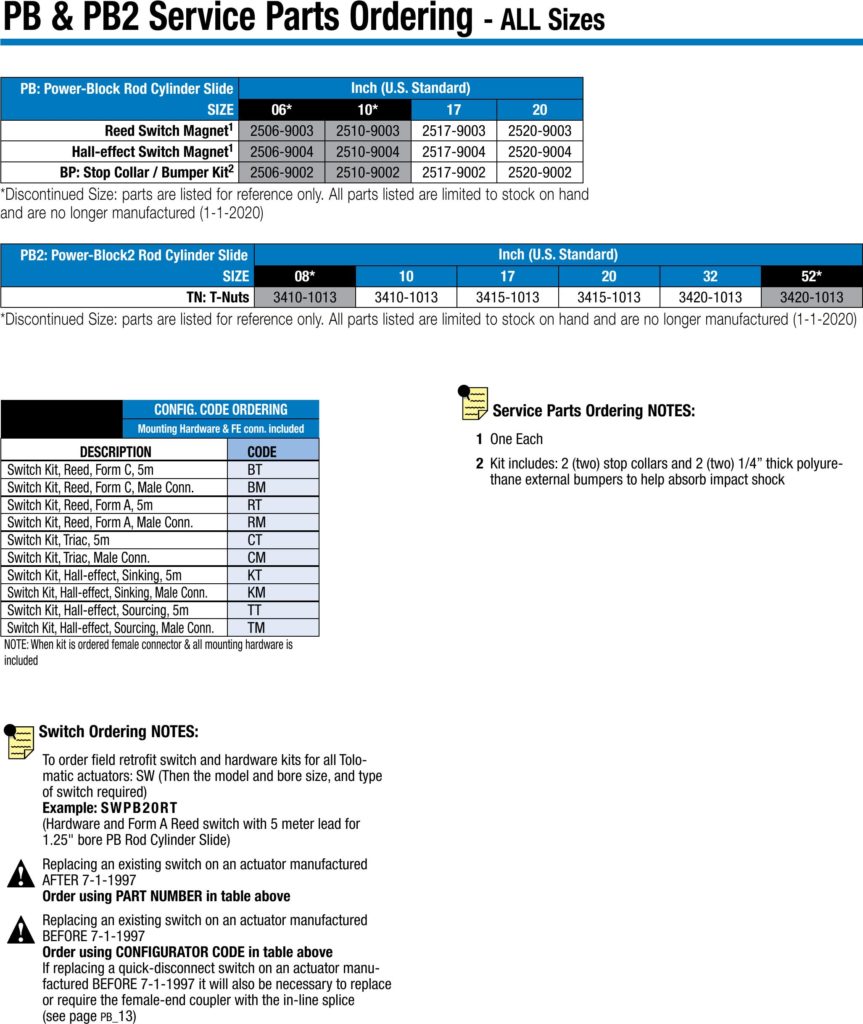

PB & PB2 Service Parts Ordering
