MXP-P Profiled Air Cylinders
MXP-P air actuator with profiled rail provides high load and bending moment capacities.
The Tolomatic MXP-P profiled rail air actuators offer the highest load carrying capacity of the MXP actuator line (over 1200 lbf or 5745 N).
- Recirculating ball bearings reduce friction for long, reliable life
- Low profile, space-saving design
- Smooth, low-breakaway motion
Size | MXP-P 16 | MXP-P 25 | MXP-P 32 | MXP-P 40 | MXP-P 50 | MXP-P 63 |
---|---|---|---|---|---|---|
Standard | 0.63 in | 1.00 in | 1.25 in | 1.50 in | 2.00 in | 2.50 in |
Metric | 16 mm | 25 mm | 32 mm | 38 mm | 50 mm | 64 mm |
Size | MXP-P 16 | MXP-P 25 | MXP-P 32 | MXP-P 40 | MXP-P 50 | MXP-P 63 |
---|---|---|---|---|---|---|
Standard | 206 in | 206 in | 205 in | 203 in | 203 in | 103 in |
Metric | 5,232 mm | 5,232 mm | 5,207 mm | 5,156 mm | 5,156 mm | 2,616 mm |
Size | MXP-P 16 | MXP-P 25 | MXP-P 32 | MXP-P 40 | MXP-P 50 | MXP-P 63 |
---|---|---|---|---|---|---|
Standard | 31 lbf | 79 lbf | 123 lbf | 177 lbf | 305 lbf | 491 lbf |
Metric | 136 N | 349 N | 546 N | 786 N | 1,356 N | 2,184 N |
Size | MXP-P 16 | MXP-P 25 | MXP-P 32 | MXP-P 40 | MXP-P 50 | MXP-P 63 |
---|---|---|---|---|---|---|
Standard | 217 lb | 449 lb | 569 lb | 736 lb | 1,014 lb | 1,292 lb |
Metric | 965 kg | 1,997 kg | 2,531 kg | 3,274 kg | 4,511 kg | 5,747 kg |
MXP-P Specifications
![](https://www.tolomatic.com/wp-content/uploads/2022/06/7290ab27d2d544639057babf675756a4-orig-759x1024.jpg)
MXP-P Load Deflection
![](https://www.tolomatic.com/wp-content/uploads/2022/06/e80b1a1d5c644f5fa8629b2a94aba48f-orig-771x1024.jpg)
MXP-P Auxiliary Moment & Load Capacity
![](https://www.tolomatic.com/wp-content/uploads/2022/06/a953c66ed41b4e92aa9362f6eeee43ef-orig-759x1024.jpg)
MXP-P Tube Clamp Requirements
![](https://www.tolomatic.com/wp-content/uploads/2022/06/36f7e5c2a8864f2993f512c42ac3c26f-orig-1024x615.jpg)
MXP-P Standard Moment & Load Capacity
![](https://www.tolomatic.com/wp-content/uploads/2022/06/6bd497984d7248c8bbc3ddd96cc48f17-orig-765x1024.jpg)
MXP-P Cushion & Shock Absorber Performance
![](https://www.tolomatic.com/wp-content/uploads/2022/06/1df1a49731344cd9b4e54dd35d3a8017-orig-792x1024.jpg)
MXP-P 16/25/32 Service Parts
![](https://www.tolomatic.com/wp-content/uploads/2022/06/372c3e3a2d1c4ca98b08e5979a5a2e7e-orig-854x1024.jpg)
MXP-P 40/50/63 Service Parts
![](https://www.tolomatic.com/wp-content/uploads/2022/06/5eeb3c1c81884da2b05492def23ac2db-orig-901x1024.jpg)
MXP Adjustment Procedures
![](https://www.tolomatic.com/wp-content/uploads/2022/06/fa03274160944dab81f428979e4fc4e4-orig-465x1024.png)
MXP Switches
![](https://www.tolomatic.com/wp-content/uploads/2022/06/8b9b7d7f40ad46e190e6656cc19e5b4f-orig-794x1024.jpg)
MXP Switch Wiring Diagrams
![](https://www.tolomatic.com/wp-content/uploads/2022/06/943cee4228ed41df8f5e0fa8f10f819c-orig-1024x589.jpg)
MXP-P 16/25/32 Porting Dimensions
![](https://www.tolomatic.com/wp-content/uploads/2022/06/fcd24a56d2cd4522aac57acb56ecdf08-orig-755x1024.jpg)
MXP-P 40/50/63 Porting Dimensions
![](https://www.tolomatic.com/wp-content/uploads/2022/06/acef5f6a935b4580b59099a21d72223a-orig-712x1024.jpg)
MXP-P Auxiliary Carrier, Foot Mount & Tube Clamp Dimensions
![](https://www.tolomatic.com/wp-content/uploads/2022/06/0abeb8910d6f4dcf8d555b7c073277a1-orig-756x1024.jpg)
MXP-P Adjustable and Fixed Shock Absorber Dimensions
![](https://www.tolomatic.com/wp-content/uploads/2022/06/5b3d46c6bb63439991caf302a2119373-orig-754x1024.jpg)
MXP-P Actuator Dimensions
![](https://www.tolomatic.com/wp-content/uploads/2022/06/48f39beed7ab4087ac8416ac77afdfbd-orig-764x1024.jpg)
MXP Switch Dimensions
![](https://www.tolomatic.com/wp-content/uploads/2022/06/cabdd7c04758483296a24e6bbc872b49-orig-1024x796.jpg)
Information Center:
English
Chinese
German
Spanish
Application Tips
Catalogs & Brochures
- MXP Pneumatic Actuator Catalog (English)
- Pneumatic Actuator Catalog
- SOLUCIONES DE CONTROL DE MOVIMIENTO (Spanish, Corporate Overview-Motion Control Solutions Brochure)
- Corporate Overview-Linear Motion Solutions Brochure (English)
- MX 系列无杆气缸 (Chinese, MXP Pneumatic Actuator Brochure)
- OEM Actuator Solutions Brochure
- Brochure sur l'entreprise Tolomatic (French, Corporate Overview-Linear Motion Solutions Brochure)
- Unternehmensübersicht (German, Corporate Overview brochure)
- Soluciones Gantry y Multieje (^ES Gantry brochure)
Guides
Parts & Maintenance Sheets
Repair Kits
Terms & Conditions
White Papers
- Pneumatic rodless actuators: The 10 most common sizing mistakes and how to avoid them
- Select the right linear actuator: Making sense of manufacturer specifications
- Rules of actuator and guide alignment in linear motion systems
- IP ratings and the manufacturing environment: How to apply linear actuators for quality, safety and long service life.
- Introduction to accuracy and repeatability in linear motion systems
- Elektrische Antriebe und Pneumatikzylinder: Ein Vergleich basierend auf den Gesamtbetriebskosten weißes Papier (GERMAN, TCO WhitePaper)
Application Checklists
Use the links below to locate a Tolomatic distributor in your area, find out more information on how to specify and configure your actuator, service parts information, and selection guidelines and tips.
Find a Tolomatic distributor
MXP-P Selection Guidelines
![](https://www.tolomatic.com/wp-content/uploads/2022/06/6681189239464177bd0f18ccecbab314-orig-1024x685.png)

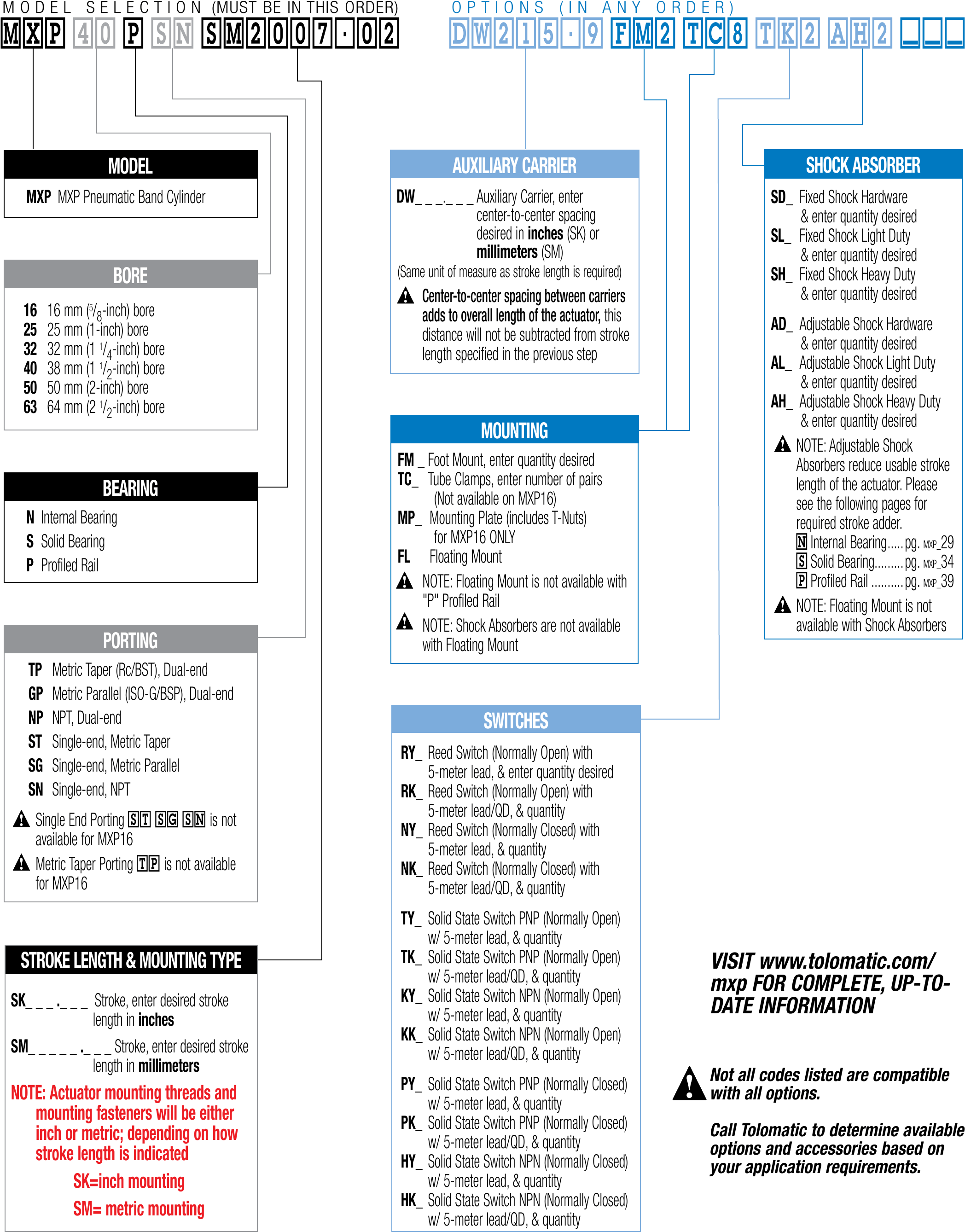

MXP-P Ordering
