MXE-S Linear Actuators
The MXE-S electric linear screw actuator with a solid bearing design reduces stress concentration for optimal performance.
The MXE-S electric linear screw actuator is designed for applications requiring moderate load carrying and guidance. The MXE-S actuator utilizes two field replaceable solid bearings that optimize stress distribution for optimal performance.
- Large bearing surface contact area optimizes stress distribution on bearing for long service life
- Large carrier mounting pattern for increased load stability and compatibility
- Engineered bearing material does not require additional lubrication
- Field replaceable bearings
| Size | MXE-S 16 | MXE-S 25 | MXE-S 32 | MXE-S 40 | MXE-S 50 | MXE-S 63 |
|---|---|---|---|---|---|---|
| Standard | 31 in | 134 in | 133 in | 131 in | 131 in | 125 in |
| Metric | 787 mm | 3,404 mm | 3,378 mm | 3,327 mm | 4,521 mm | 3,175 mm |
| Size | MXE-S 16 | MXE-S 25 | MXE-S 32 | MXE-S 40 | MXE-S 50 | MXE-S 63 |
|---|---|---|---|---|---|---|
| Standard | 45 lbf | 170 lbf | 170 lbf | 800 lbf | 2,700 lbf | 4,300 lbf |
| Metric | 200 N | 756 N | 756 N | 3,327 N | 12,010 N | 19,127 N |
| Size | MXE-S 16 | MXE-S 25 | MXE-S 32 | MXE-S 40 | MXE-S 50 | MXE-S 63 |
|---|---|---|---|---|---|---|
| Standard | 42 in/s | 60 in/s | 60 in/s | 60 in/s | 60 in/s | 50 in/s |
| Metric | 1,067 mm/s | 1,524 mm/s | 1,524 mm/s | 1,524 mm/s | 1,524 mm/s | 1,270 mm/s |
| Size | MXE-S 16 | MXE-S 25 | MXE-S 32 | MXE-S 40 | MXE-S 50 | MXE-S 63 |
|---|---|---|---|---|---|---|
| Standard | 35 lbs | 70 lbs | 150 lbs | 225 lbs | 315 lbs | 520 lbs |
| Metric | 16 kg | 32 kg | 68 kg | 102 kg | 143 kg | 236 kg |
MXE-S Features
| Size | MXE-S 16 | MXE-S 25 | MXE-S 32 | MXE-S 40 | MXE-S 50 | MXE-S 63 |
|---|---|---|---|---|---|---|
| Standard | 31 in | 134 in | 133 in | 131 in | 131 in | 125 in |
| Metric | 787 mm | 3,404 mm | 3,378 mm | 3,327 mm | 4,521 mm | 3,175 mm |
| Size | MXE-S 16 | MXE-S 25 | MXE-S 32 | MXE-S 40 | MXE-S 50 | MXE-S 63 |
|---|---|---|---|---|---|---|
| Standard | 45 lbf | 170 lbf | 170 lbf | 800 lbf | 2,700 lbf | 4,300 lbf |
| Metric | 200 N | 756 N | 756 N | 3,327 N | 12,010 N | 19,127 N |
| Size | MXE-S 16 | MXE-S 25 | MXE-S 32 | MXE-S 40 | MXE-S 50 | MXE-S 63 |
|---|---|---|---|---|---|---|
| Standard | 42 in/s | 60 in/s | 60 in/s | 60 in/s | 60 in/s | 50 in/s |
| Metric | 1,067 mm/s | 1,524 mm/s | 1,524 mm/s | 1,524 mm/s | 1,524 mm/s | 1,270 mm/s |
| Size | MXE-S 16 | MXE-S 25 | MXE-S 32 | MXE-S 40 | MXE-S 50 | MXE-S 63 |
|---|---|---|---|---|---|---|
| Standard | 35 lbs | 70 lbs | 150 lbs | 225 lbs | 315 lbs | 520 lbs |
| Metric | 16 kg | 32 kg | 68 kg | 102 kg | 143 kg | 236 kg |

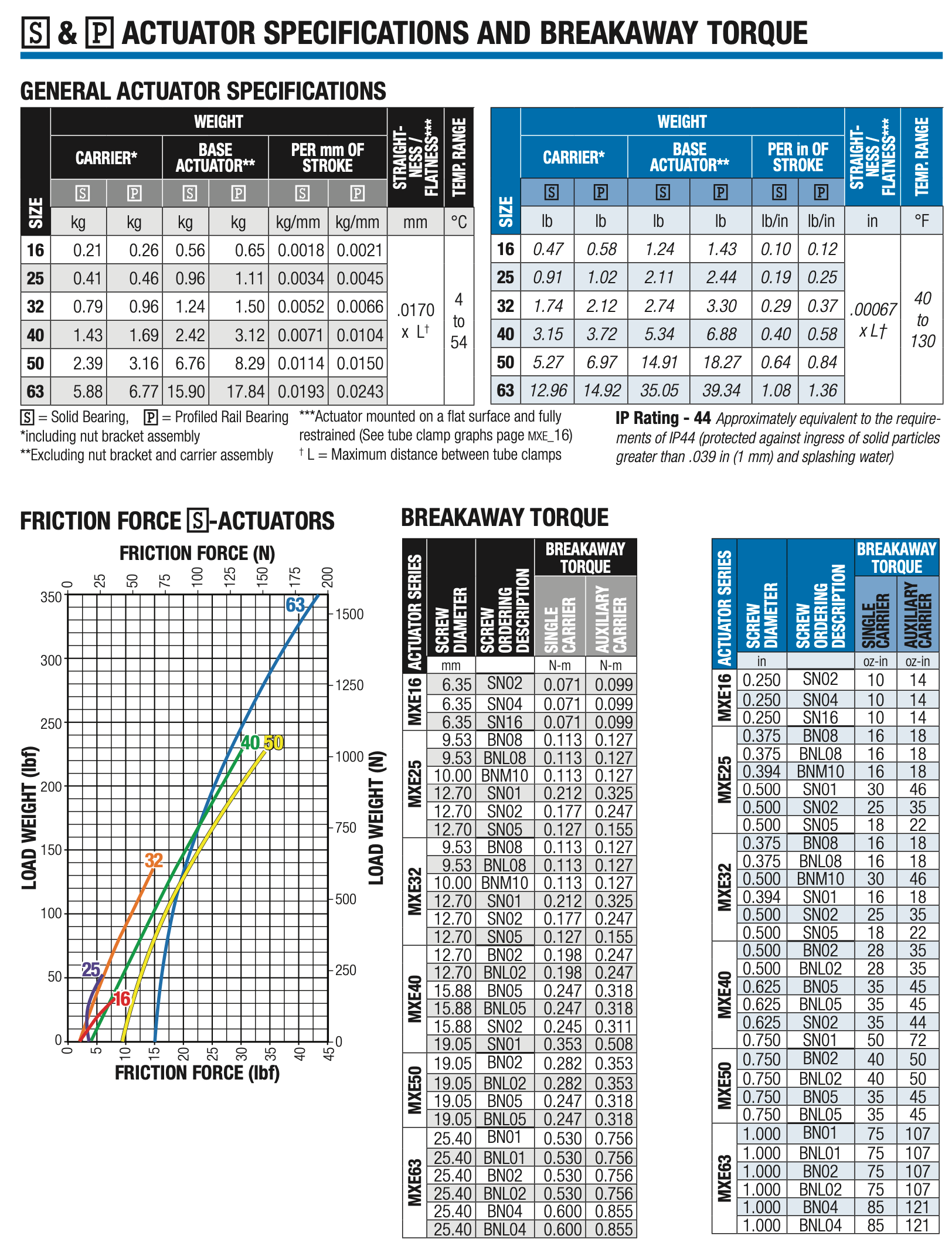

MXE-S Actuator Specs & Breakaway Torque

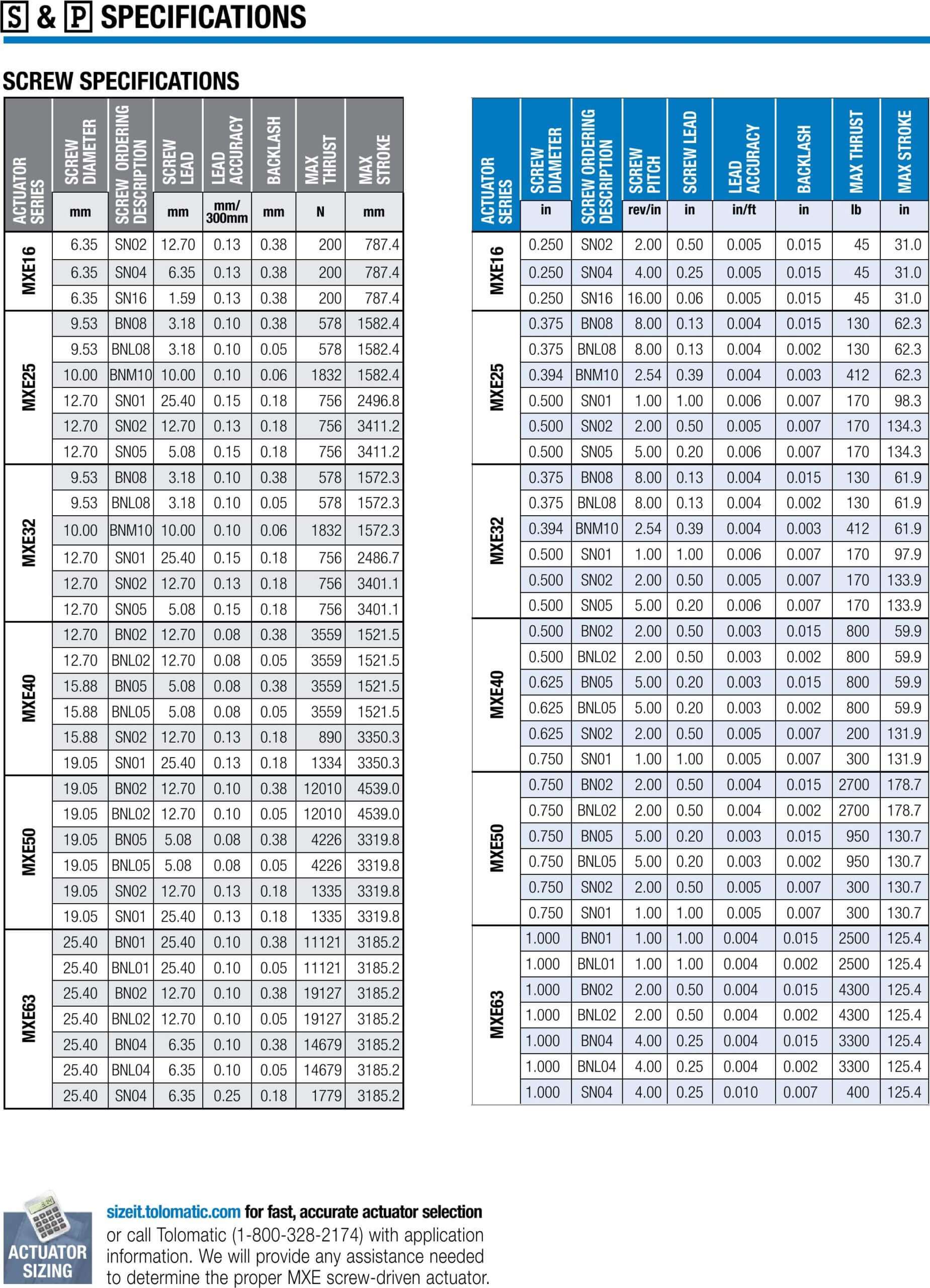

MXE-S Screw Specifications

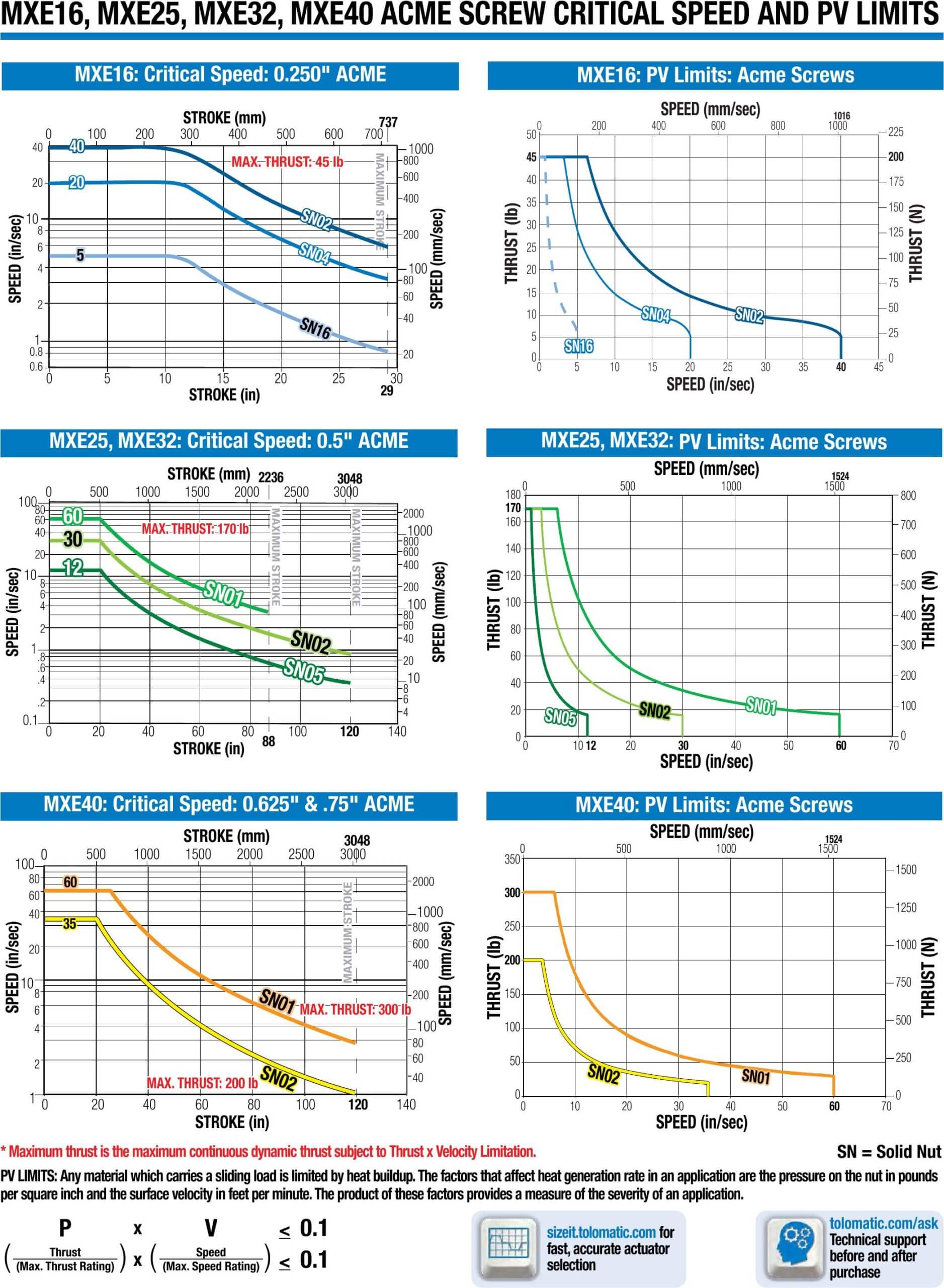

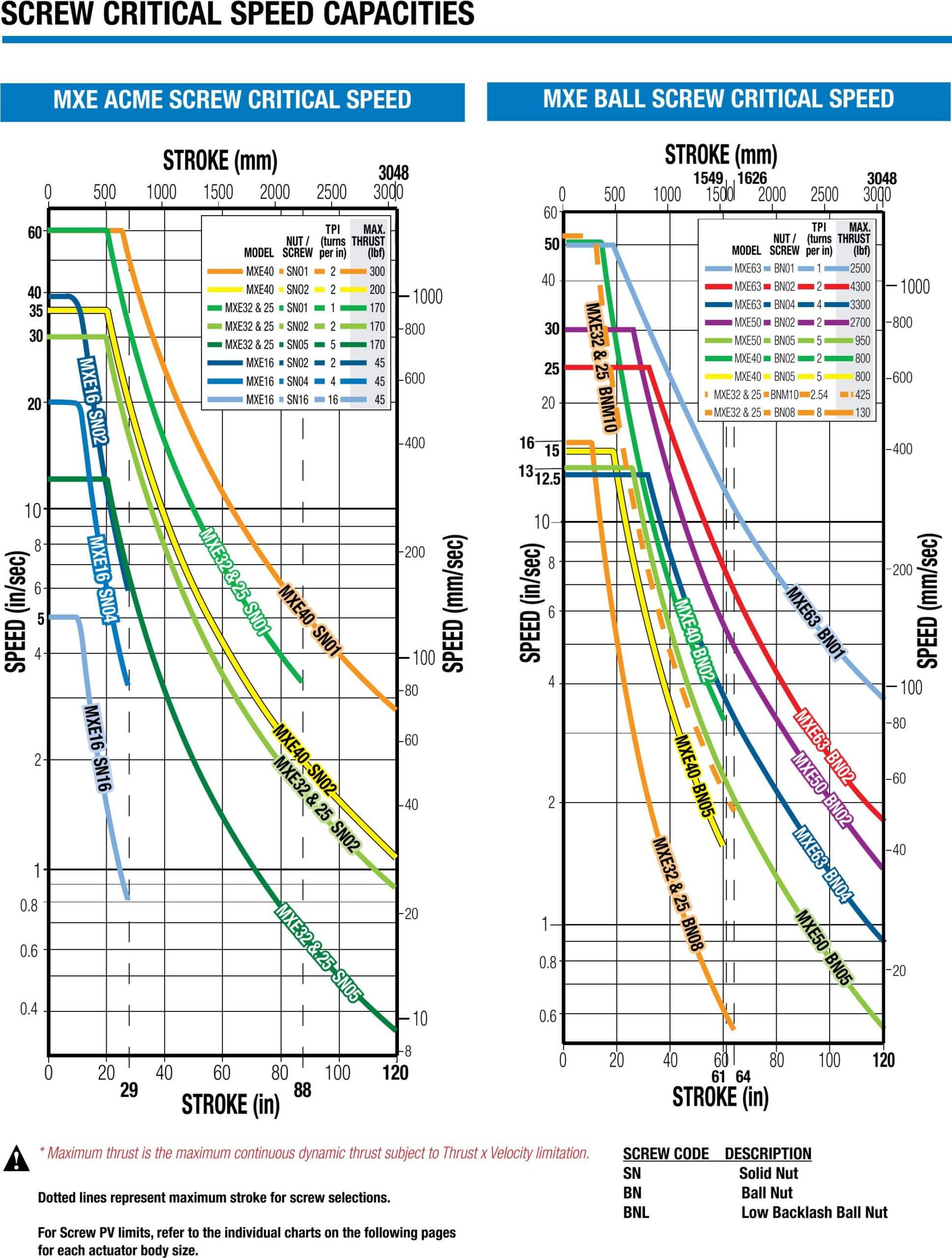

MXE Screw Critical Speed Capacities
MXE-S Standard Carrier Solid Bearing Moment & Load Capacity
MXE-S Auxiliary Carrier Solid Bearing Moment & Load Capacity

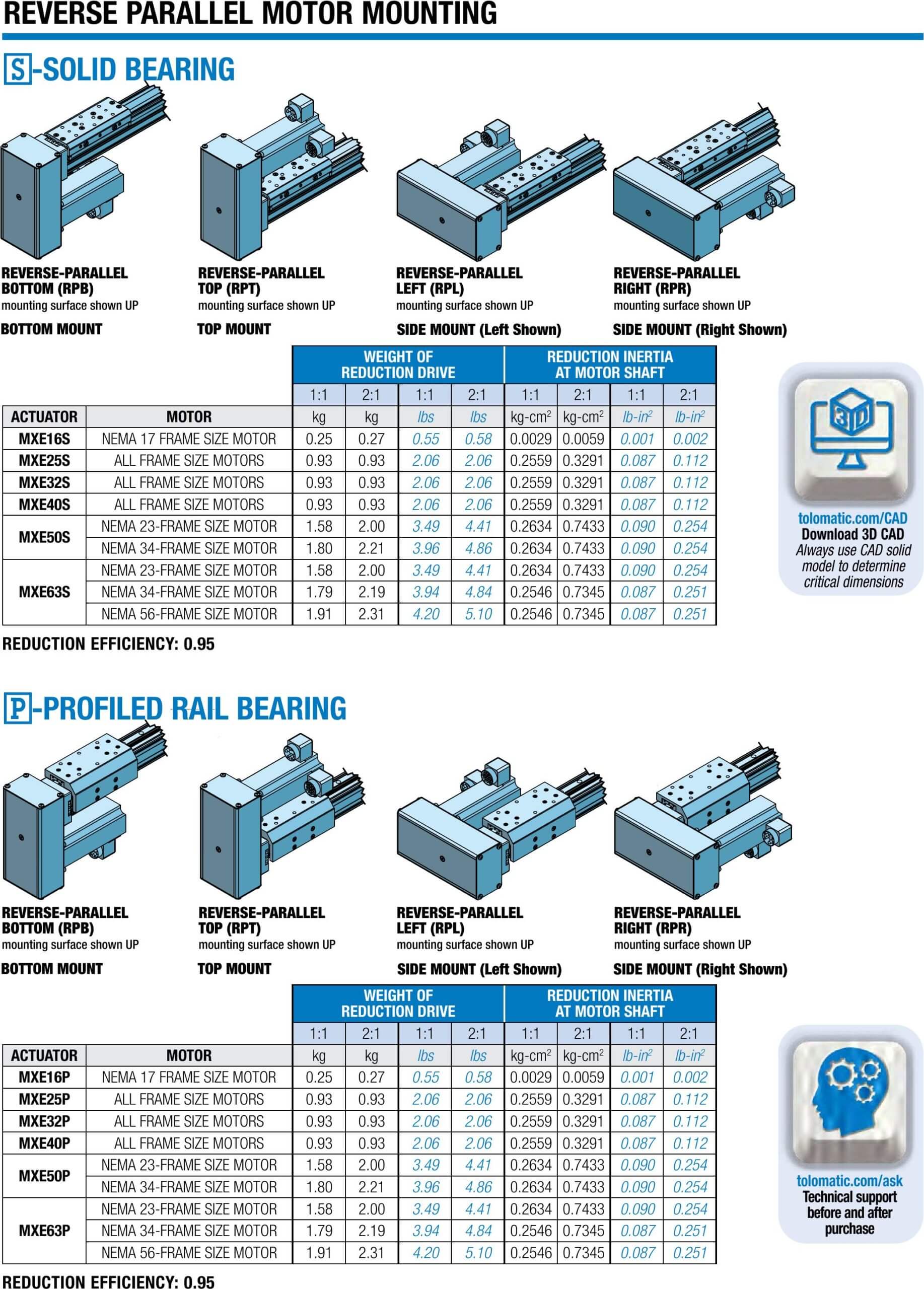

MXE RP Motor Mount Data
MXE-S Switch Specifications
MXE Switch Wiring Diagrams
MXE-S Adjustment Procedures

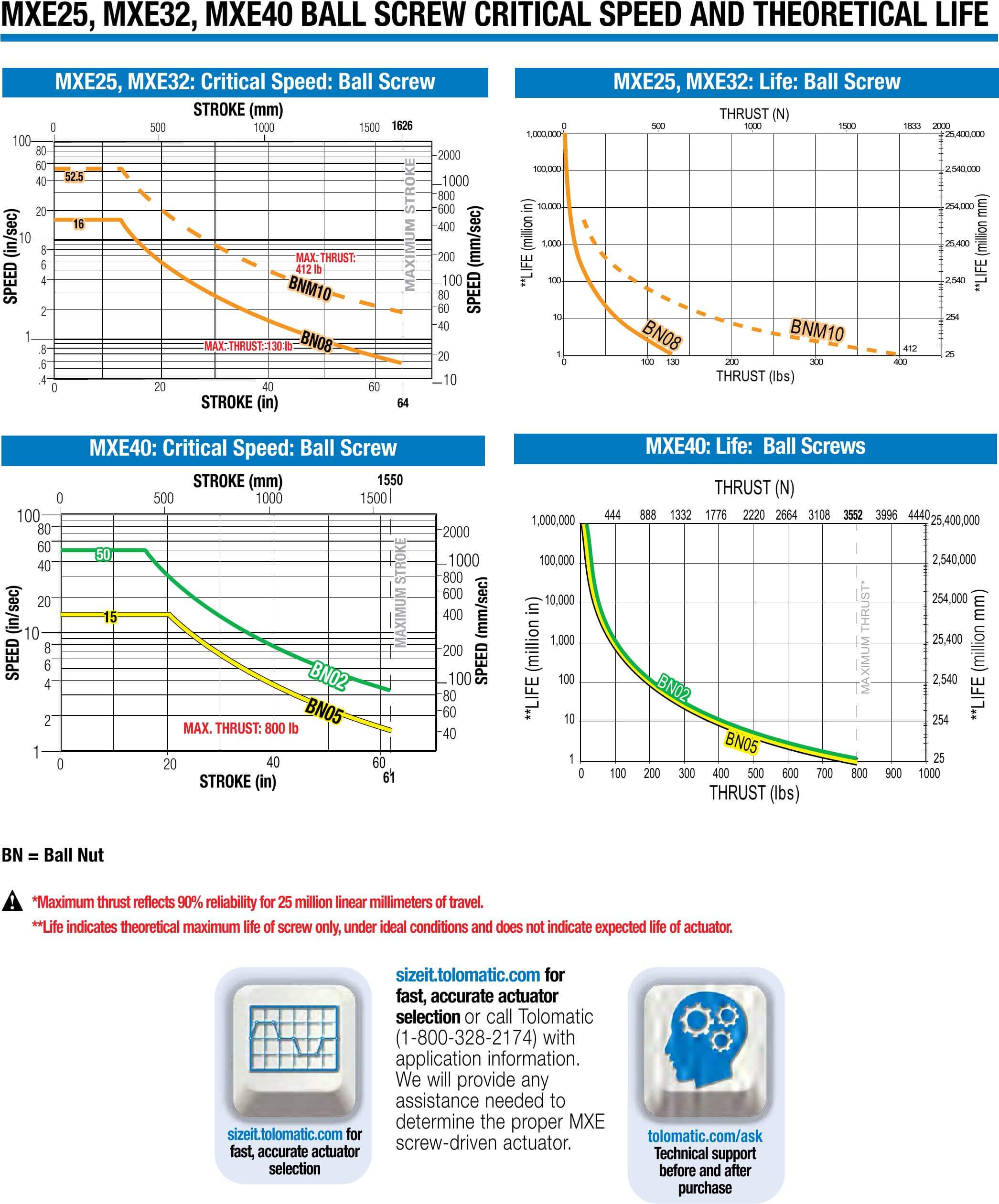

MXE 25, 32, 40 Ball Screw Performance

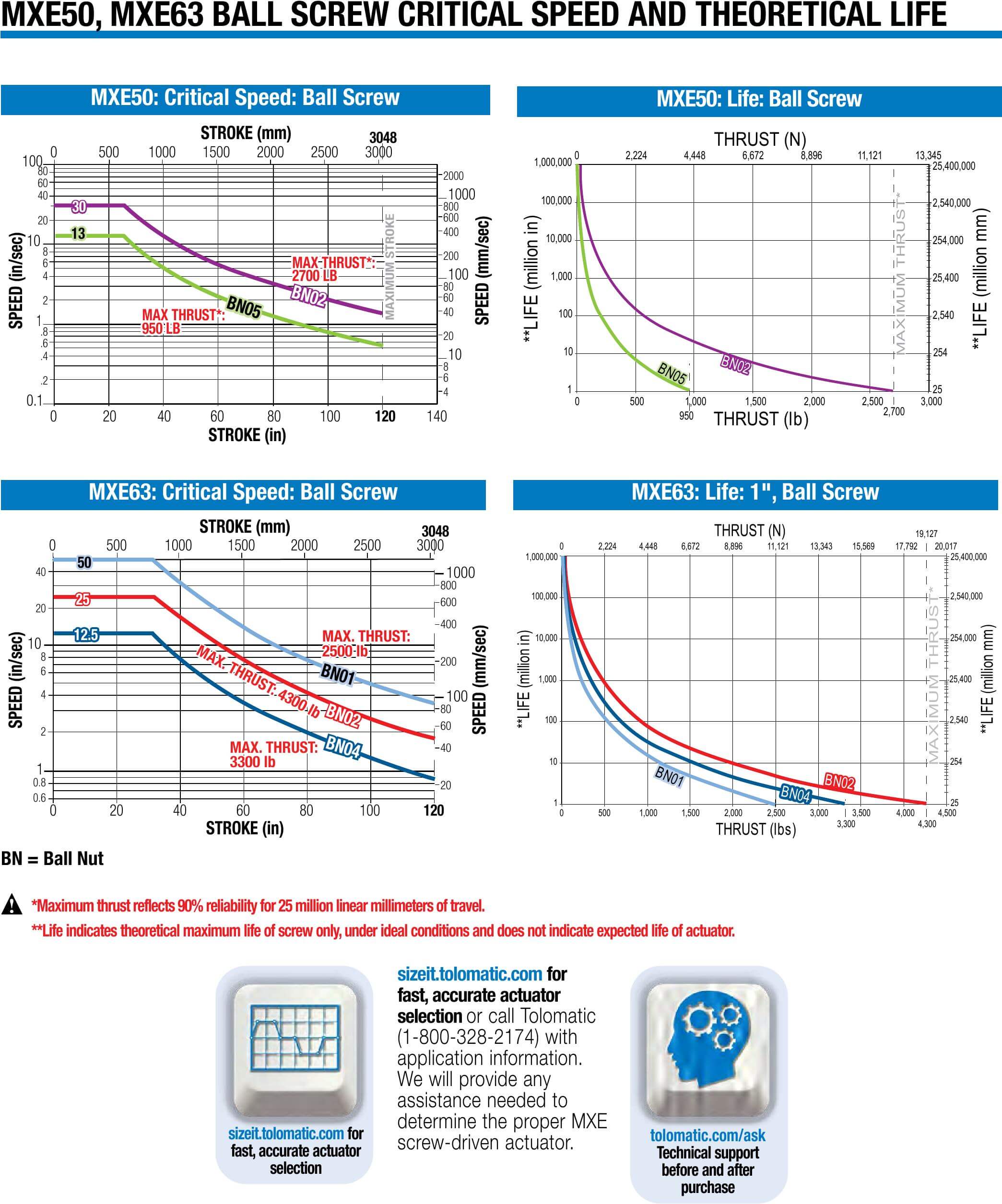

MXE 50, 63 Ball Screw Performance

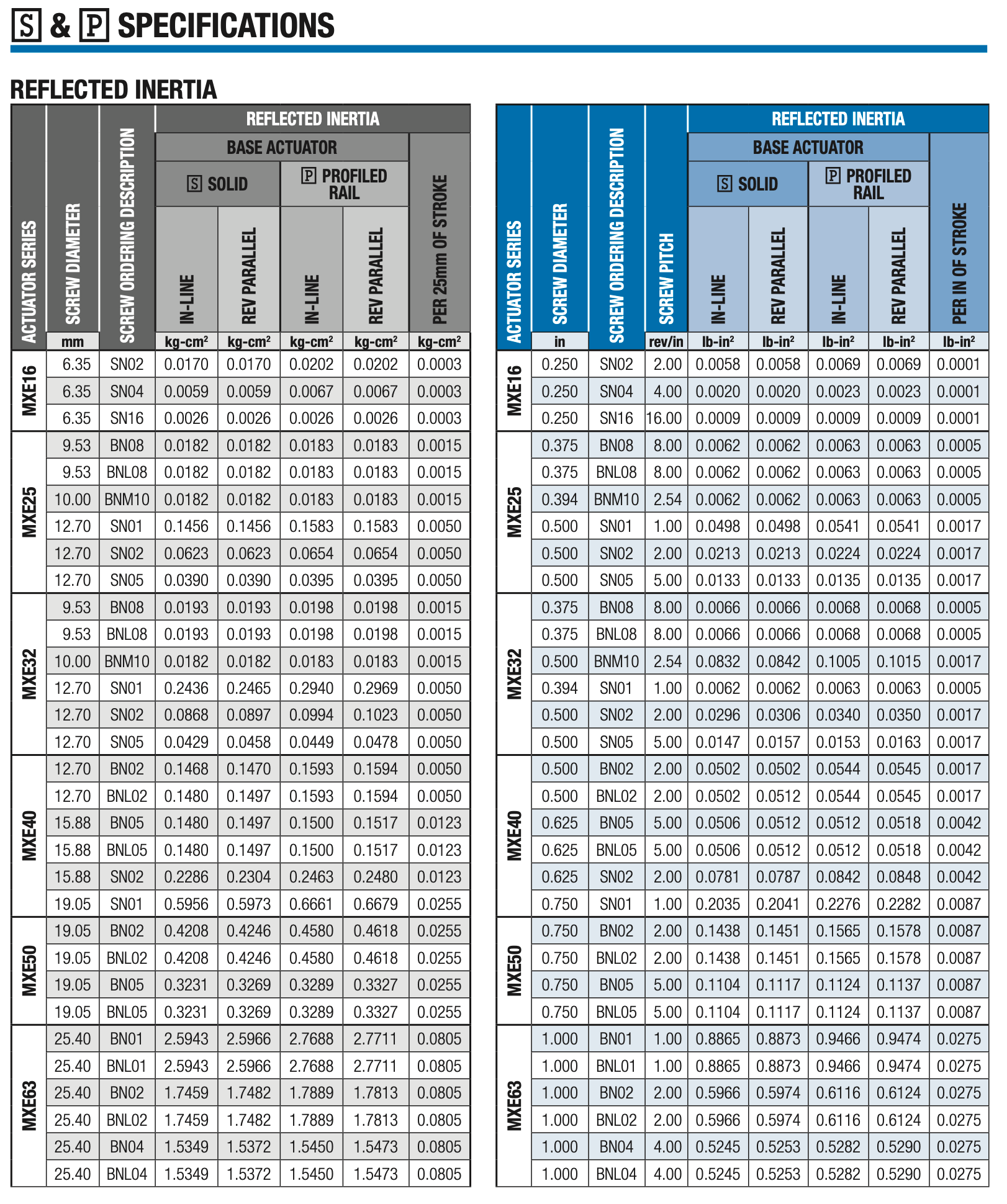

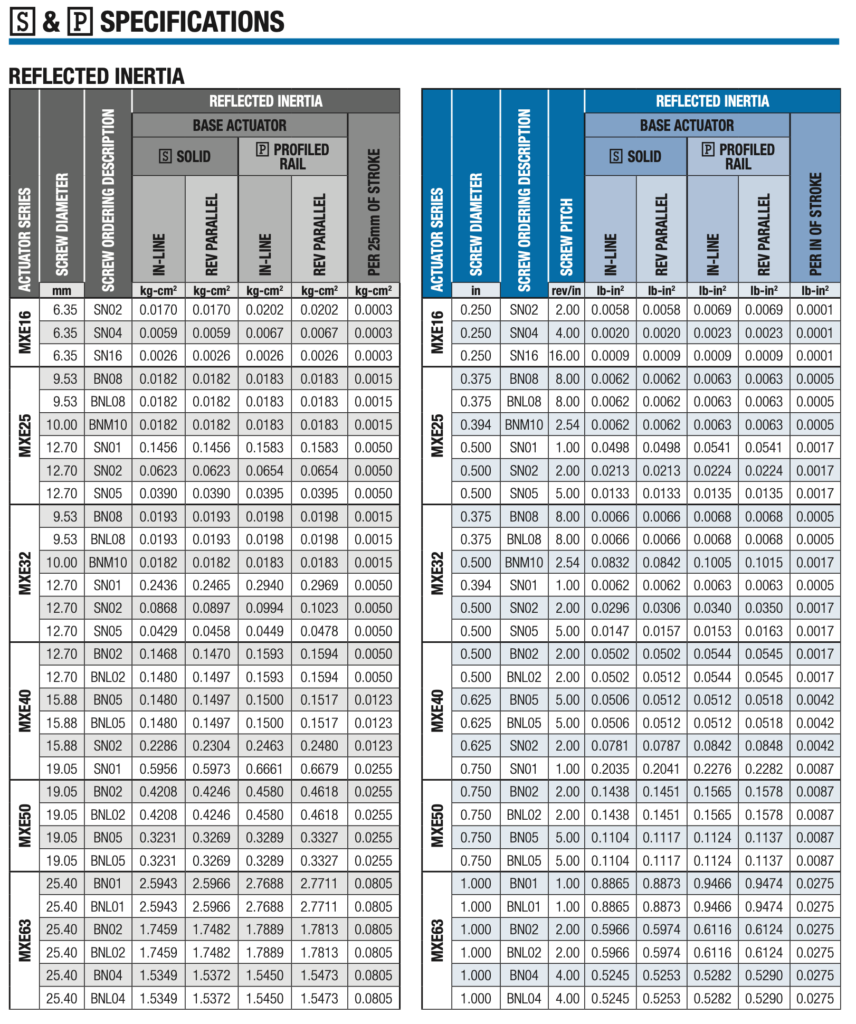

MXE-S Reflected Inertia
MXE-S Tube Clamp Requirements

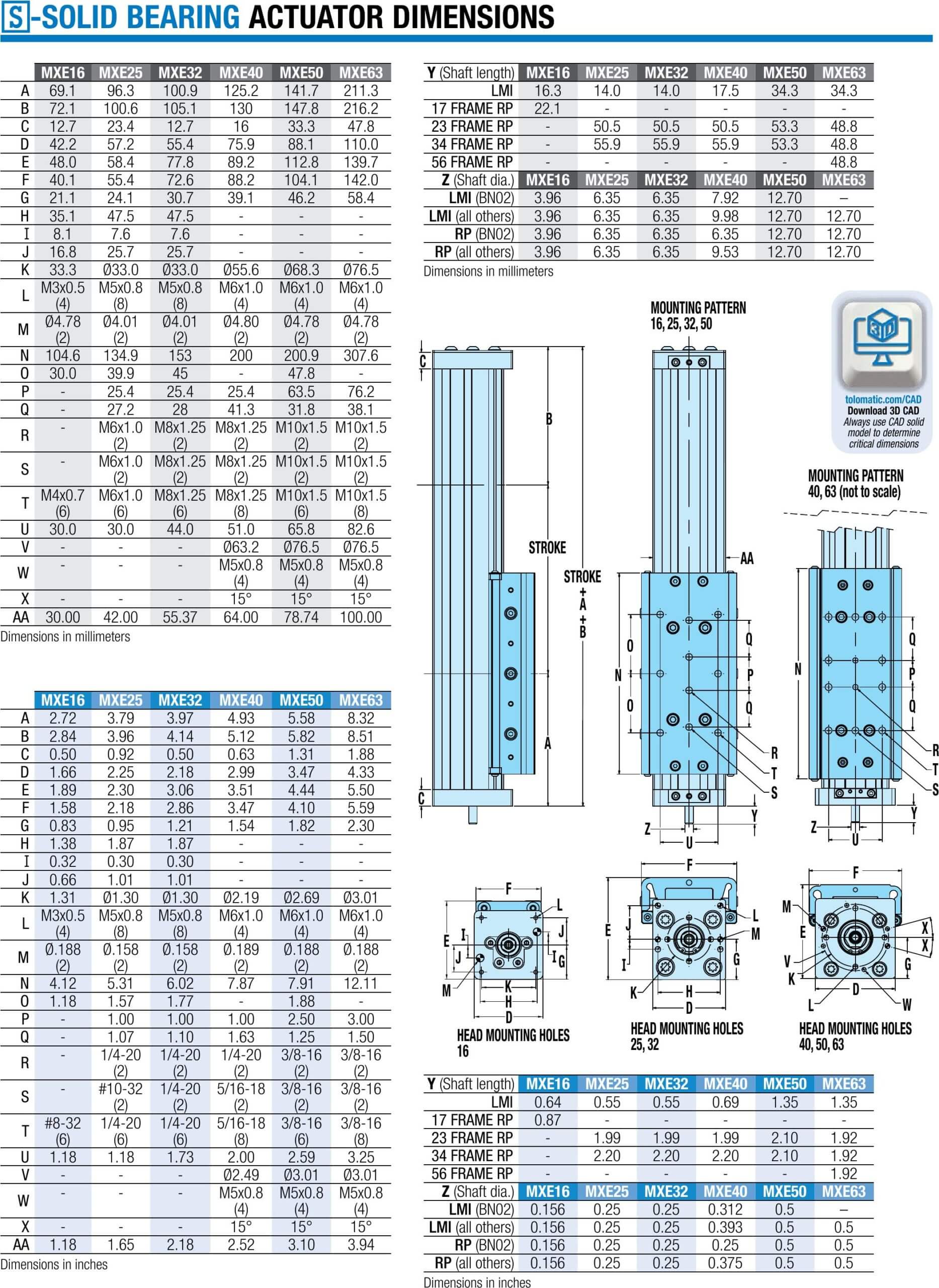

MXE-S Solid-Bearing Actuator Dimensions
MXE-S Solid-Bearing Option Dimensions
MXE-S Switch Dimensions
Information Center:
English
Chinese
German
Spanish
Catalogs & Brochures
- Corporate Overview-Linear Motion Solutions Brochure (English)
- SOLUCIONES DE CONTROL DE MOVIMIENTO (Spanish, Corporate Overview-Motion Control Solutions Brochure)
- Unternehmensübersicht (German, Corporate Overview brochure)
- Brochure sur l'entreprise Tolomatic (French, Corporate Overview-Linear Motion Solutions Brochure)
- MXE Screw Driven Actuator Catalog
- Gantry & Multi-Axis Solutions Brochure
- Soluciones Gantry y Multieje (^ES Gantry brochure)
- OEM Actuator Solutions Brochure
E-Books
Guides
- Selecting the Optimal Screw Technology
- Actuator Life: How to estimate for ball and roller screw actuators
- INFOGRAPHIC: Accuracy and Repeatability in Linear Actuators
- INFOGRAPHIC: Ten Tips for Specifying Rodless Electric Linear Actuators
- INFOGRAPHIC: Calculating Total Cost of Ownership
- 如何选择 螺杆？ 甄选 正确的技术 (Chinese, How to select the right lead screw for an electric actuator)
- Abschnitt: Welches Gewinde? Die richtige Technologie auswählen (German - Which Screw)
- Guide to Third Party Motor Integration
- Switch Reference Guide
Parts & Maintenance Sheets
- MXE16S Solid Bearing Screw-Drive Actuators Part Sheet
- MXE25S Solid Bearing Screw-Drive Actuators Part Sheet
- MXE32S Solid Bearing Screw-Drive Actuators Part Sheet
- MXE40S Solid Bearing Screw-Drive Actuators Part Sheet
- MXE50S Solid Bearing Screw-Drive Actuators Part Sheet
- MXE63S Solid Bearing Screw-Drive Actuators Part Sheet
- Specifying a Customer Motor
- Material Safety Data Sheet: Mobil SHC Polyrex 462 Grease (PN: 27331303)
- Material Safety Data Sheet: SAF-T-EZE Food/Drug Lubricant (PN: 09121112)
Tech Bulletins
Terms & Conditions
Videos
White Papers
- Electric actuators vs. pneumatic cylinders: A comparison based on total cost of ownership
- The truth about actuator life: Screw drive survival
- Select the right linear actuator: Making sense of manufacturer specifications
- Specifying electric rodless actuators: Ten tips for maximizing actuator life and system performance
- Rules of actuator and guide alignment in linear motion systems
- IP ratings and the manufacturing environment: How to apply linear actuators for quality, safety and long service life.
- Minimizing electrical noise in actuator drive systems for maximum reliability and performance
- Screw-driven vs. belt-driven rodless actuators: How to select drive trains for reliability, efficiency and long service life
- Introduction to accuracy and repeatability in linear motion systems
- Elektrische Stangenantriebe vs. Hydraulikzylinder: Ein Vergleich der Vor- und Nachteile beider Technologien weißes Papier (Electric vs Hydraulic WP, German)
- Elektrische Antriebe und Pneumatikzylinder: Ein Vergleich basierend auf den Gesamtbetriebskosten weißes Papier (GERMAN, TCO WhitePaper)
- Elektrische Stangenantriebe vs. Hydraulikzylinder: Ein Vergleich der Vor- und Nachteile beider Technologien weißes Papier (GERMAN, Electric vs Hydraulic WP)
- Designing Gantry and Multi-Axis Automation Systems
Tire Geometry Inspection
Challenge: Laser measurement and inspection during tire manufacturing.
Product Family: Electric
Product Used: MXE25S Rodless Screw Drive Electric Actuator with Solid Bearing
CT Scanning Gantry
Challenge: Equine X-ray CT imaging with rapid 3D imaging of the lower limbs and head without subjecting the horse to general anesthesia.
Product Family: Electric Rodless Actuator
Product Used: MXE-S
Application Checklists
Use the links below to locate a Tolomatic distributor in your area, find out more information on how to specify and configure your actuator, service parts information, and selection guidelines and tips.
Find a Tolomatic distributor
MXE-S Selection Guidelines

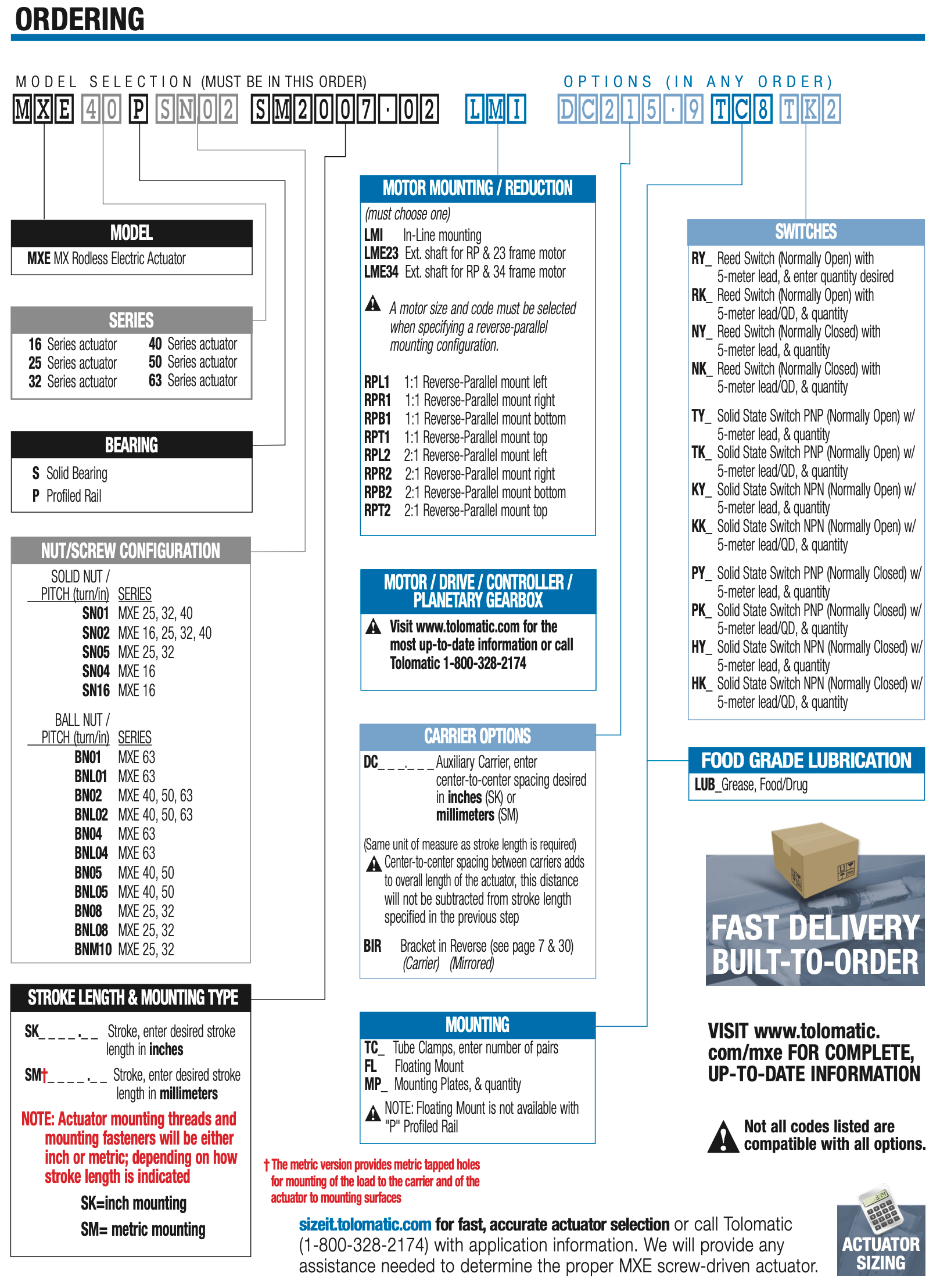

MXE-S Ordering

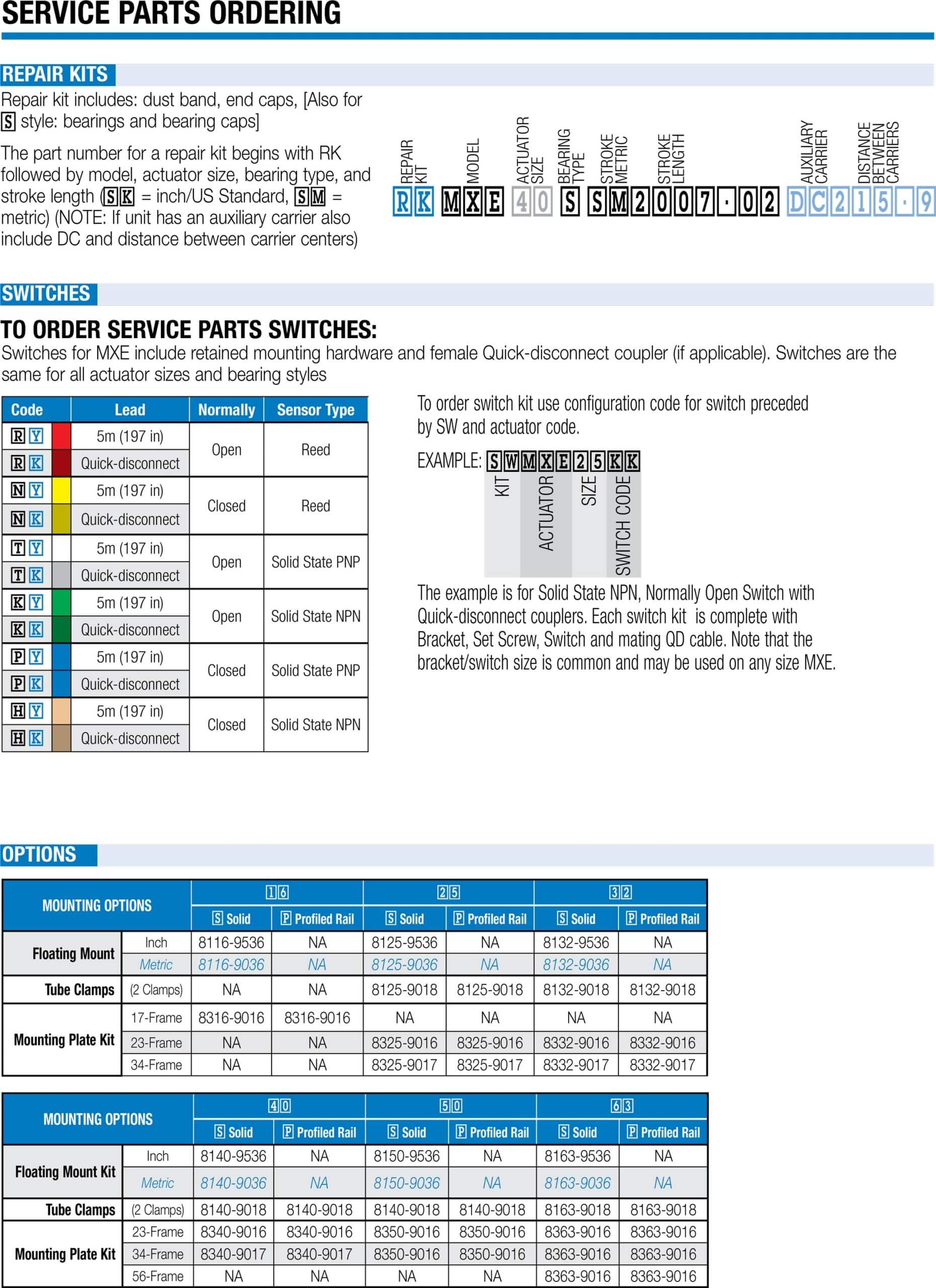

MXE-S Service Parts Ordering
