![LS Pneumatic Linear Slide](https://www.tolomatic.com/wp-content/uploads/2022/06/c2665ff9b0cd41d7afe57dc0a7ce26b7-orig.jpg)
LS Linear Slide
The LS pneumatic linear slide offers a rigid, torque-resistant low-profile design for increased torsional stability and mounting flexibility
Tolomatic LS pneumatic linear slides are an excellent choice for X-Y configurations or for applications where space constraints are are a factor.
- Large mounting area for high load stability along the entire stroke of the slide
- Bearing design offers low friction and long wear
- Integrated end-of-stroke adjustment
LS10 Performance Specs
![](https://www.tolomatic.com/wp-content/uploads/2022/06/275cd9ece47044178835c2d6d75953b4-orig-728x1024.jpg)
LS Auxiliary Carrier Specs
![](https://www.tolomatic.com/wp-content/uploads/2022/06/d9636fd241304974b31e34d034728f20-orig-803x1024.jpg)
LS Switches
![](https://www.tolomatic.com/wp-content/uploads/2022/06/767a784aae764762bb75f03ffcaa0575-orig-795x1024.jpg)
LS Switch Performance & Wiring Diagrams
![](https://www.tolomatic.com/wp-content/uploads/2022/06/c4c58b3b6ca64272a2d0cbfea2a16925-orig-1024x778.jpg)
LS Proximity Sensors
![](https://www.tolomatic.com/wp-content/uploads/2022/06/734209641bba402185e73fe835a184e3-orig-794x1024.jpg)

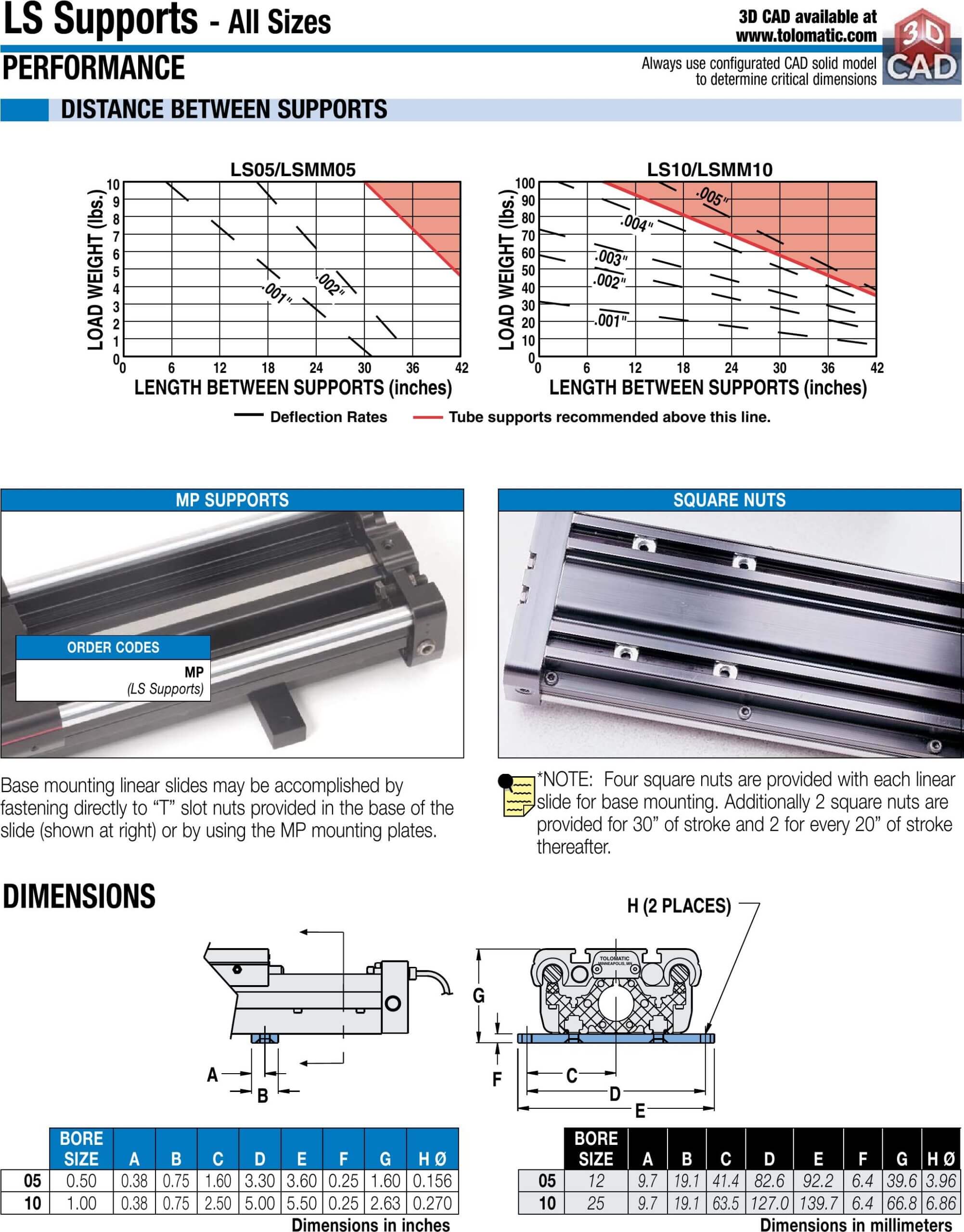

LS Supports Performance
![](https://www.tolomatic.com/wp-content/uploads/2022/06/a7214b9216604d0184c068e07fdb4128-orig-801x1024.jpg)

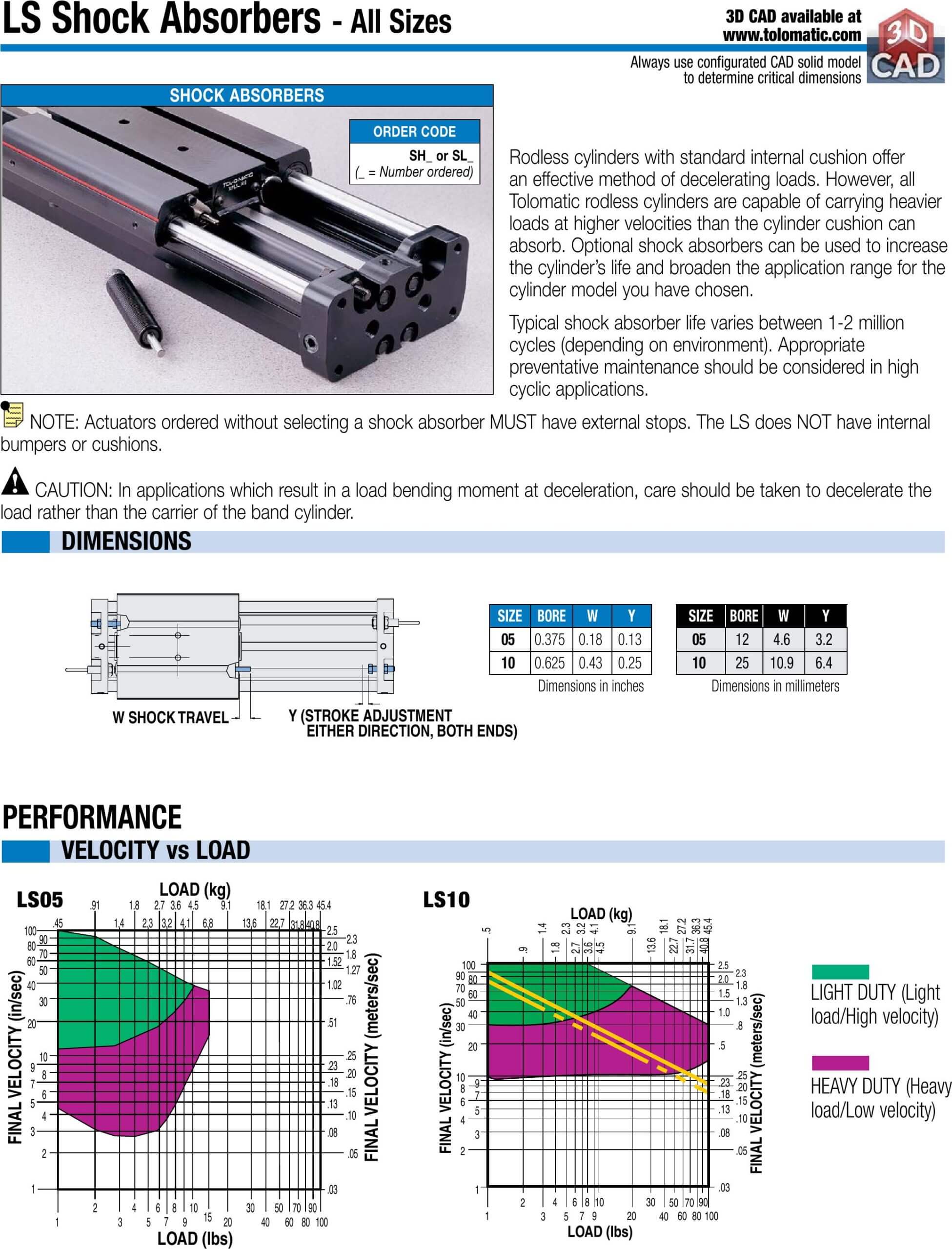

LS Shock Absorbers
![](https://www.tolomatic.com/wp-content/uploads/2022/06/f6087021c99c47bd8632f76d848ae26f-orig-780x1024.jpg)
LS10 Dimensions
![](https://www.tolomatic.com/wp-content/uploads/2022/06/28973e6e9ced44fe9fbc0cfa294926df-orig-740x1024.jpg)
LS Auxiliary Carrier Dimensions
![](https://www.tolomatic.com/wp-content/uploads/2022/06/7a3a5b309eb5444d870bf29732e2e89b-orig-1024x789.jpg)
LS Switch Dimensions
![](https://www.tolomatic.com/wp-content/uploads/2022/06/08ff1941b21041a692cc8505bb6613aa-orig-1024x316.png)
Information Center:
English
Chinese
German
Spanish
Application Tips
Catalogs & Brochures
Certifications
Guides
Parts & Maintenance Sheets
Repair Kits
Terms & Conditions
White Papers
- Pneumatic rodless actuators: The 10 most common sizing mistakes and how to avoid them
- Electric actuators vs. pneumatic cylinders: A comparison based on total cost of ownership
- Select the right linear actuator: Making sense of manufacturer specifications
- Rules of actuator and guide alignment in linear motion systems
- IP ratings and the manufacturing environment: How to apply linear actuators for quality, safety and long service life.
- Introduction to accuracy and repeatability in linear motion systems
Use the links below to locate a Tolomatic distributor in your area, find out more information on how to specify and configure your actuator, service parts information, and selection guidelines and tips.
Find a Tolomatic distributor

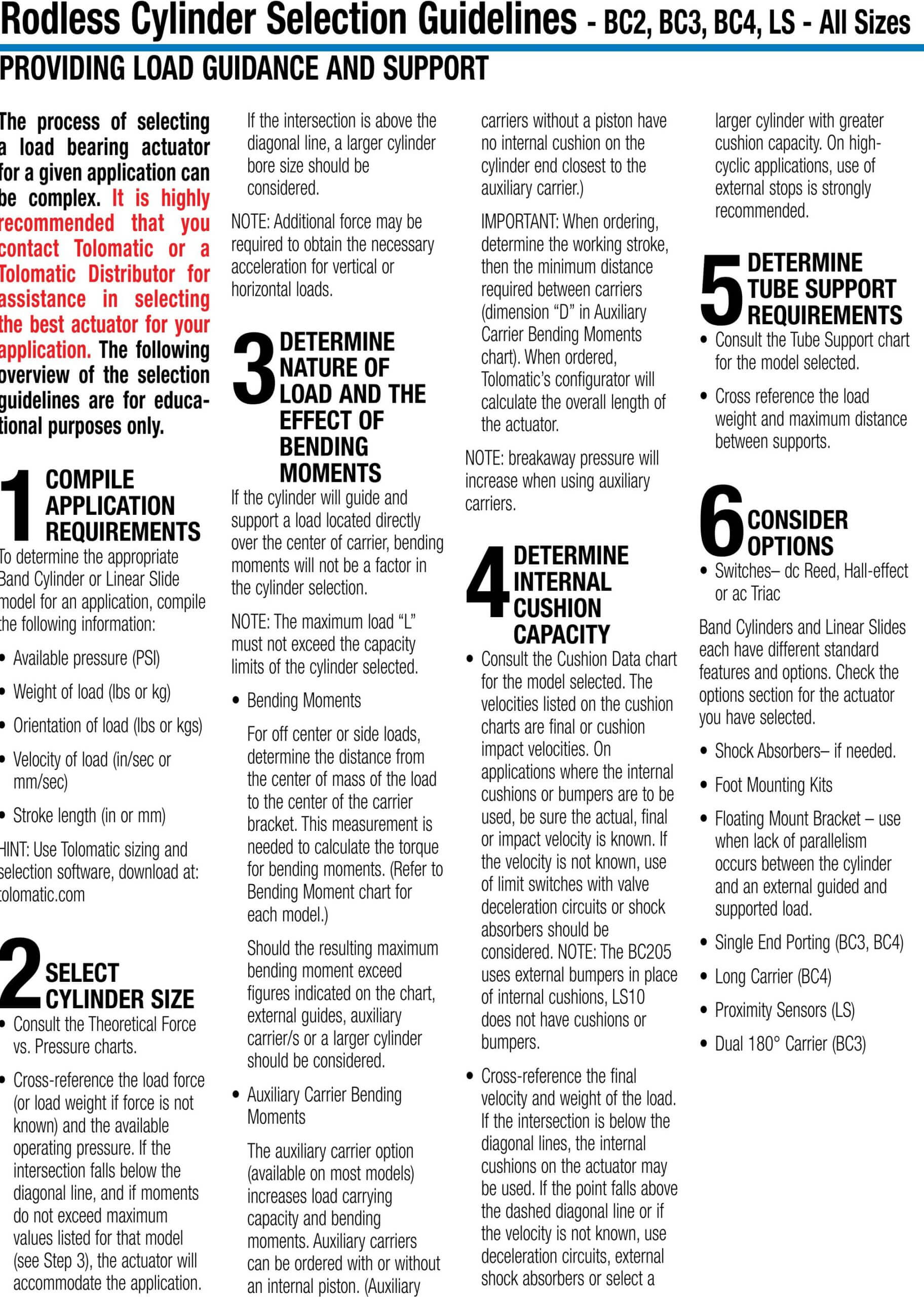

LS Selection Guidelines
![](https://www.tolomatic.com/wp-content/uploads/2022/06/2d0d38c3944745bcb89edfef5097d73c-orig-730x1024.jpg)

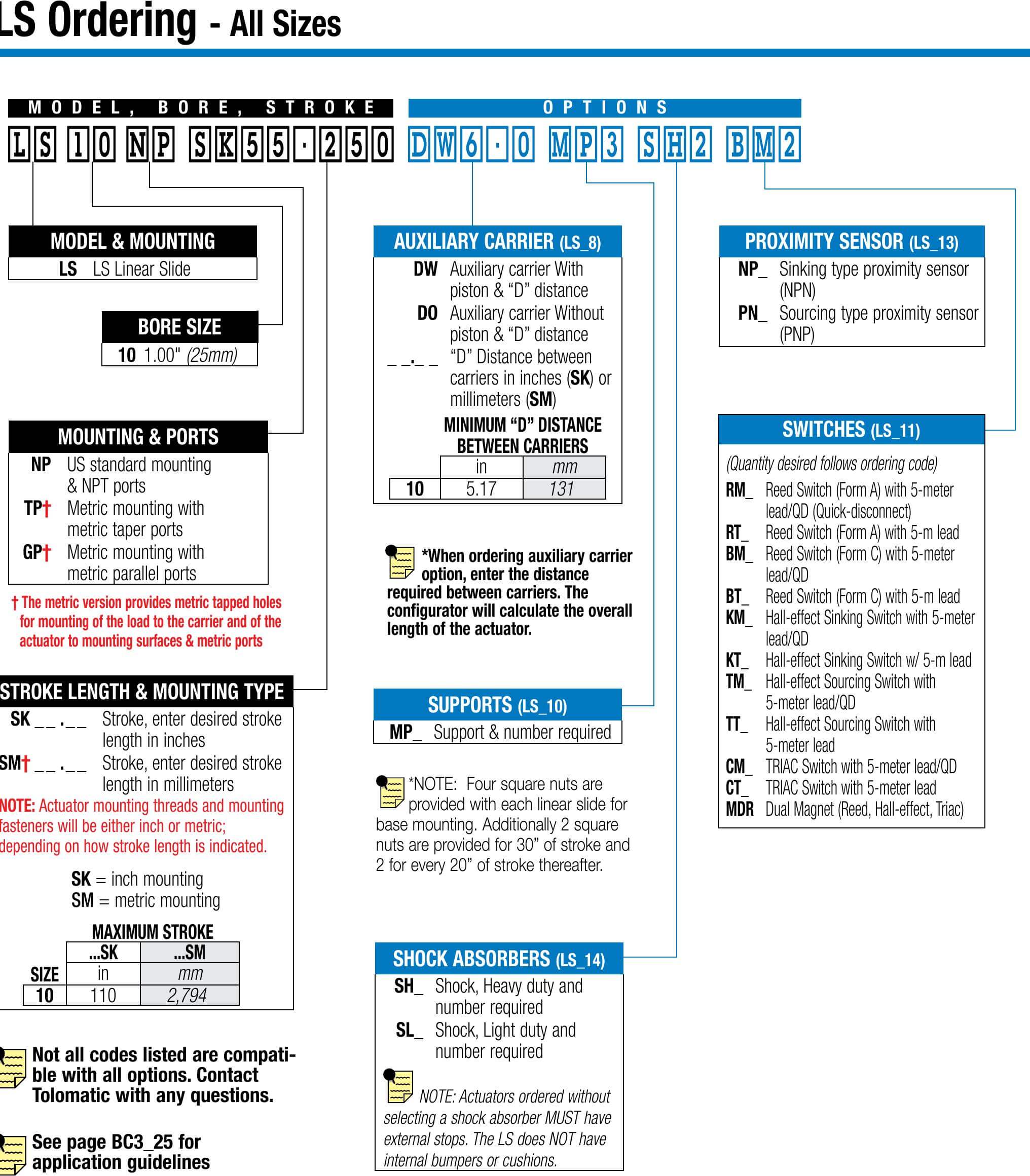

LS Ordering
![](https://www.tolomatic.com/wp-content/uploads/2022/06/28ea63fb6a744d7aaa61b53b8ed687a3-orig-896x1024.jpg)

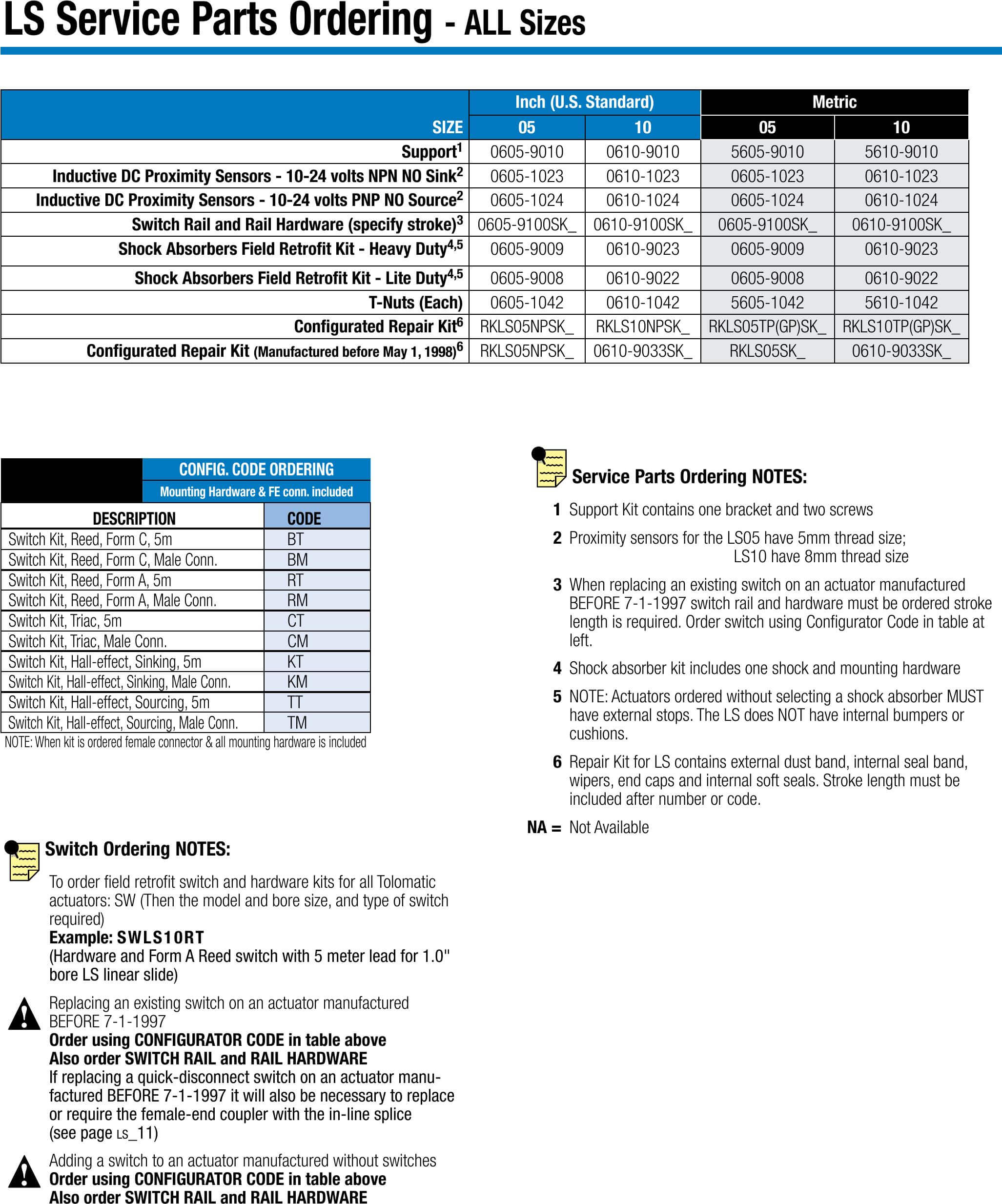

LS Service Parts Ordering
![](https://www.tolomatic.com/wp-content/uploads/2022/06/f3e9f8446f3548378731906dc0103c0c-orig-852x1024.jpg)
