GSA Actuators
The GSA linear slide actuator is ideal for medium- to high-thrust applications.

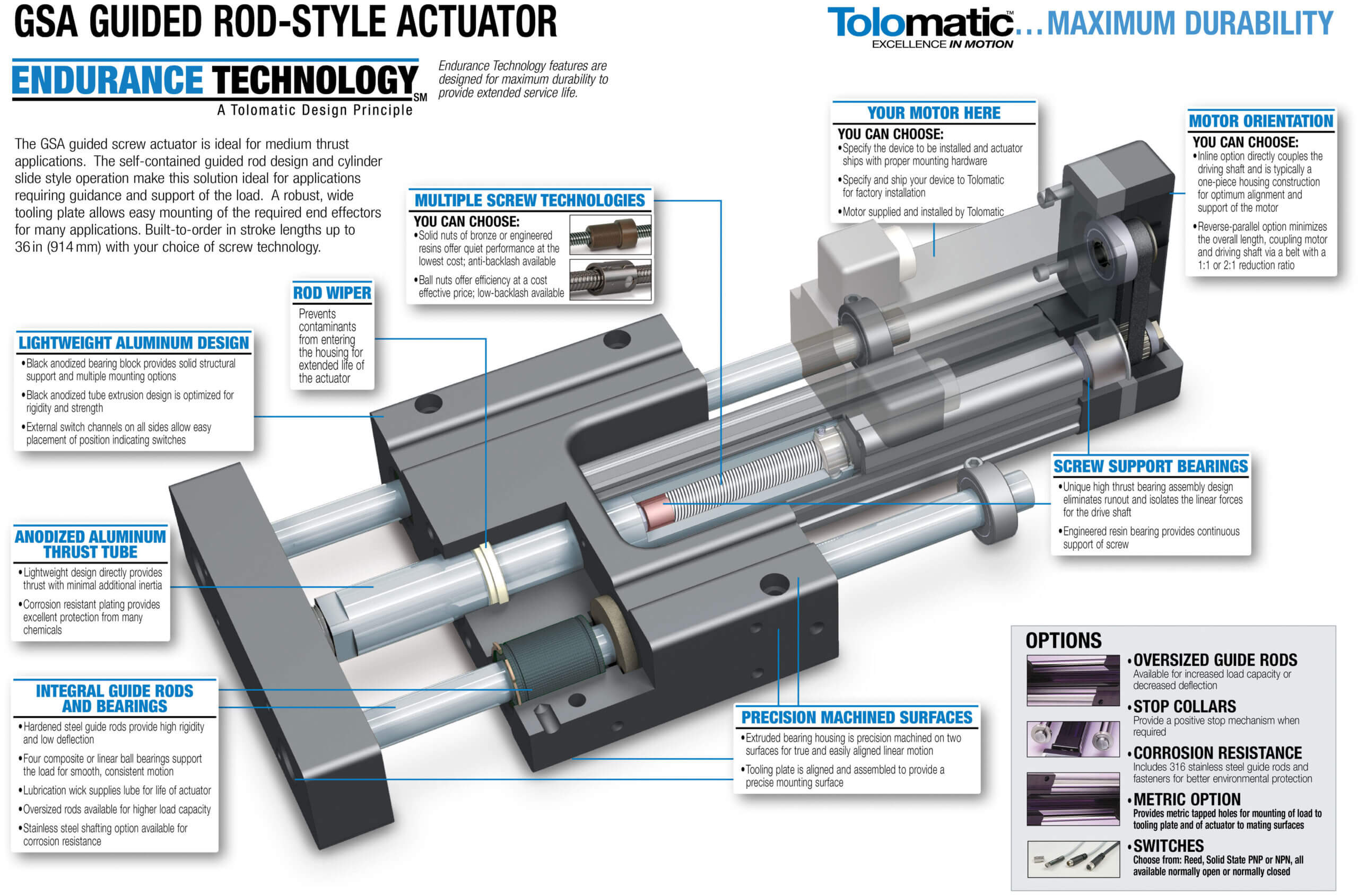

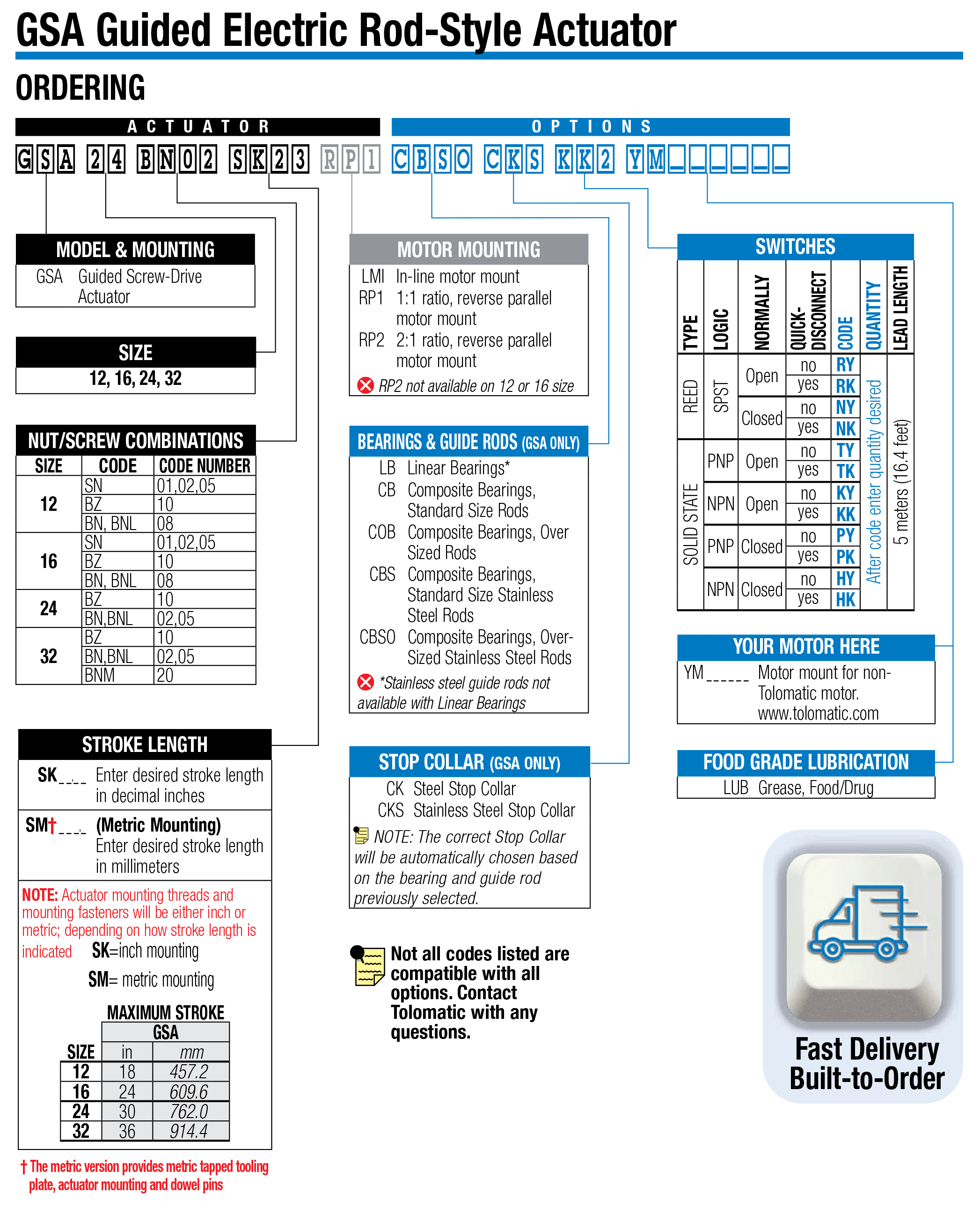

GSA Linear Slide Actuators combine an electric rod actuator with guide rods, mounting blocks and bearings. A complete selection of sizes, options and system components are available. The GSA Linear Slide Actuator offers high performance, dependability and mounting flexibility for pivotal applications.
- 4 U.S. customary and metric body sizes
- Forces up to 4.2 kN (950 lbf)
- Wide tooling plate for end effector mounting
- Choice of linear ball or composite bearings with internal lubrication of guide rods for increased bearing life
- Standard or oversized guide rod diameter for increased rigidity and lower deflection
- Stroke lengths up to 914 mm (36 in)
Size | GSA 12 | GSA 16 | GSA 24 | GSA 32 |
---|---|---|---|---|
Standard | 18 in. | 24 in. | 30 in. | 36 in. |
Metric | 457 mm | 609 mm | 762 mm | 914 mm |
Size | GSA 12 | GSA 16 | GSA 24 | GSA 32 |
---|---|---|---|---|
Standard | 130 lbf. | 471 lbf. | 850 lbf. | 950 lbf. |
Metric | 578 N | 2,095 N | 3,781 N | 4,226 N |
Size | GSA 12 | GSA 16 | GSA 24 | GSA 32 |
---|---|---|---|---|
Standard | 400 lbs | 500 lbs | 1,000 lbs | 1,200 lbs |
Metric | 182 kg | 227 kg | 454 kg | 544 kg |
Size | GSA 12 | GSA 16 | GSA 24 | GSA 32 |
---|---|---|---|---|
Standard | 123 in/sec | 123 in/sec | 50 in/sec | 50 in/sec |
Metric | 3,124 mm/sec | 3,124 mm/sec | 1,270 mm/sec | 1,270 mm/sec |

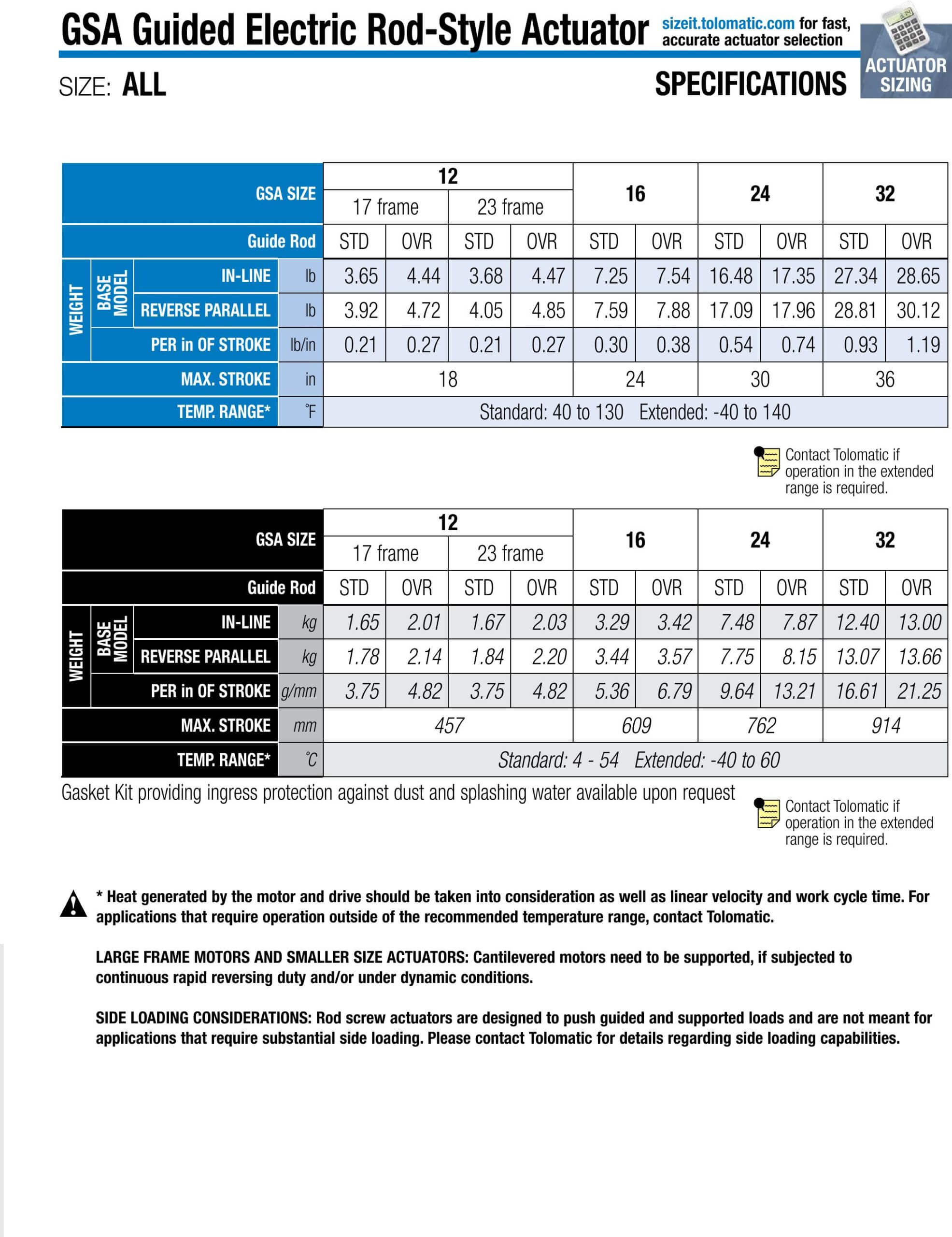

GSA Actuator Specifications
![](https://www.tolomatic.com/wp-content/uploads/2022/06/e0ae74593a6e47d0ab812c0c5f262424-orig-788x1024.jpg)
GSA 12/16 Screw/Nut Specifications US Standard

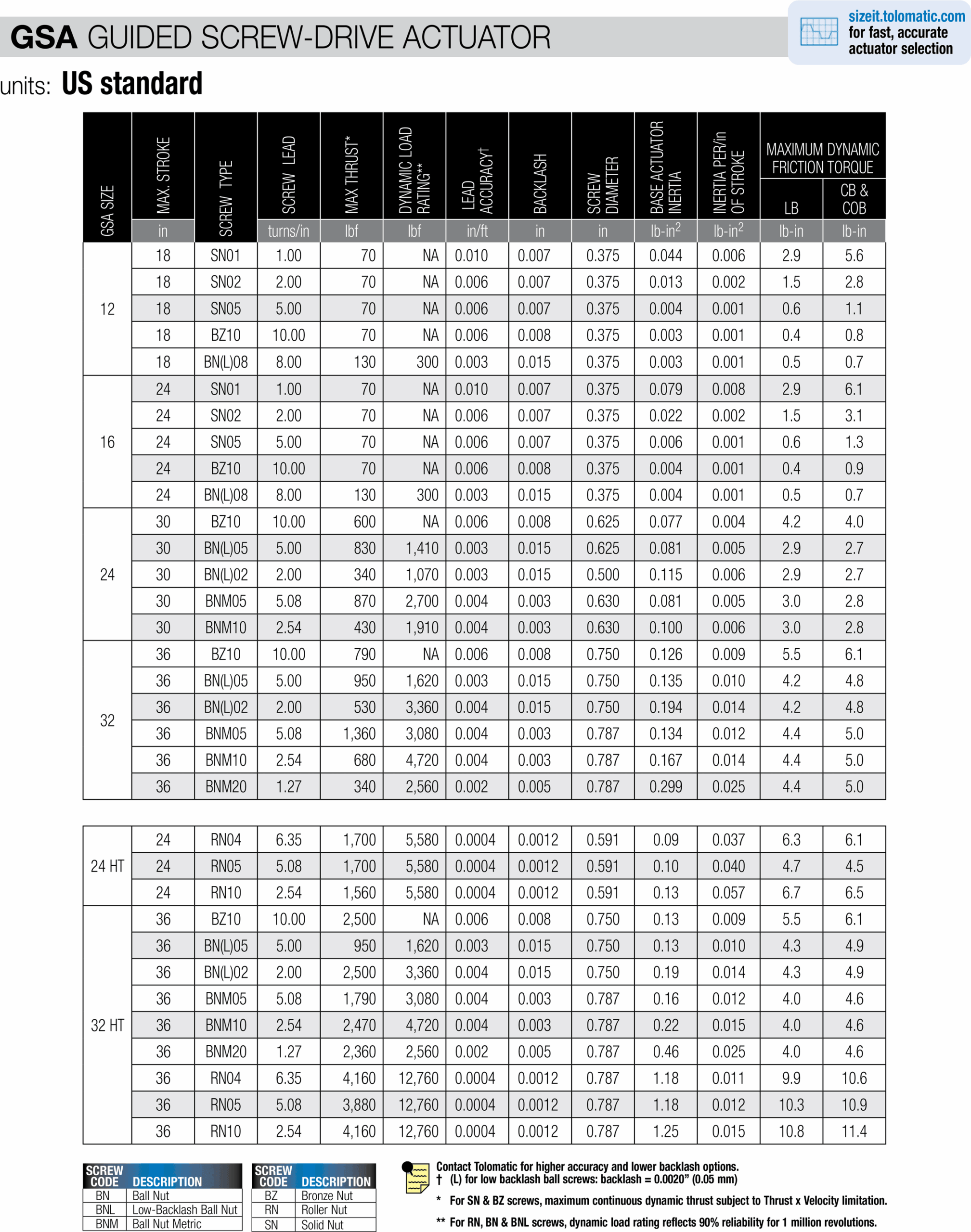

![](https://www.tolomatic.com/wp-content/uploads/2022/06/e687fbc656854c2da2b99f7f32bc166c-orig-954x1024.jpg)

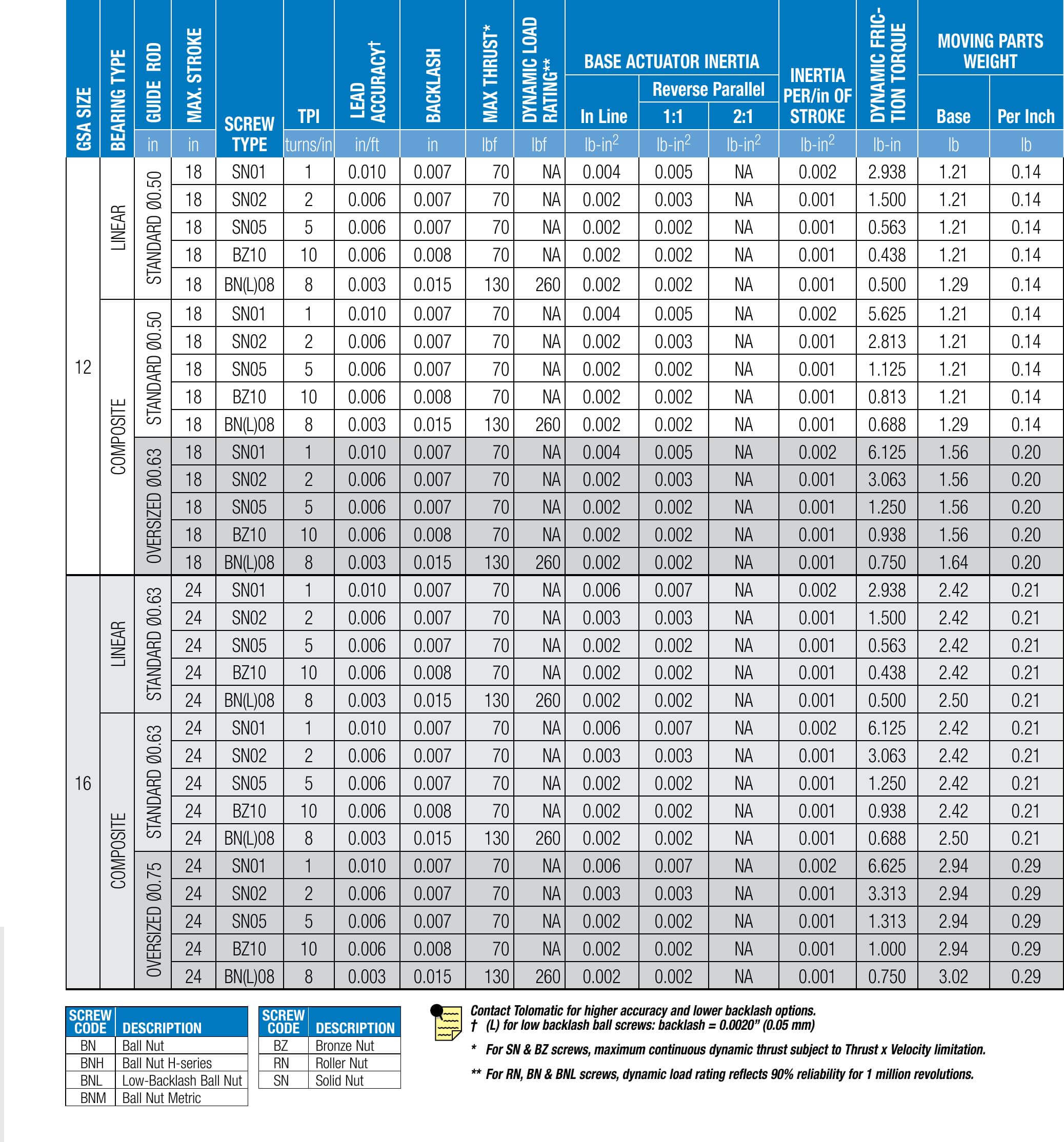

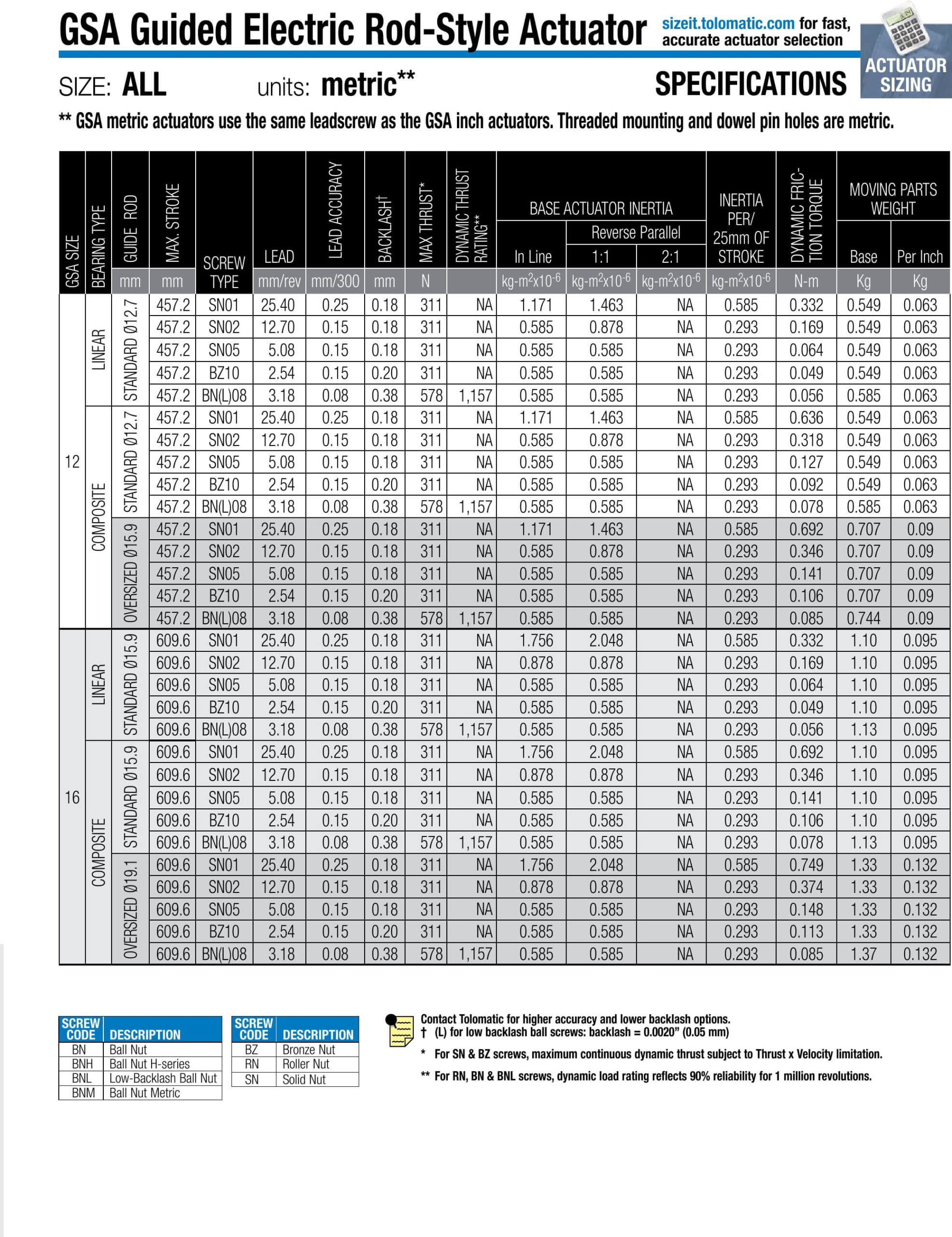

GSA 12/16 Screw/Nut Specifications Metric

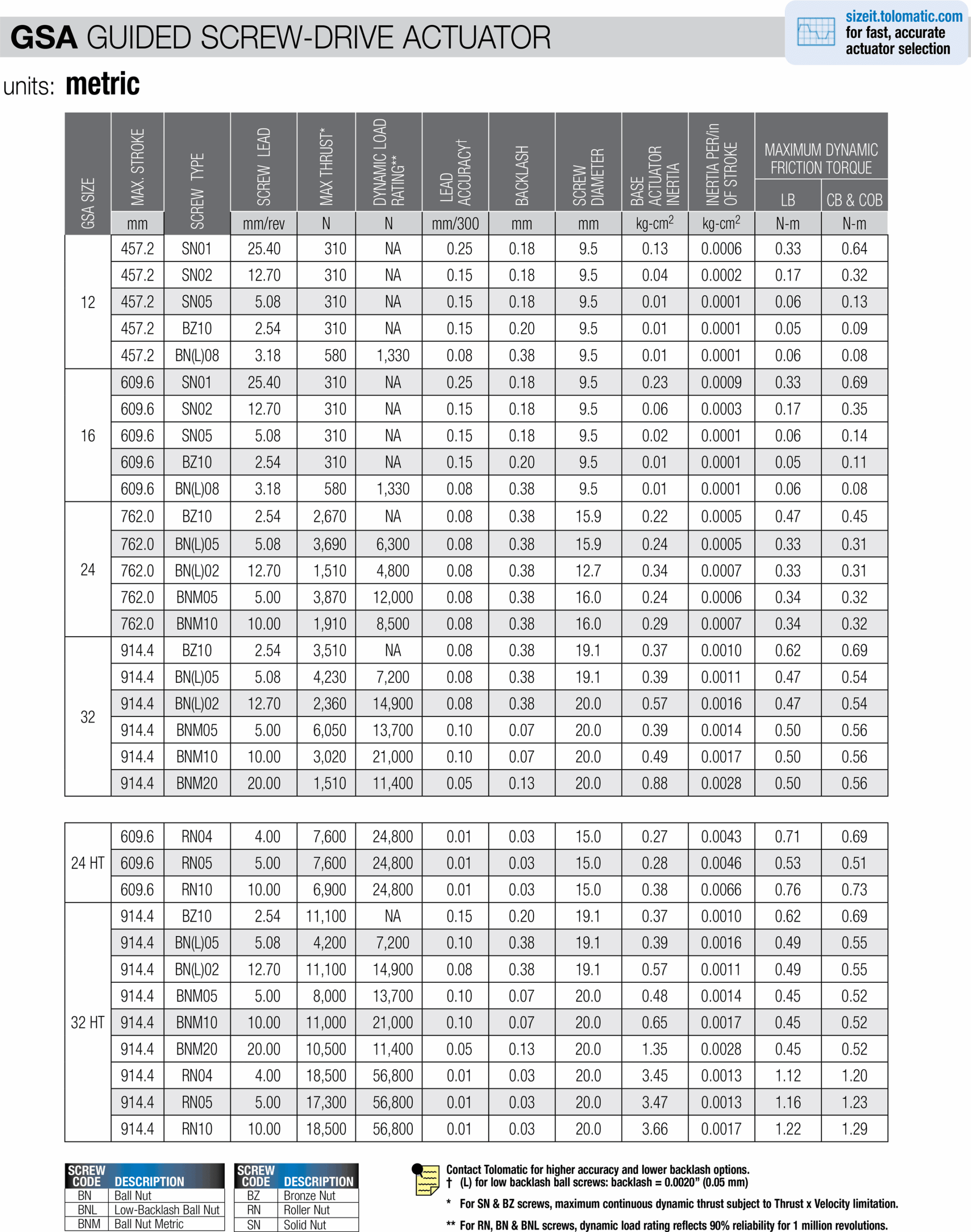

![](https://www.tolomatic.com/wp-content/uploads/2022/06/17ca449178d846c5aa447419fa393d1a-orig-788x1024.jpg)

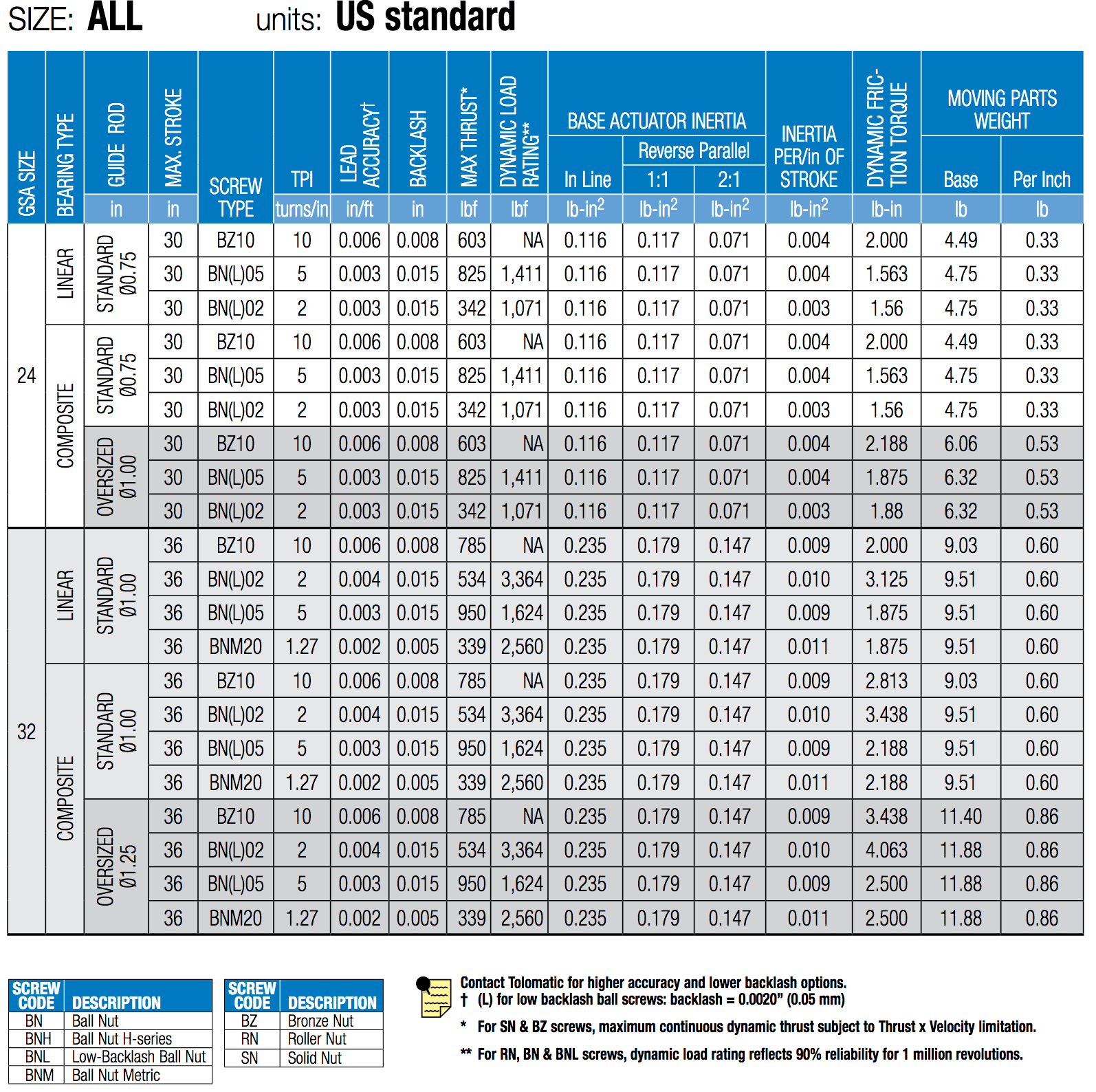

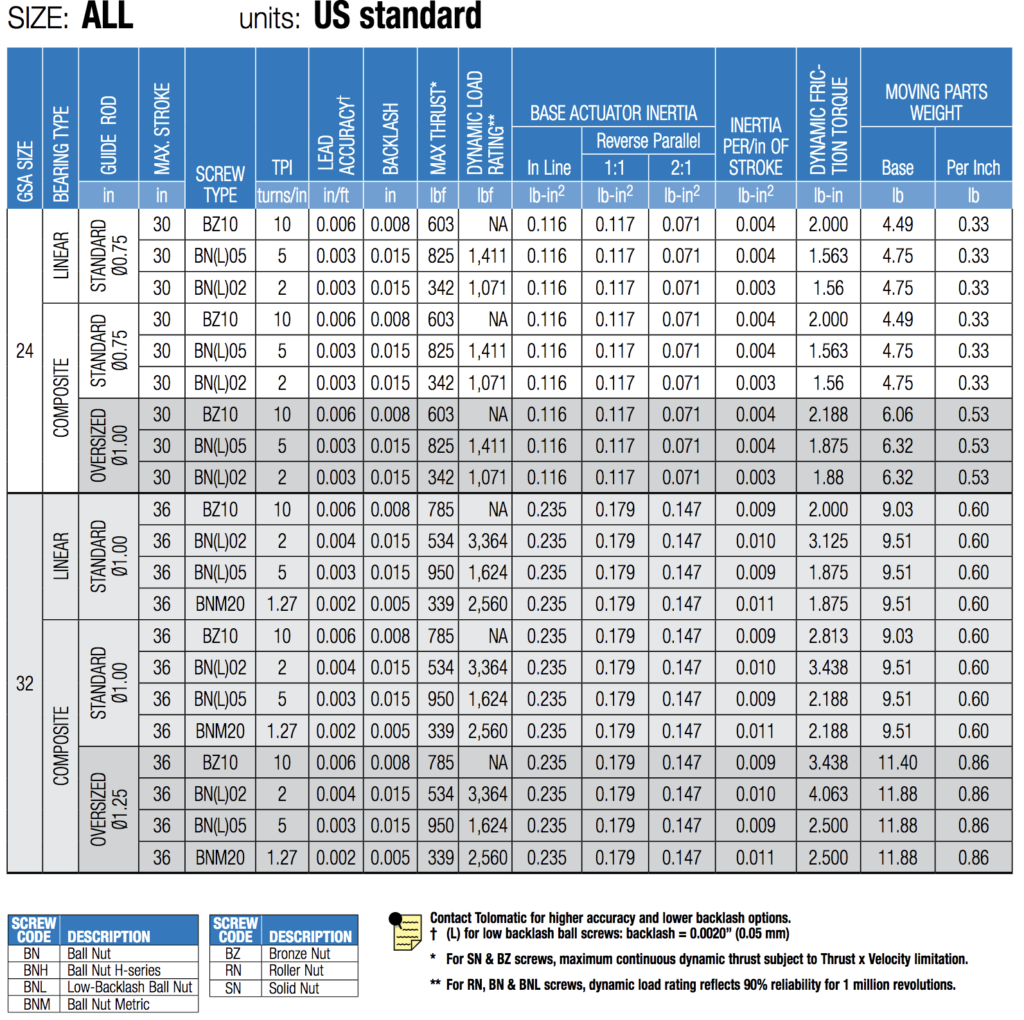

GSA 24/32 Screw/Nut Specifications US Standard
![](https://www.tolomatic.com/wp-content/uploads/2022/06/345c4a52fbf24ab7bda855bd33b15182-orig-1024x1020.png)

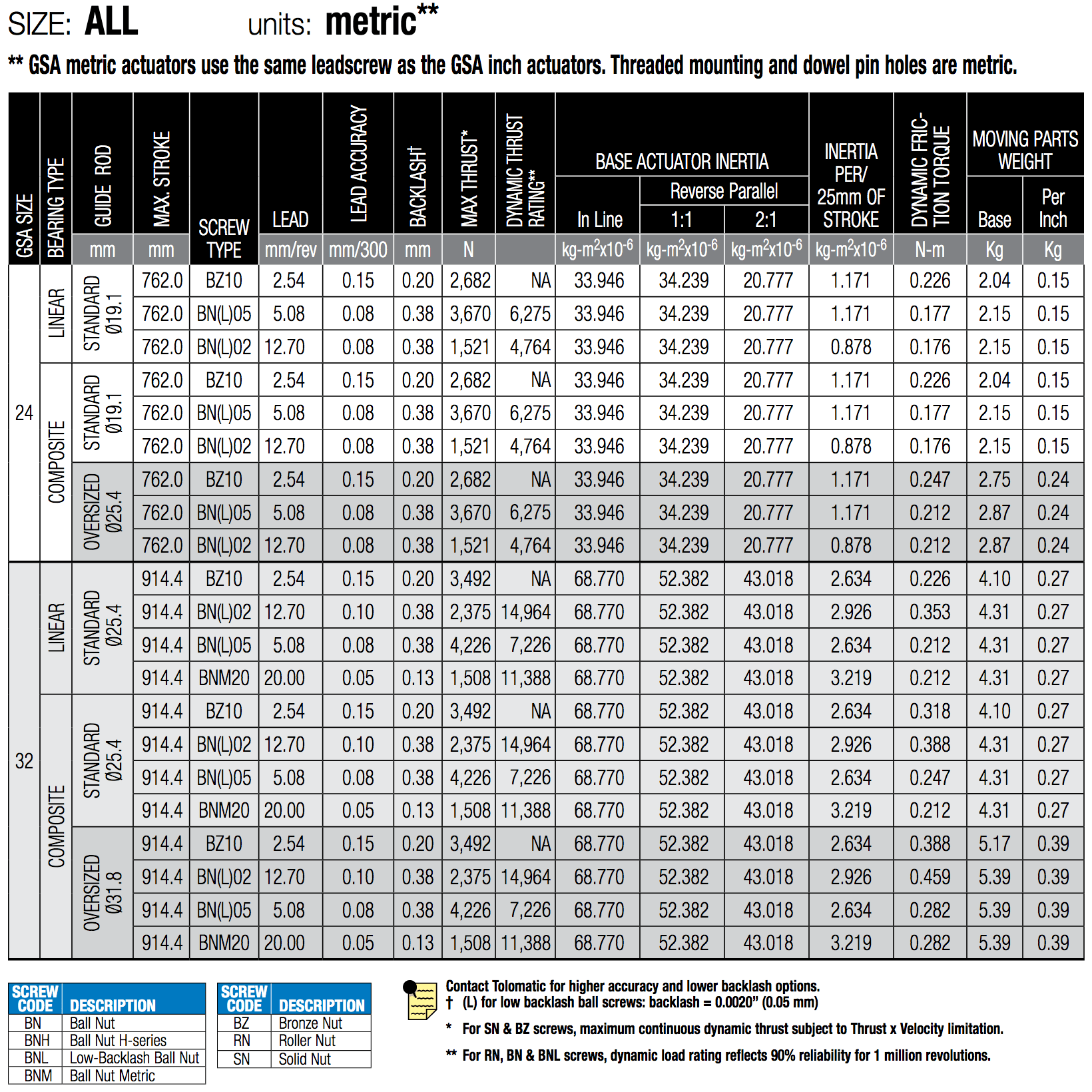

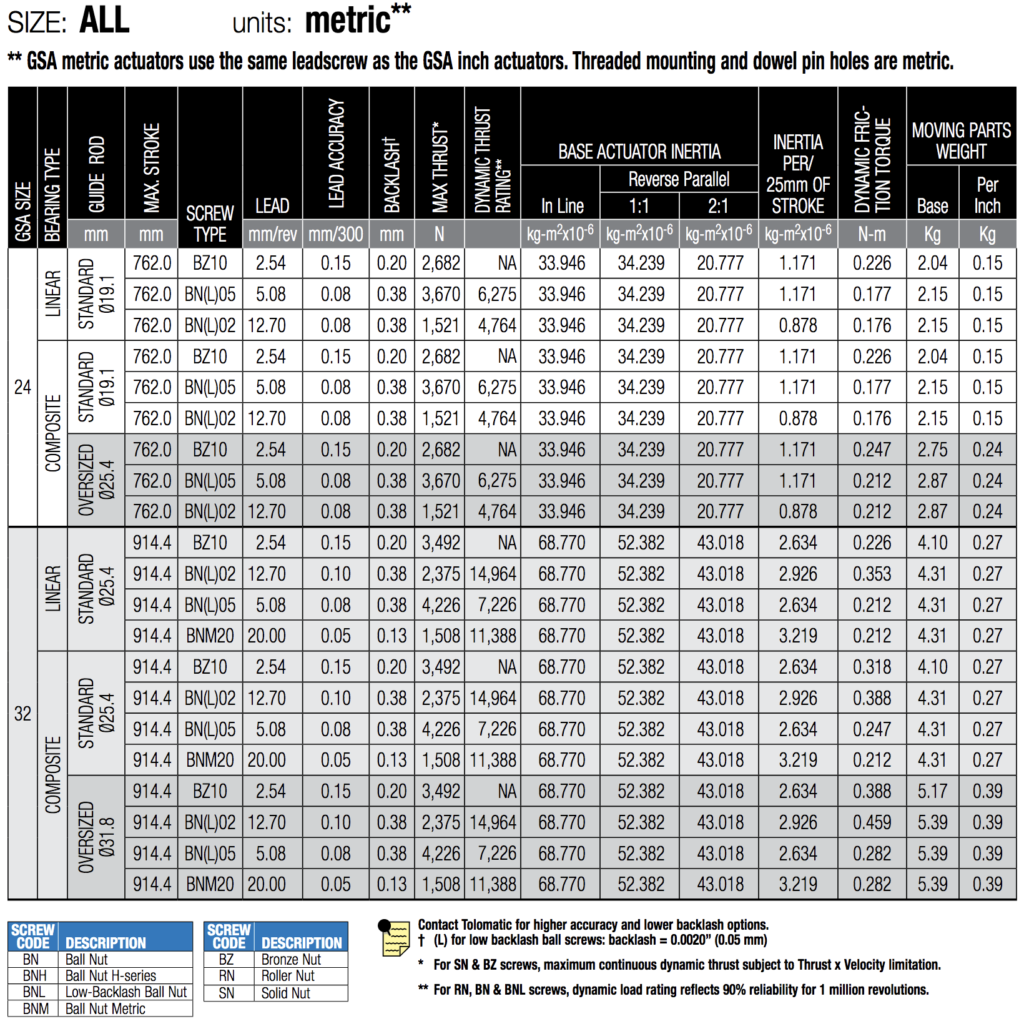

GSA 24/32 Screw/Nut Specifications Metric
![](https://www.tolomatic.com/wp-content/uploads/2022/06/57df0aeade3443b987c3fe11560c9b0b-orig-1024x1024.png)

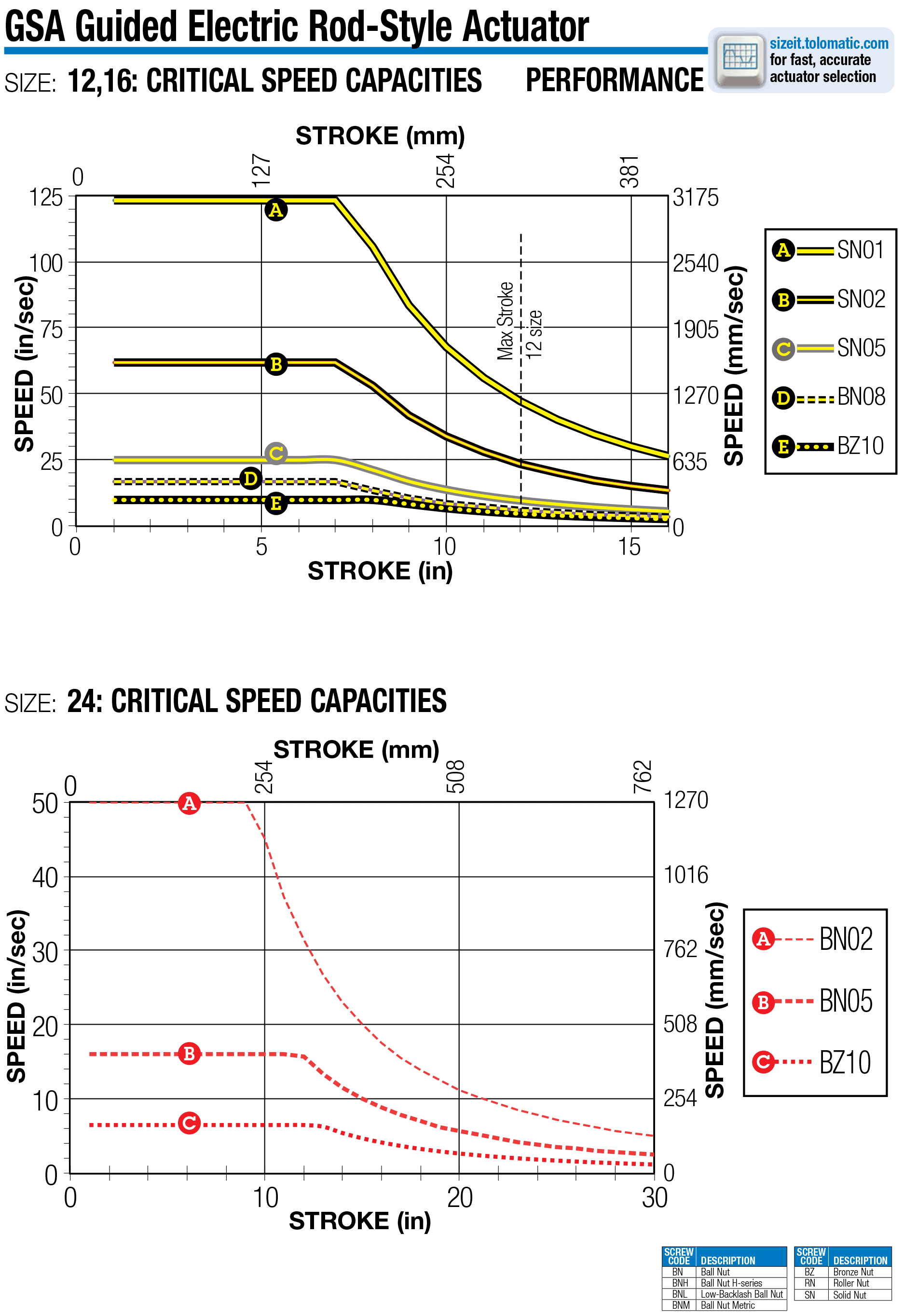

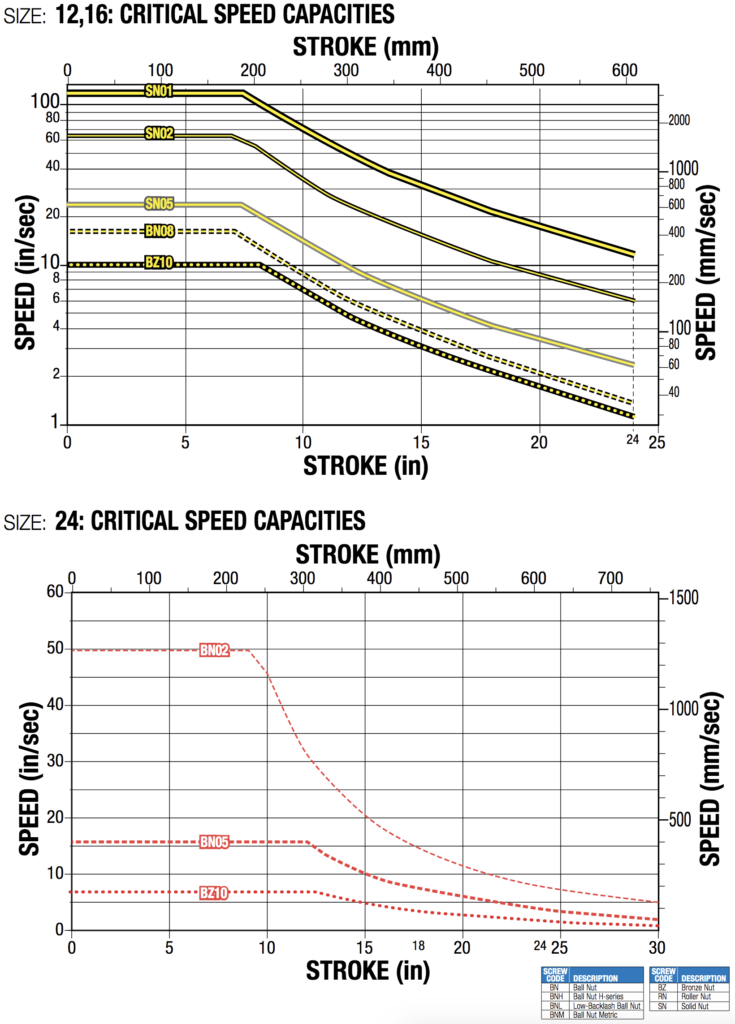

GSA 12, 16, 24 Critical Speed Graphs
![](https://www.tolomatic.com/wp-content/uploads/2022/06/3600-4166_22_RSA-GSA_C-46-703x1024.png)

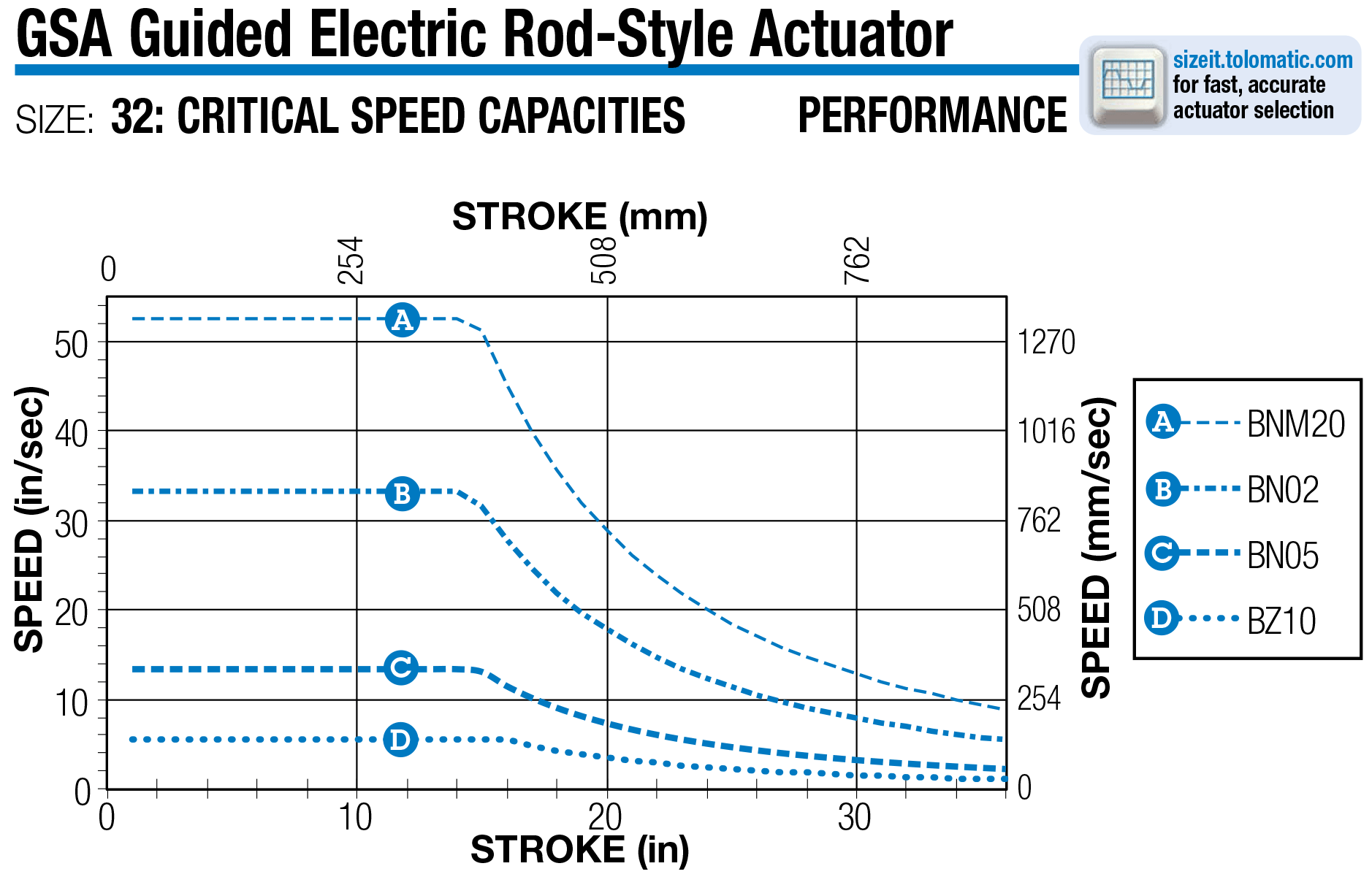

GSA32 Critical Speed Graph
![](https://www.tolomatic.com/wp-content/uploads/2022/06/3600-4166_22_RSA-GSA_C-47-1-1024x661.png)

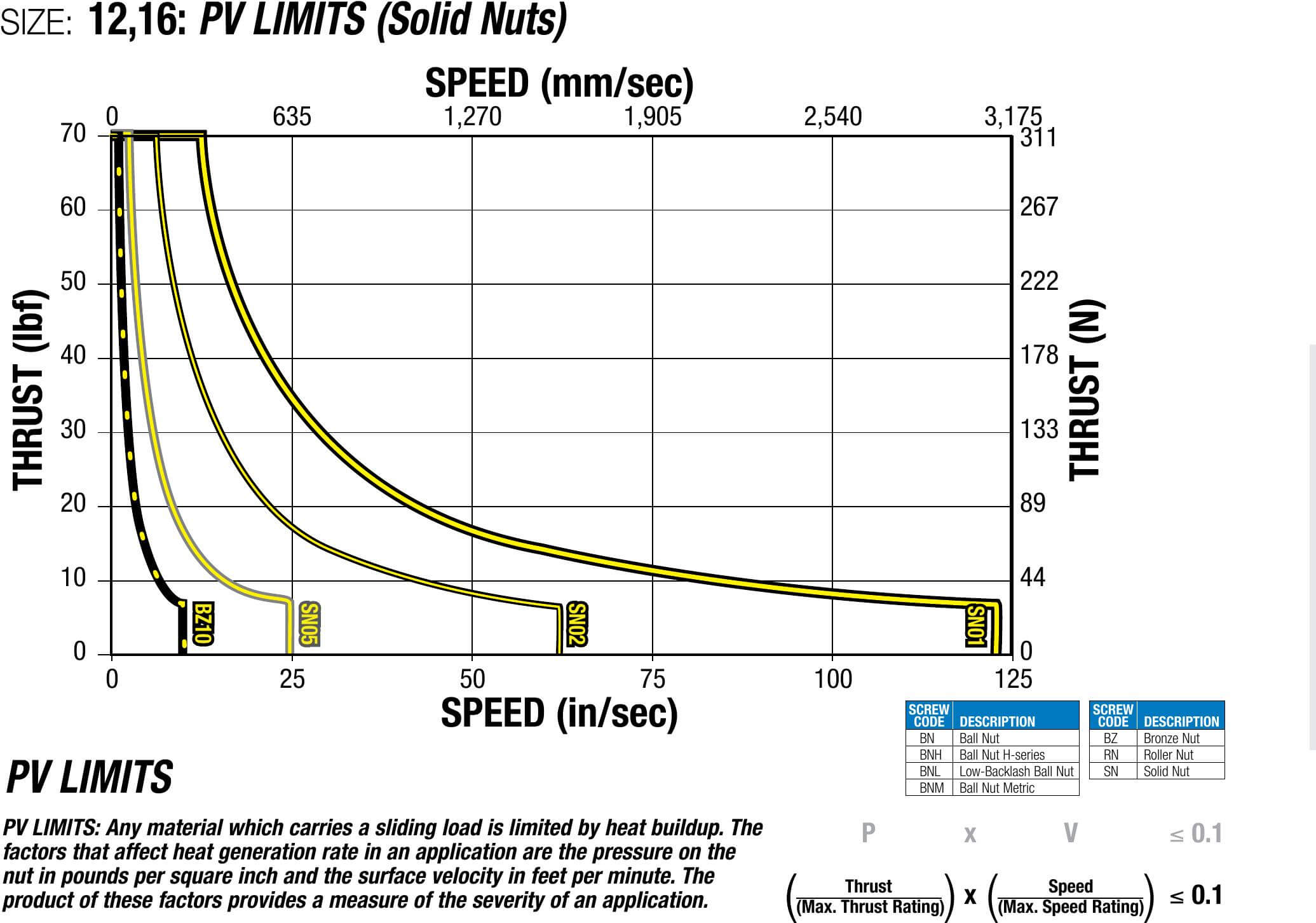

GSA 12/16 PV Limits
![](https://www.tolomatic.com/wp-content/uploads/2022/06/1c75d018dde84d758116f92de53a2c25-orig-1024x718.jpg)

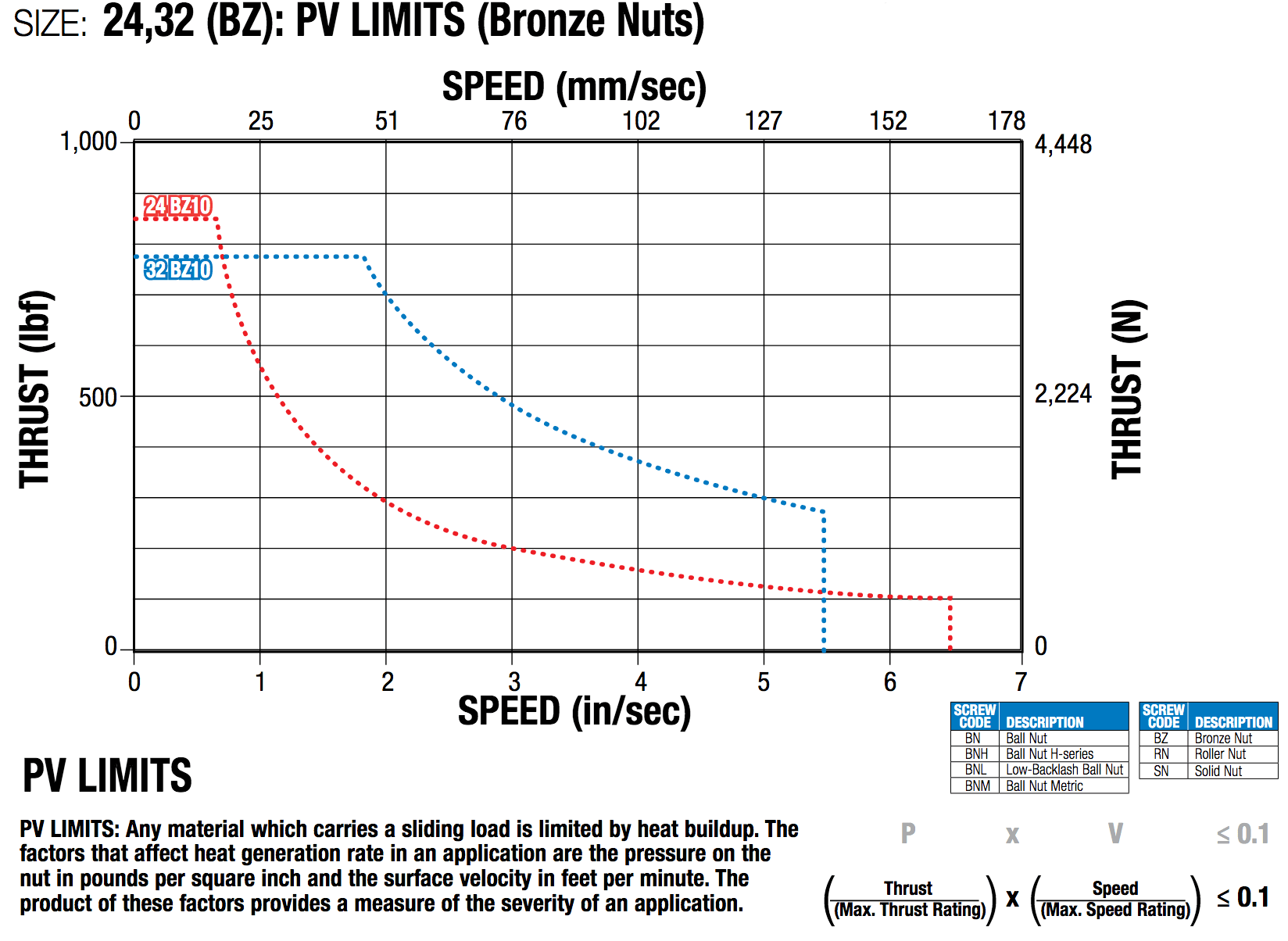

GSA 24/32 PV Limits
![](https://www.tolomatic.com/wp-content/uploads/2022/06/92e7439549f84092a12da646b48812f9-orig-1024x748.png)

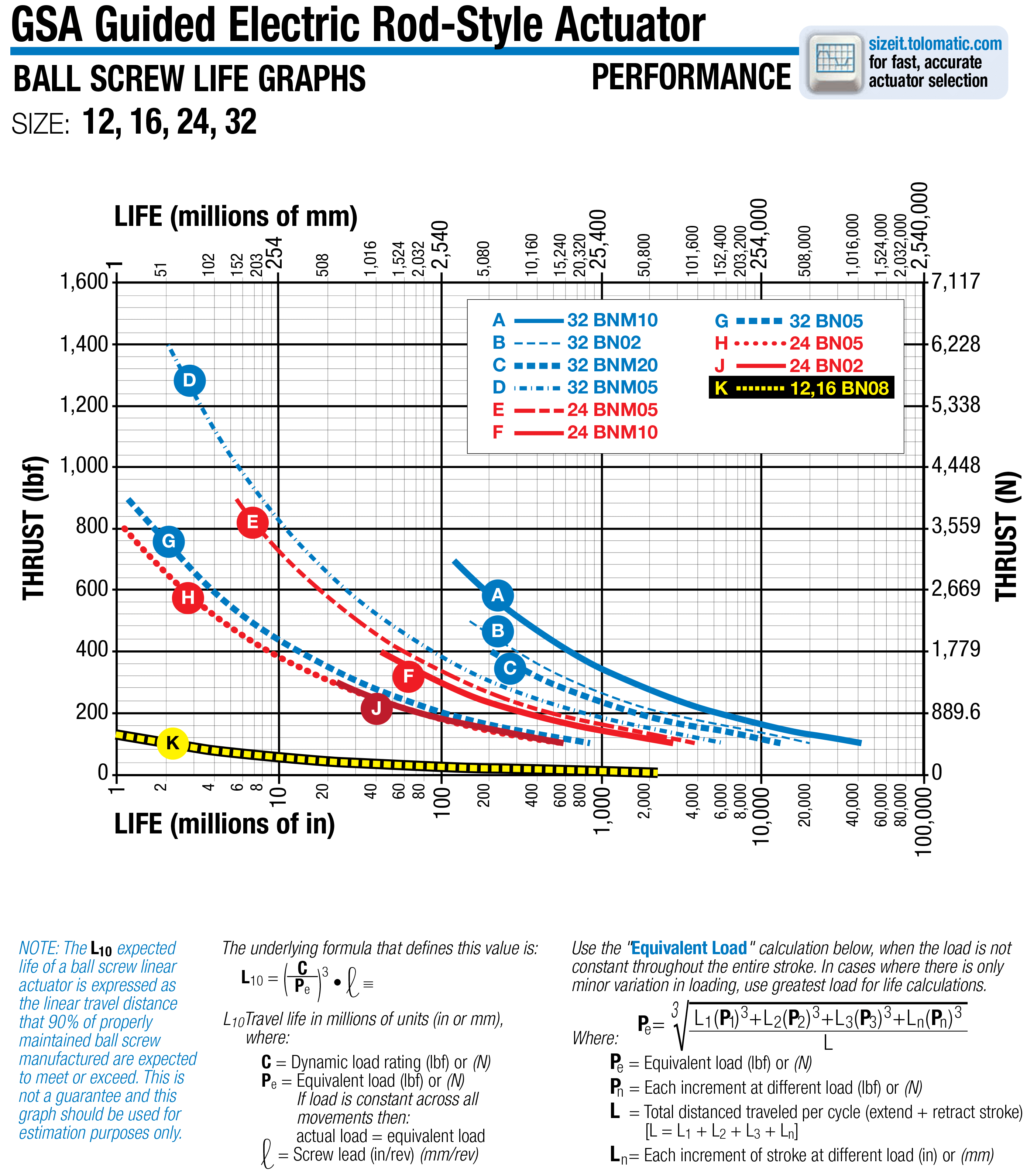

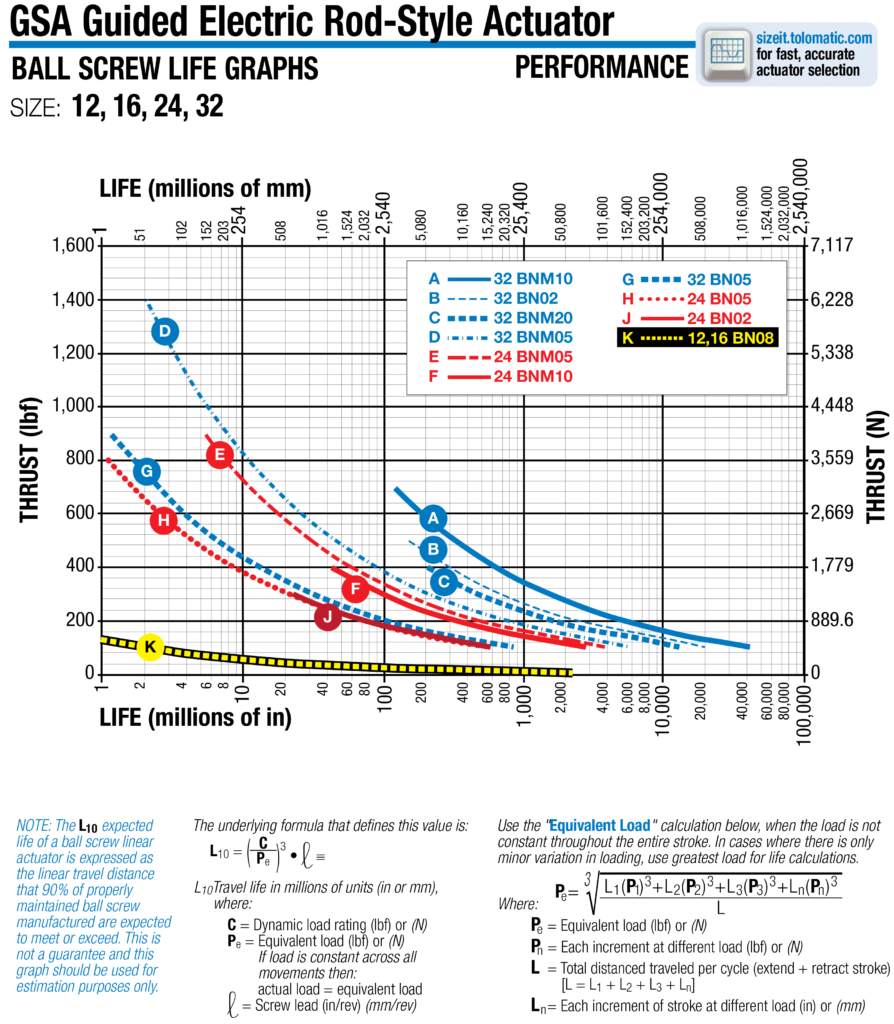

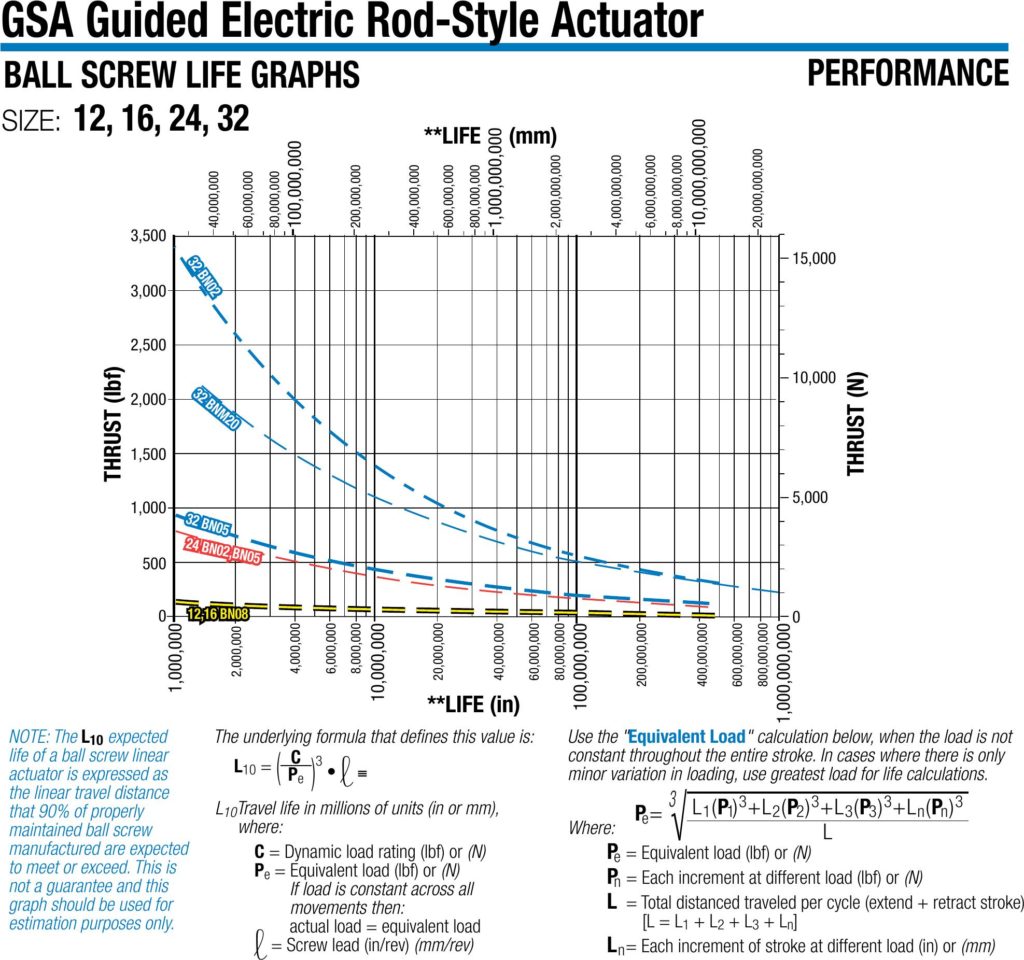

GSA Ball Screw Life Graph
![](https://www.tolomatic.com/wp-content/uploads/2022/06/3600-4166_21_RSA-GSA_C-49-894x1024.png)

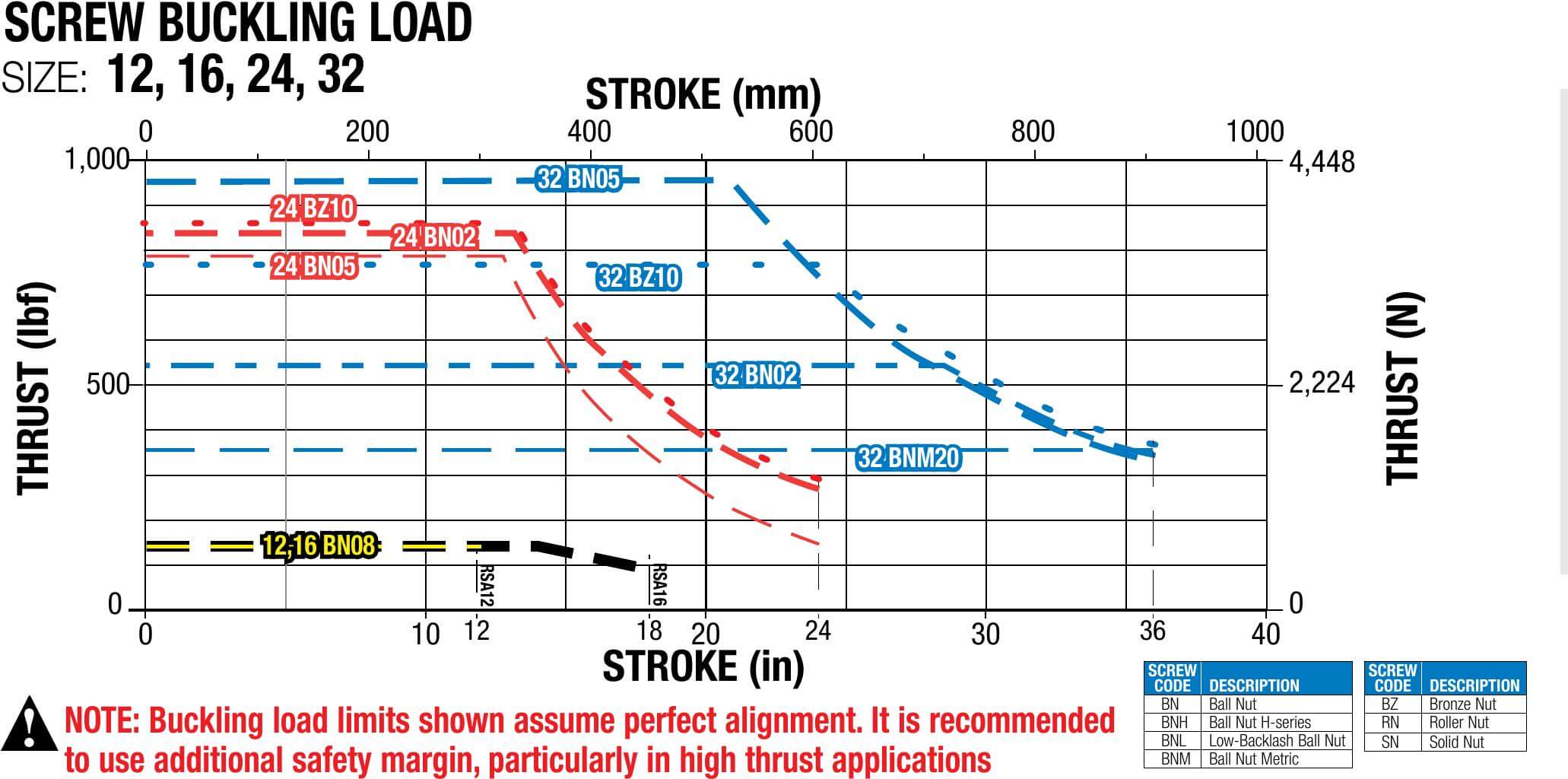

GSA Screw Buckling Load
![](https://www.tolomatic.com/wp-content/uploads/2022/06/3600-4166_27_GSA_C-50-1024x664.png)

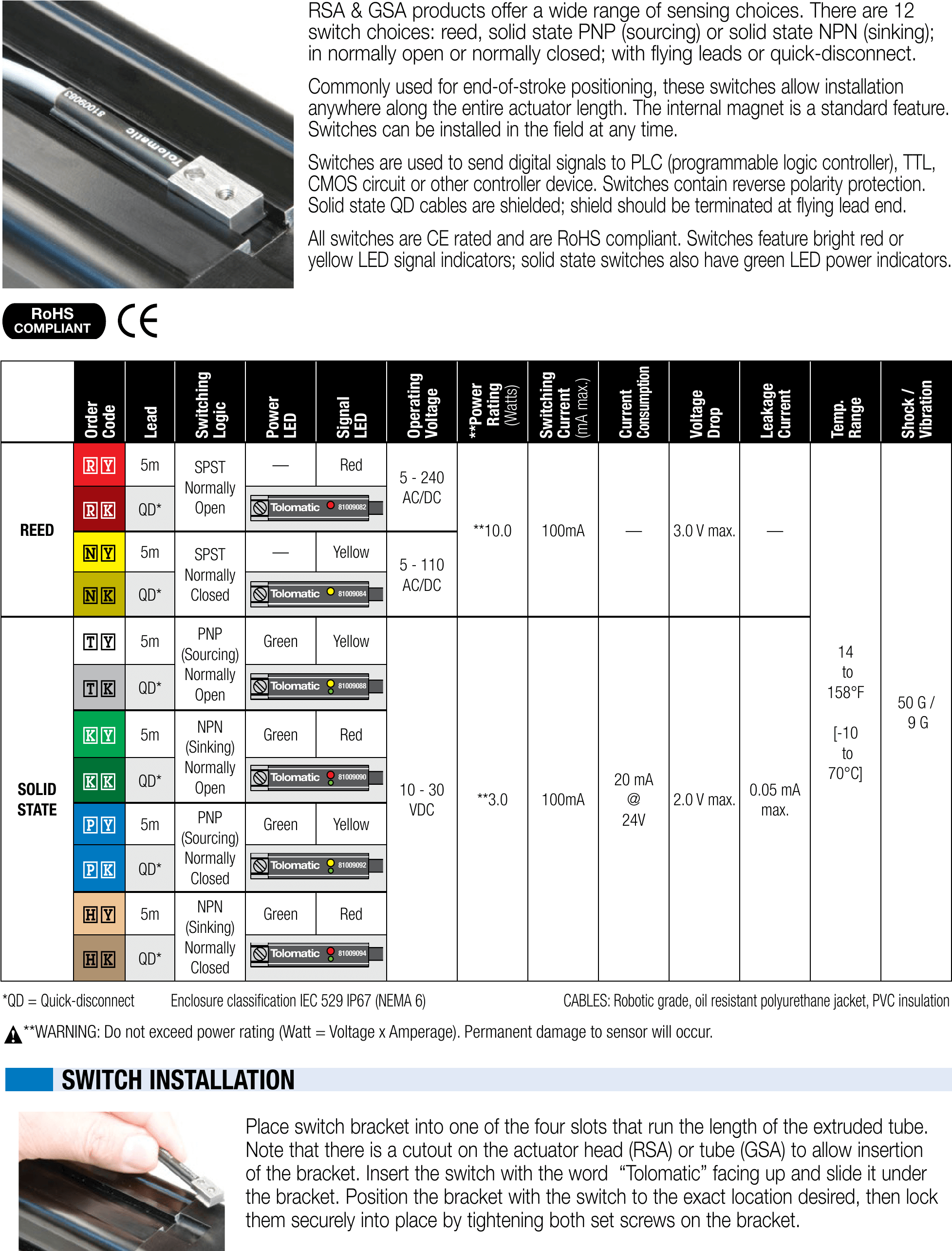

GSA Switch Specifications
![](https://www.tolomatic.com/wp-content/uploads/2022/06/342f7ef8ee9e435b8b72587a64f5c0f1-orig-780x1024.jpg)

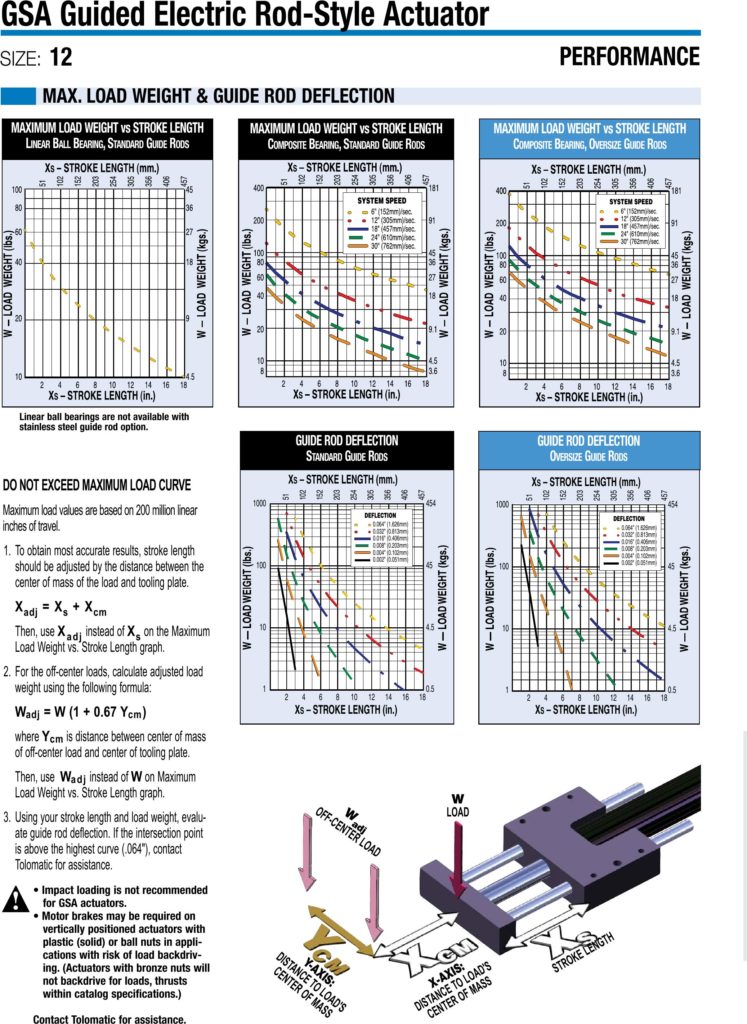

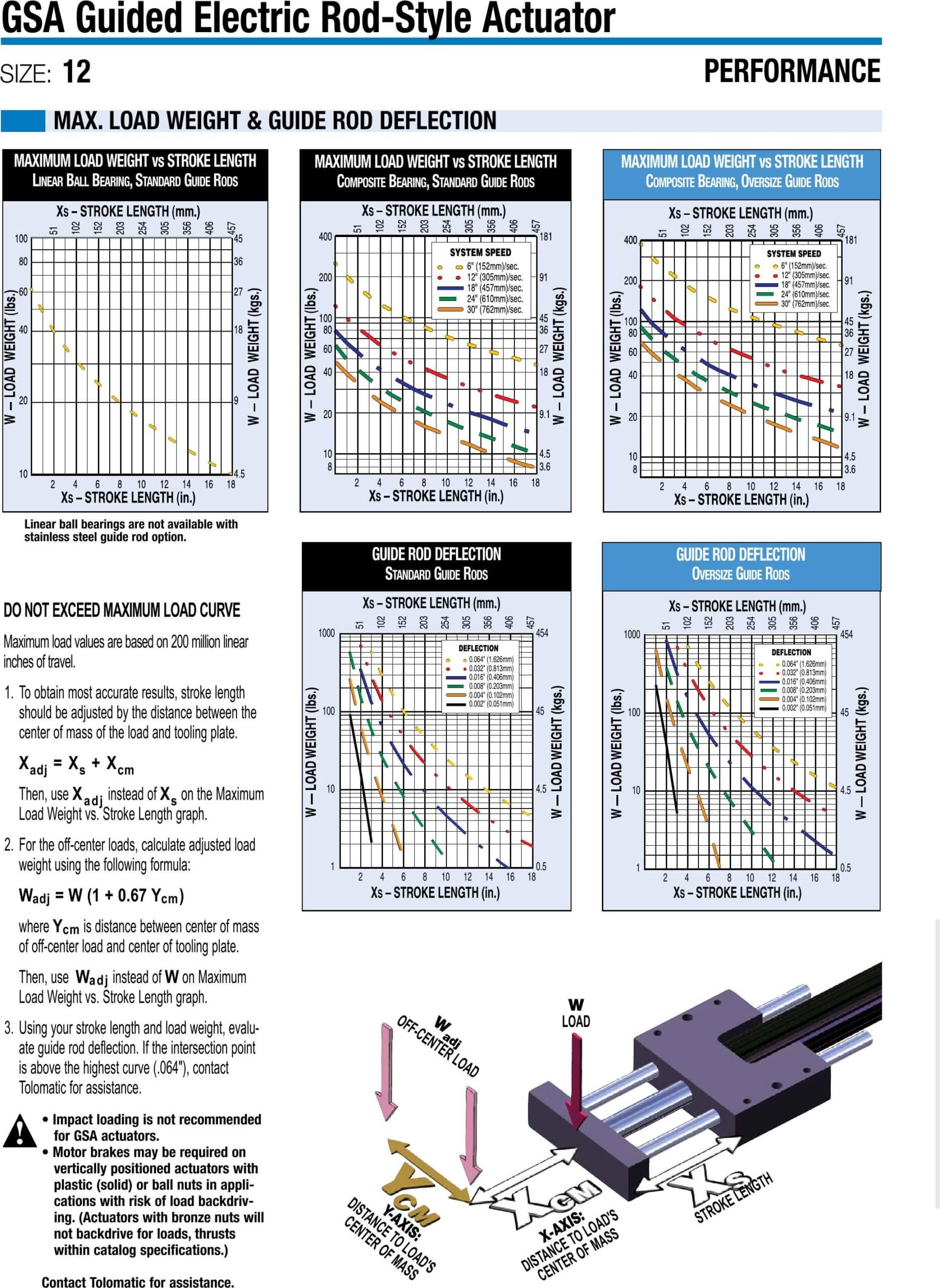

GSA Performance Size 12
![](https://www.tolomatic.com/wp-content/uploads/2022/06/af96489056944bffb7184efe8792a325-orig-747x1024.jpg)

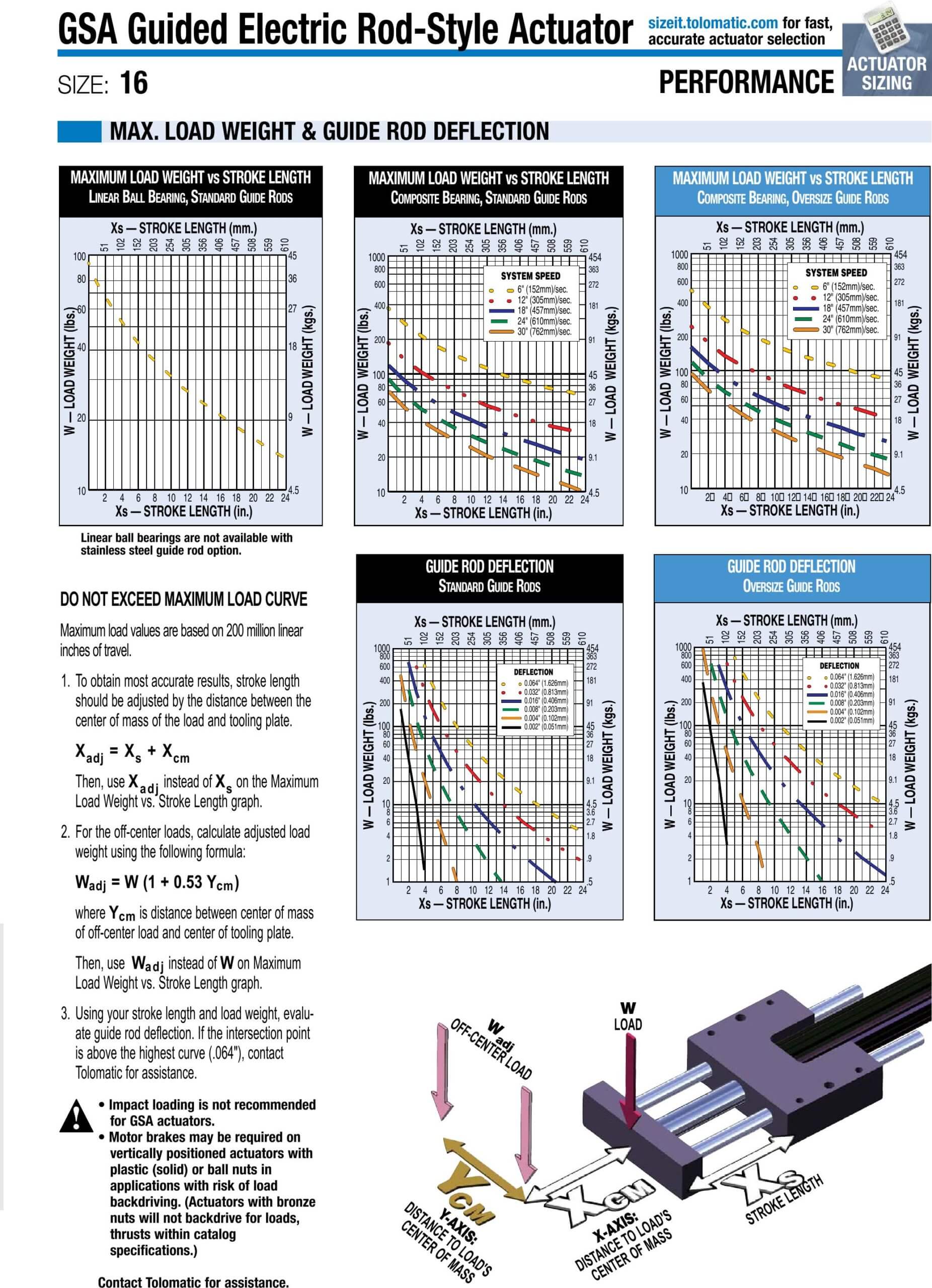

GSA Performance Size 16
![](https://www.tolomatic.com/wp-content/uploads/2022/06/bcbbc9f95f6649e09d99ef1984dd64fb-orig-741x1024.jpg)

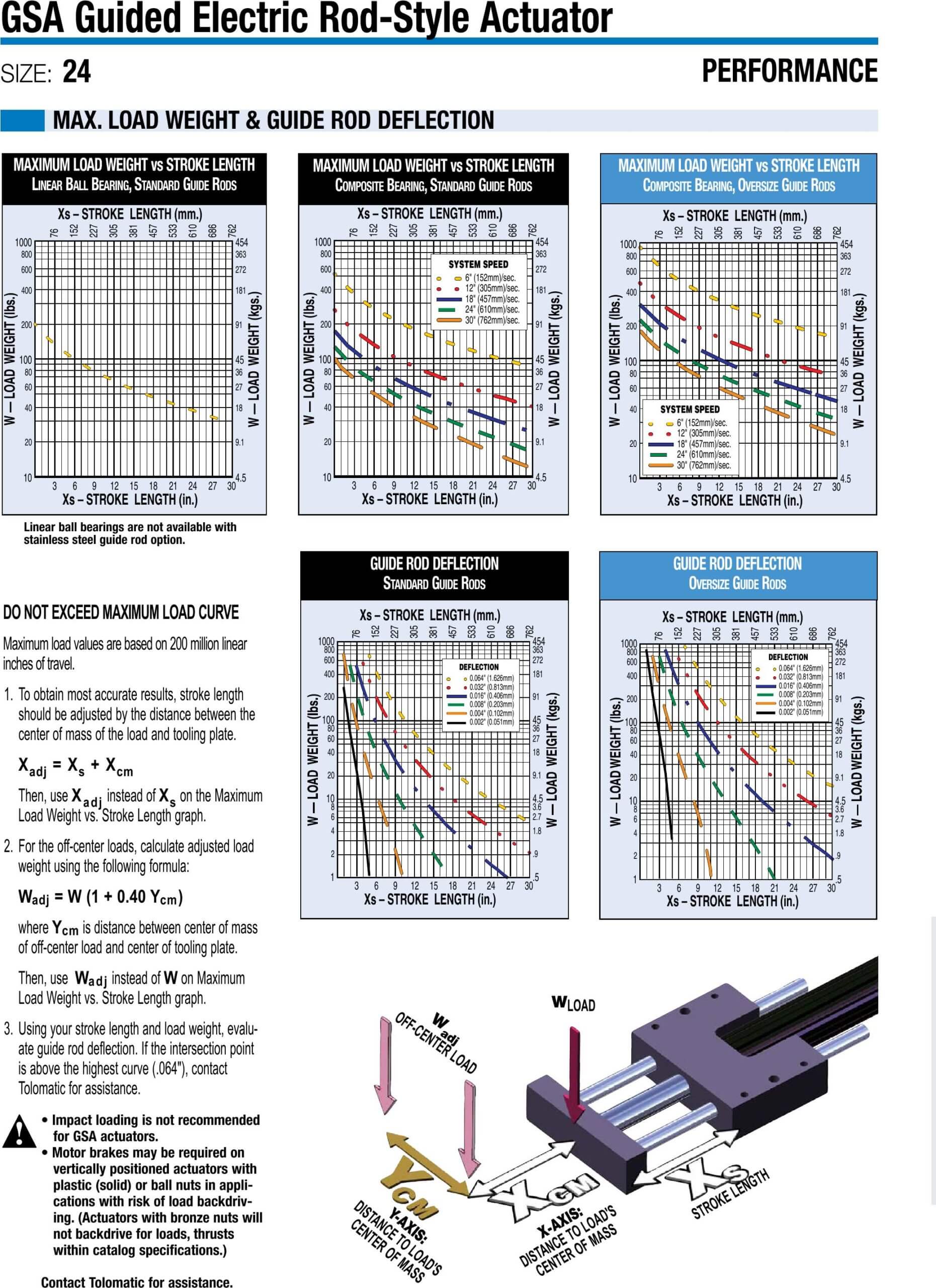

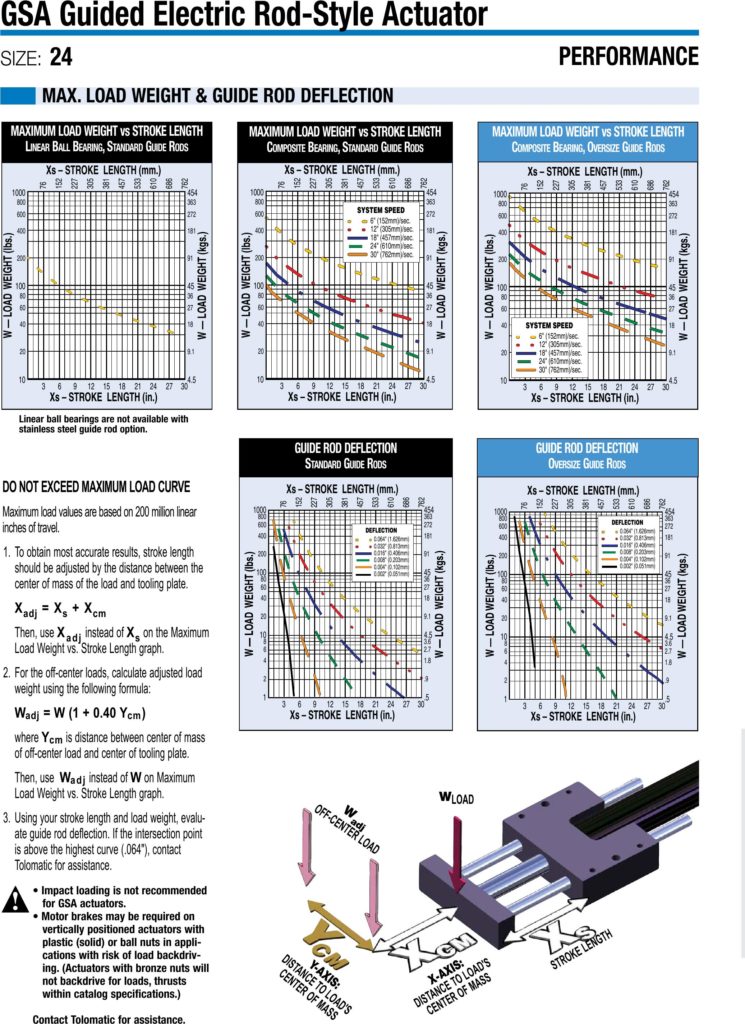

GSA Performance Size 24
![](https://www.tolomatic.com/wp-content/uploads/2022/06/262aa50781c94ce18d649f1b6490b48d-orig-745x1024.jpg)

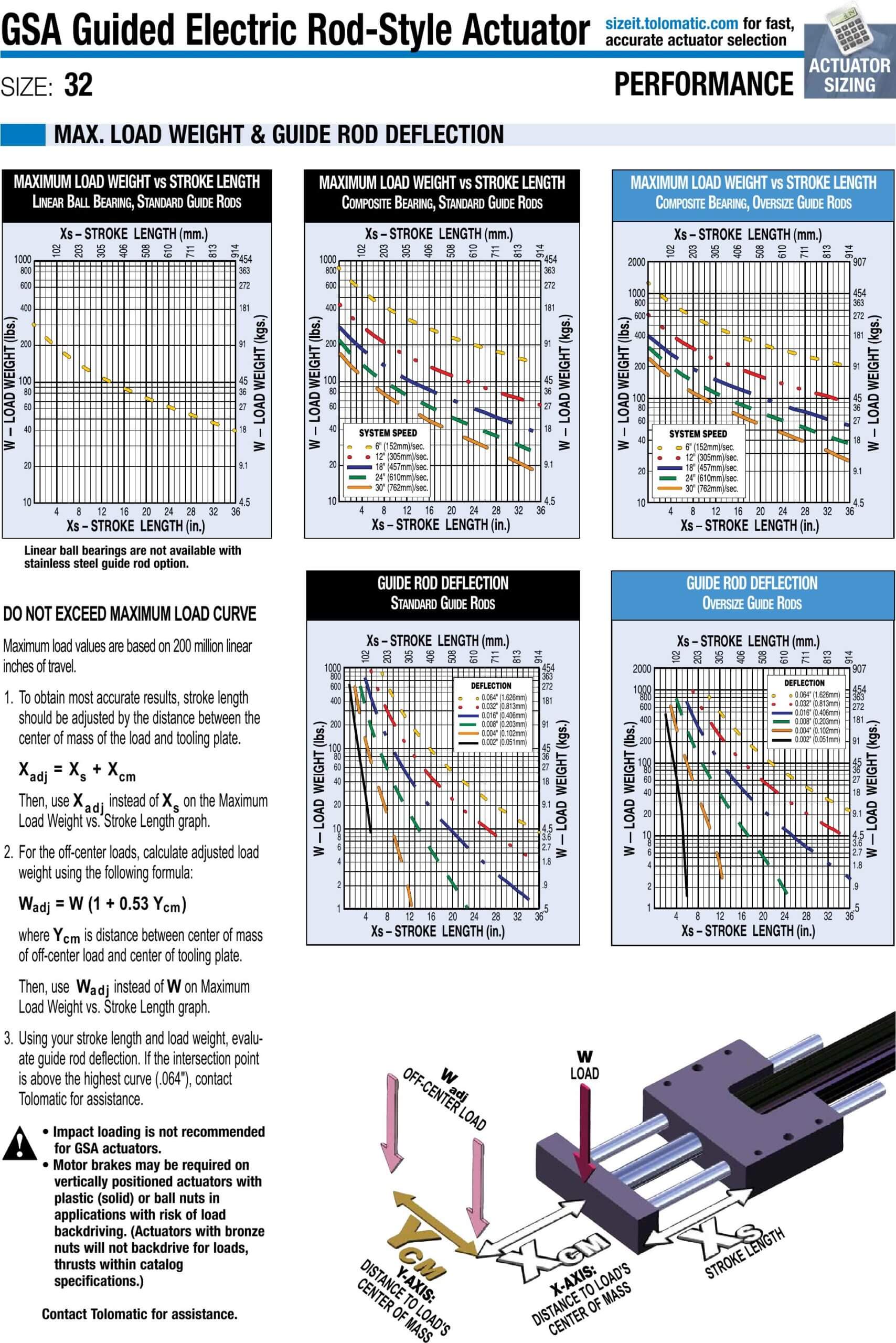

GSA Performance Size 32
![](https://www.tolomatic.com/wp-content/uploads/2022/06/8ef5bce8dc9245c98c82f05c3526b0b3-orig-683x1024.jpg)

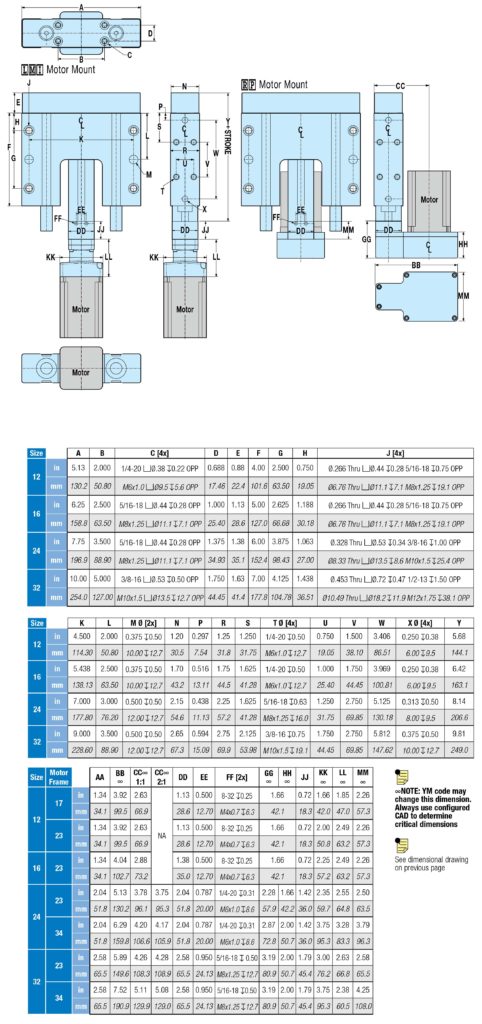

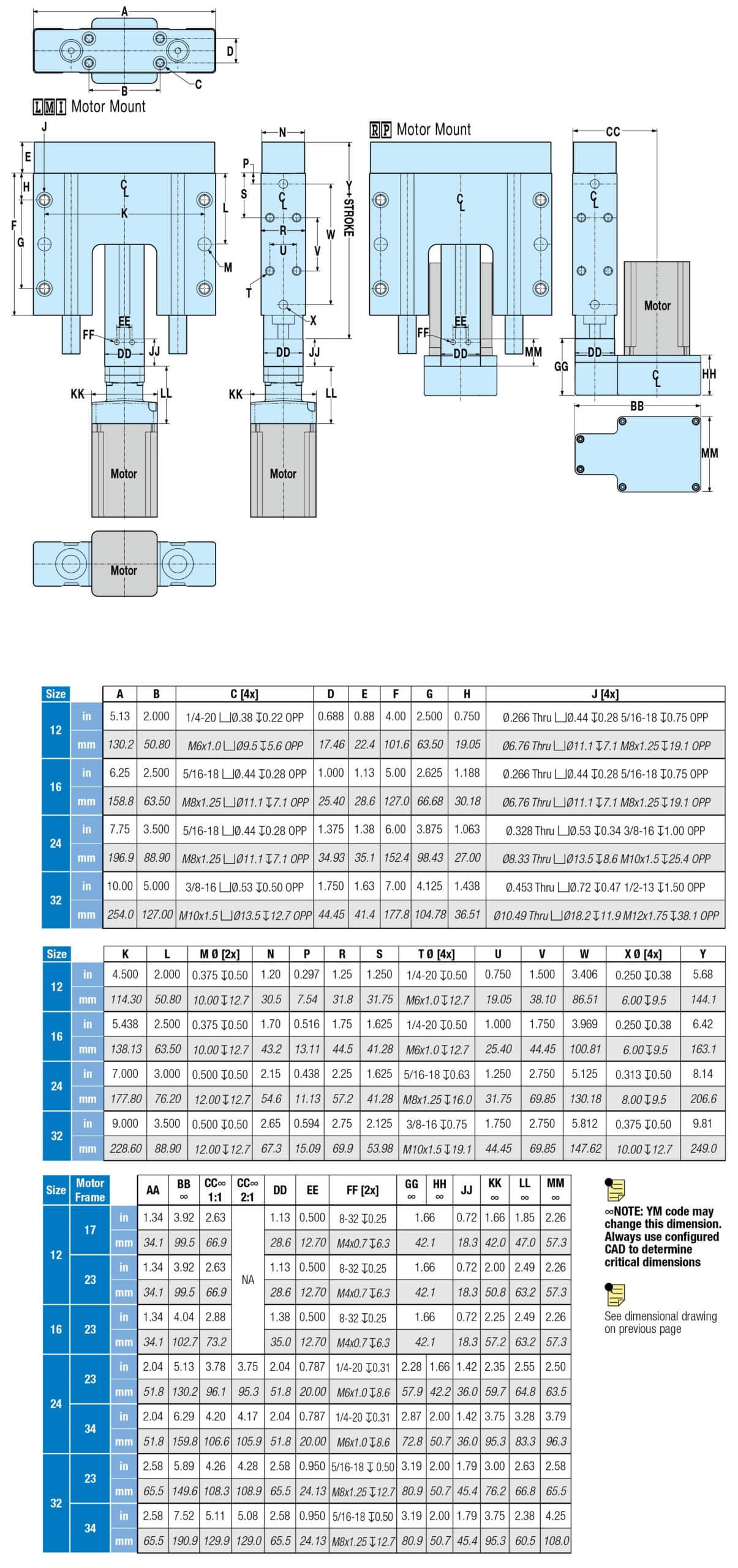

GSA Actuator Dimensions

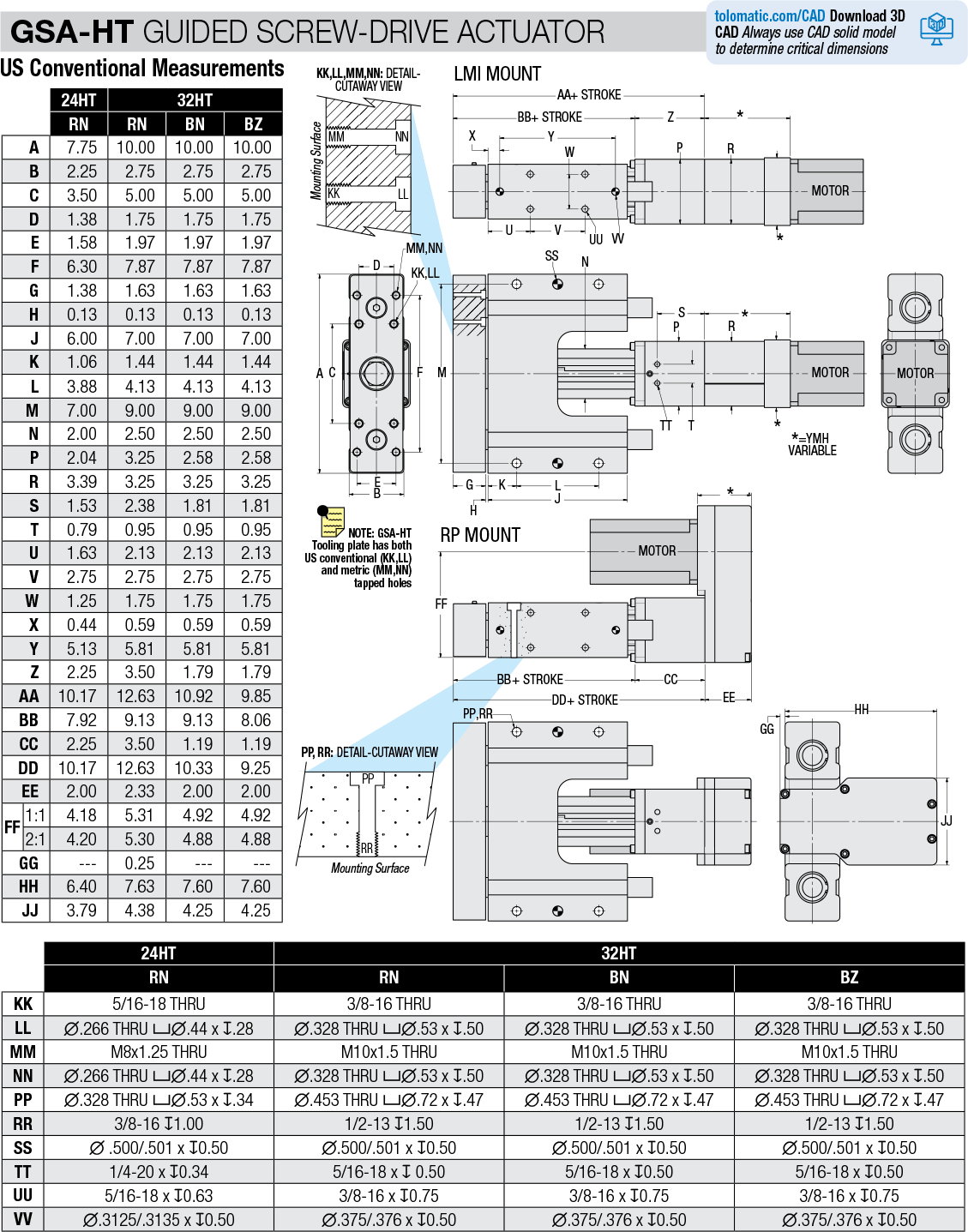

![](https://www.tolomatic.com/wp-content/uploads/2022/06/9e34850d5e934f0cb6048b1bf5ed53a9-orig-482x1024.jpg)

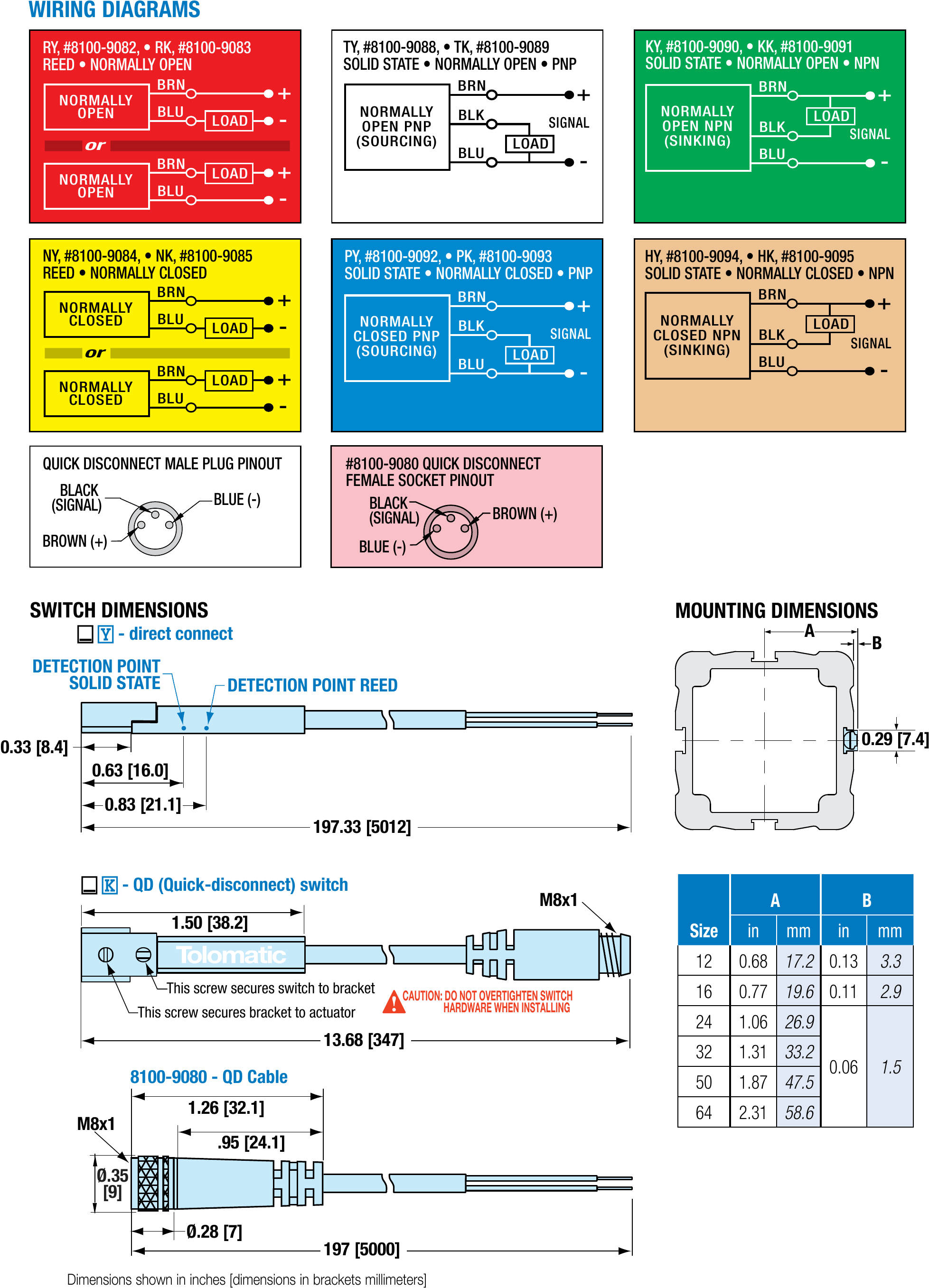

GSA Switch Wiring Diagrams & Dimensions
![](https://www.tolomatic.com/wp-content/uploads/2022/06/94ea32523422437fa2b195326c8fe208-orig-738x1024.jpg)

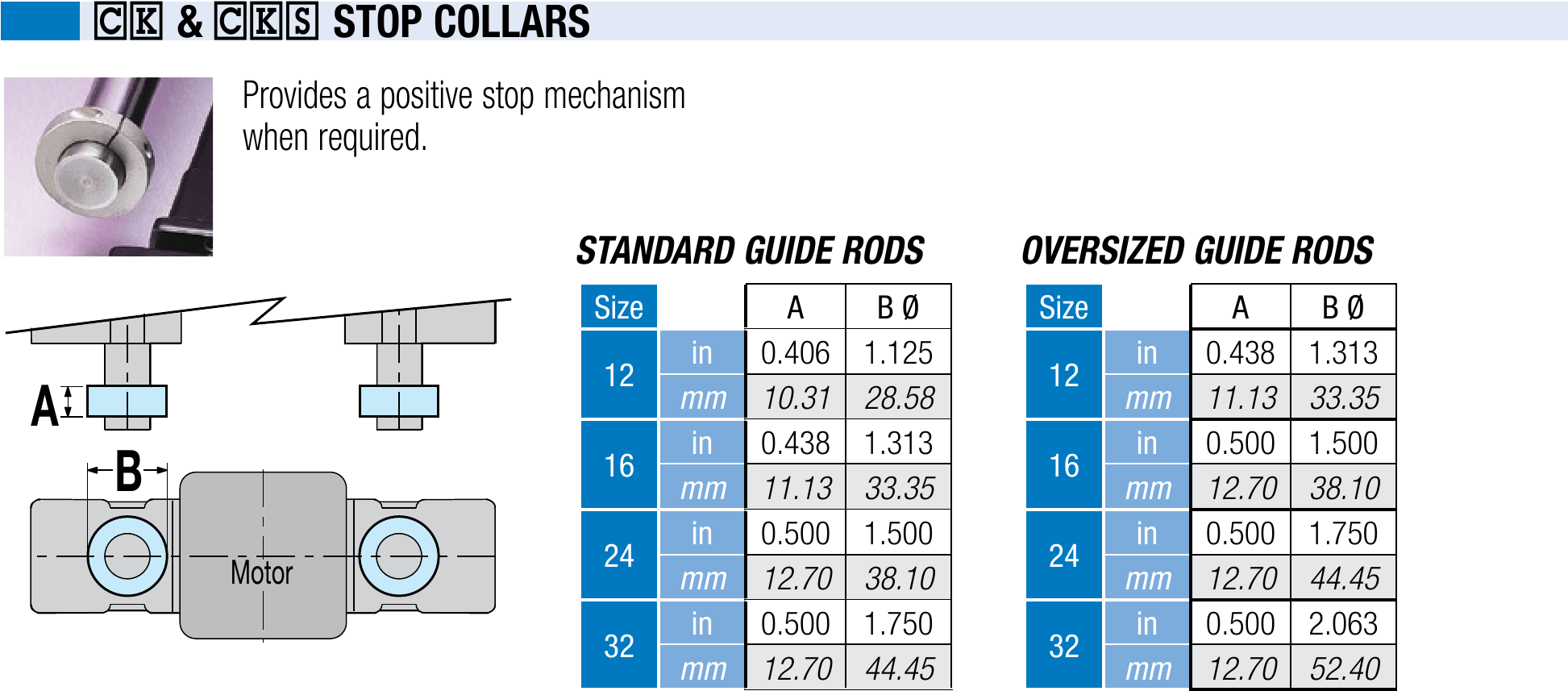

GSA Stop Collar Dimensions
![](https://www.tolomatic.com/wp-content/uploads/2022/06/643f6183afd14b50bc5ec80cee00b1b6-orig-1024x451.jpg)
