ERD Electric Cylinder Actuator

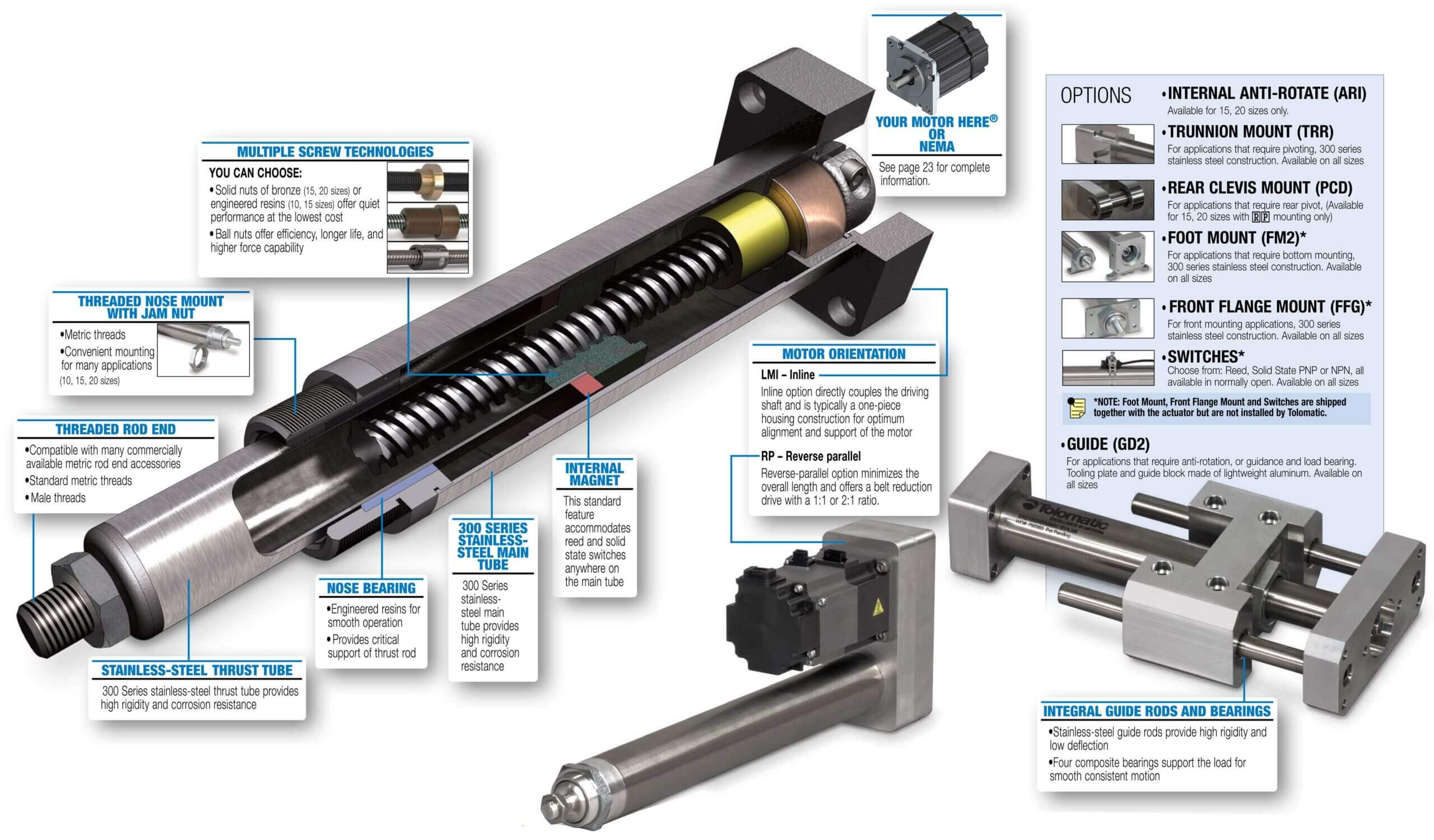

ERD electric cylinder series are the perfect alternative to pneumatic cylinders for automating manual processes.
ERD Quick Ship Program – Fixed stroke ERD15 available in one week! Limited supply available

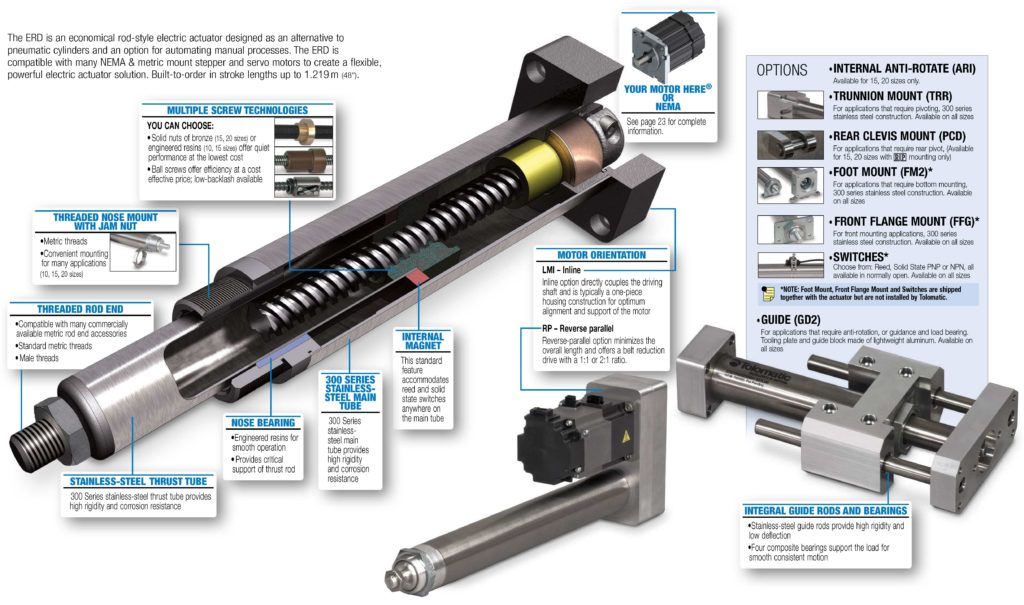

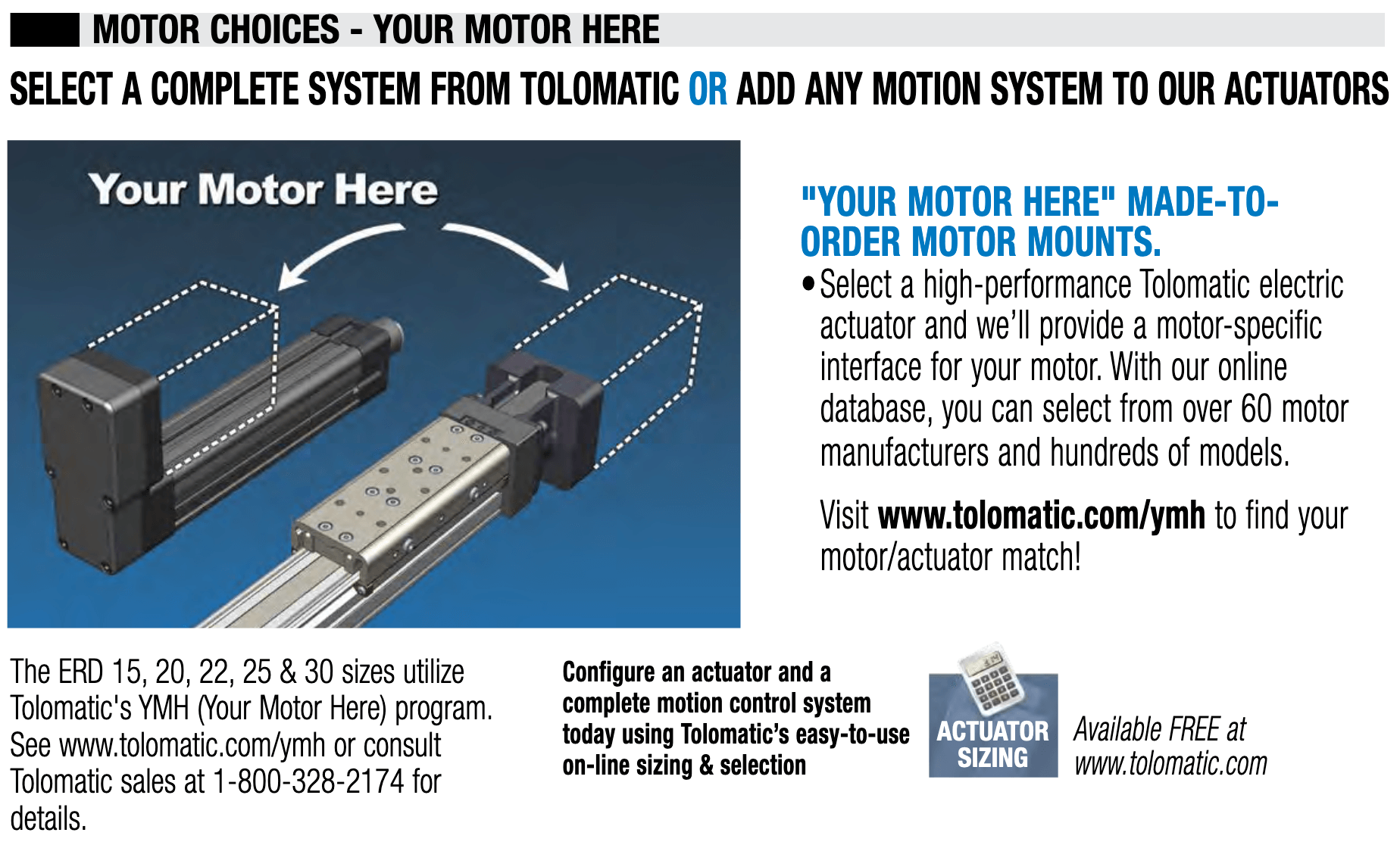

The ERD is an economical electric cylinder and is compatible with many NEMA & metric mount stepper and servo motors to create a flexible, powerful, yet cost-effective electric cylinder solution over traditional pneumatic cylinders.
Perfect for gating, sorting, diverting and product change overs, ERD electric cylinders offer these features:
- 3 body sizes
- Ball and acme screw choices
- Force/thrust capabilities up to 500 lbf (2.2 kN)
- Stroke lengths up to 24 inches (610 mm)
- Guide and anti-rotate options
- IP67 and IP69K options

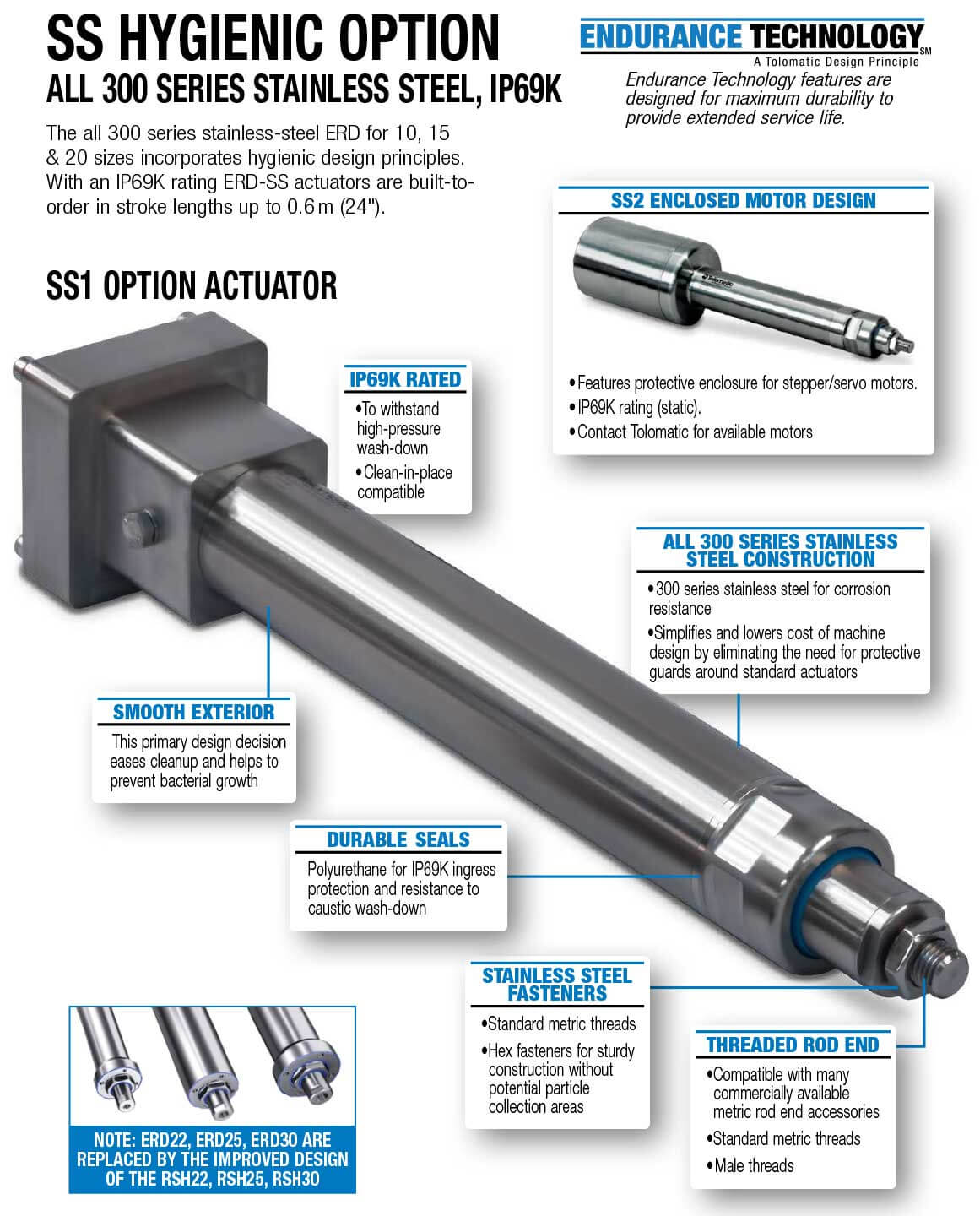

- All stainless steel body options
- Stepper and servo drive/controller and motor solutions
- Need faster delivery? Quick ship configurations now available

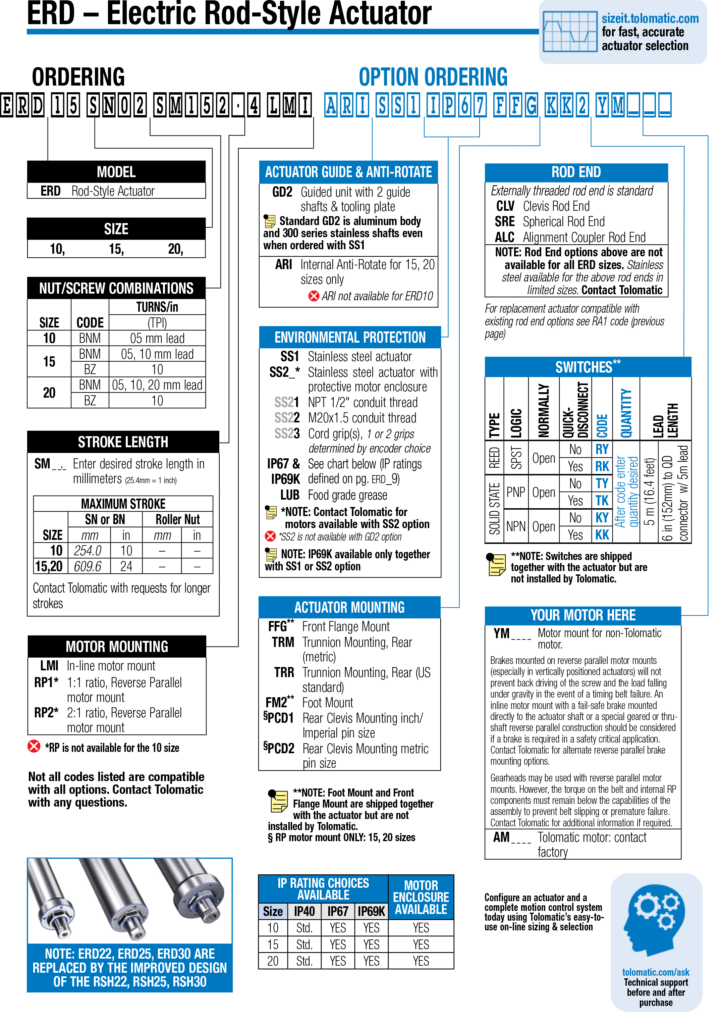

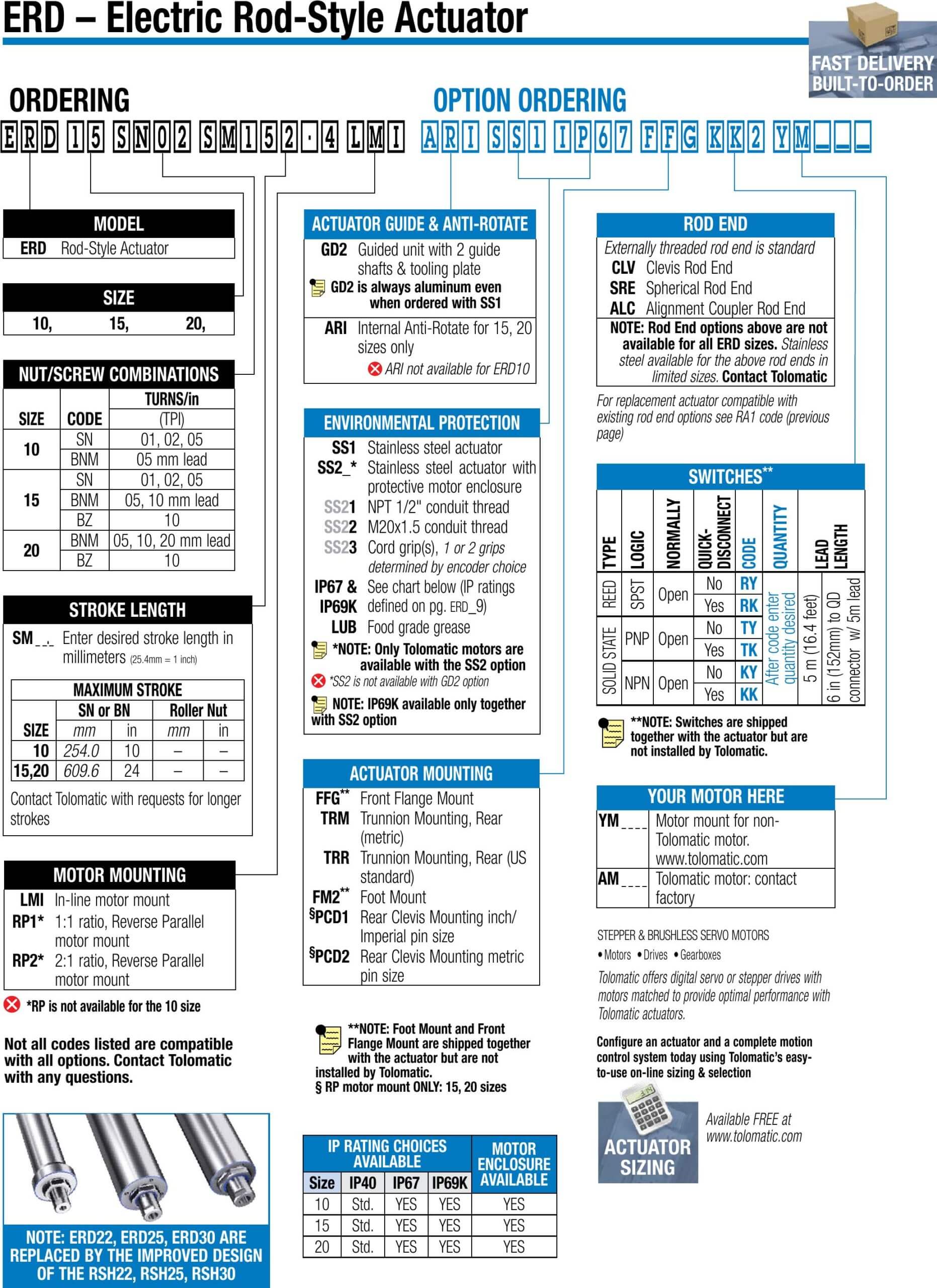

Order ERD – Actuator Package
Part Number
2192-0290
2192-0291
2192-0292
2192-0293
Description
Actuator Package: ERD15 BNM05 SM150
Actuator Package: ERD15 BNM10 SM150
Actuator Package: ERD15 BNM05 SM300
Actuator Package: ERD15 BNM10 SM300
Stroke
150 mm
150 mm
300 mm
300 mm
Cont. Thrust
650N (146lb)
325N (73lb)
650N (146lb)
325N (73lb)
Max Speed
275mm/s (10.8 in/s)
550 mm/s (21.7 in/s)
275mm/s (10.8 in/s)
550 mm/s (21.7 in/s)
Screw Lead
5 mm
10 mm
5 mm
10 mm
Lead Accuracy
0.0020 in
0.0020 in
0.0040 in
0.0040 in
Weight
4.25 lbs
4.25 lbs
5.20 lbs
5.20 lbs
Price
$1,562.25
USD
USD
$1,562.25
USD
USD
$1,718.48
USD
USD
$1,718.48
USD
USD
Order ERD – Power Supply & Cable
Part Number
3604-9386
Description
75VDC Power Supply
Output Voltage
75VDC
Input Voltage
108-250 VAC
Wattage
350 W cont., 900 W Peak
Price
$450.00
USD
USD
Order ERD – Actuator Only
Part Number
2192-0280
2192-0281
2192-0282
2192-0283
Description
Actuator Alone: ERD15 BNM05 SM150
Actuator Alone: ERD15 BNM10 SM150
Actuator Alone: ERD15 BNM05 SM300
Actuator Alone: ERD15 BNM10 SM300
Screw Lead
5 mm
10 mm
5 mm
10 mm
Stroke
150 mm
150 mm
300 mm
300 mm
Max Speed
400 mm/s (15.8 in/s)
800 mm/s (31.5in/s)
400 mm/s (15.8 in/s)
800 mm/s (31.5in/s)
Lead Accuracy
0.0020 in
0.0020 in
0.0040 in
0.0040 in
Weight
2.15 lbs
2.15 lbs
3.10 lbs
3.10 lbs
Price
$902.98
USD
USD
$902.98
USD
USD
$1,058.16
USD
USD
$1,058.16
USD
USD
ERD 22, 25, and 30 has been transitioned to the improved design of the RSH hygienic actuator family. Contact Tolomatic for support.
| Size | ERD 10 | ERD 15 | ERD 20 |
|---|---|---|---|
| Standard | 10 in. | 24 in. | 24 in. |
| Metric | 254 mm | 609 mm | 609 mm |
| Size | ERD 10 | ERD 15 | ERD 20 |
|---|---|---|---|
| Standard | 100 lbf | 200 lbf | 500 lbf |
| Metric | 445 N | 890 N | 2,224 N |
| Size | ERD 10 | ERD 15 | ERD 20 |
|---|---|---|---|
| Standard | 40 in/sec | 40 in/sec | 38 in/sec |
| Metric | 1,016 mm/sec | 1,016 mm/sec | 965 mm/sec |

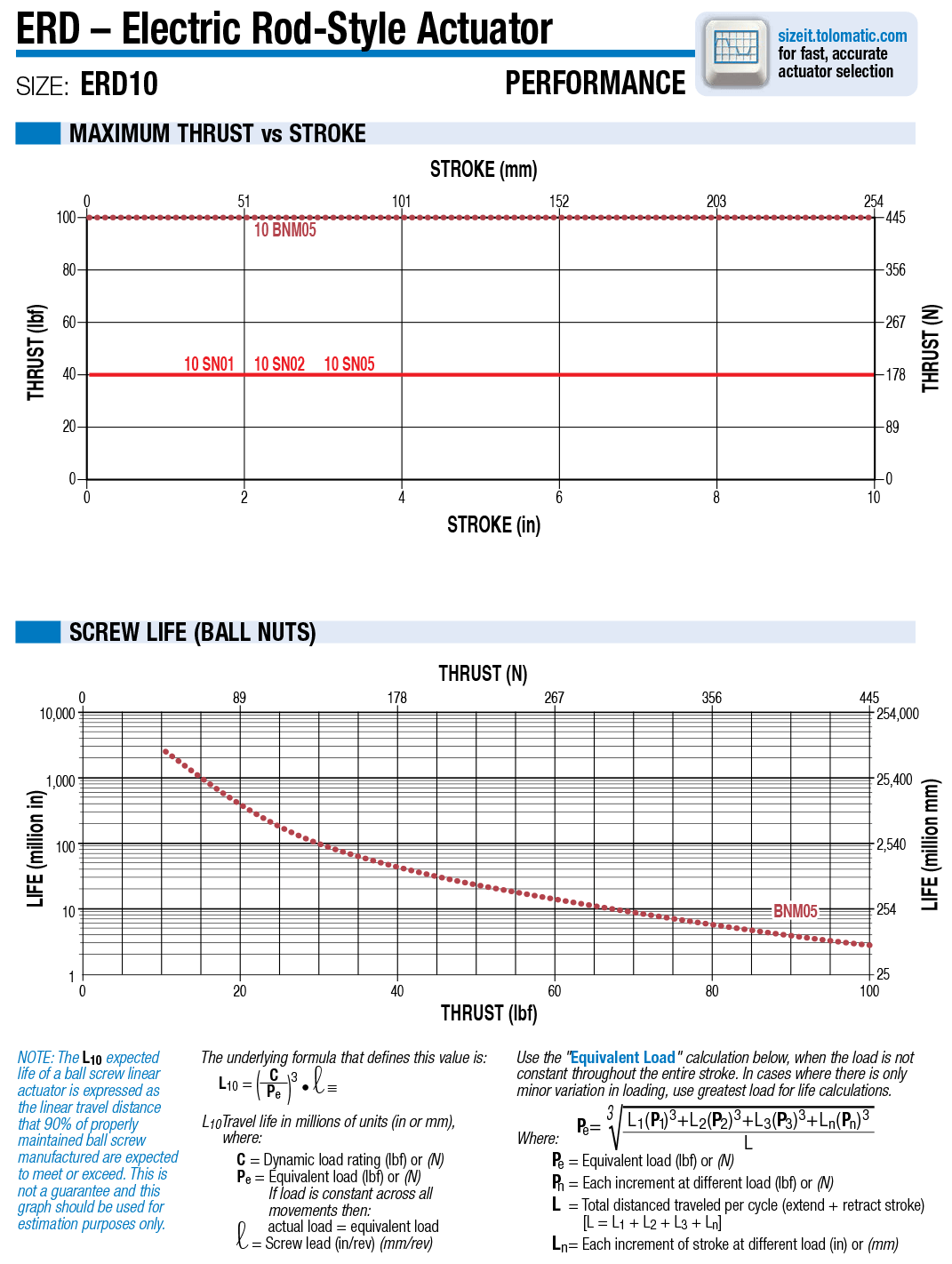

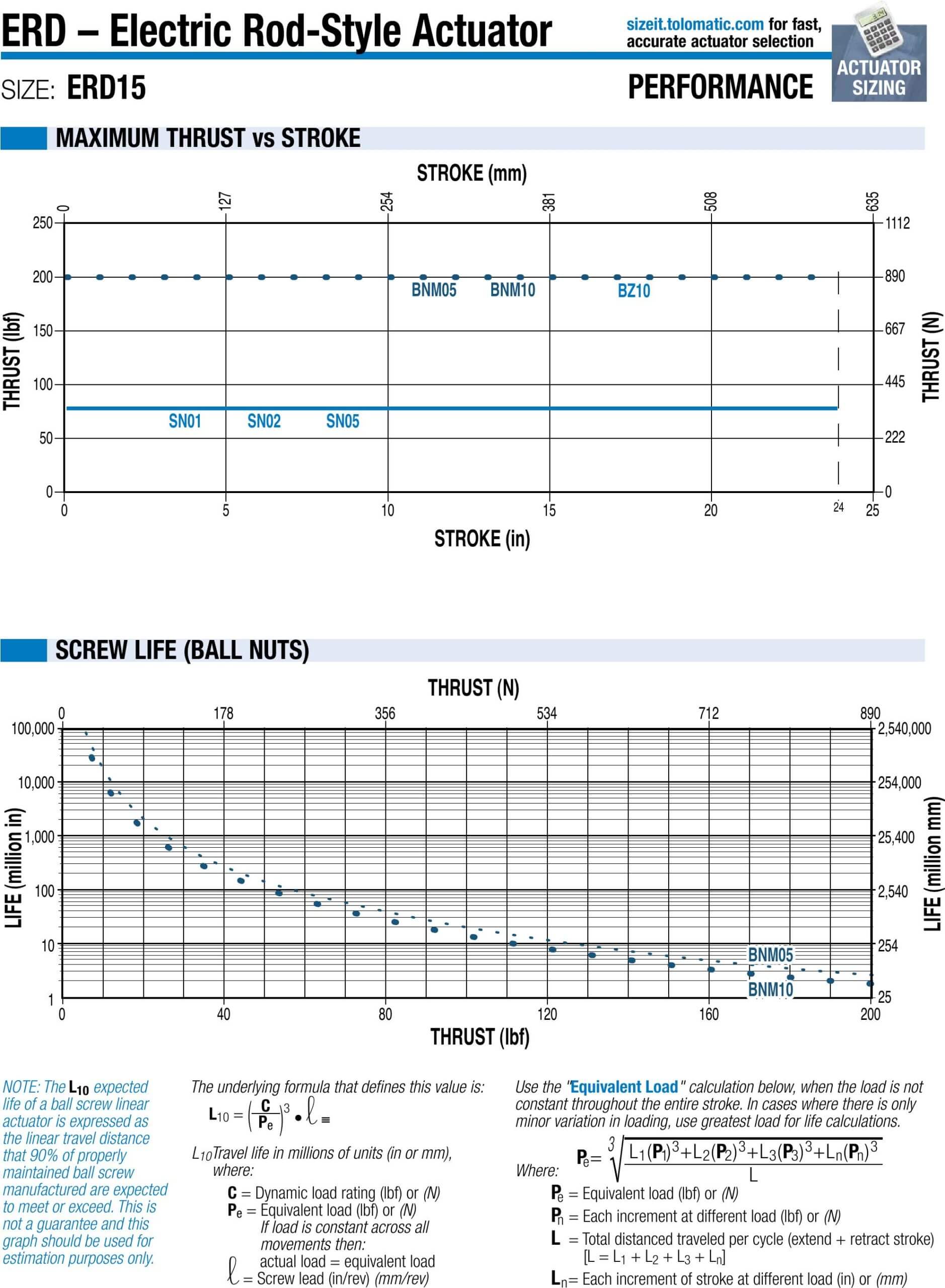

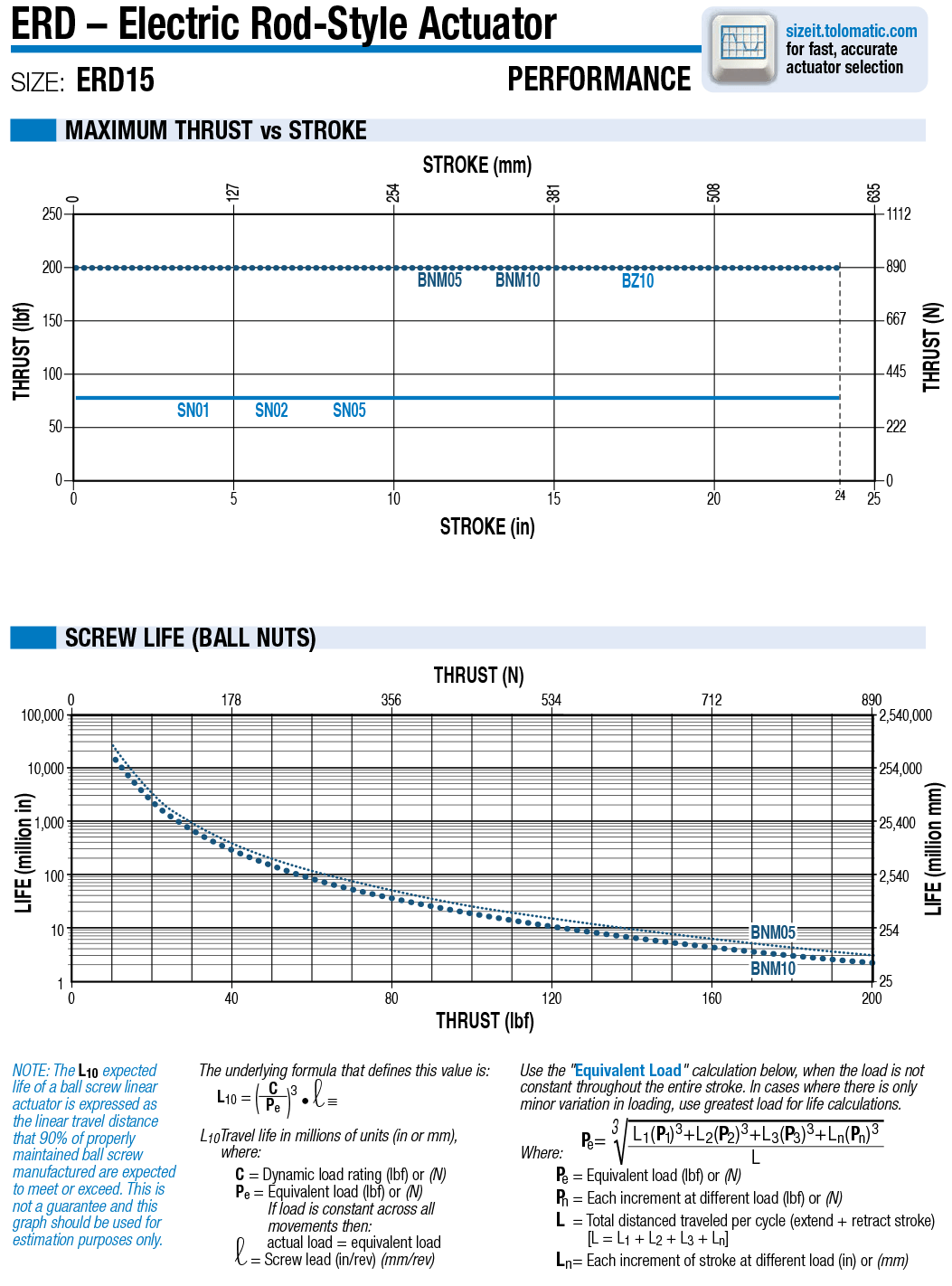

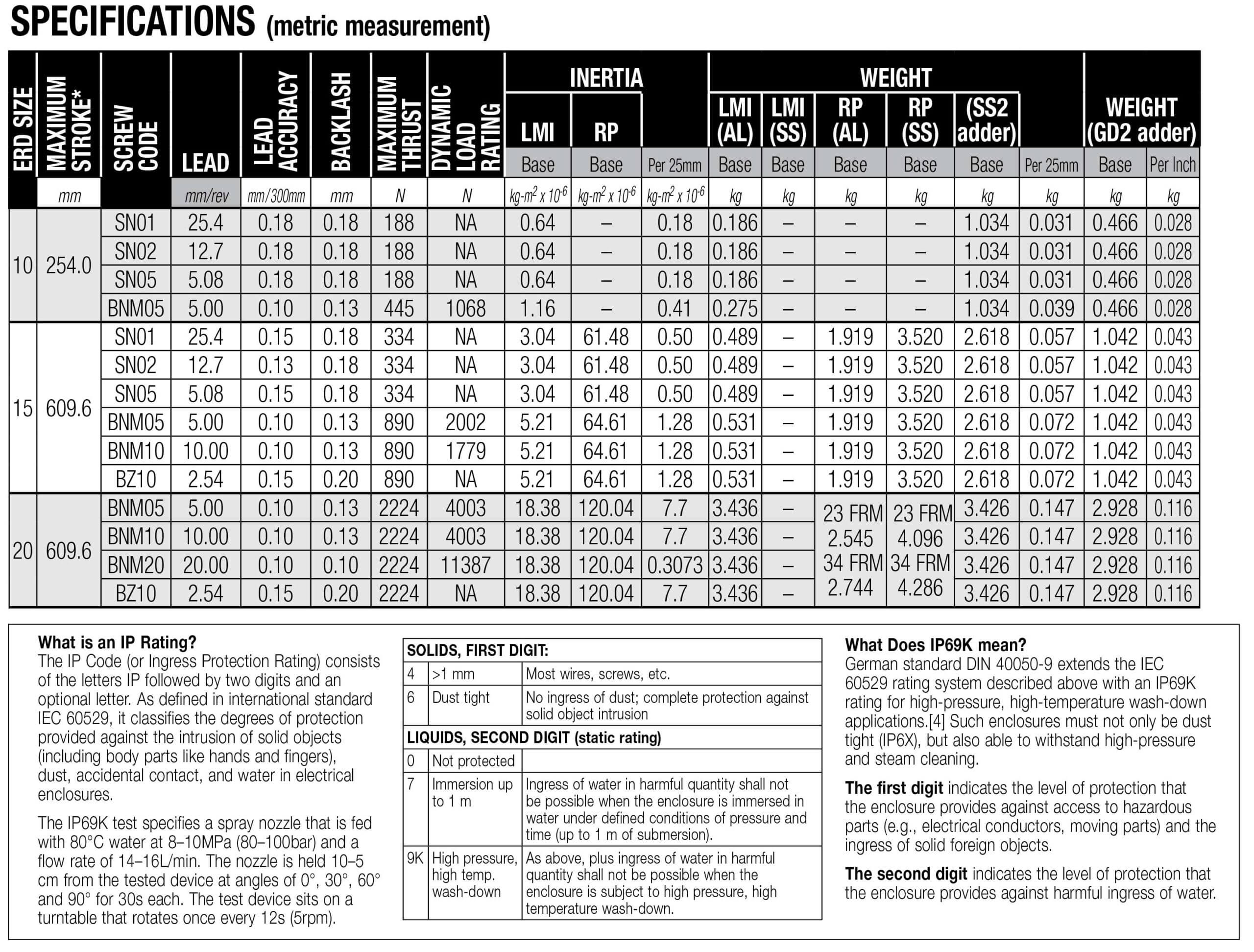

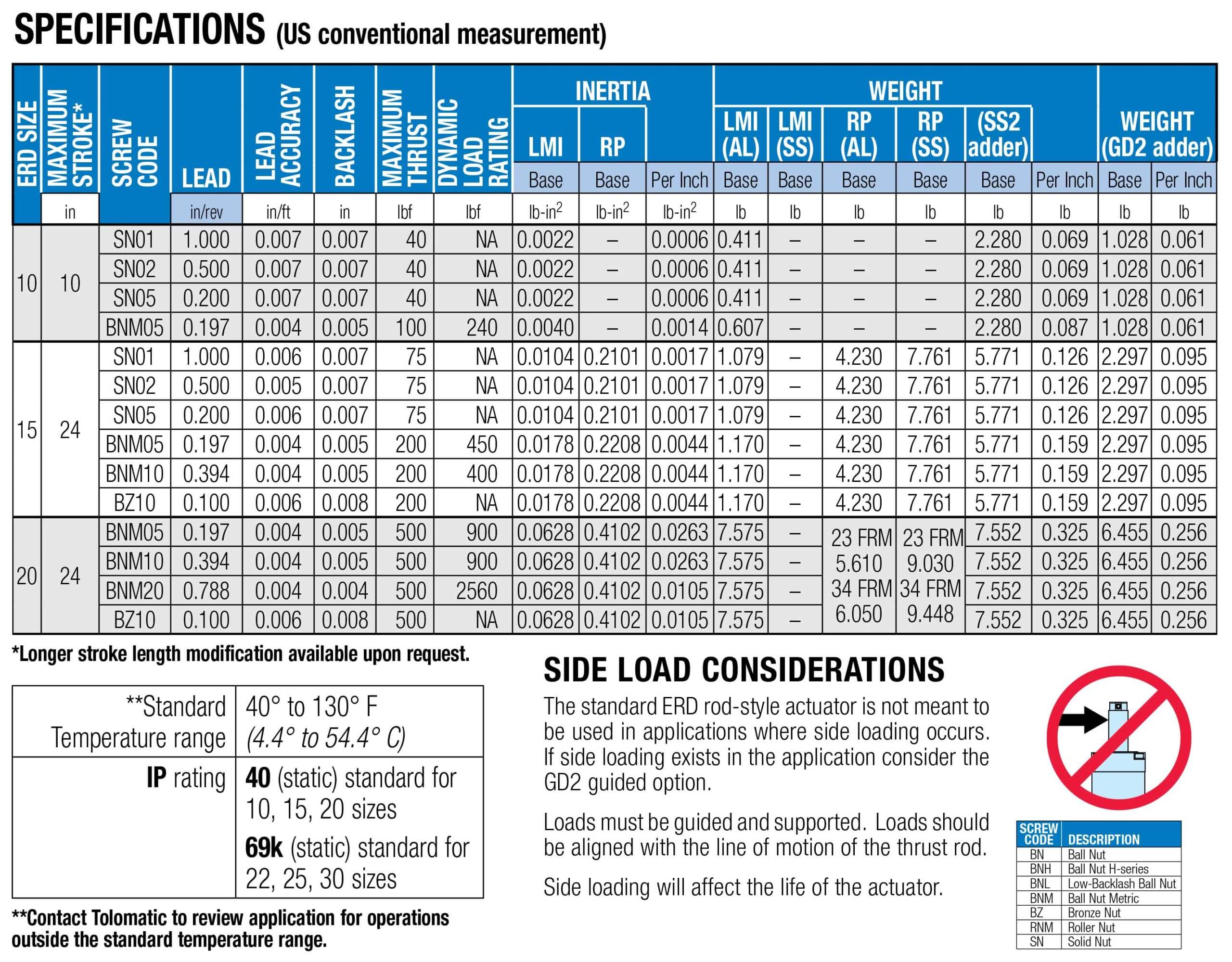

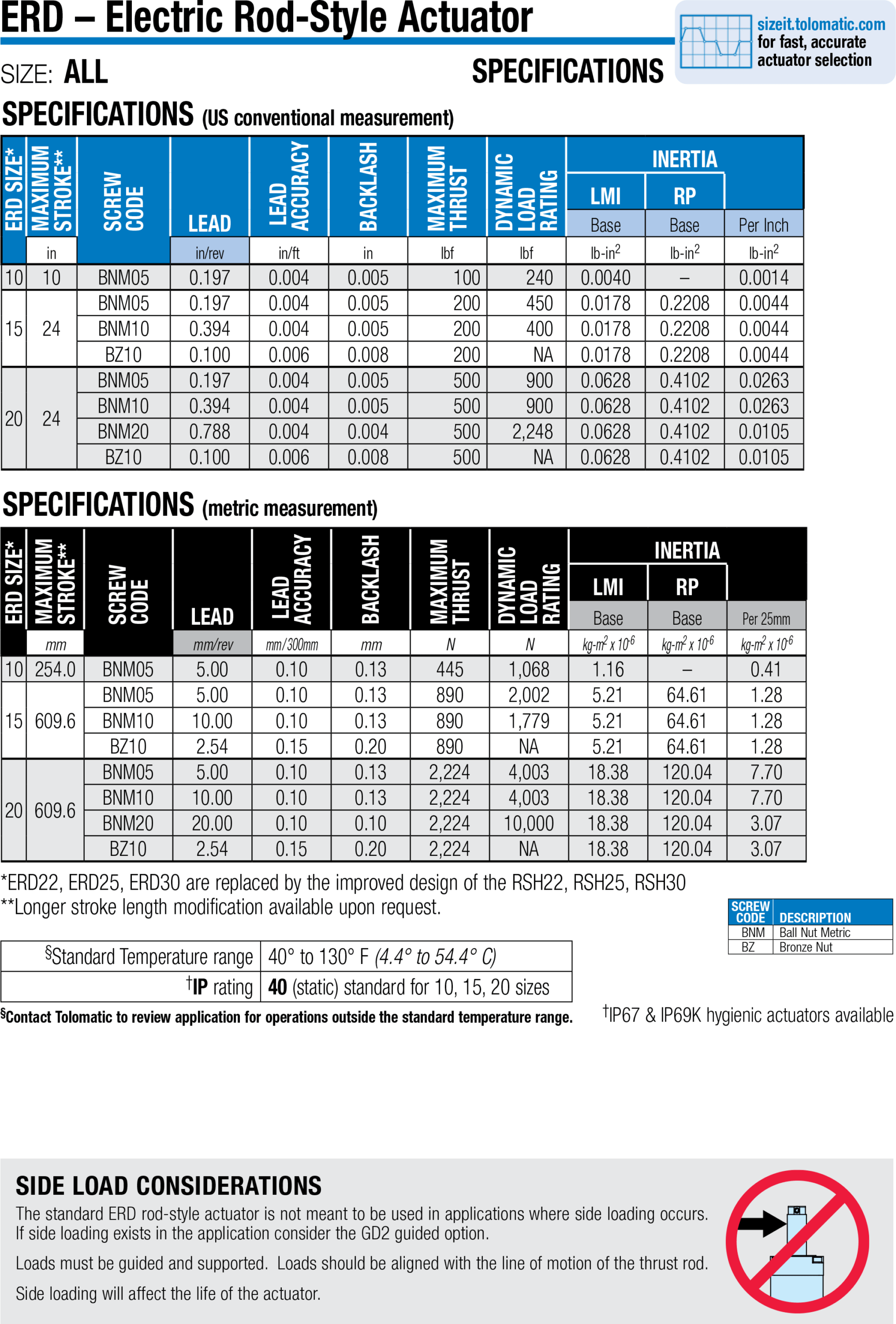

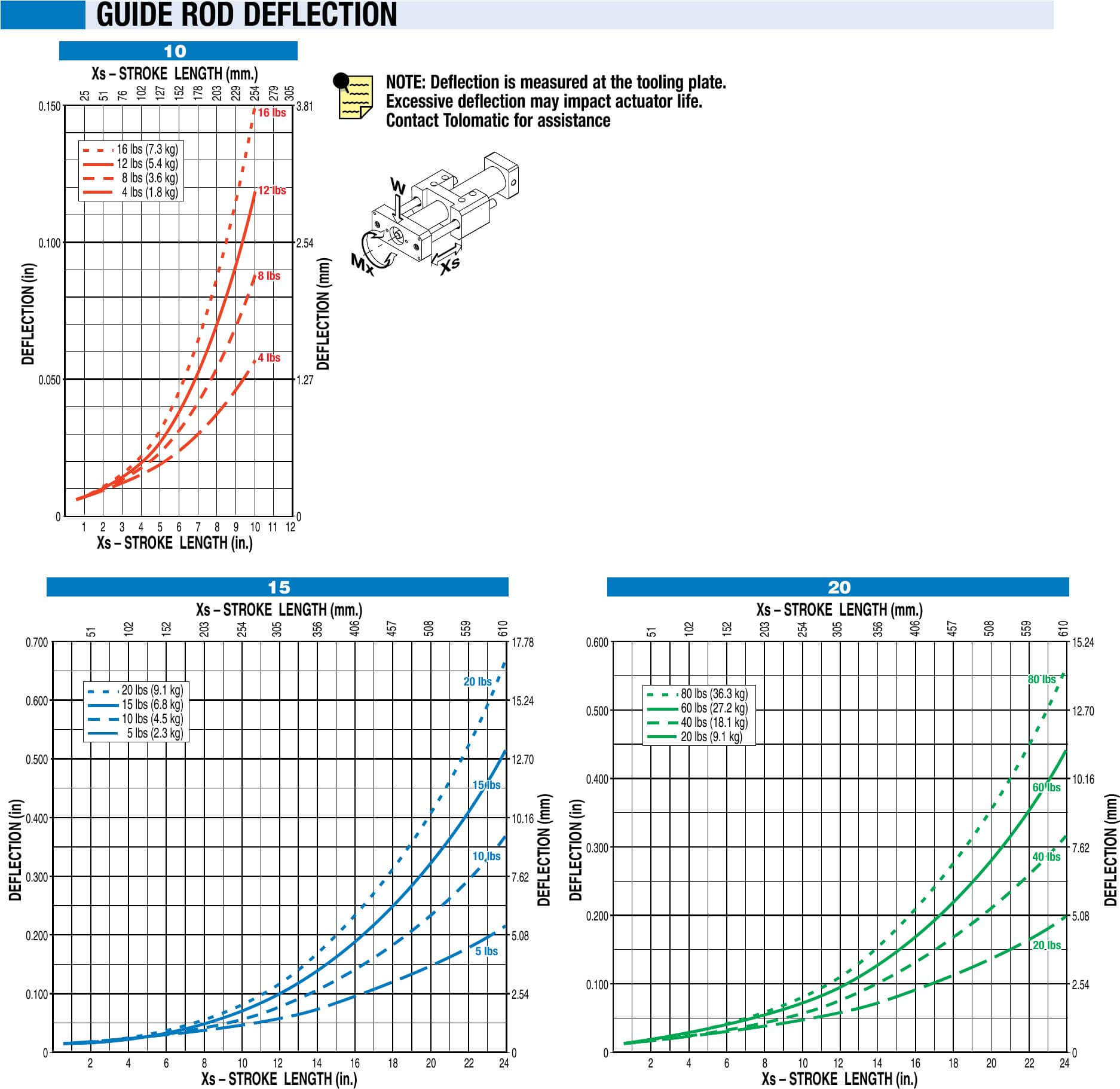

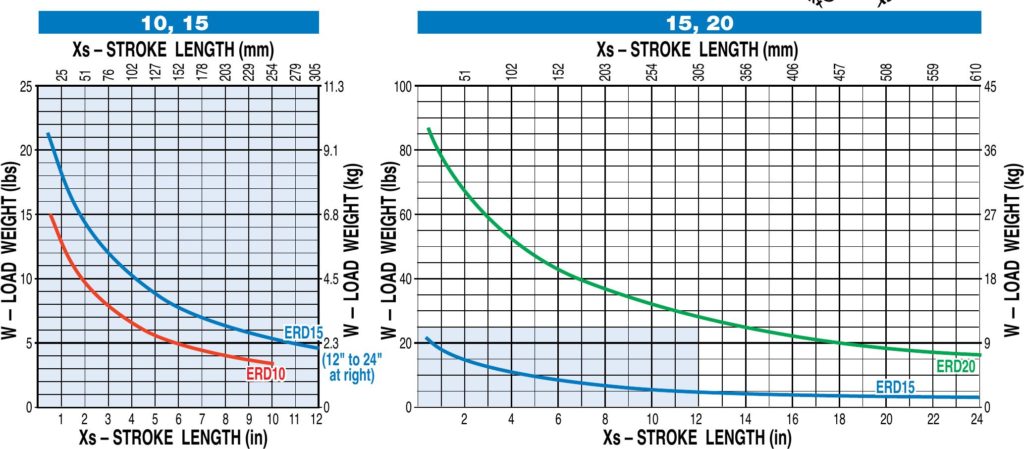

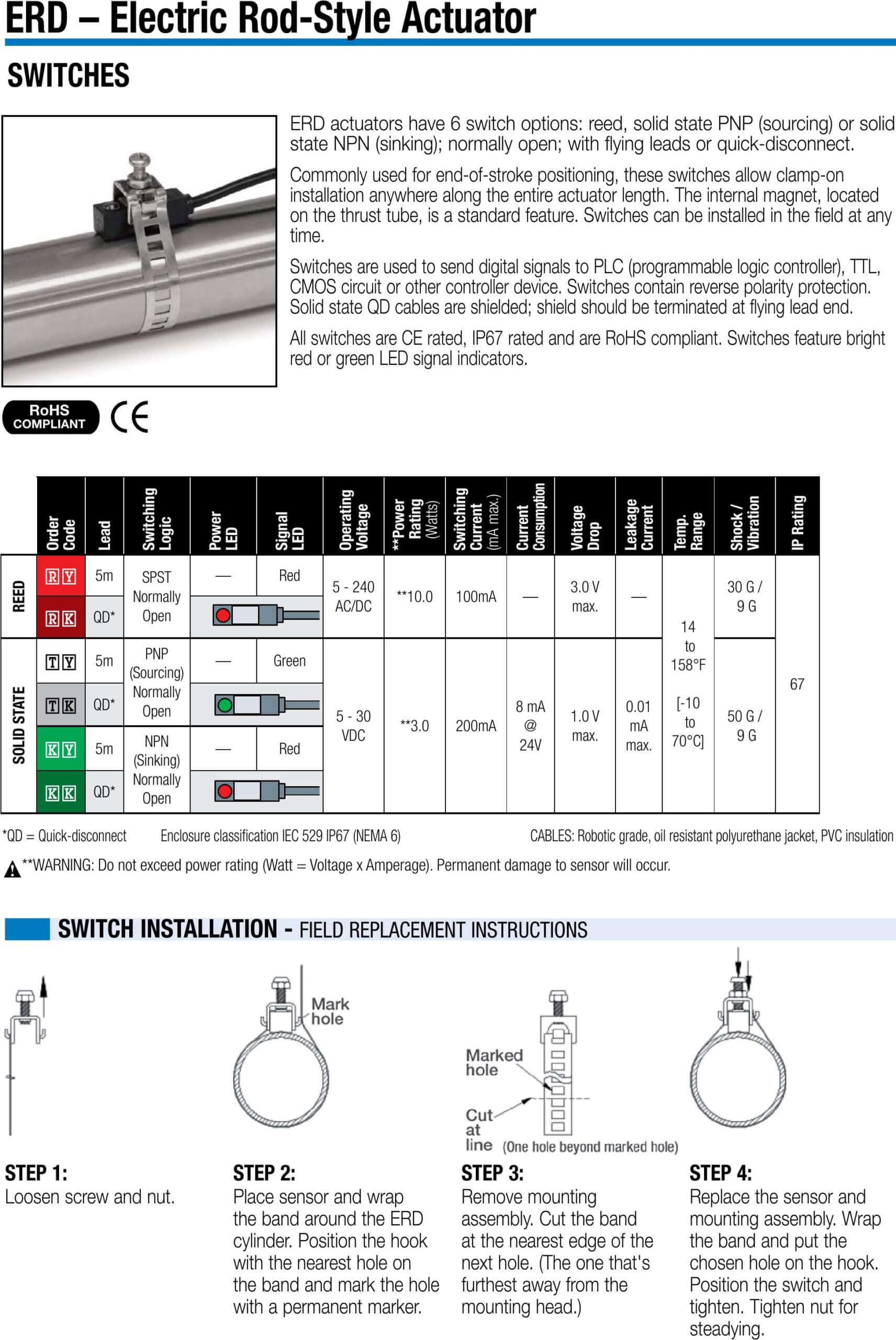

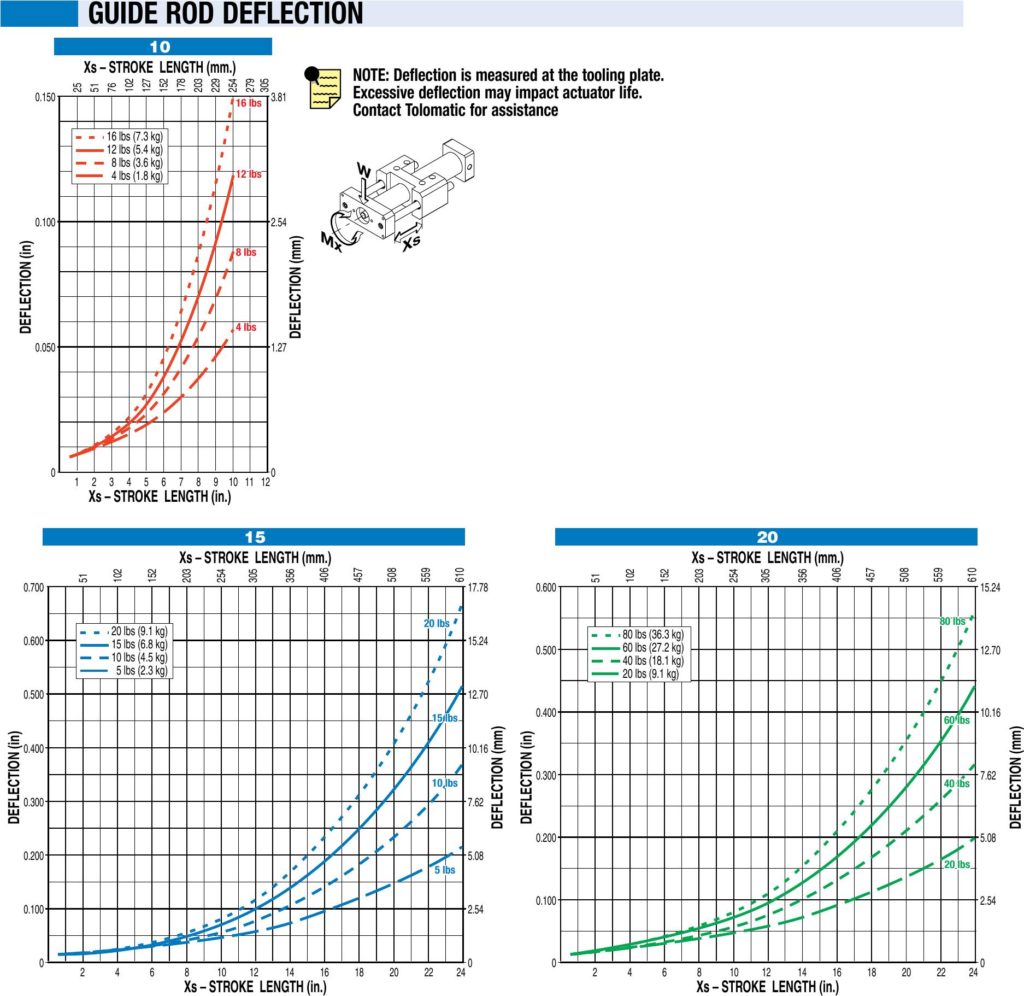

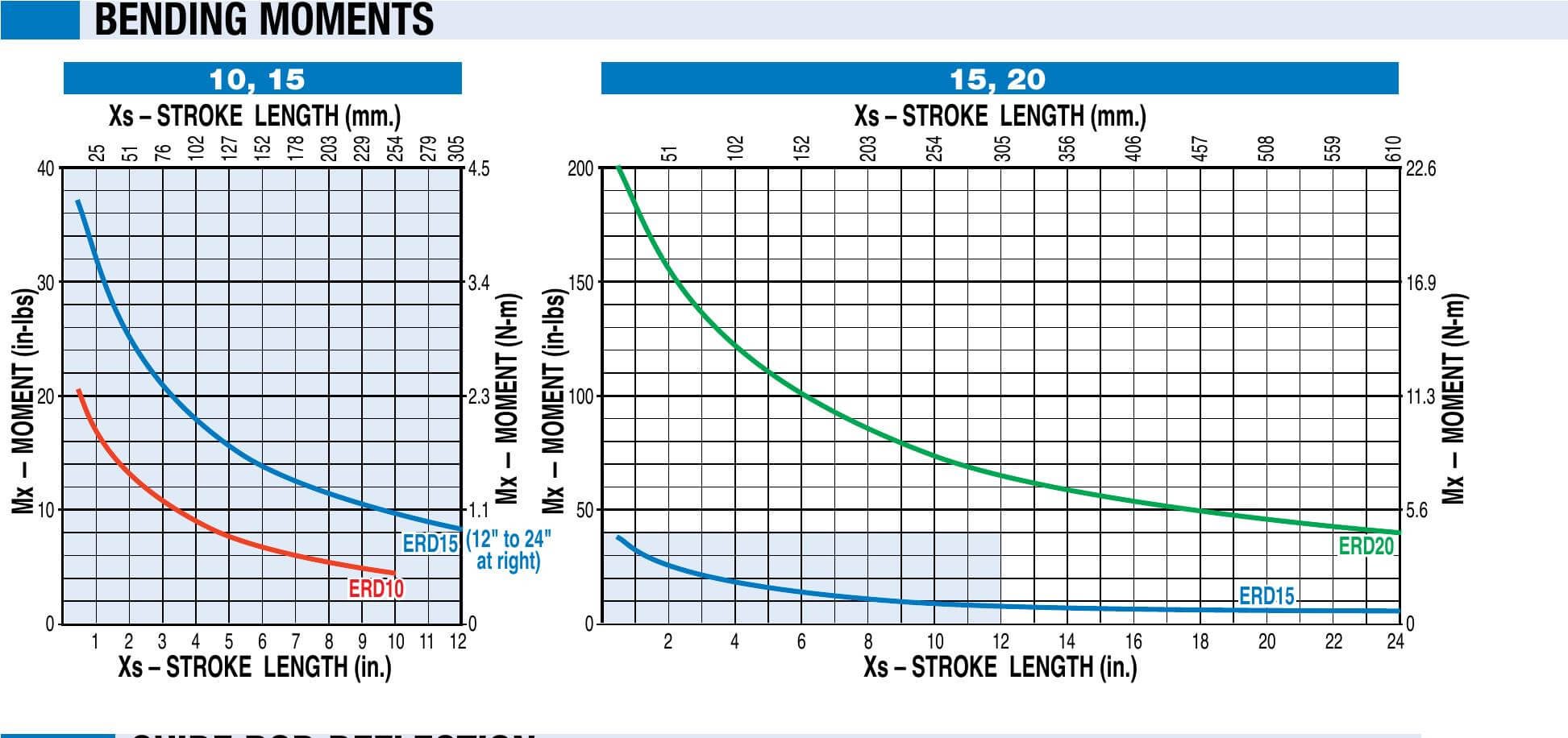

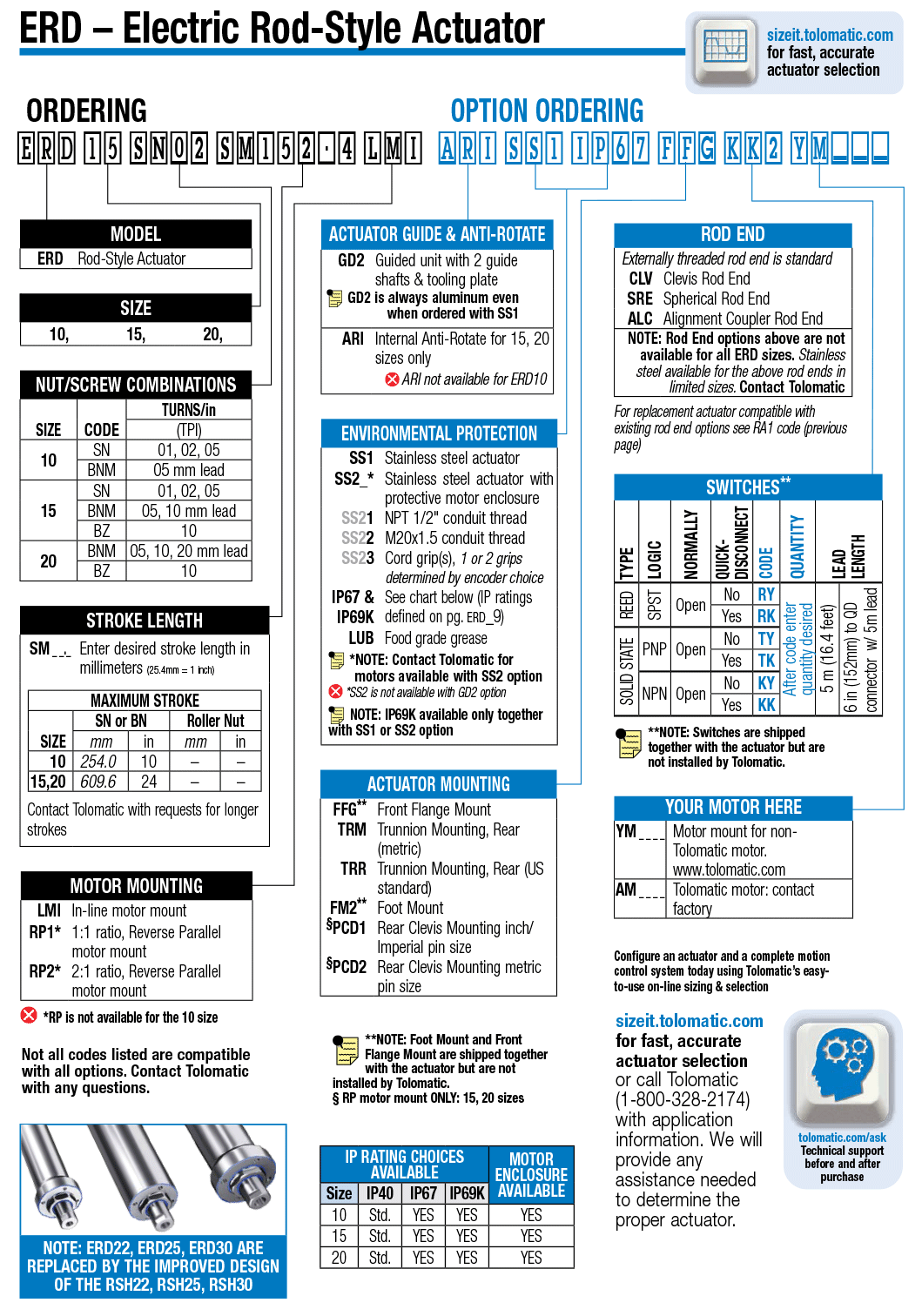

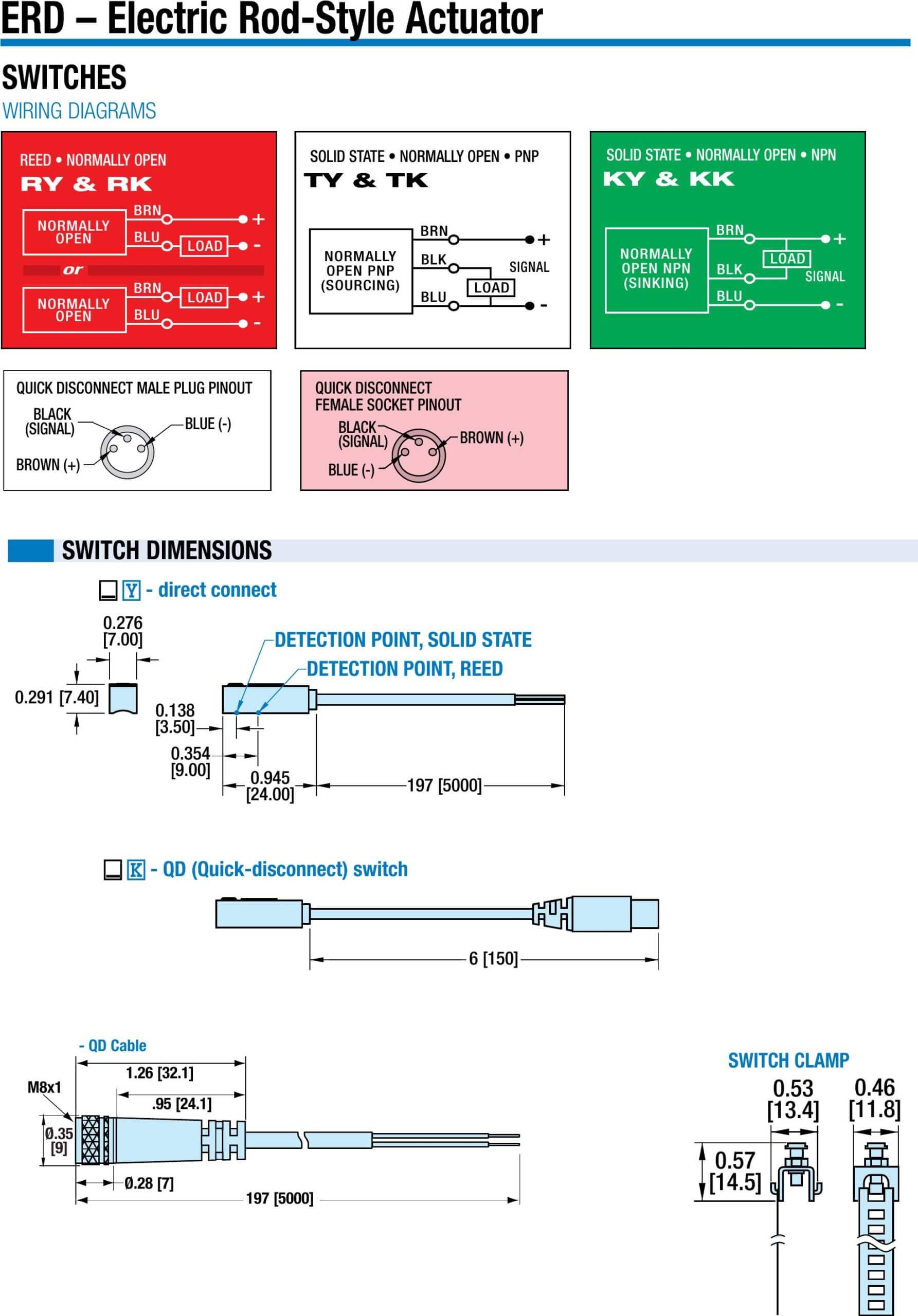

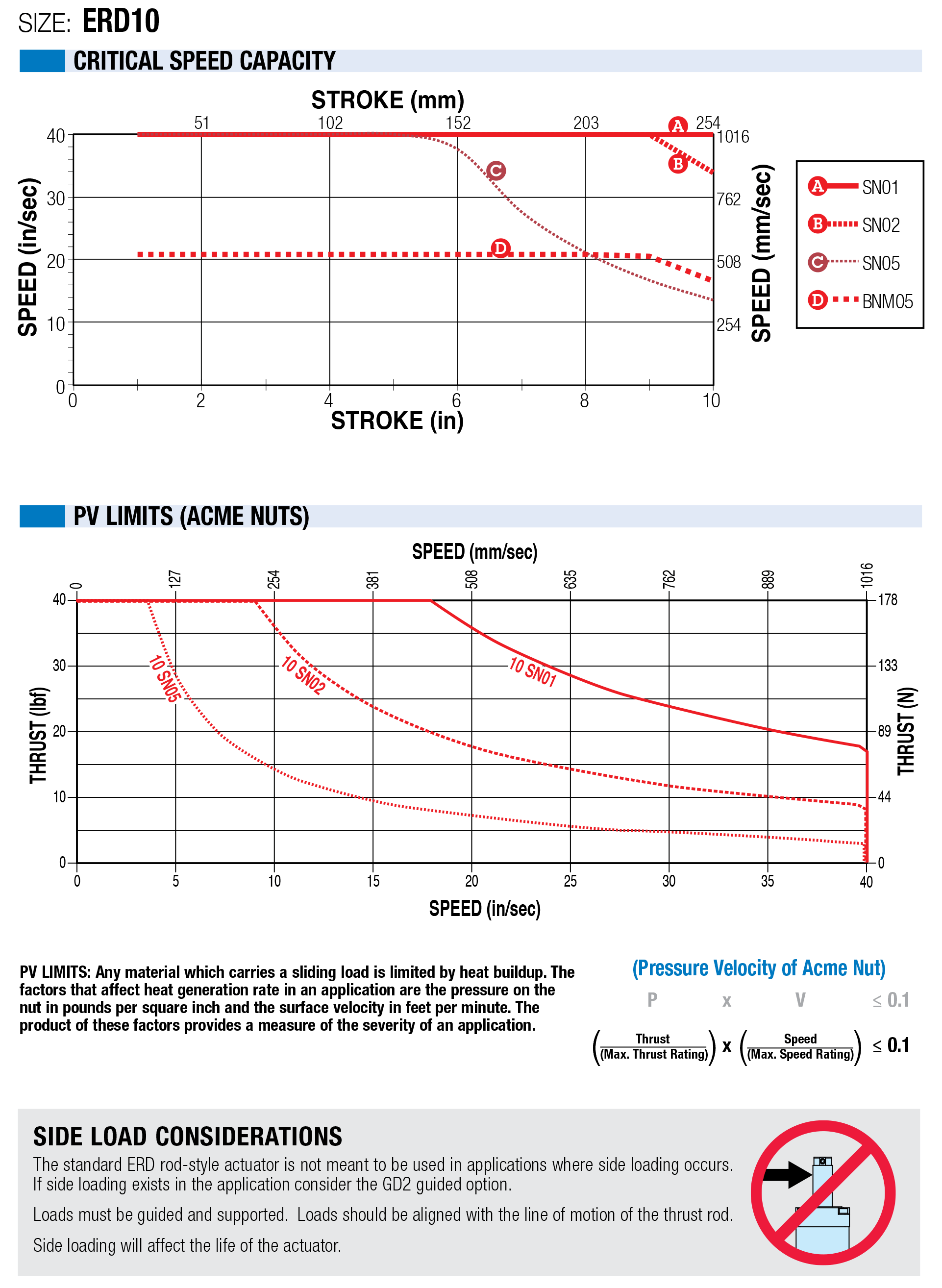

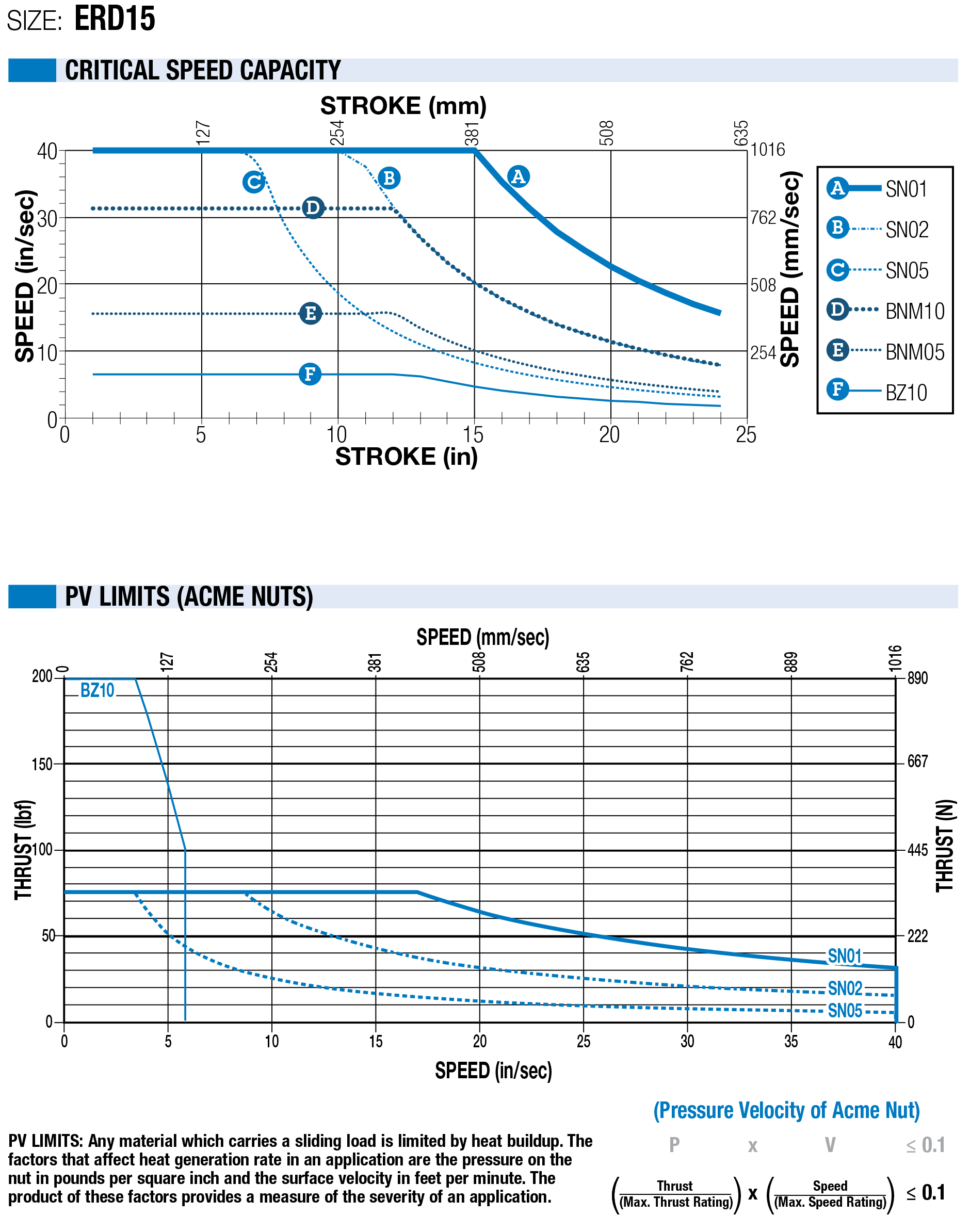

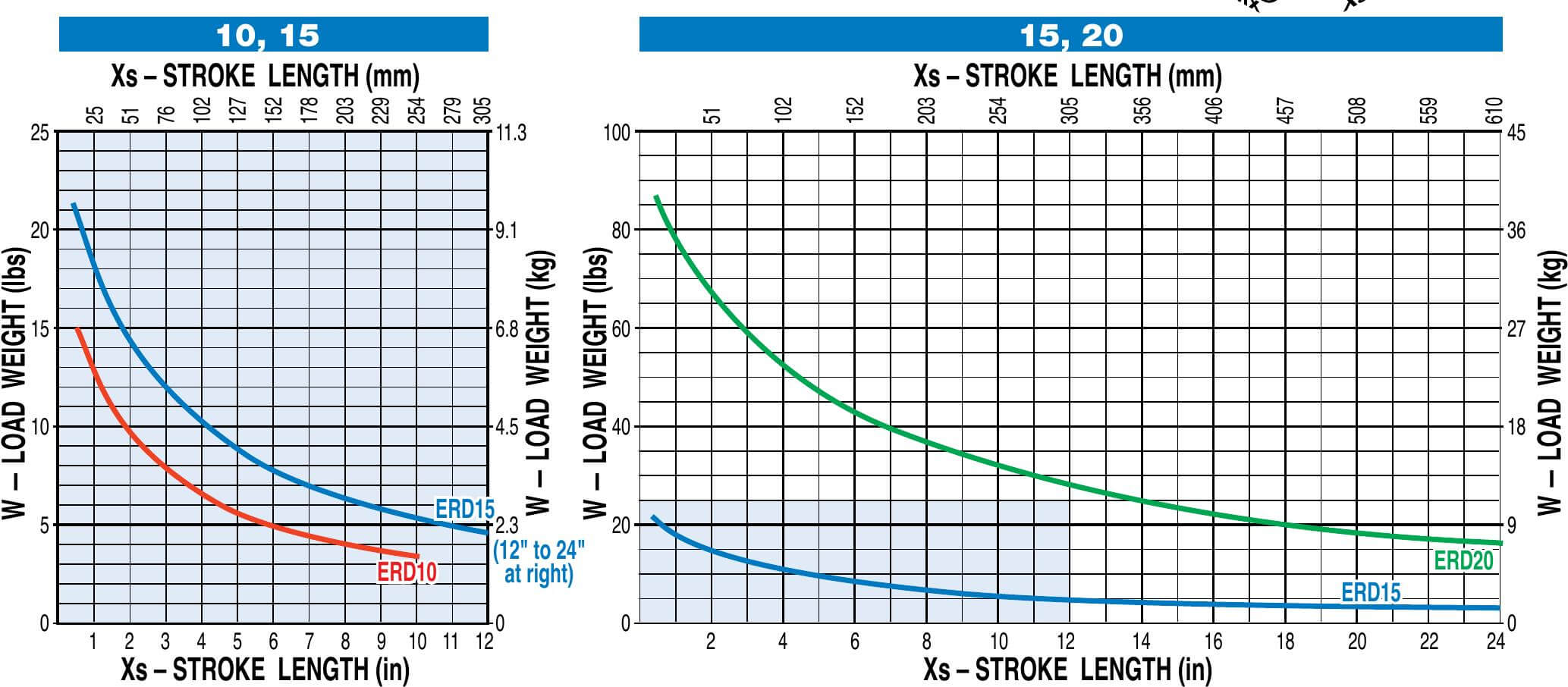

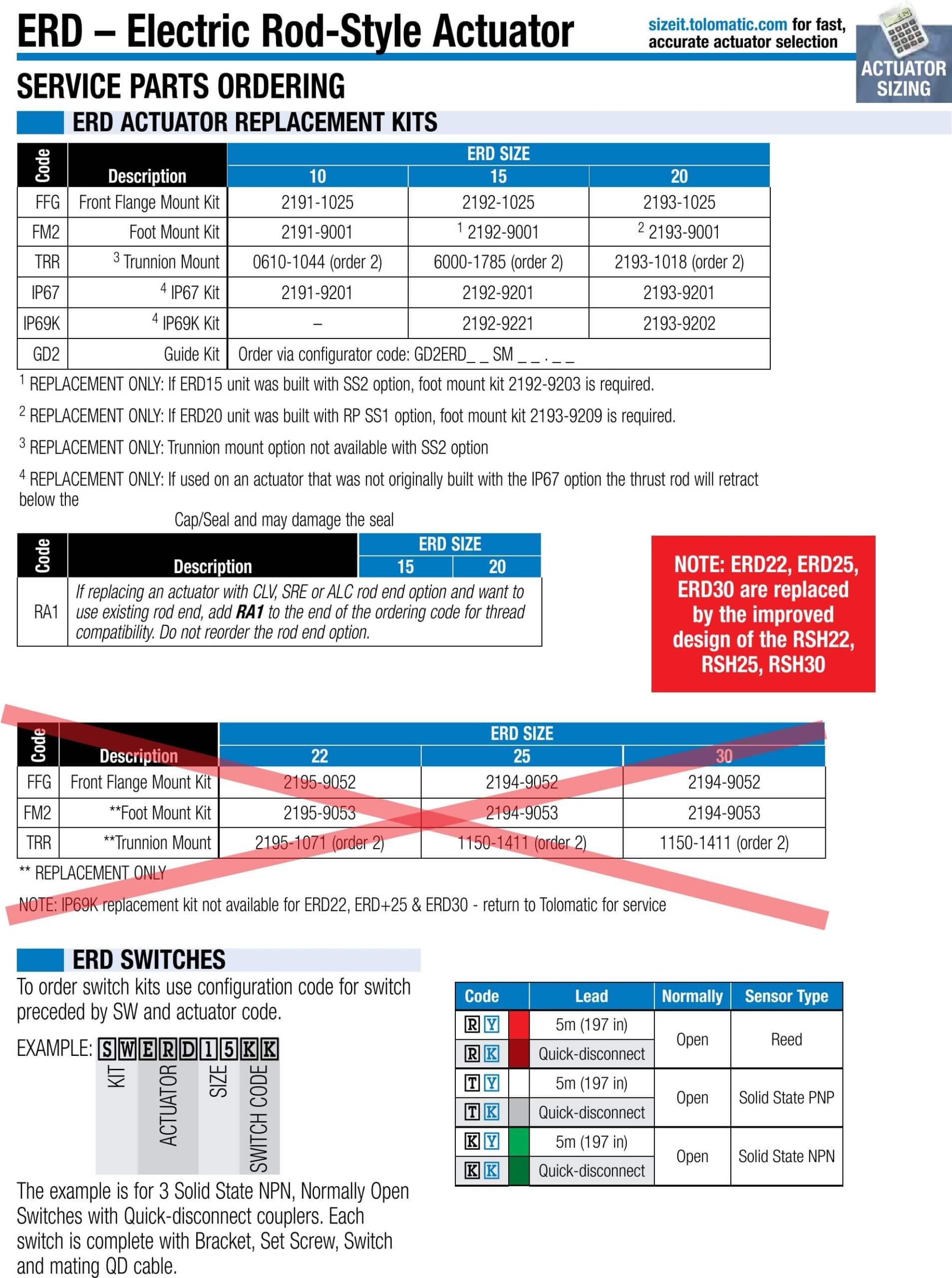

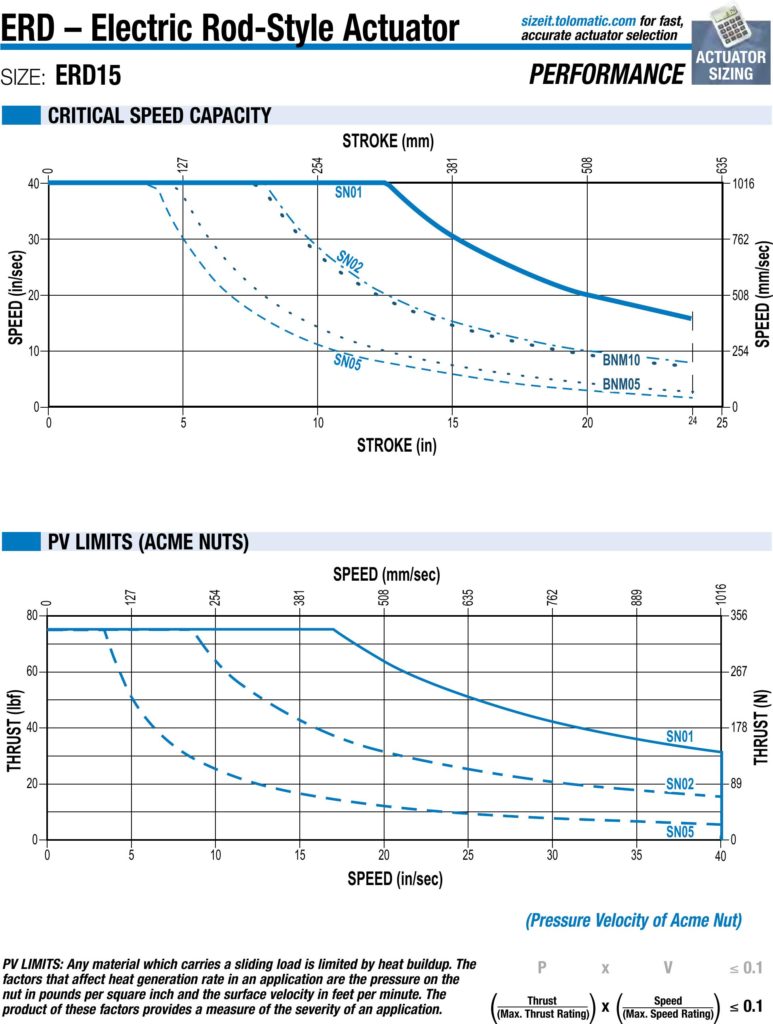

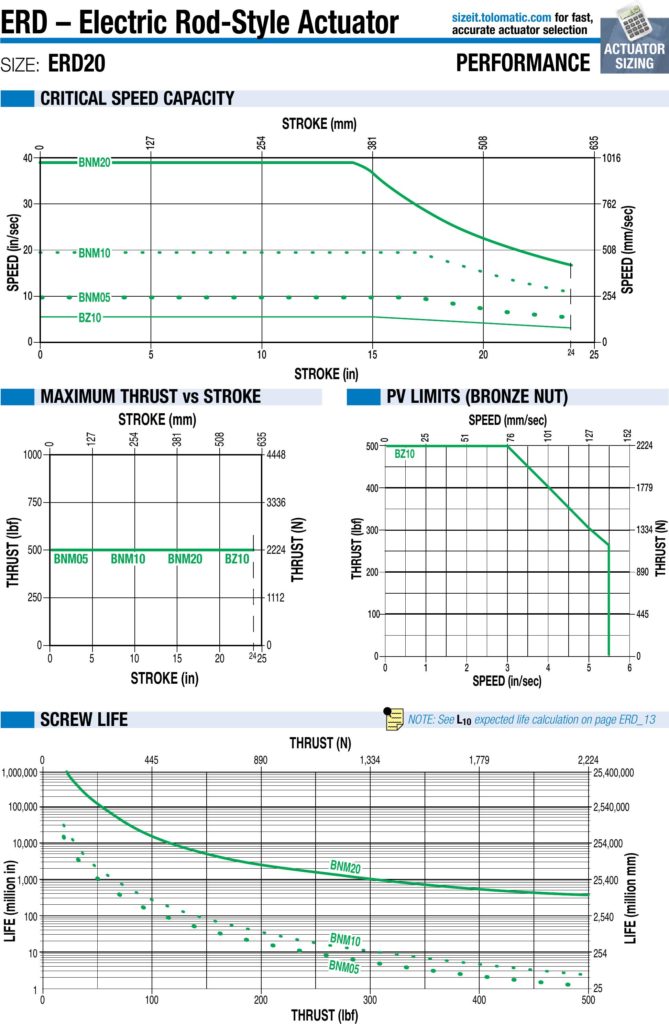

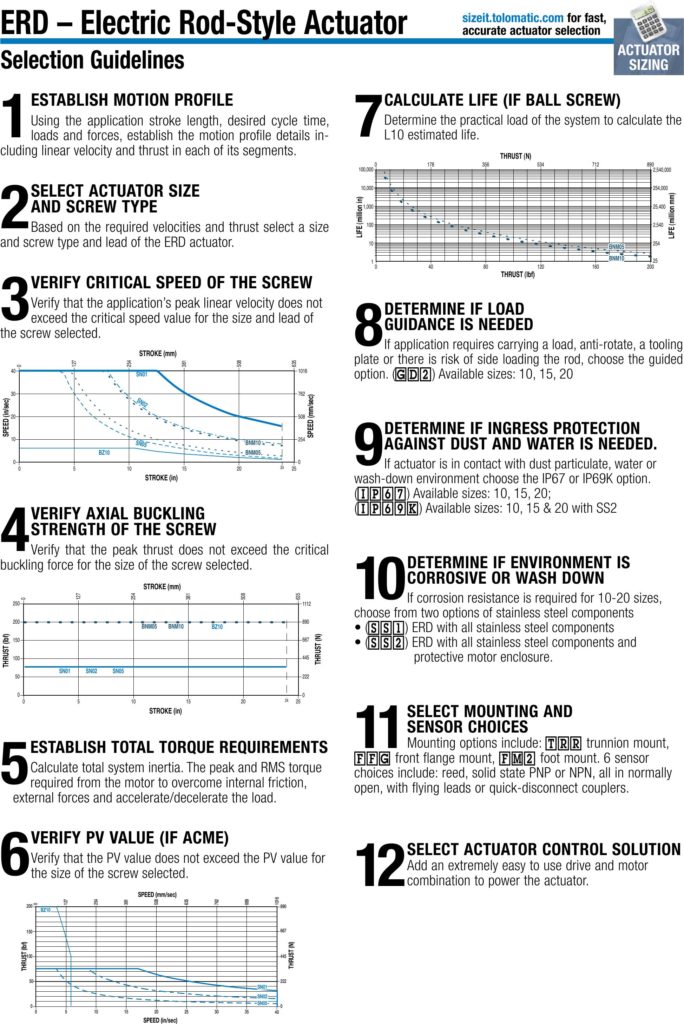

ERD Specifications

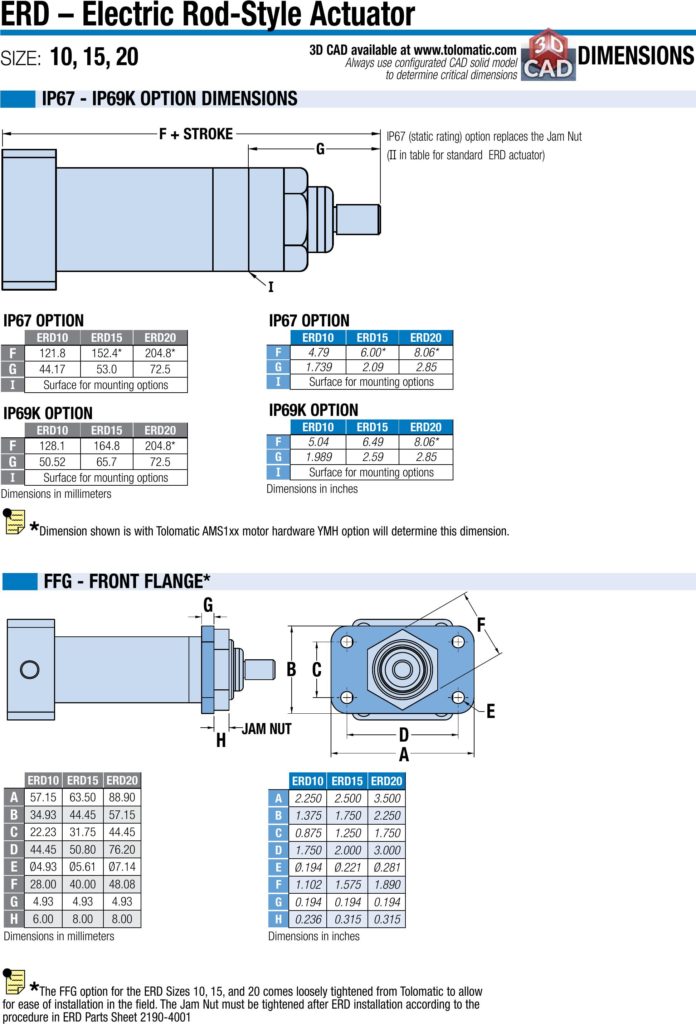

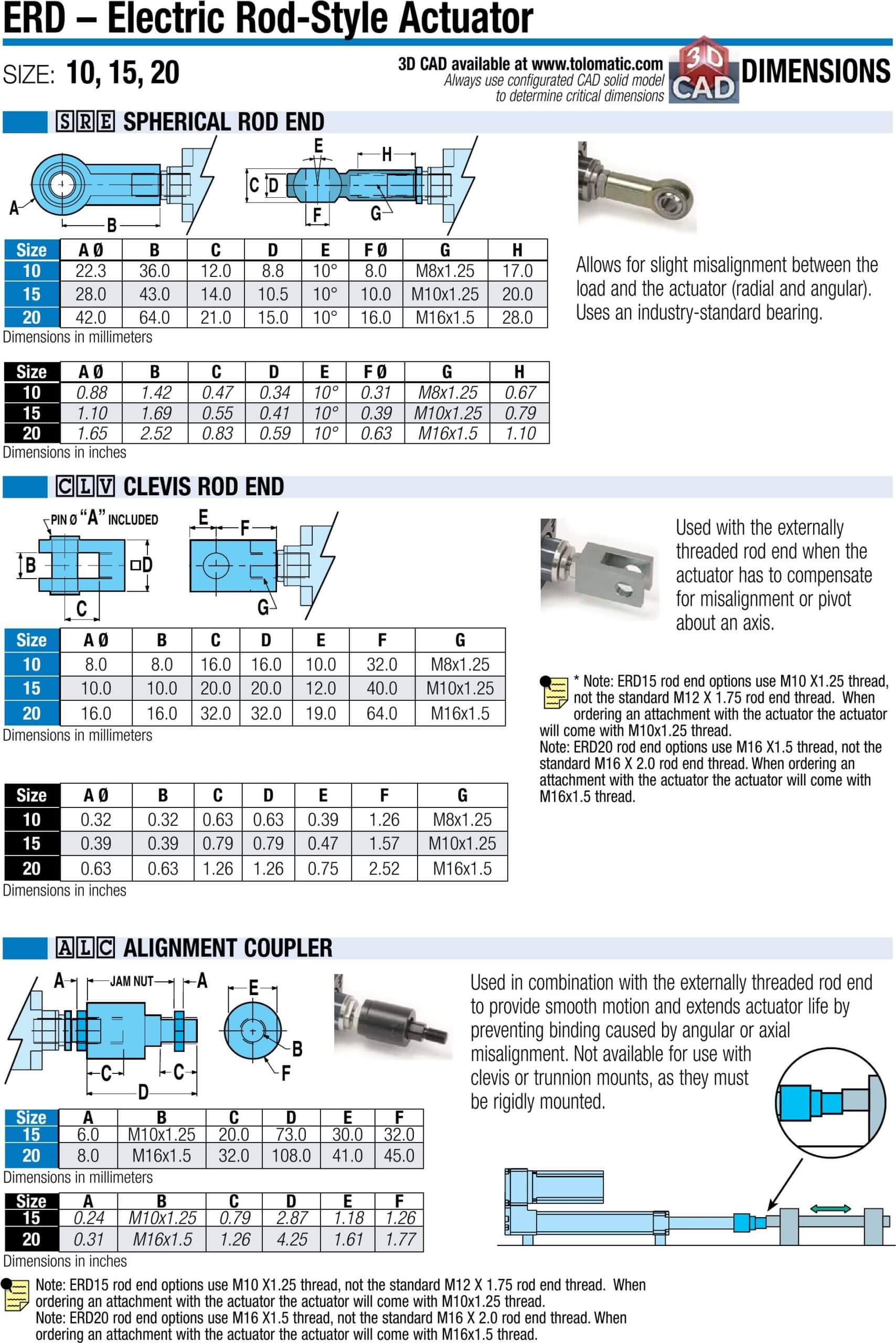

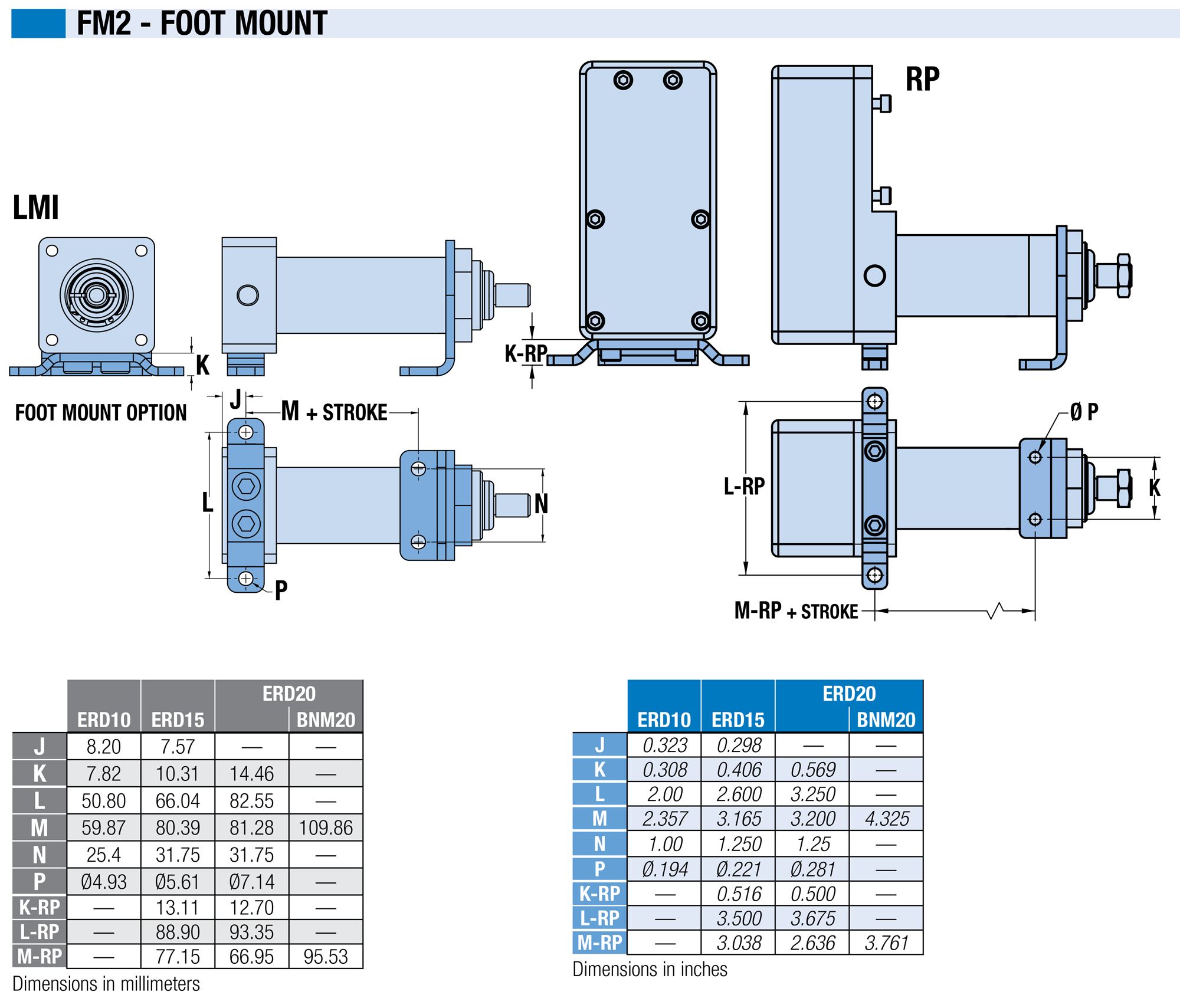

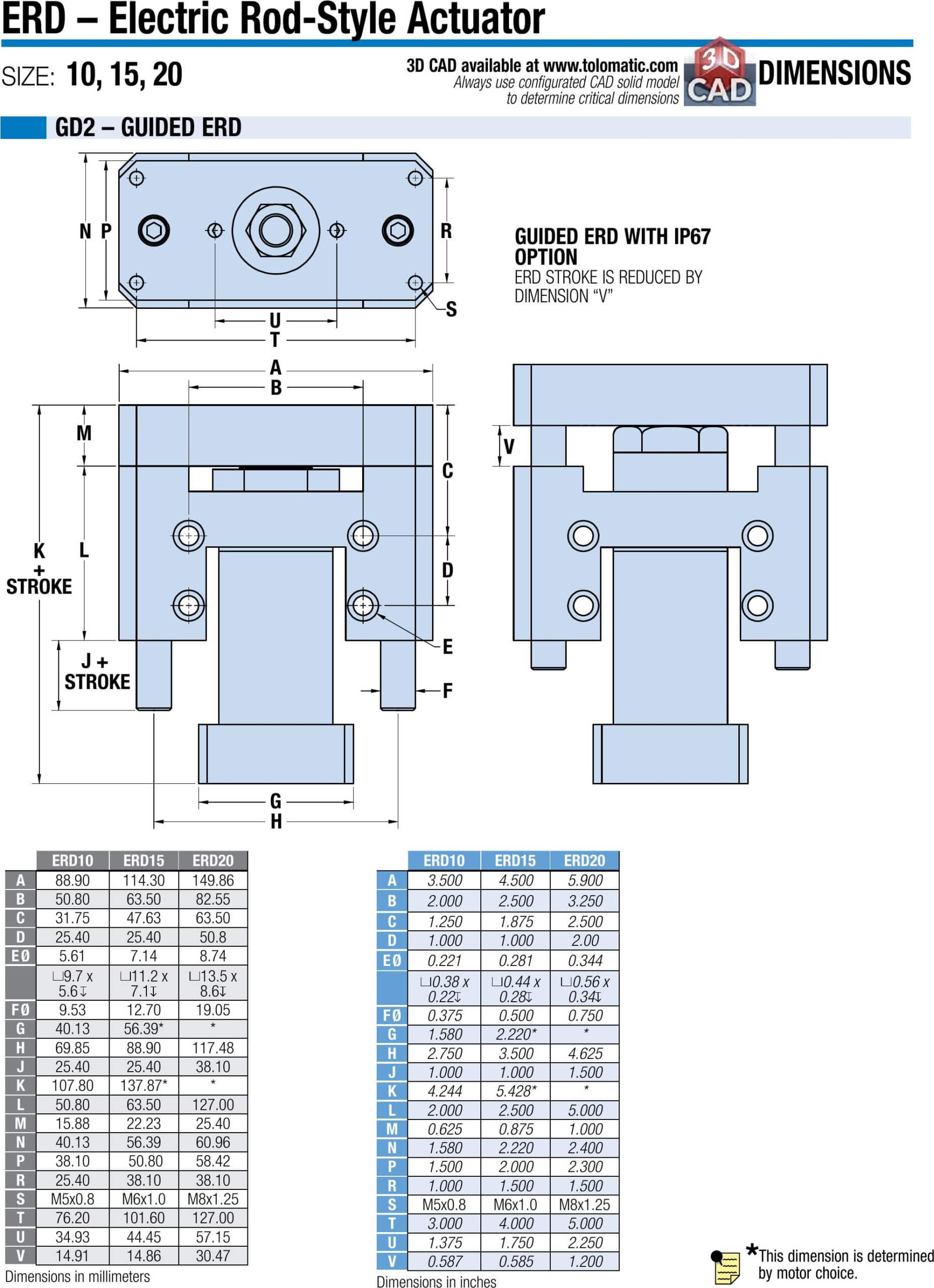

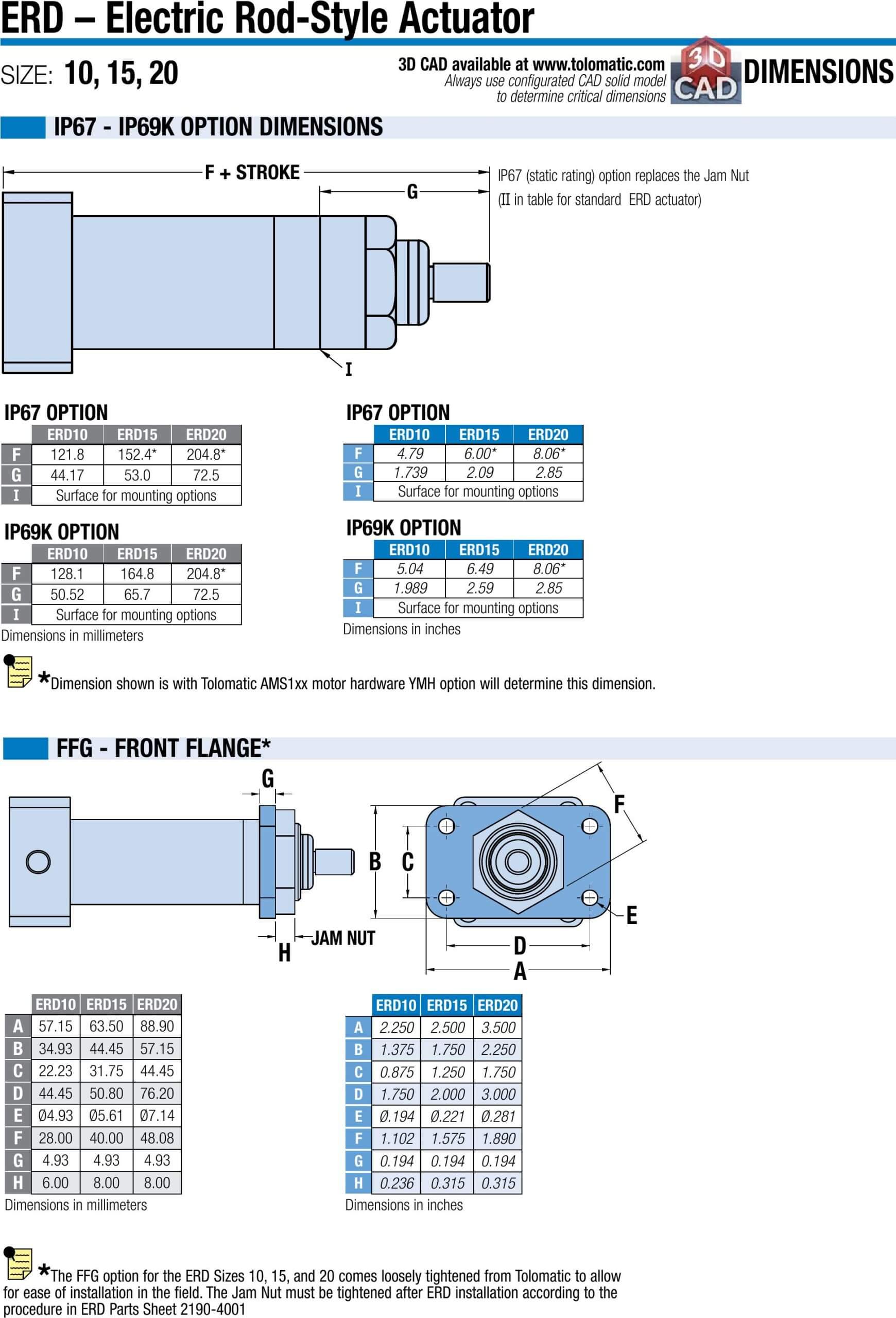

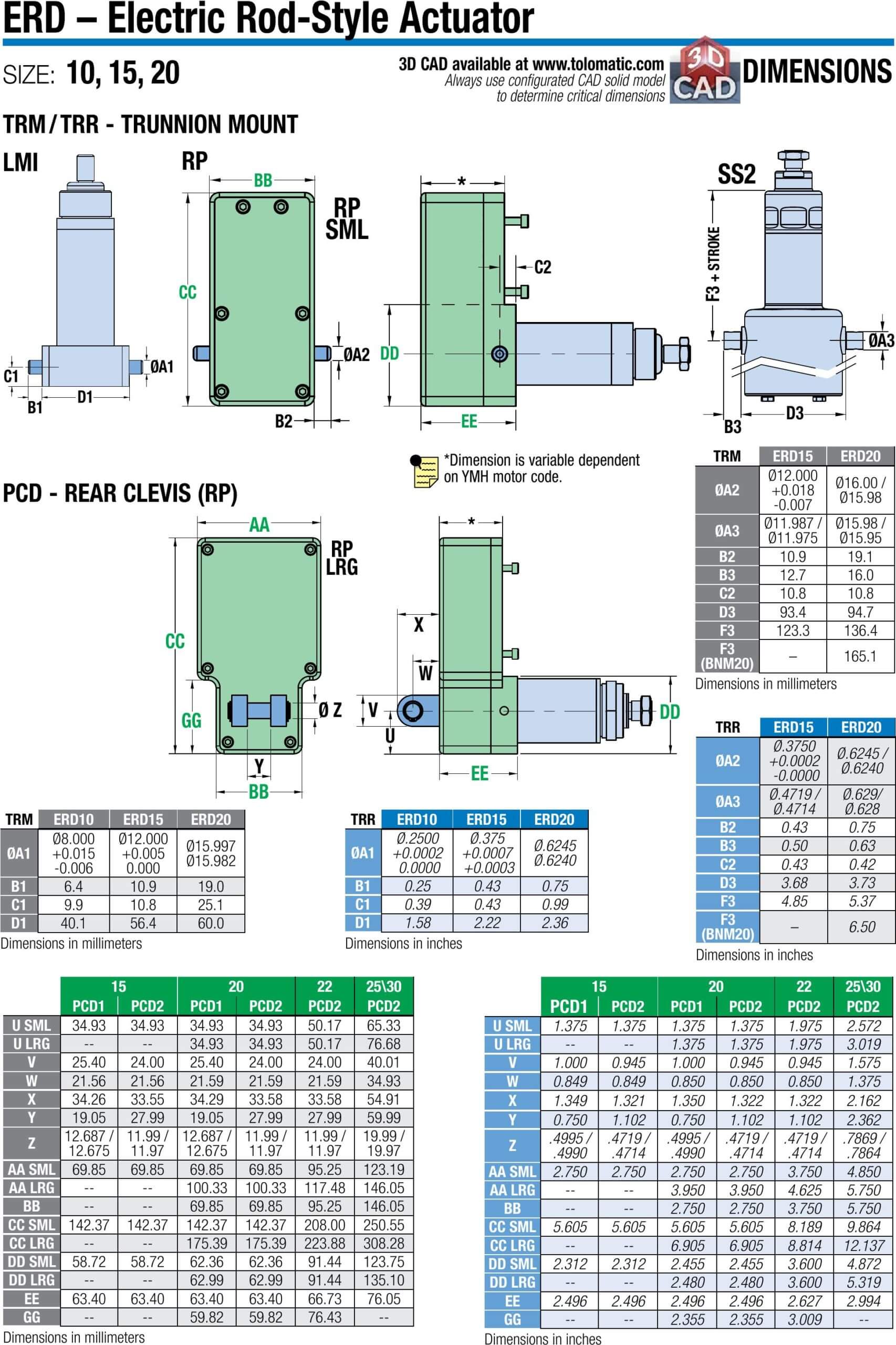

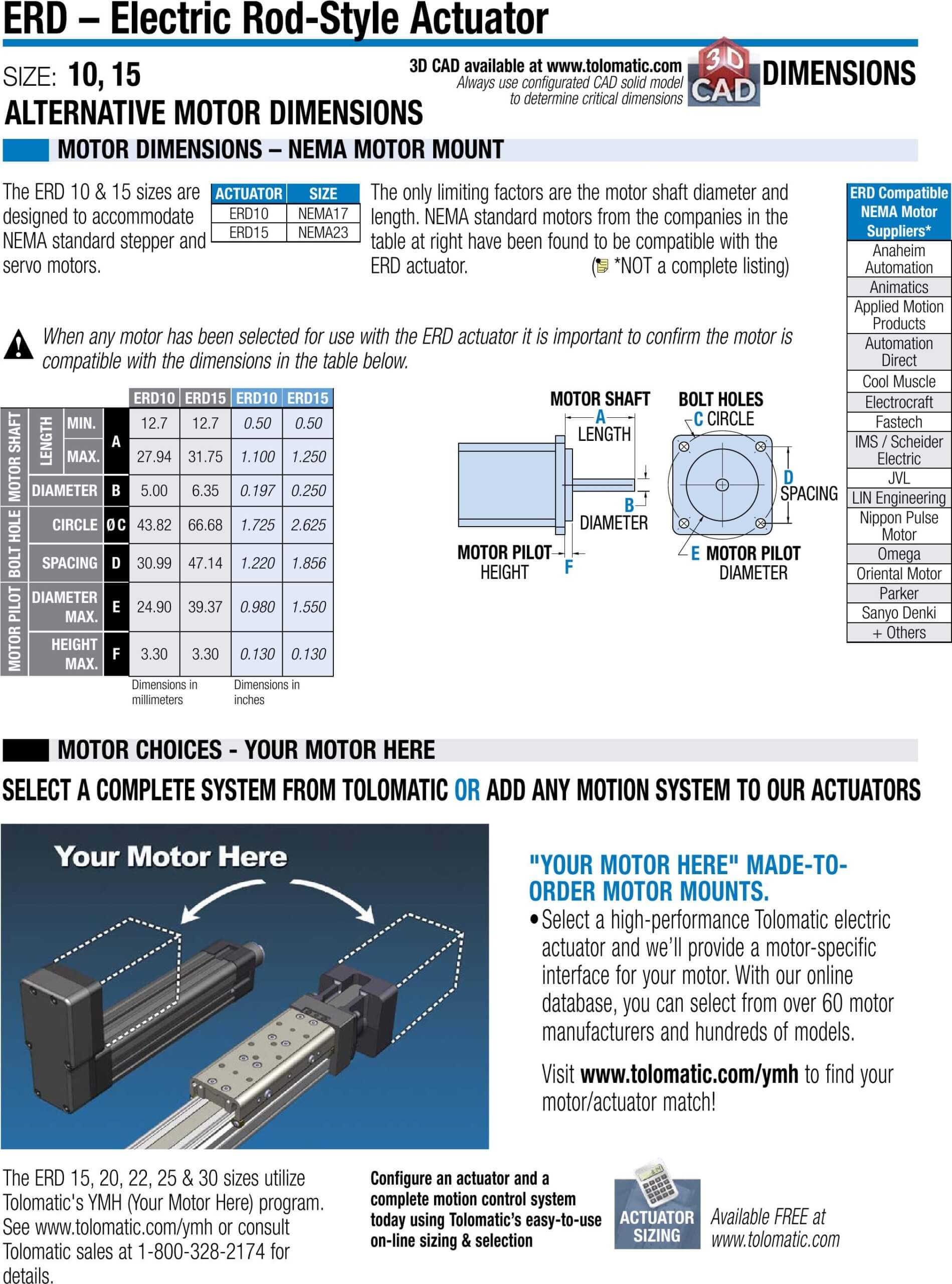

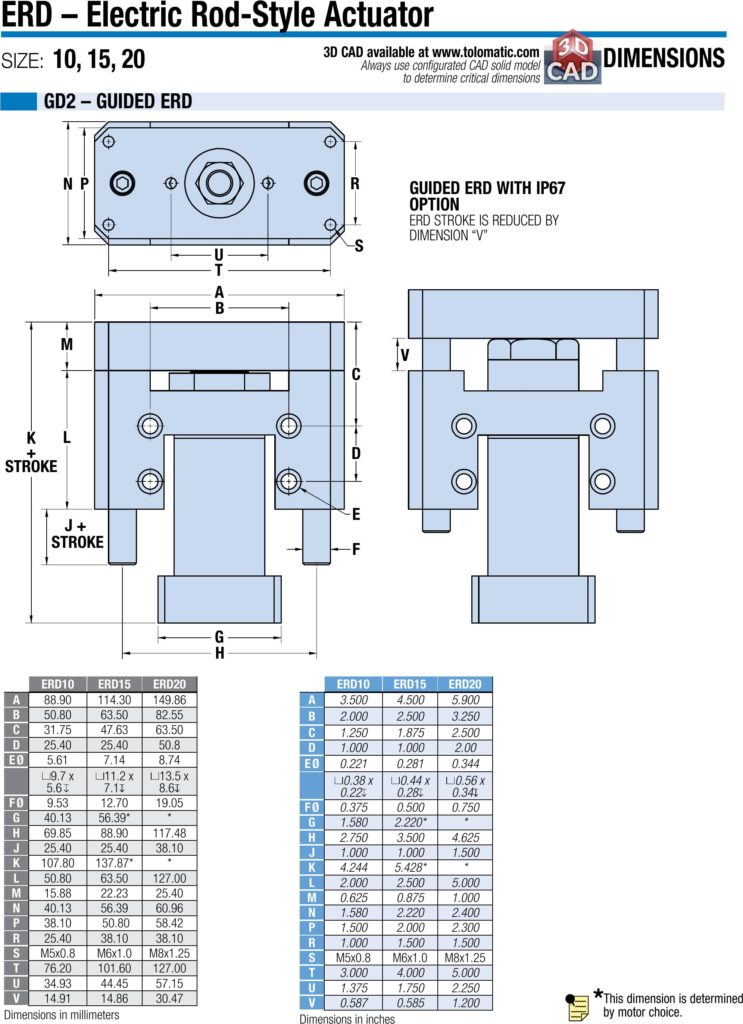

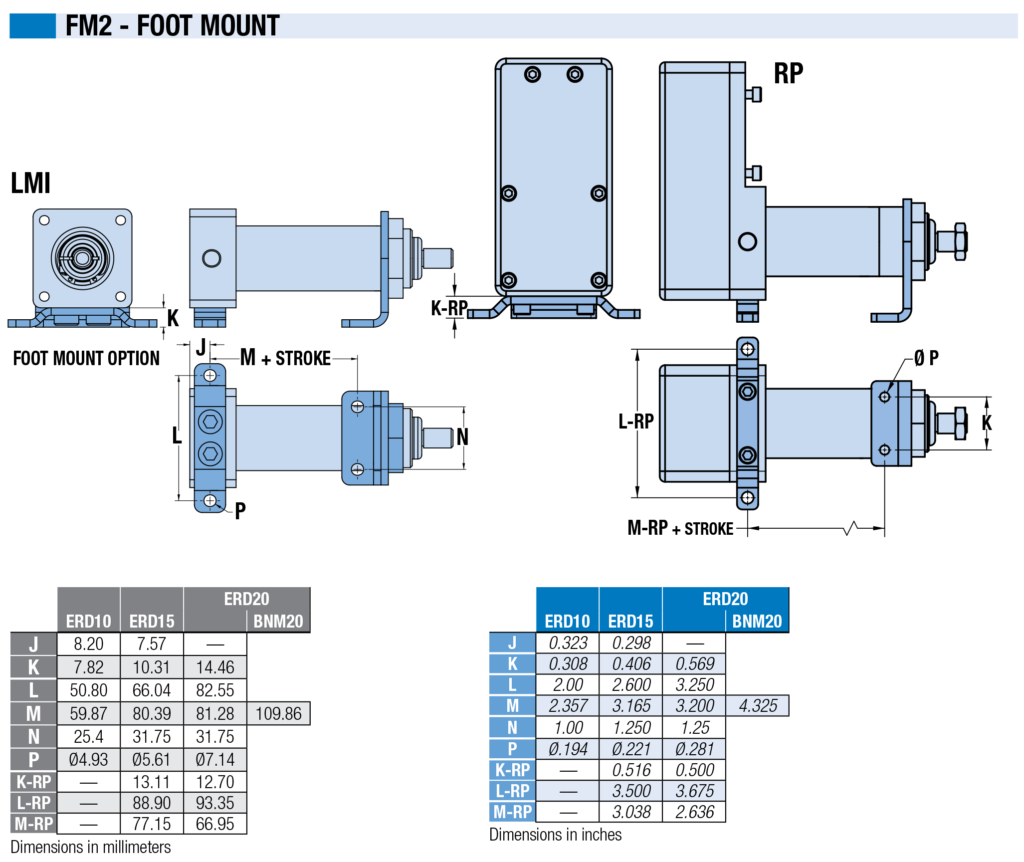

ERD 10/15/20 Actuator Dimensions
