![Double-Acting-Pneumatic-Air-Cylinders](https://www.tolomatic.com/wp-content/uploads/2022/06/828390cc501c4cb5b968aaaf8cef9d13-orig.jpg)
Double-Acting Pneumatic Air Cylinders
The Tolomatic double acting pneumatic air cylinder offers the widest variety of sizes and options
Double acting pneumatic air cylinders offer a cost savings over Rod & Rodless cylinders when strokes exceed four feet and provide a versatile space-saving design.
- Strokes up to 7308 mm (287 in). Using couplers stroke lengths of 18 m (720 in) are possible
- 9 different bore sizes from 13 to 127 mm (1/2 to 5 in)
- Optional auto tensioners keeps cable rigid and extends cable and gland seal life
- 3-ported heads for convenient connection
- Aluminum tube standard; steel option available for strength
- Caliper disc brake option for additional holding force in vertical applications
Size | CC 05 | CC 07 | CC 10 | CC 15 | CC 20 | CC 25 | CC 30 | CC 40 | CC 50 | CC 52 |
---|---|---|---|---|---|---|---|---|---|---|
Standard | 0.50 in | 0.75 in | 1.00 in | 1.50 in | 2.00 in | 2.50 in | 3.00 in | 4.00 in | 5.00 in | 2.00 in |
Metric | 13 mm | 19 mm | 25 mm | 38 mm | 51 mm | 64 mm | 76 mm | 102 mm | 127 mm | 51 mm |
Size | CC 05 | CC 07 | CC 10 | CC 15 | CC 20 | CC 25 | CC 30 | CC 40 | CC 50 | CC 52 |
---|---|---|---|---|---|---|---|---|---|---|
Standard | 60 in | 138 in | 282 in | 280 in | 281 in | 281 in | 280 in | 279 in | 134 in | 280 in |
Metric | 1,524 mm | 3,505 mm | 7,163 mm | 7,112 mm | 7,137 mm | 7,137 mm | 7,112 mm | 7,087 mm | 3,404 mm | 7,112 mm |
Size | CC 05 | CC 07 | CC 10 | CC 15 | CC 20 | CC 25 | CC 30 | CC 40 | CC 50 | CC 52 |
---|---|---|---|---|---|---|---|---|---|---|
Standard | 19 lbf | 43 lbf | 78 lbf | 174 lbf | 618 lbf | 972 lbf | 1,398 lbf | 1,249 lbf | 1,919 lbf | 1,532 lbf |
Metric | 85 N | 191 N | 347 N | 774 N | 2,749 N | 4,324 N | 6,219 N | 5,556 N | 8,536 N | 6,815 N |
CC 05/07/10 Specs & Dimensions
![](https://www.tolomatic.com/wp-content/uploads/2022/06/f53a59a977ed4ba1a2157afcfc270fff-orig-815x1024.jpg)
CC 15 Specs & Dimensions
![](https://www.tolomatic.com/wp-content/uploads/2022/06/984de686e8d14305b8c133316666e351-orig-819x1024.jpg)
CC 20/25 Specs & Dimensions
![](https://www.tolomatic.com/wp-content/uploads/2022/06/3b7793681cae4969a40bc78374ae26fa-orig-822x1024.jpg)
CC 30/40/52 Specs & Dimensions
![](https://www.tolomatic.com/wp-content/uploads/2022/06/00301f2d393e43b8ad765b1f433a8923-orig-865x1024.jpg)
CC 50 Specs & Dimensions
![](https://www.tolomatic.com/wp-content/uploads/2022/06/c47a442b37f94c70922e012eb9487cdd-orig-854x1024.jpg)
CC Features & Options
![](https://www.tolomatic.com/wp-content/uploads/2022/06/82388863f3544a2590a35b35a8cd4538-orig-1000x1024.jpg)

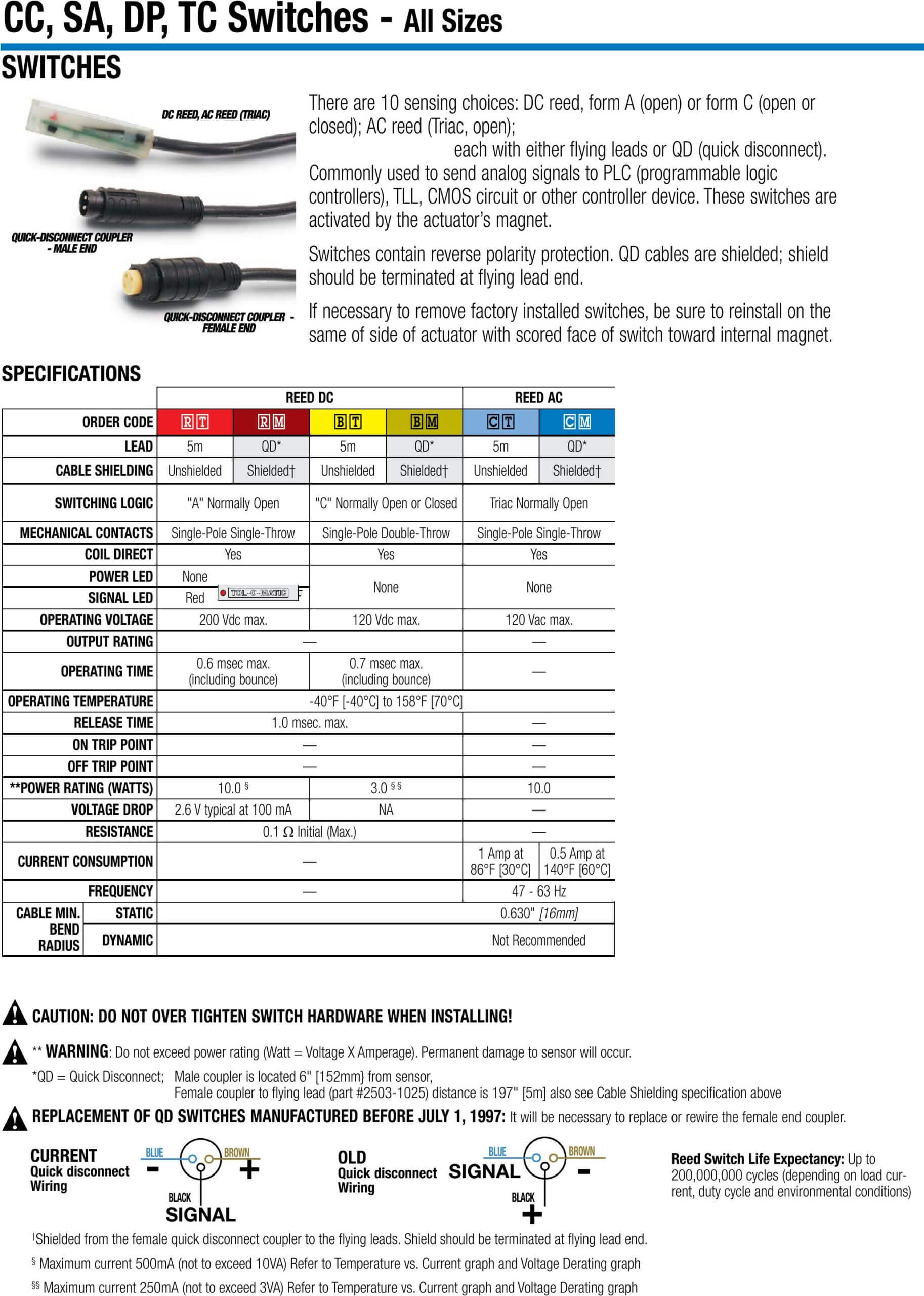

CC Switch Specs
![](https://www.tolomatic.com/wp-content/uploads/2022/06/ec58acc847094880832a3ff416077d2e-orig-730x1024.jpg)
CC Switch Performance, Wiring & Dimensions
![](https://www.tolomatic.com/wp-content/uploads/2022/06/df9929f674b1430198bea8ae6d276fb3-orig-774x1024.jpg)
CC Automatic Tensioner
![](https://www.tolomatic.com/wp-content/uploads/2022/06/152926989b3b428d9b8f86c90aa00e1d-orig-813x1024.jpg)
CC Brake Combinations
![](https://www.tolomatic.com/wp-content/uploads/2022/06/5325bbadbf38418db68f84c0fb209b5c-orig-932x1024.jpg)
CC Determining Cable Lengths & Lubrication
![](https://www.tolomatic.com/wp-content/uploads/2022/06/de33dce415ef4eebabfd916e672db96a-orig-751x1024.jpg)
CC Theoretical Force vs Pressure
![](https://www.tolomatic.com/wp-content/uploads/2022/06/f1037e53a5b5439890b204b1d68ebef1-orig-811x1024.jpg)
CC Proof-Loading and Pretensioning Guidelines
![](https://www.tolomatic.com/wp-content/uploads/2022/06/f1e02d5f16cc40b9baa77bac7c1d7a84-orig-804x1024.jpg)
CC 07/10/15/20/25 Automatic Tensioner Dimensions
![](https://www.tolomatic.com/wp-content/uploads/2022/06/cc4b5a73c8364f52af965e1a695ebbc3-orig-813x1024.jpg)
CC 30/40/52/50 Automatic Tensioner Dimensions
![](https://www.tolomatic.com/wp-content/uploads/2022/06/f3ec9f299806404e954206fc46c1d531-orig-653x1024.jpg)
CC 15/20/25 Brake Combination Dimensions
![](https://www.tolomatic.com/wp-content/uploads/2022/06/687a47393c7b4402923036366f0854ee-orig-776x1024.jpg)
CC 30/40/52 Brake Combination Dimensions
![](https://www.tolomatic.com/wp-content/uploads/2022/06/2700a4c01f7c47848a9006ea7315cabd-orig-1024x709.jpg)
