![BC3-Band-Cylinder](https://www.tolomatic.com/wp-content/uploads/2022/06/bc2f4239858841a6ba88834c6f36f698-orig.jpg)
BC3 Band Cylinder
The BC3 heavy duty pneumatic actuator is specifically designed for large load carrying capacities.
BC3 heavy duty pneumatic actuators employ a recirculating ball bearing system capable of handling large off-center loads with consistently smooth motion.
- Low breakaway pressure
- High moment load capacities
- Cost-effective alternative to auxiliary rail systems
Size | BC3 10 | BC3 15 | BC3 20 |
---|---|---|---|
Standard | 1.00 in | 1.50 in | 2.00 in |
Metric | 25 mm | 38 mm | 50 mm |
Size | BC3 10 | BC3 15 | BC3 20 |
---|---|---|---|
Standard | 205 in | 202 in | 142 in |
Metric | 5,207 mm | 5,130 mm | 3,606 mm |
Size | BC3 10 | BC3 15 | BC3 20 |
---|---|---|---|
Standard | 78 lbf | 176 lbf | 310 lbf |
Metric | 347 N | 783 N | 1,378 N |
Size | BC3 10 | BC3 15 | BC3 20 |
---|---|---|---|
Standard | 591 lb | 1,454 lb | 2,008 lb |
Metric | 268 kg | 660 kg | 911 kg |
BC3 Performance Specs
![](https://www.tolomatic.com/wp-content/uploads/2022/06/97a8045b2ecb42c98b884ab845c9e858-orig-856x1024.jpg)
BC310 Performance Specs
![](https://www.tolomatic.com/wp-content/uploads/2022/06/199371eb3cdb4bd9848c0cc1209e9c8a-orig-736x1024.jpg)
BC315 Performance Specs
![](https://www.tolomatic.com/wp-content/uploads/2022/06/c383dcbf7c0448198c58b95d979a8afd-orig-732x1024.jpg)
BC320 Performance Specs
![](https://www.tolomatic.com/wp-content/uploads/2022/06/b96a7d7554094689a6c6493c2d0fc0ba-orig-734x1024.jpg)
BC3 Switches
![](https://www.tolomatic.com/wp-content/uploads/2022/06/e0763d300fd74cb1a2063bd0c8bc2635-orig-795x1024.jpg)

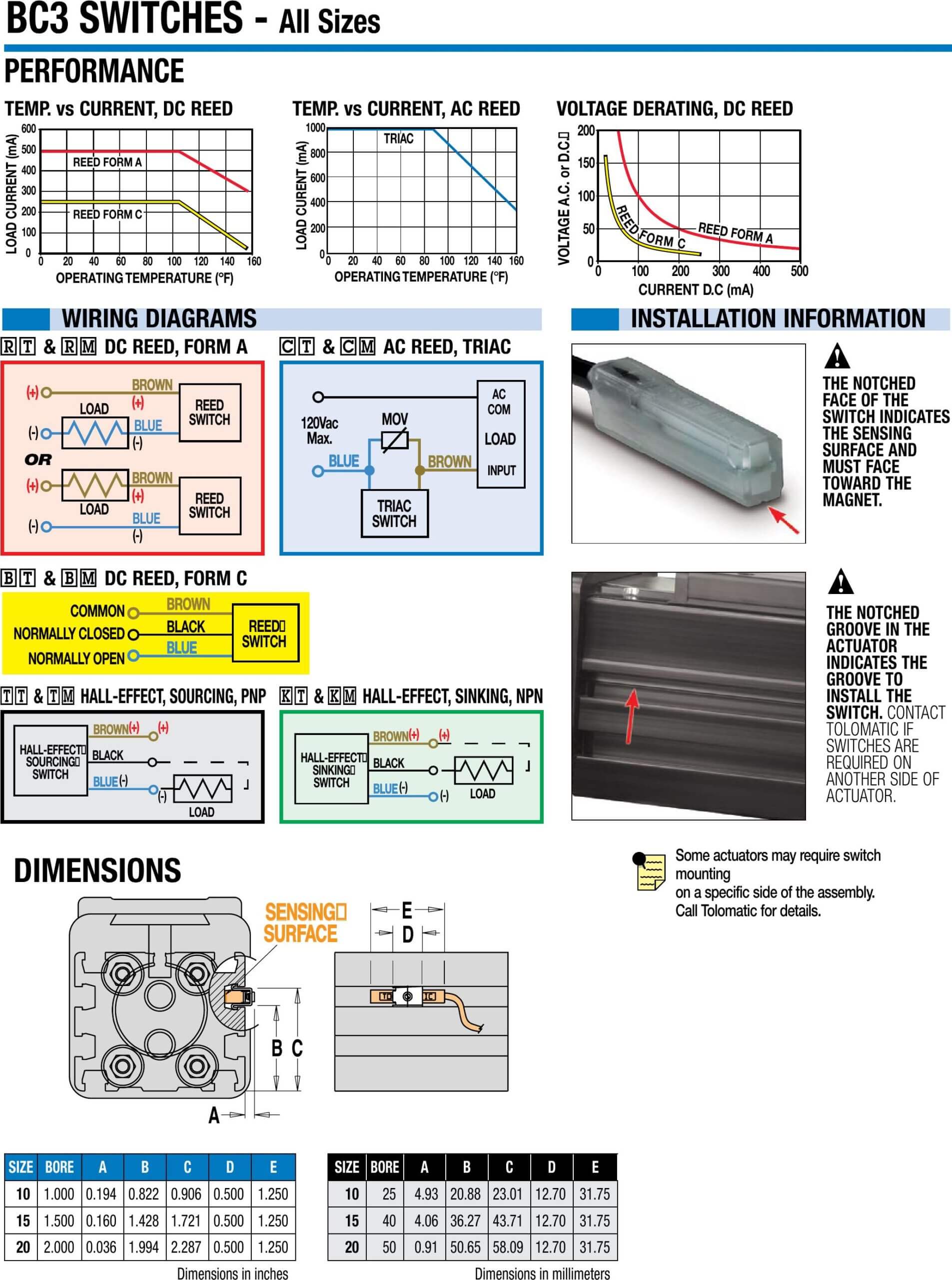

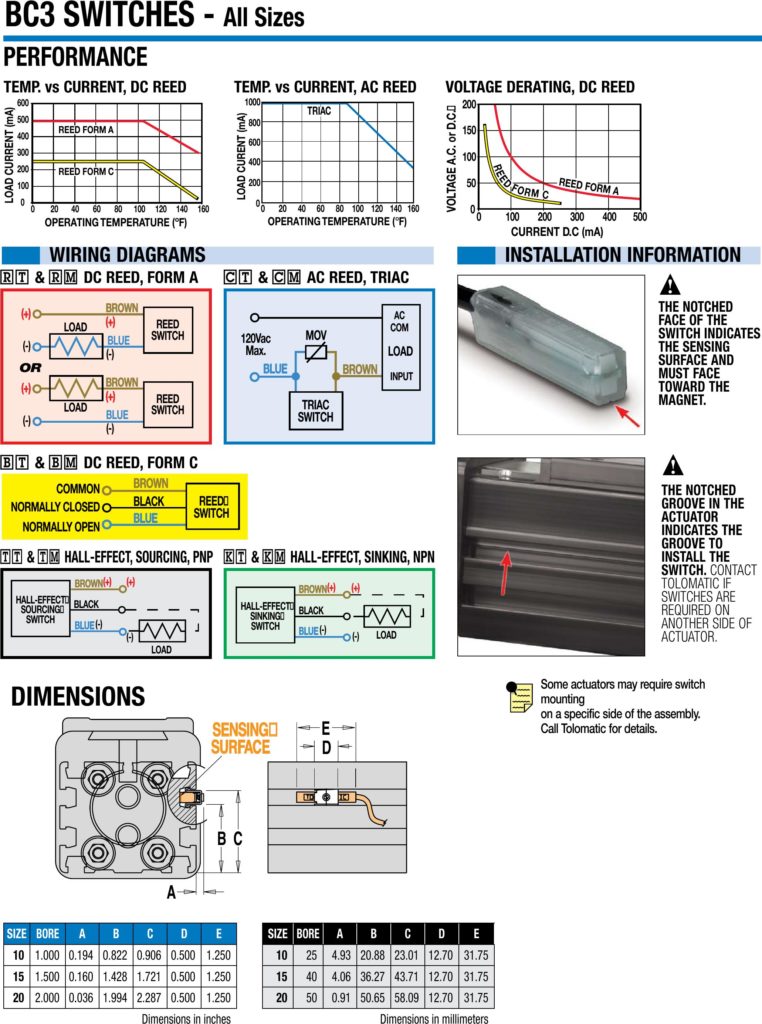

BC3 Switch Performance, Wiring & Dimensions
![](https://www.tolomatic.com/wp-content/uploads/2022/06/ff9eb47a932045ffb84322357b36ac74-orig-762x1024.jpg)

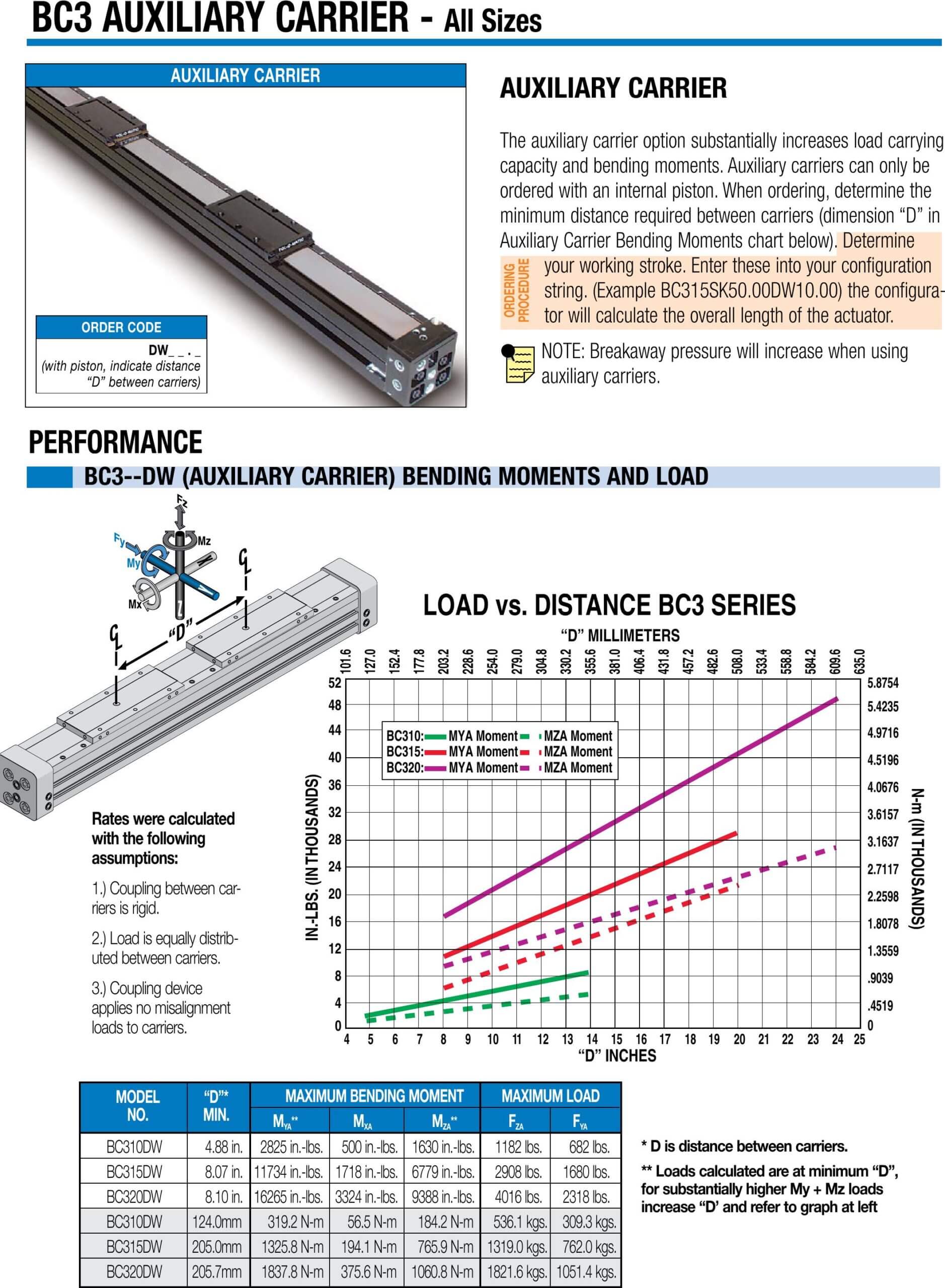

BC3 Auxiliary Carrier
![](https://www.tolomatic.com/wp-content/uploads/2022/06/7bd86850345340e298fe45da8fde4371-orig-751x1024.jpg)

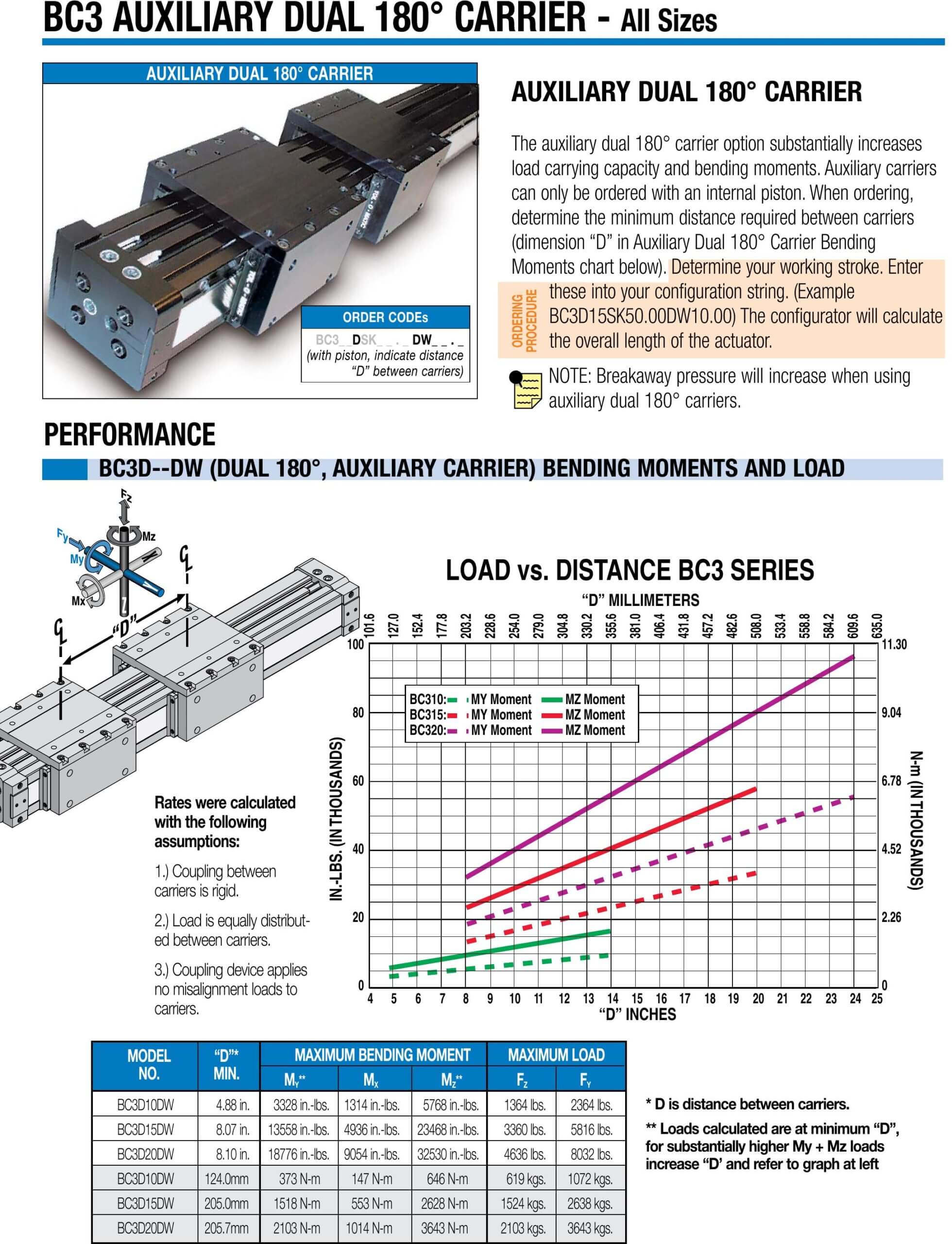

BC3 Auxiliary Dual 180º Carrier
![](https://www.tolomatic.com/wp-content/uploads/2022/06/79885b8fdbb54d8e83da3fff3504ed62-orig-784x1024.jpg)

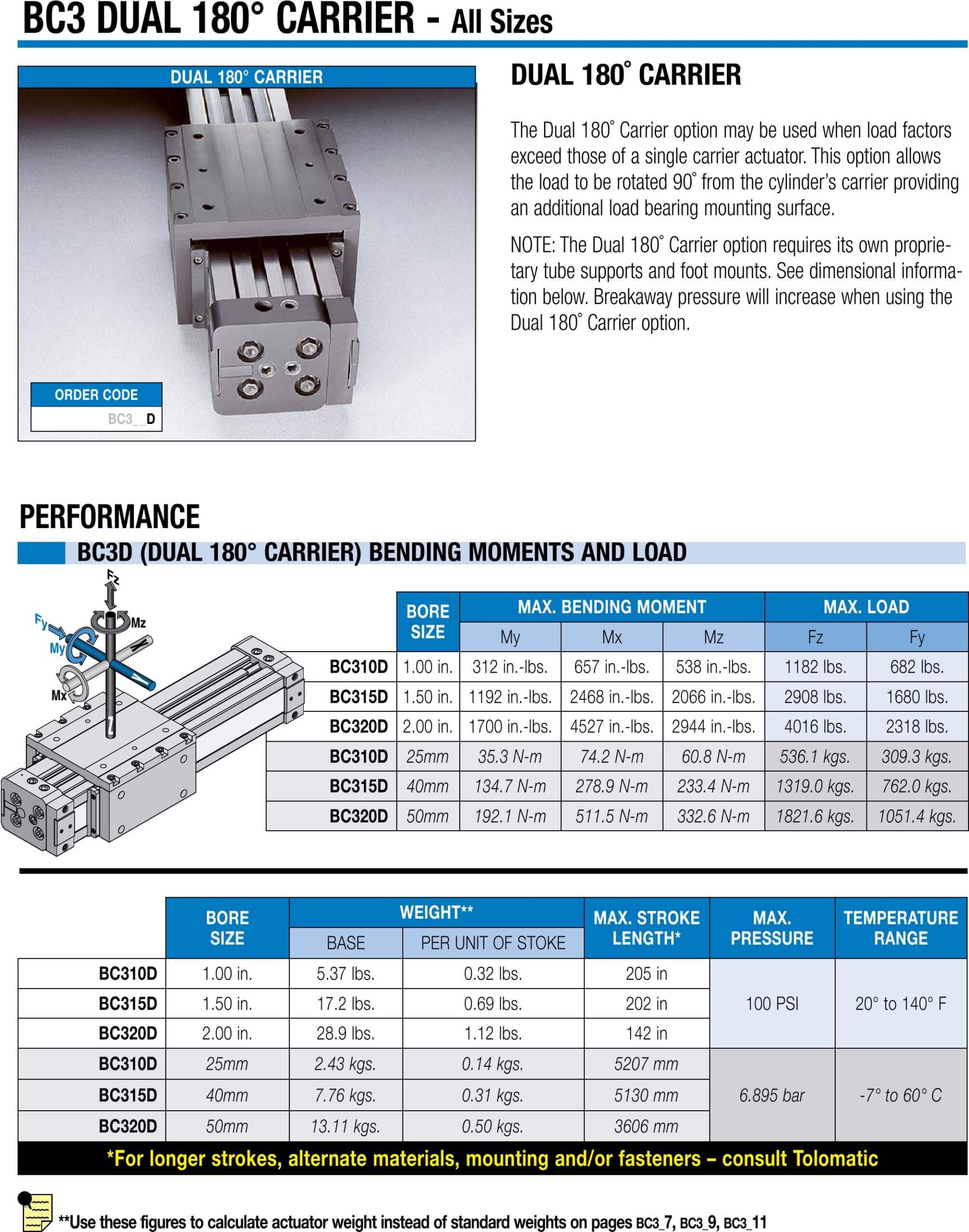

BC3 Dual 180º Carrier Performance
![](https://www.tolomatic.com/wp-content/uploads/2022/06/be702dc153e3491f825ee1daa6be0688-orig-805x1024.jpg)
BC3 Considerations & Deflection
![](https://www.tolomatic.com/wp-content/uploads/2022/06/0f00bebe9f1f479d81ffddd858a5d795-orig-789x1024.jpg)

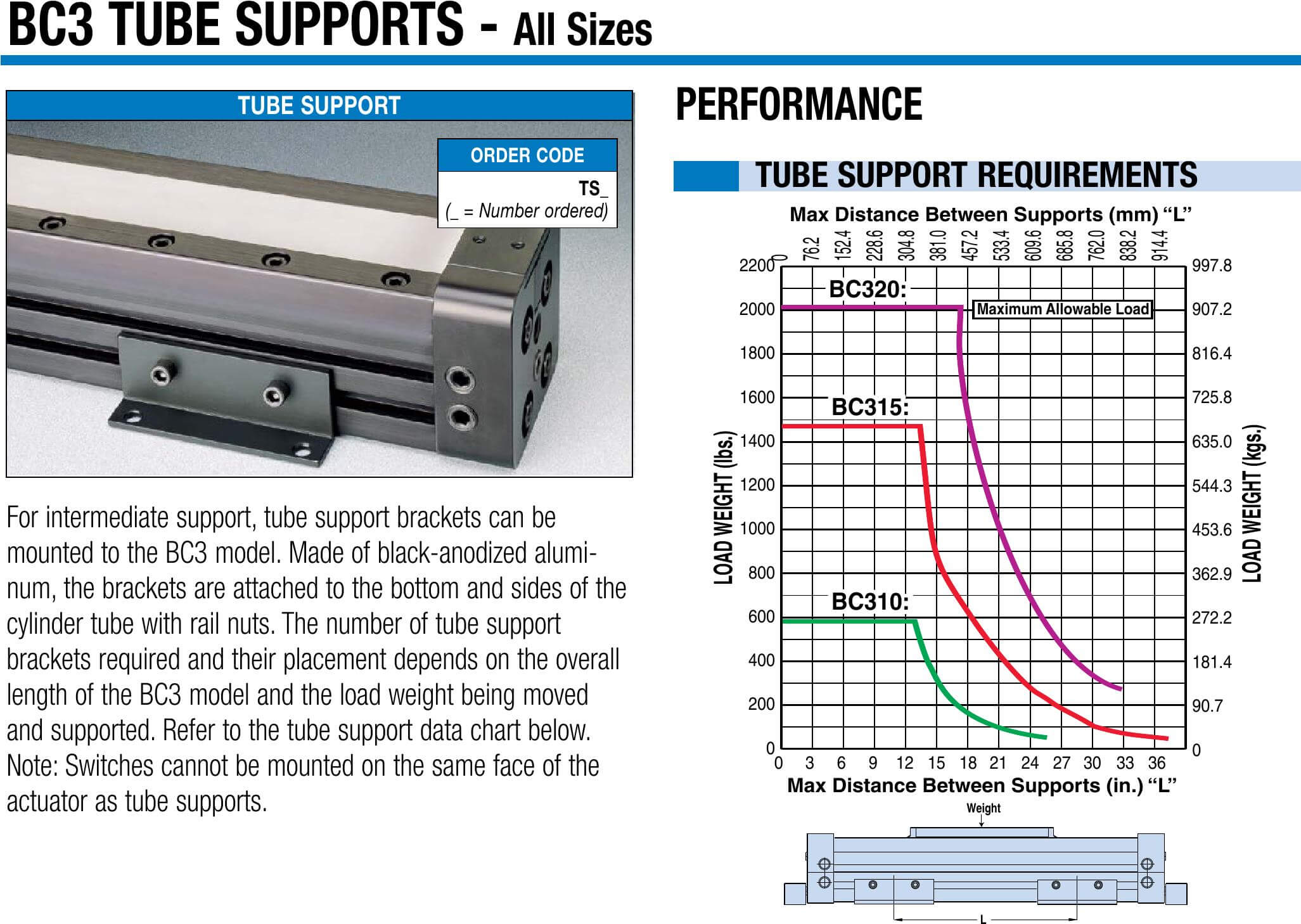

BC3 Tube Supports
![](https://www.tolomatic.com/wp-content/uploads/2022/06/d25a144df3cb4e97bb4a7be3d2a3485e-orig-1024x727.jpg)
BC3 Single End Porting
![](https://www.tolomatic.com/wp-content/uploads/2022/06/65aec8f48c38467fa272d24bdee07fba-orig-791x1024.jpg)
BC3 Shock Absorbers Velocity vs Load
![](https://www.tolomatic.com/wp-content/uploads/2022/06/17104c7d21114d8f86a1b8ad8ecbc495-orig-702x1024.jpg)
BC310 Dimensions & Specs
![](https://www.tolomatic.com/wp-content/uploads/2022/06/66c6dc6c96194df39538d7d2844c2952-orig-731x1024.jpg)
BC315 Dimensions & Specs
![](https://www.tolomatic.com/wp-content/uploads/2022/06/d44201a3631e4c6f9212b55968636b4e-orig-731x1024.jpg)
BC320 Dimensions & Specs
![](https://www.tolomatic.com/wp-content/uploads/2022/06/cd52f4e9dadb421ab7ef590e705cdee6-orig-731x1024.jpg)

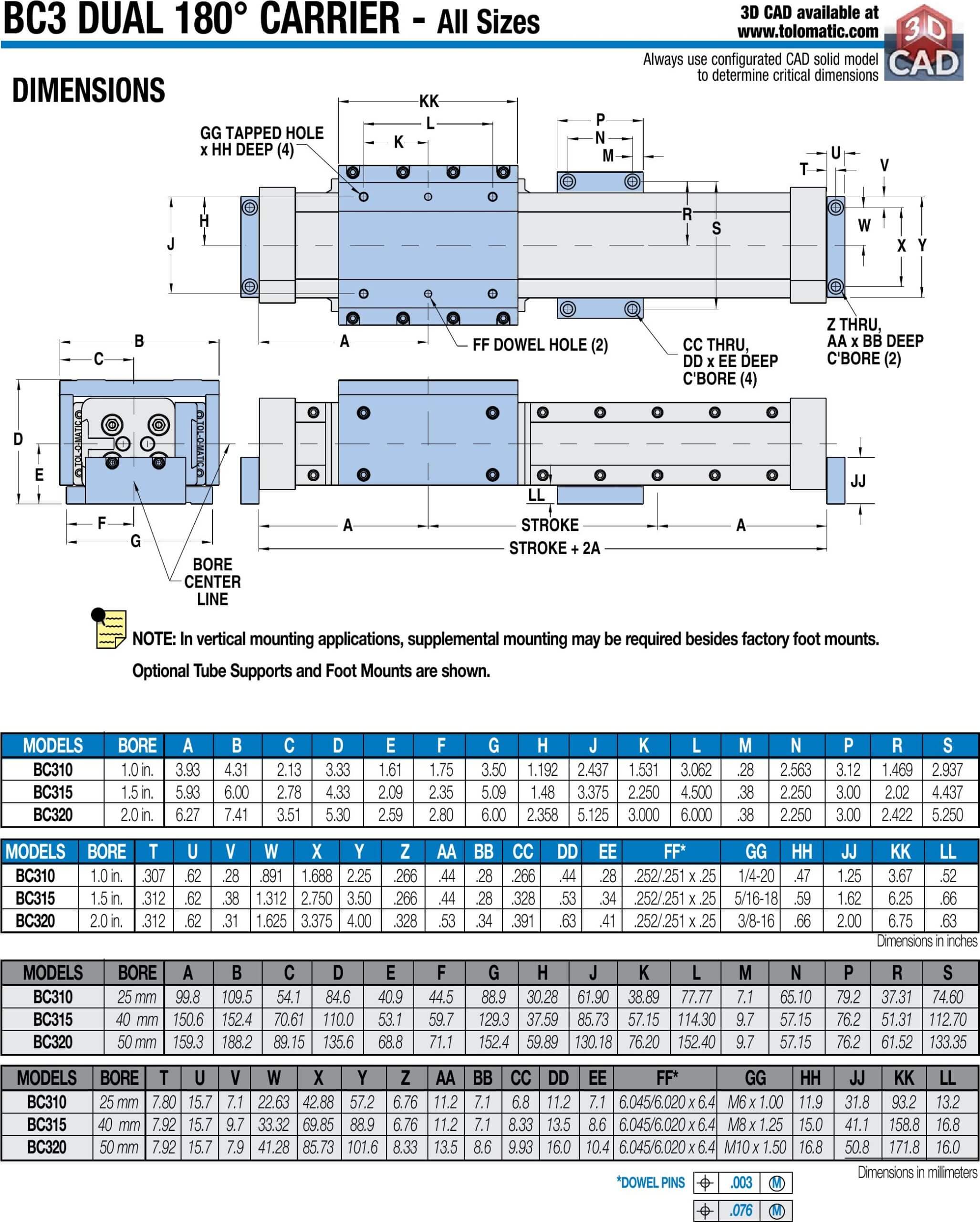

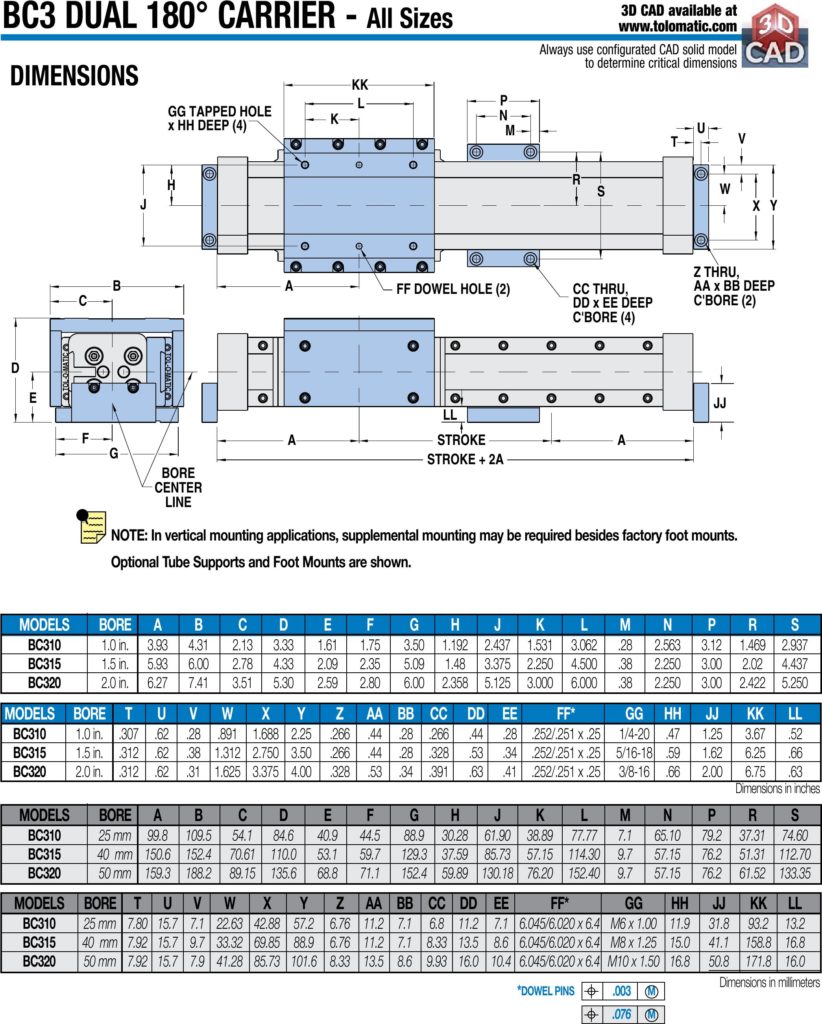

BC3 Dual 180º Carrier Dimensions
![](https://www.tolomatic.com/wp-content/uploads/2022/06/f32d8c977dc747d3bda2296e672ae12c-orig-822x1024.jpg)

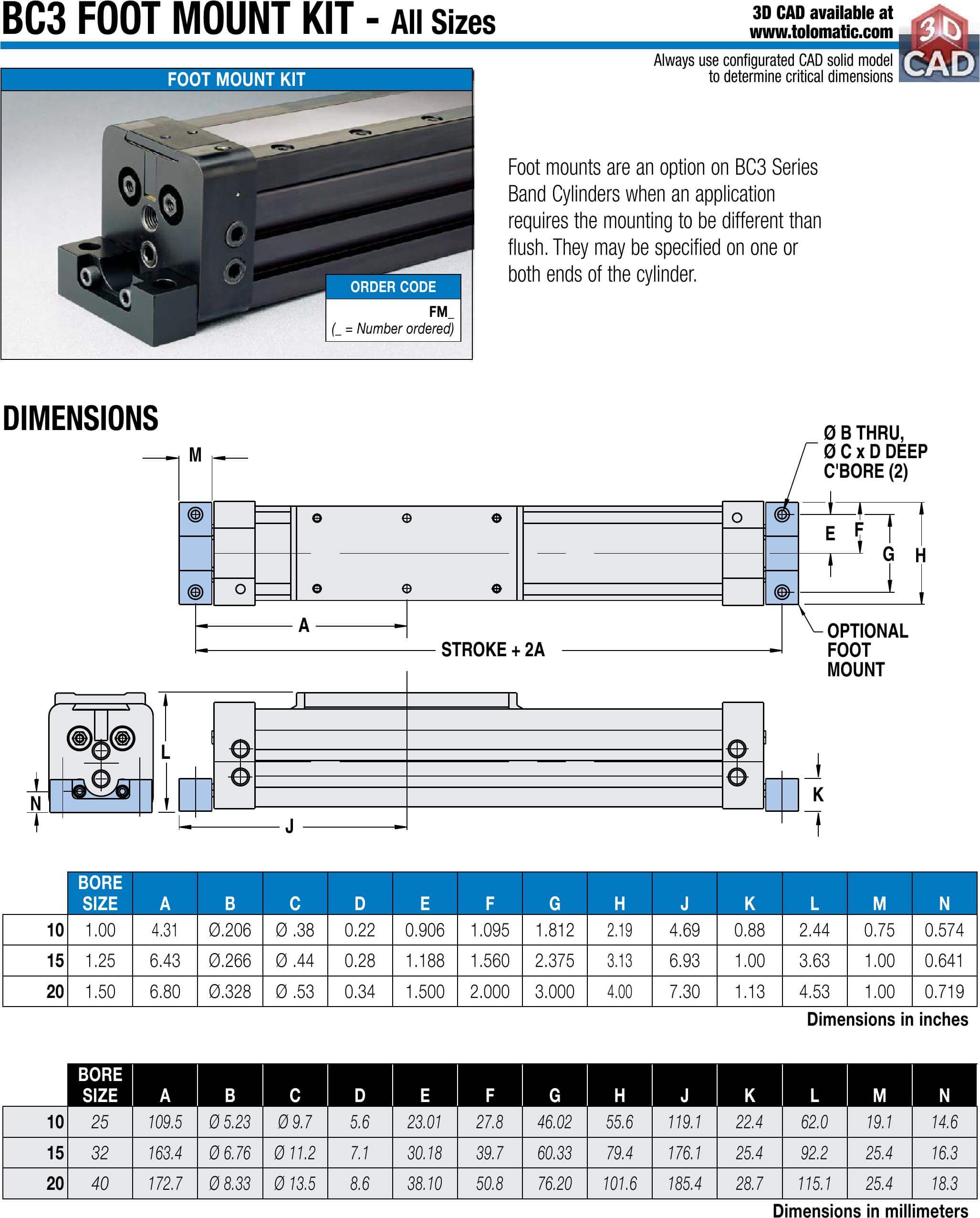

BC3 Foot Mount Kit
![](https://www.tolomatic.com/wp-content/uploads/2022/06/dc1b75cfa58e47e3b18c6e5ab69246e8-orig-824x1024.jpg)

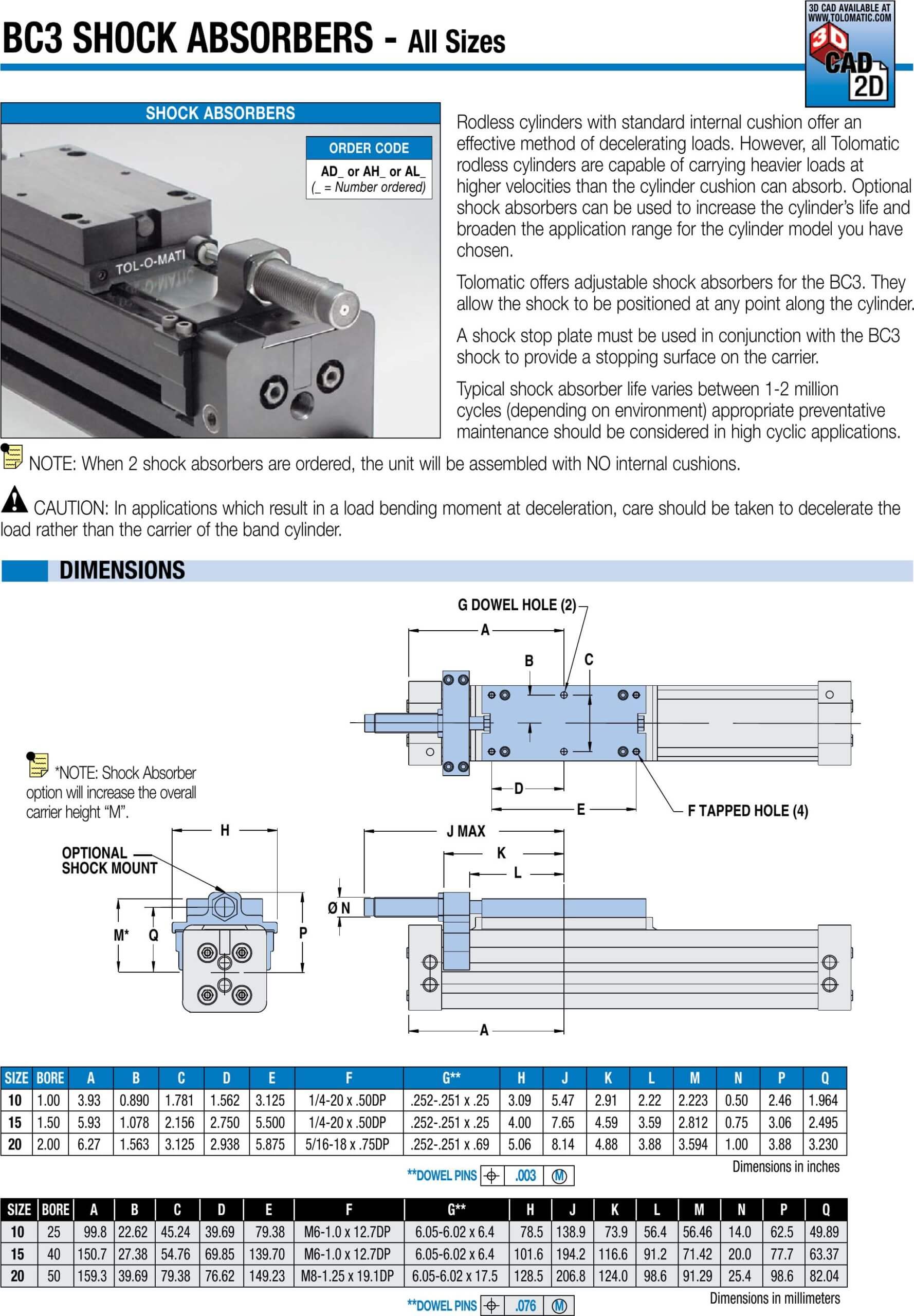

BC3 Shock Absorbers
![](https://www.tolomatic.com/wp-content/uploads/2022/06/4b4f5614e24d4b3eb78d523ff31a7be4-orig-711x1024.jpg)

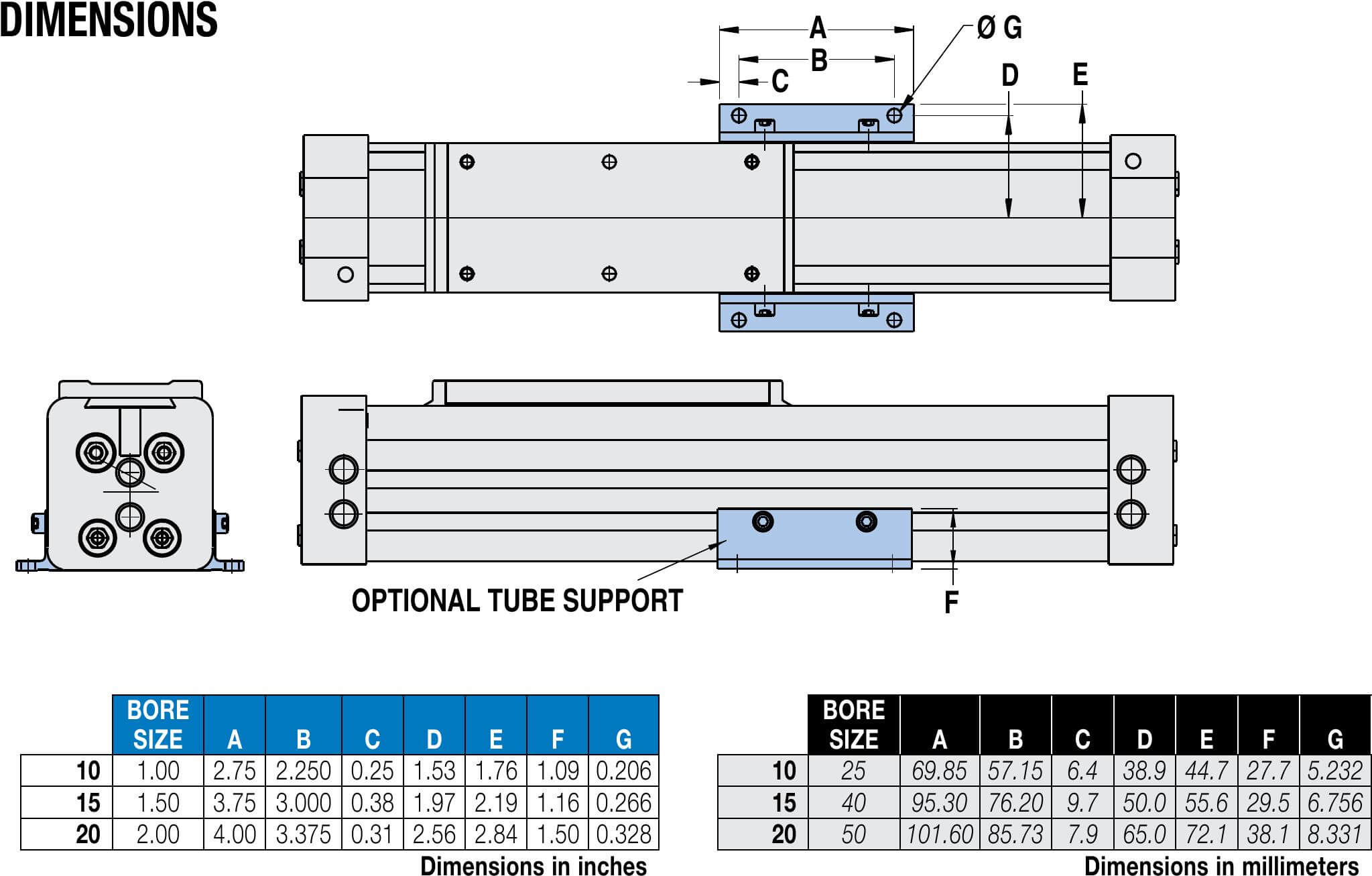

BC3 Tube Supports
![](https://www.tolomatic.com/wp-content/uploads/2022/06/06c1e25fa27c4799938e831c615375d0-orig-1024x654.jpg)
