BC2 Band Cylinder
The BC2 pneumatic band cylinder, Tolomatic’s first band-type cylinder design, continues to be a solid performer for a wide variety of pneumatic applications.
BC2 pneumatic band cylinders provide multiple mounting options for both vertical and horizontal applications and offer low to moderate load carrying capacities.
- Rubber dust band sealing design does not attract metal particulates making the BC2 a good choice for applications with high particulate
- Adjustable cushions for smooth deceleration
- Adjustable load carrying bracket provides true tracking and load support
- Maximum flexibility and versatile horizontal and vertical mounting
Size | BC2 05 | BC2 10 | BC2 12 | BC2 15 | BC2 20 | BC2 25 |
---|---|---|---|---|---|---|
Standard | 0.50 in | 1.00 in | 1.25 in | 1.50 in | 2.00 in | 2.50 in |
Metric | 12 mm | 25 mm | 32 mm | 38 mm | 50 mm | 63 mm |
Size | BC2 05 | BC2 10 | BC2 12 | BC2 15 | BC2 20 | BC2 25 |
---|---|---|---|---|---|---|
Standard | 171 in | 350 in | 288 in | 298 in | 274 in | 163 in |
Metric | 4,343 mm | 8,890 mm | 7,315 mm | 7,569 mm | 6,959 mm | 4,140 mm |
Size | BC2 05 | BC2 10 | BC2 12 | BC2 15 | BC2 20 | BC2 25 |
---|---|---|---|---|---|---|
Standard | 16 lbf | 78 lbf | 120 lbf | 176 lbf | 310 lbf | 495 lbf |
Metric | 71 N | 347 N | 534 N | 783 N | 1,379 N | 2,202 N |
Size | BC2 05 | BC2 10 | BC2 12 | BC2 15 | BC2 20 | BC2 25 |
---|---|---|---|---|---|---|
Standard | 5 lbs | 60 lbs | 120 lbs | 180 lbs | 300 lbs | 400 lbs |
Metric | 2 kg | 27 kg | 54 kg | 82 kg | 136 kg | 181 kg |
BC205 Performance
![](https://www.tolomatic.com/wp-content/uploads/2022/06/a5d5bfa03099409ab217d5b3de2ec595-orig-736x1024.jpg)
BC210 Performance
![](https://www.tolomatic.com/wp-content/uploads/2022/06/219272a66c7d40059371151d8b131598-orig-725x1024.jpg)
BC212/215 Performance
![](https://www.tolomatic.com/wp-content/uploads/2022/06/1ca5ba829620414f94adae7fe0986b75-orig-741x1024.jpg)
BC220/225 Performance
![](https://www.tolomatic.com/wp-content/uploads/2022/06/d8fe1acbd10a4935a96d86244dbea2a6-orig-743x1024.jpg)
BC2 10/12/15/20/25 Auxiliary Carrier Performance
![](https://www.tolomatic.com/wp-content/uploads/2022/06/e2fec45ba2494ae285b18742f857bc4d-orig-742x1024.jpg)

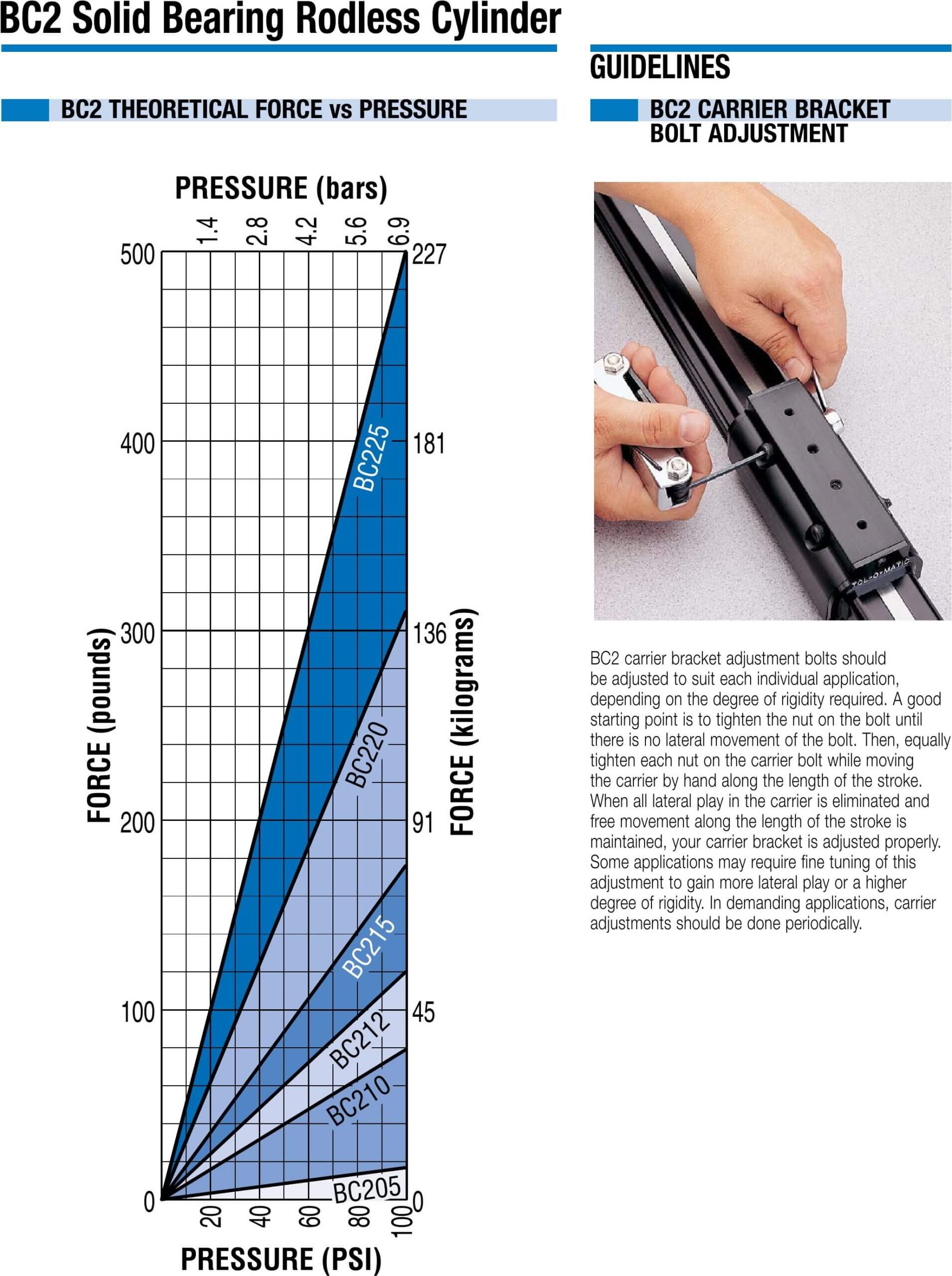

BC2 Theoretical Force & Carrier Bracket
![](https://www.tolomatic.com/wp-content/uploads/2022/06/764c1043f2d34c0d828d919afb646f3e-orig-764x1024.jpg)
BC2 Bending Moments & Load
![](https://www.tolomatic.com/wp-content/uploads/2022/06/f9b97d327e394793bc6b6a70b95593a3-orig-781x1024.jpg)

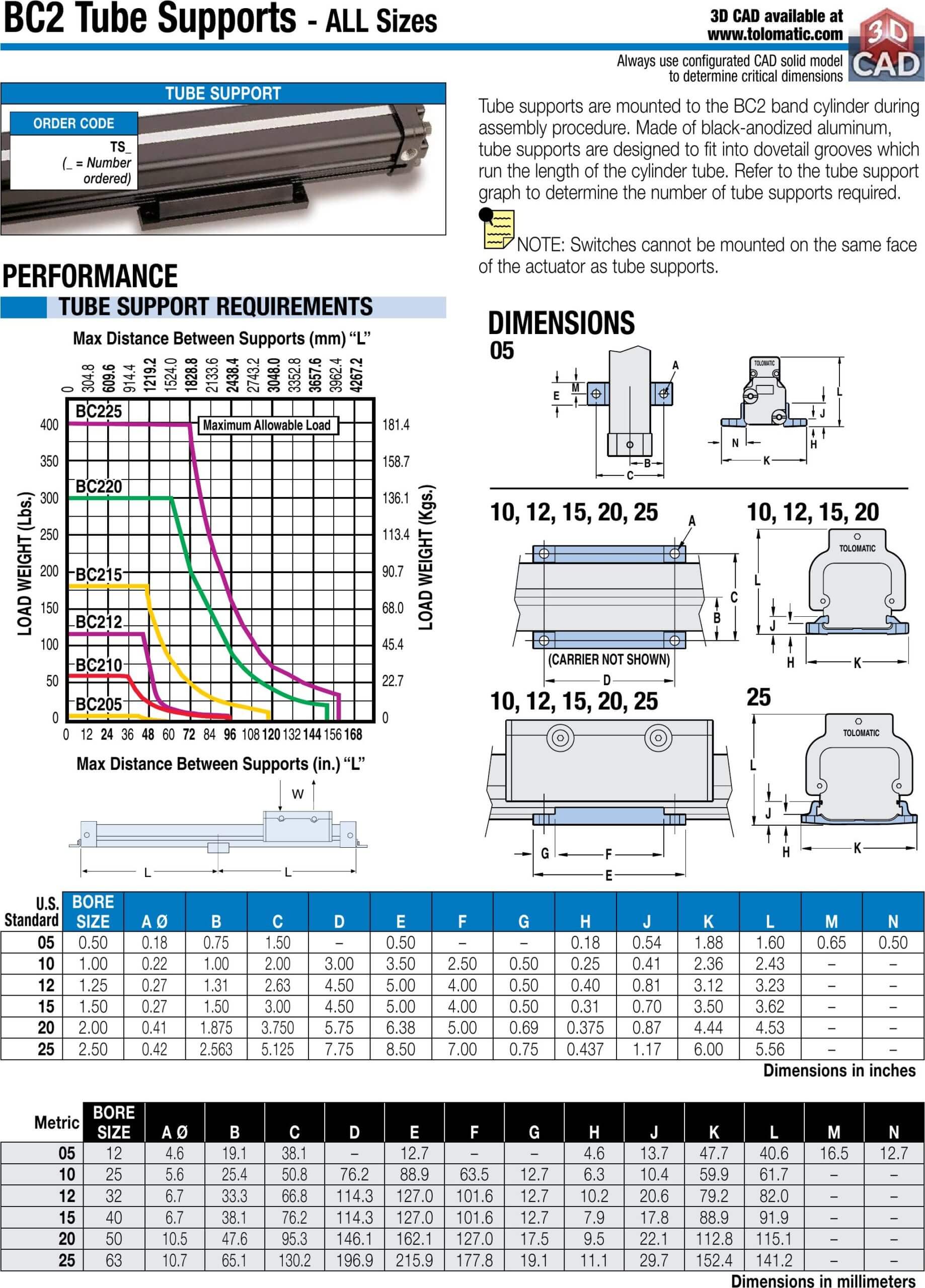

BC2 Tube Supports
![](https://www.tolomatic.com/wp-content/uploads/2022/06/af83463dc0b04c0aaaac25ad44928ab3-orig-735x1024.jpg)
BC2 Shock Absorber Performance
![](https://www.tolomatic.com/wp-content/uploads/2022/06/51b49ea661c94aaeadacf5285f22f435-orig-806x1024.png)

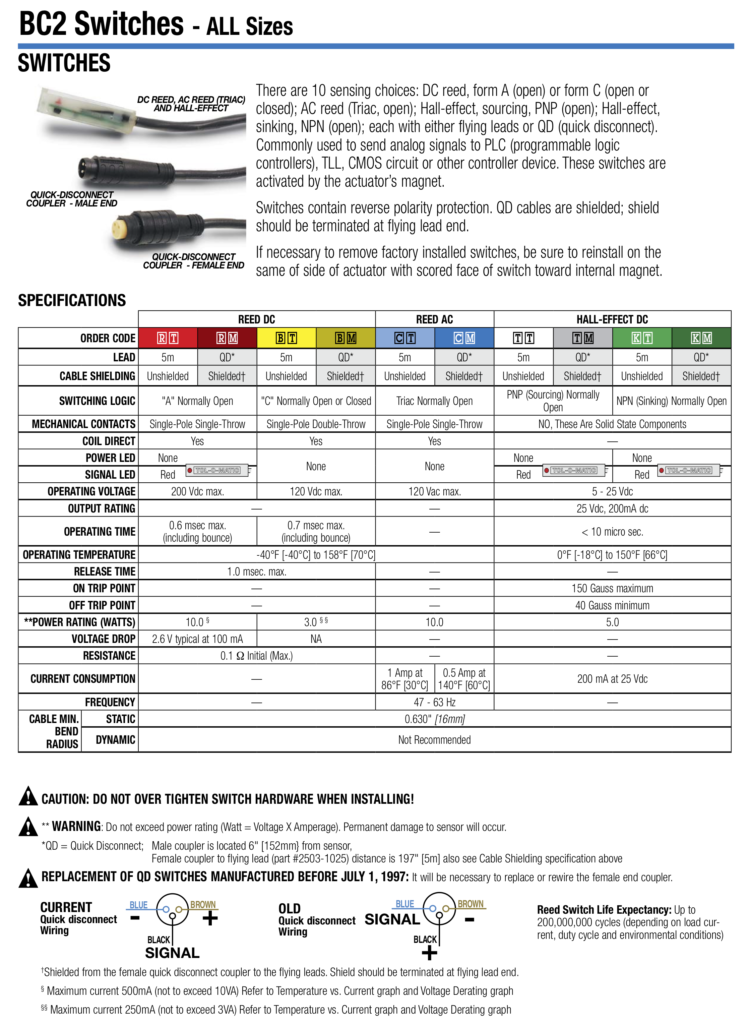

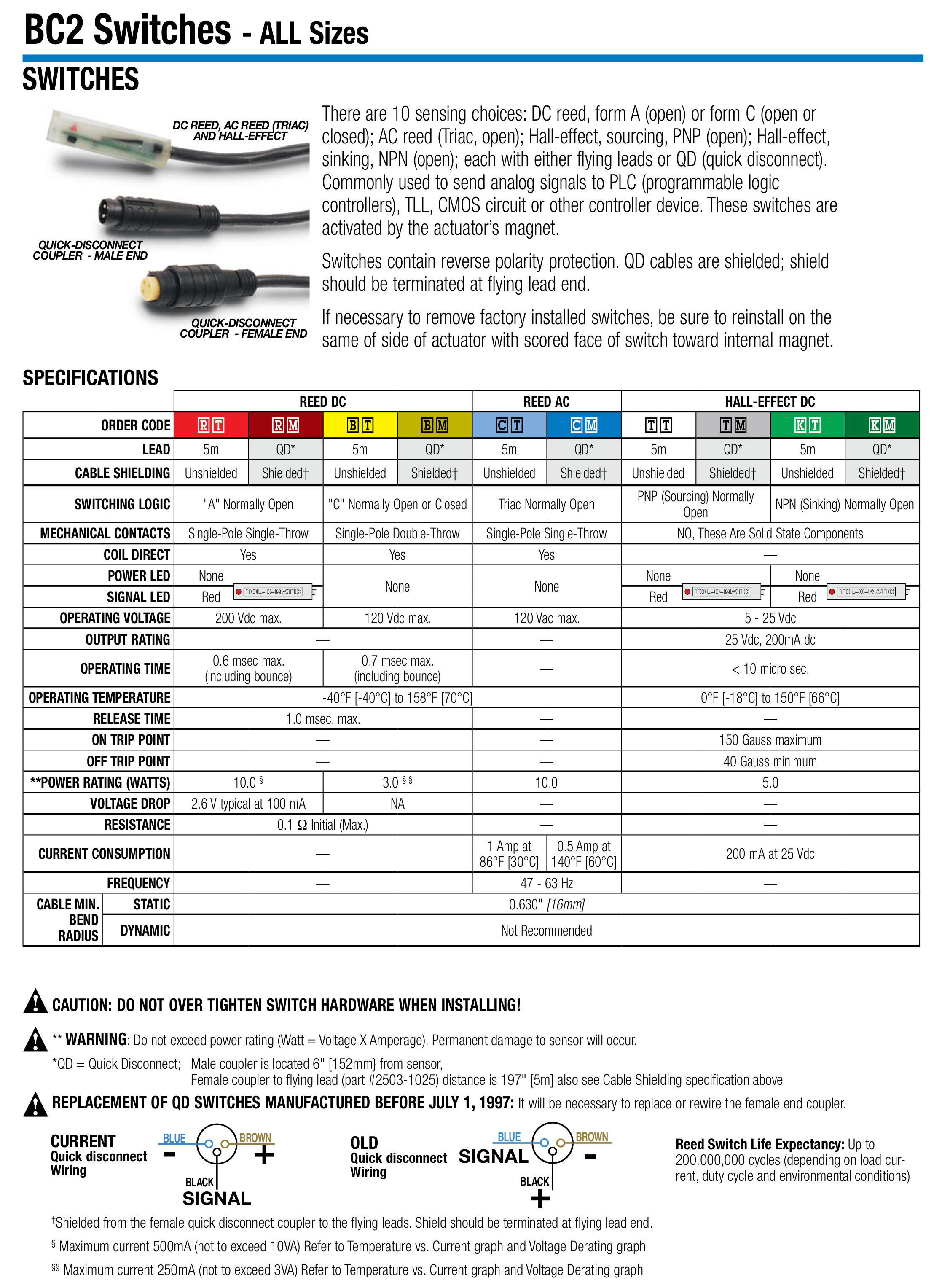

BC2 Switches
![](https://www.tolomatic.com/wp-content/uploads/2022/06/9f88f6529b4a4981b9cb7c38918119ec-orig-749x1024.png)

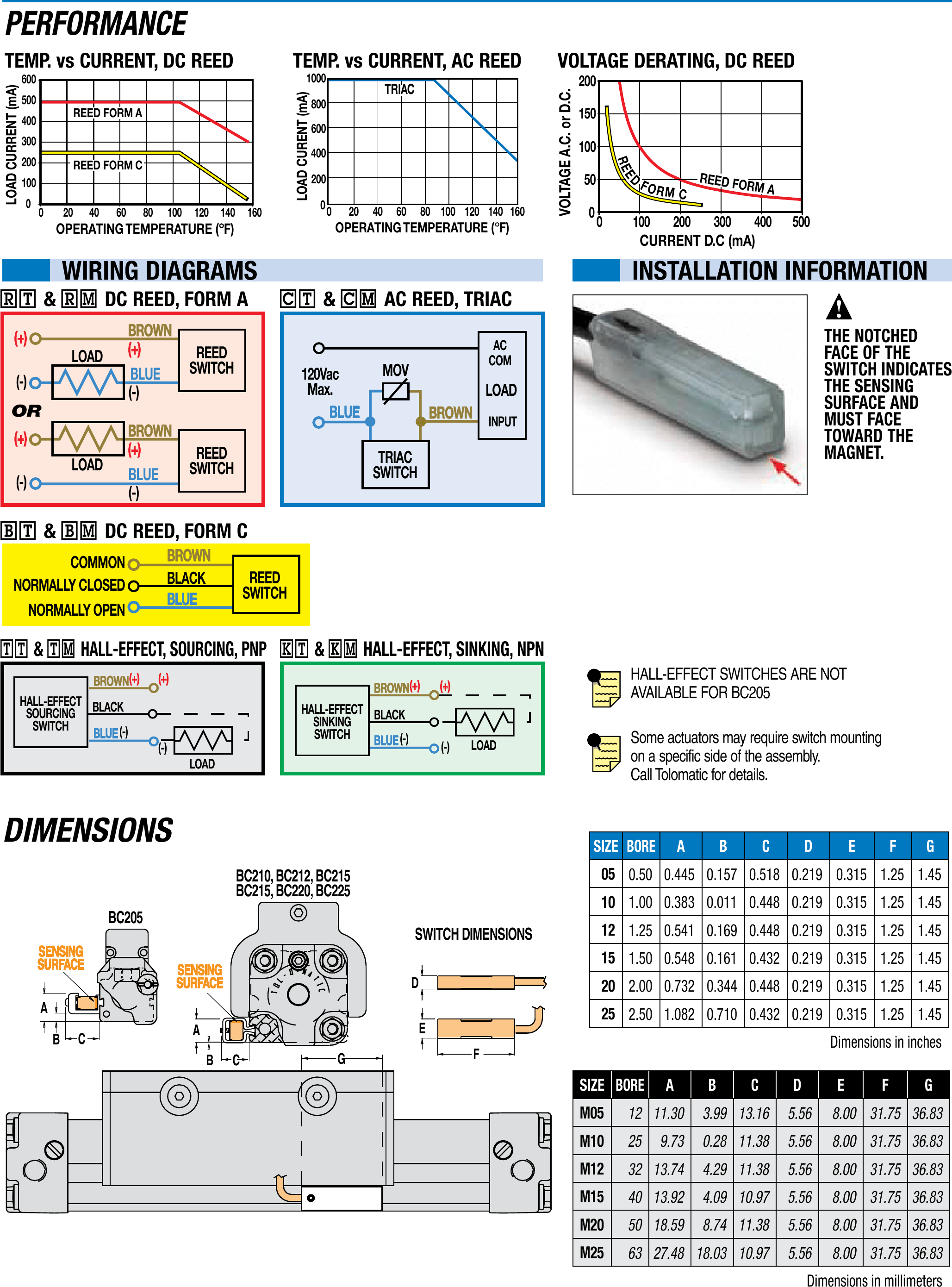

BC2 Switch Performance, Wiring & Dimensions
![](https://www.tolomatic.com/wp-content/uploads/2022/06/f4f2a5c9fd8c4ef0a9821b3730ba54ae-orig-758x1024.jpg)
BC205 Dimensions & Specs
![](https://www.tolomatic.com/wp-content/uploads/2022/06/0a296fa25ad24dd28fa587c497496eb0-orig-736x1024.jpg)
BC210 Dimensions & Specs
![](https://www.tolomatic.com/wp-content/uploads/2022/06/6cfff53f2d914dc5981563e4805c6b9b-orig-766x1024.jpg)
BC212/215 Dimensions & Specs
![](https://www.tolomatic.com/wp-content/uploads/2022/06/1ff60f9cc44148a19a8e17f2831c94c6-orig-757x1024.jpg)
BC220/225 Dimensions & Specs
![](https://www.tolomatic.com/wp-content/uploads/2022/06/9302f8dedf624f34a2610d7da5071be9-orig-757x1024.jpg)

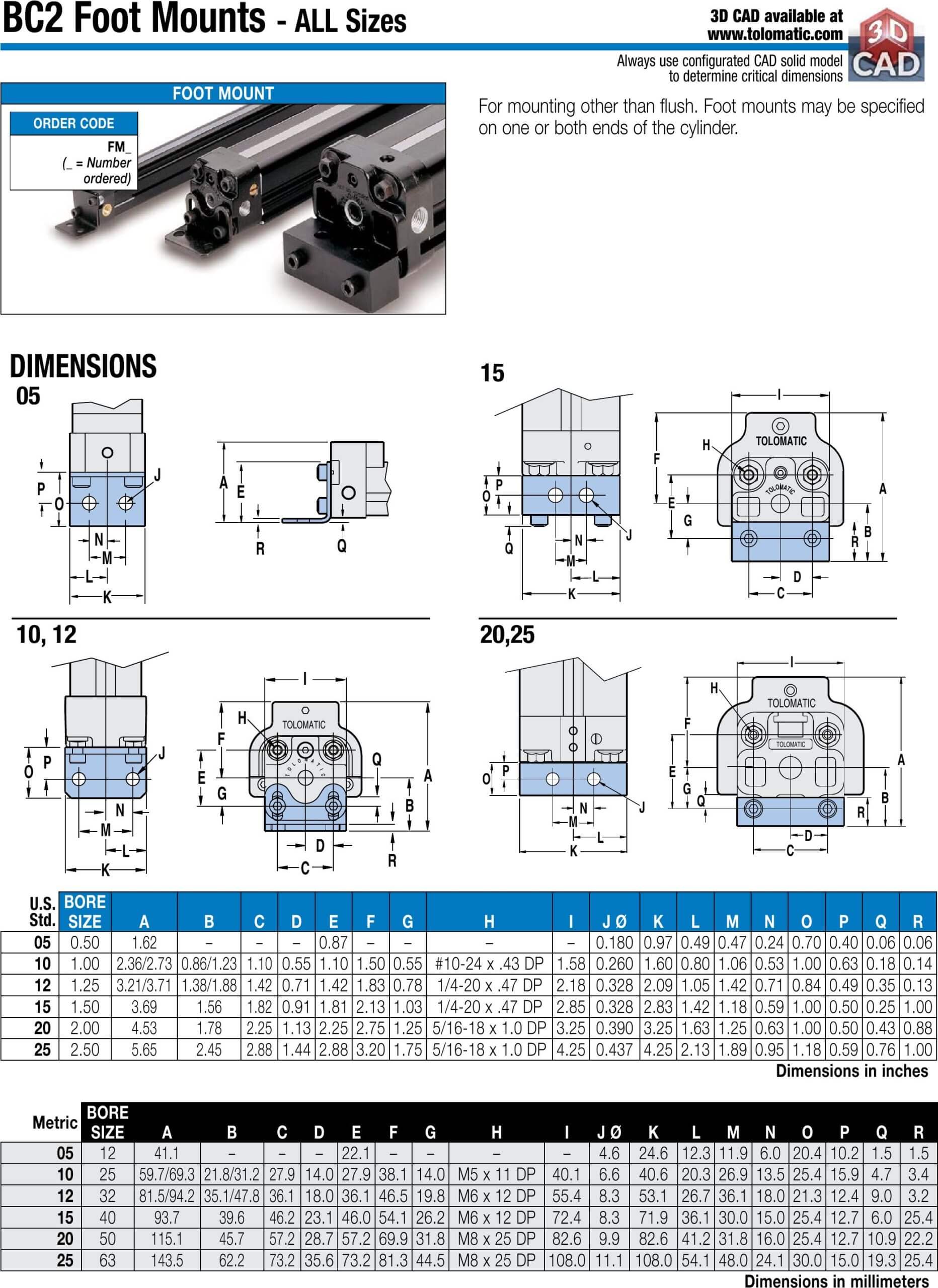

BC2 Foot Mounts
![](https://www.tolomatic.com/wp-content/uploads/2022/06/935fe92a675a41b9bfff366303070400-orig-746x1024.jpg)

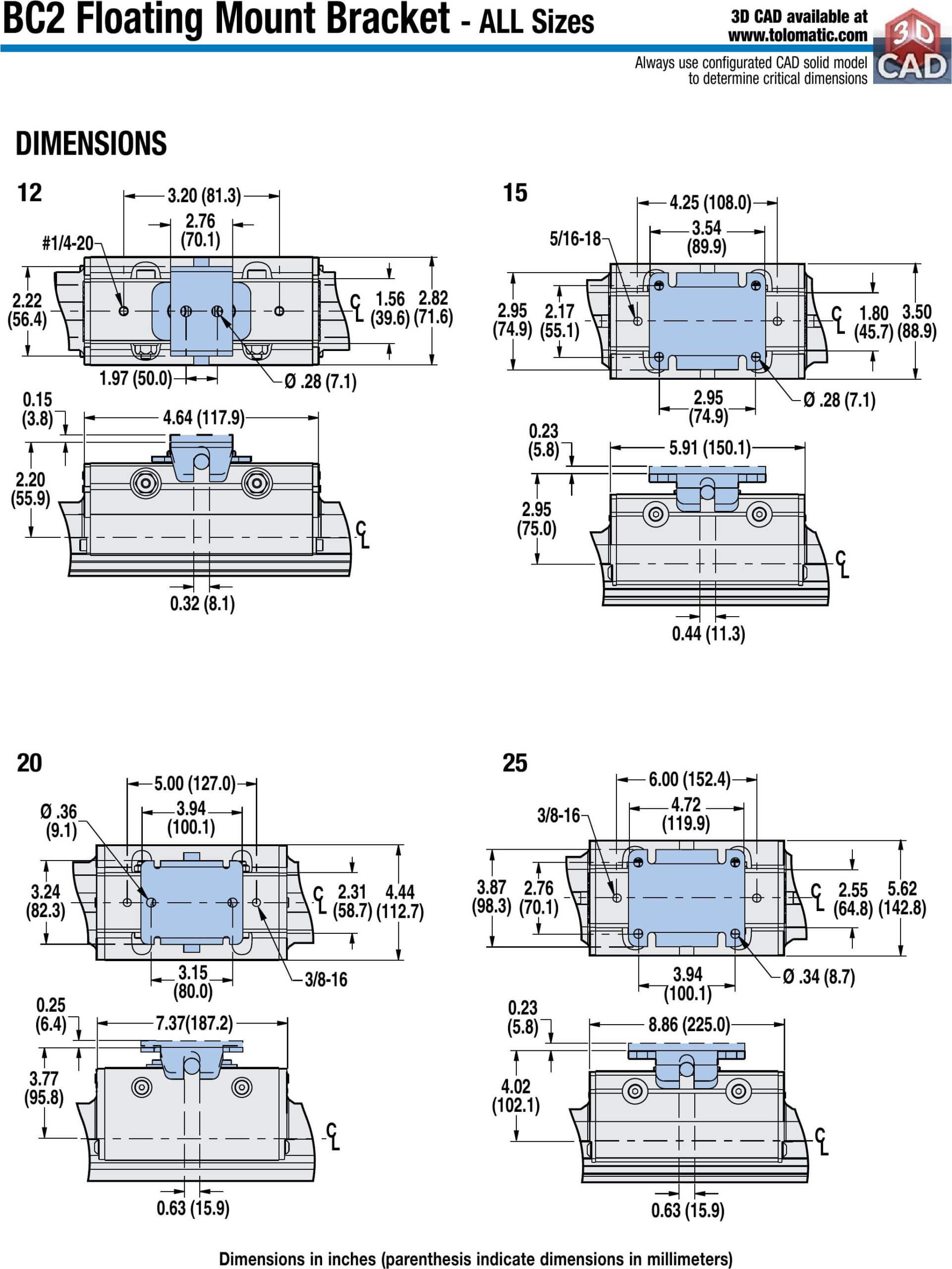

BC2 12/15/20/25 Floating Mount Bracket Dimensions
![](https://www.tolomatic.com/wp-content/uploads/2022/06/6cebeeca6eb04b2aa8196275ef8d2261-orig-768x1024.jpg)

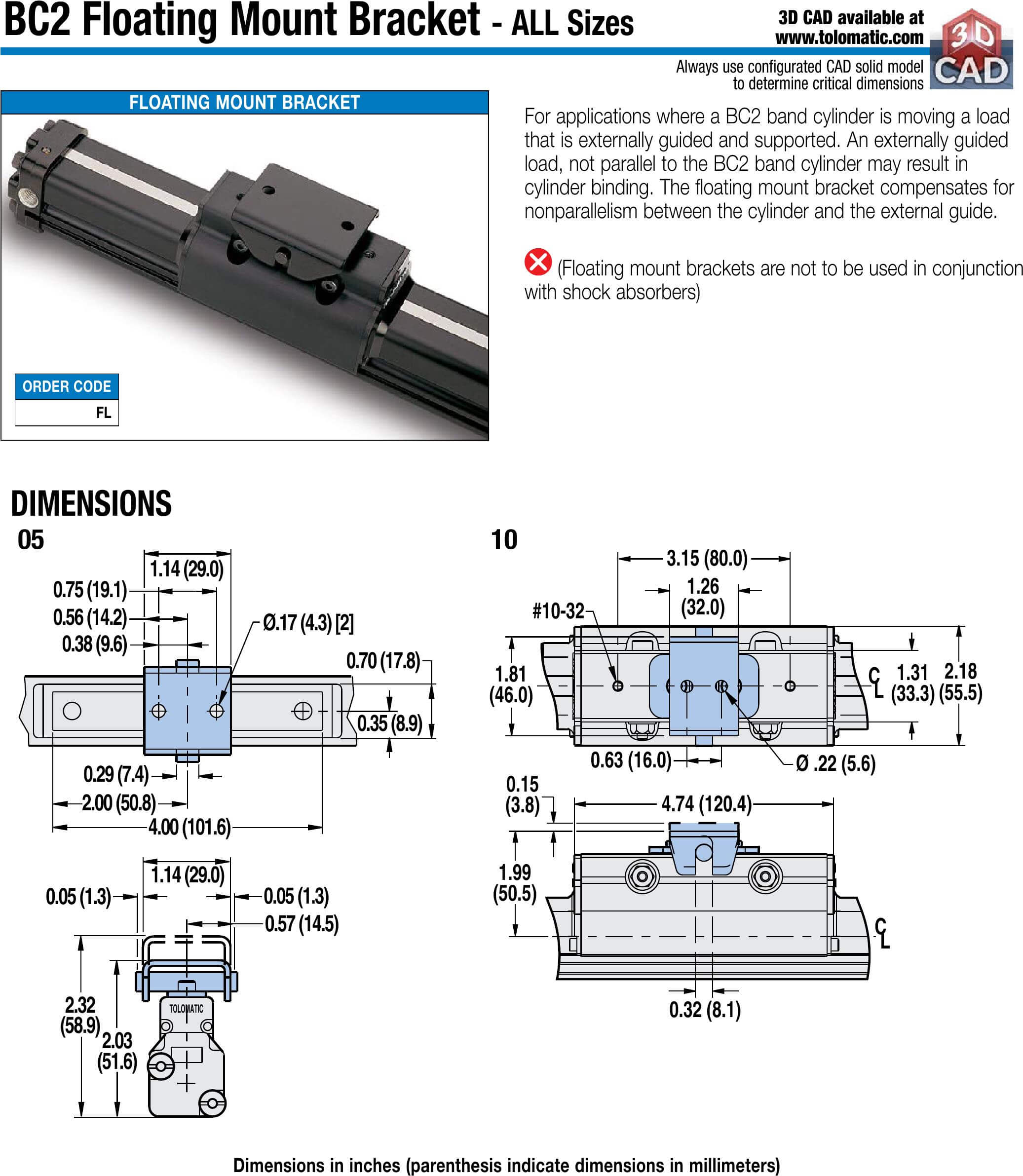

BC2 Floating Mount Bracket
![](https://www.tolomatic.com/wp-content/uploads/2022/06/cf380ae6799b481cb440090440f4562e-orig-891x1024.jpg)

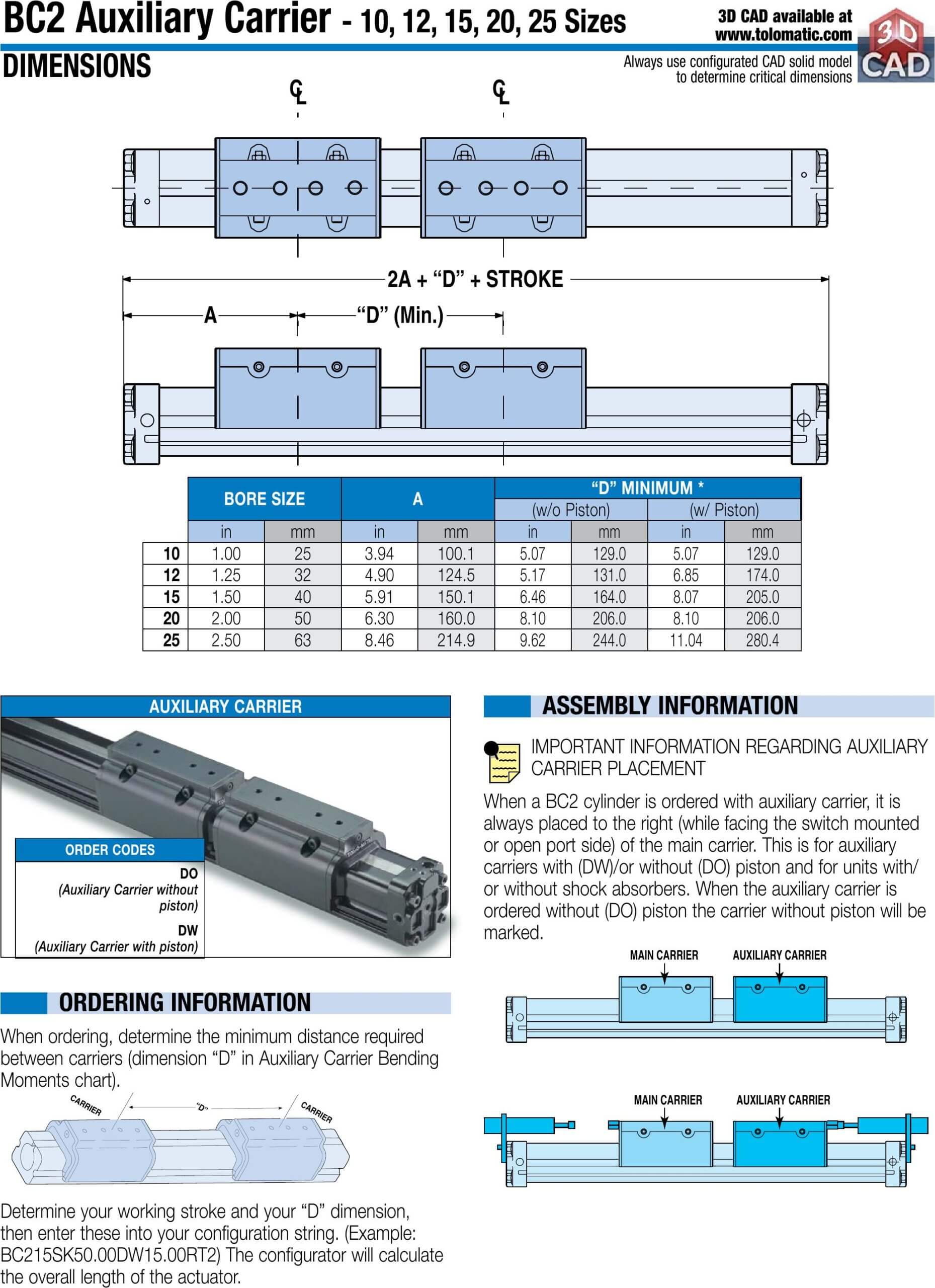

BC2 10/12/15/20/25 Auxiliary Carrier Dimensions
![](https://www.tolomatic.com/wp-content/uploads/2022/06/9f006a7832024279b6aead2e8985f78f-orig-744x1024.jpg)
BC2 Shock Absorbers
![](https://www.tolomatic.com/wp-content/uploads/2022/06/4991eb9b99fa4c23abc6d70e979cc973-orig-776x1024.jpg)
Information Center:
English
Chinese
German
Spanish
Application Tips
Case Studies
Catalogs & Brochures
- Corporate Overview-Linear Motion Solutions Brochure (English)
- SOLUCIONES DE CONTROL DE MOVIMIENTO (Spanish, Corporate Overview-Motion Control Solutions Brochure)
- Unternehmensübersicht (German, Corporate Overview brochure)
- Brochure sur l'entreprise Tolomatic (French, Corporate Overview-Linear Motion Solutions Brochure)
- BC2 Pneumatic Band Cylinder Brochure
- Pneumatic Actuator Catalog
Guides
Parts & Maintenance Sheets
Repair Kits
Terms & Conditions
Videos
White Papers
- Pneumatic rodless actuators: The 10 most common sizing mistakes and how to avoid them
- Select the right linear actuator: Making sense of manufacturer specifications
- Rules of actuator and guide alignment in linear motion systems
- IP ratings and the manufacturing environment: How to apply linear actuators for quality, safety and long service life.
- Introduction to accuracy and repeatability in linear motion systems
Use the links below to locate a Tolomatic distributor in your area, find out more information on how to specify and configure your actuator, service parts information, and selection guidelines and tips.
Find a Tolomatic distributor
BC2 Selection Guidelines
![](https://www.tolomatic.com/wp-content/uploads/2022/06/3492a5a533f04c2e9461e447ab048ca2-orig-827x1024.png)
BC2 Band Cylinder Ordering
![](https://www.tolomatic.com/wp-content/uploads/2022/06/e219c14f5174406d9b9feba22ce04f2c-orig-811x1024.jpg)

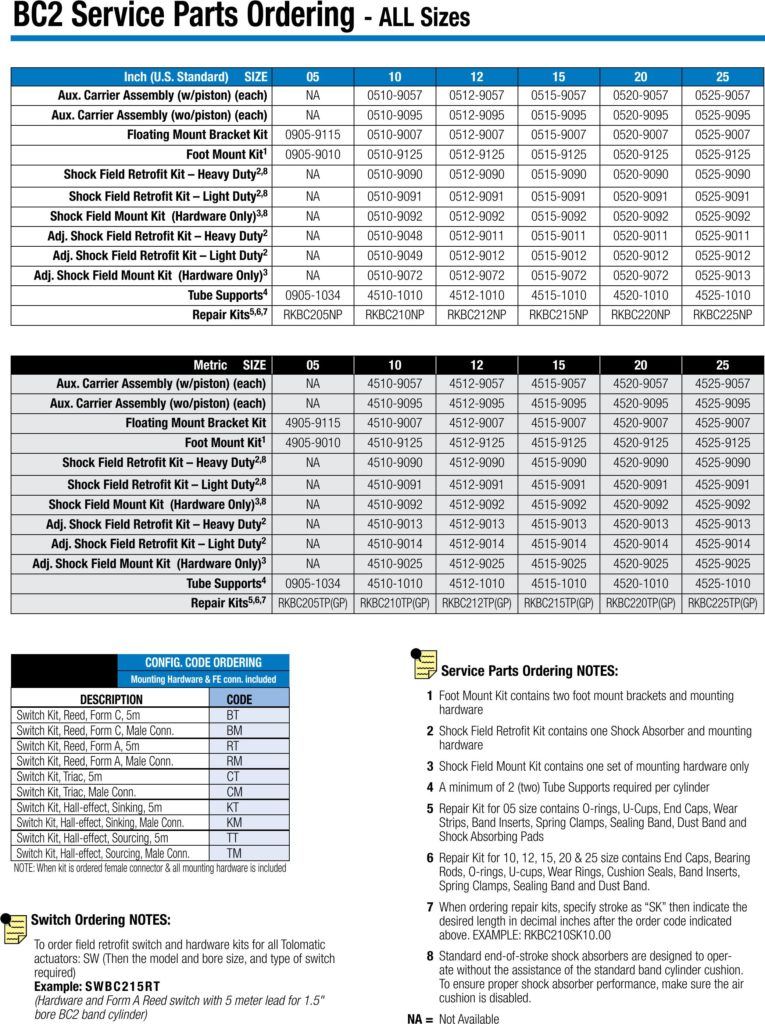

BC2 Service Parts Ordering
