1307D Series Pneumatic Cone Clutches
The 1307D series pneumatic cone clutch has a space-saving design that offers high torque in lower cyclic applications.
- 1/2- and 5/8-inch bore sizes (12.7 and 15.9 mm)
- High torque with no slippage
- Fast response based on low air consumption
Order 1307D Series Pneumatic Cone Clutch
Part Number
1307-0308
1307-0310
Model
Clutch 1307D-08
Clutch 1307D-10
Bore Size
1/2 in
5/8 in
Torque at 100 PSI
250 in-lb
250 in-lb
Maximum Pressure
100 PSI
100 PSI
Keyway
1/8 x 1/16 in
3/16 x 1/16 in
Free Air Consumption (new)
0.24 in³
0.24 in³
Free Air Consumption (worn)
1.09 in³
1.09 in³
Weight
3.1 lb
3.1 lb

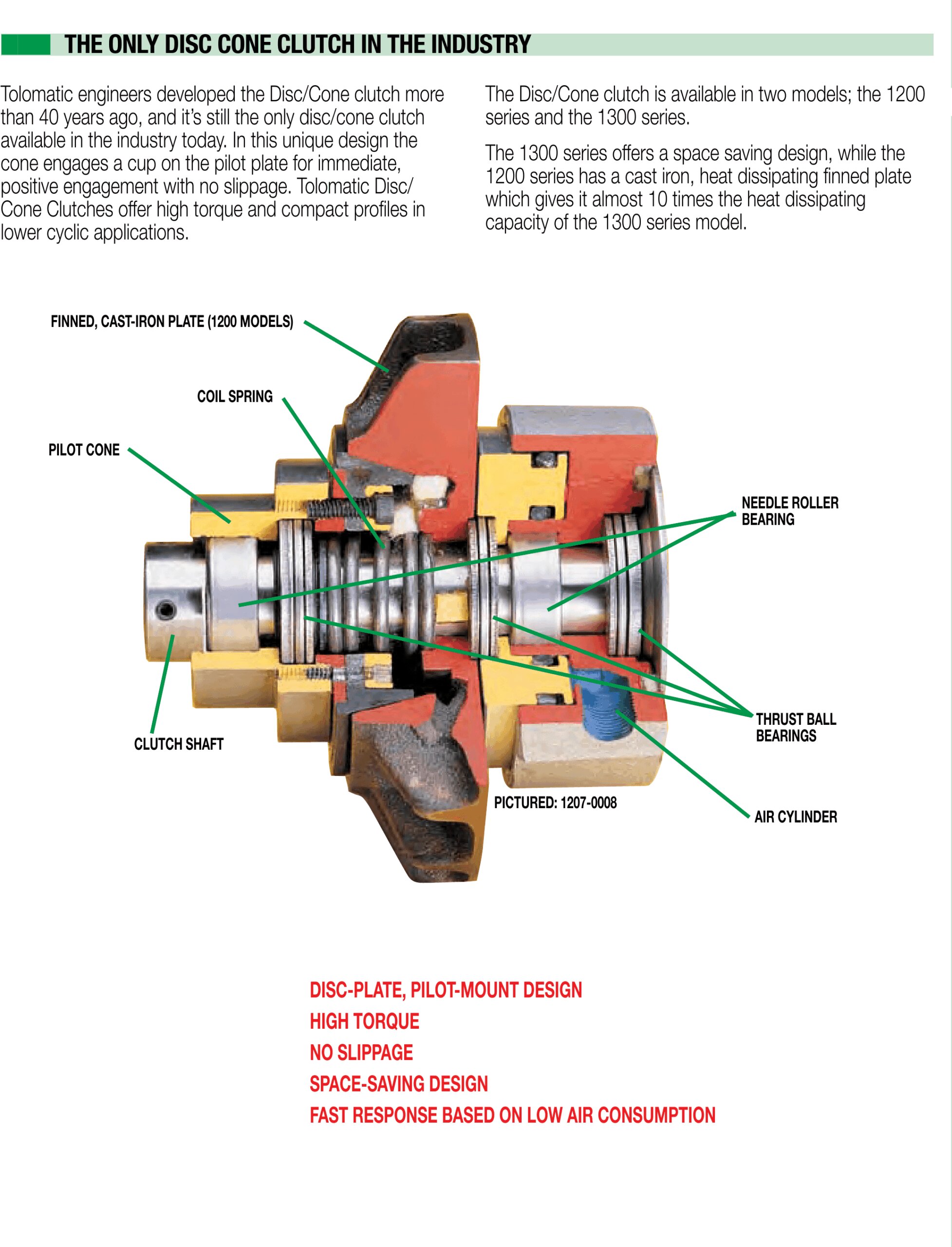

1307D Clutch Features
1307D Clutch Specs
1307D Clutch Performance & Dimensions
Clutch Performance Comparison
