1208 Series Pneumatic Cone Clutches
The 1208 series pneumatic cone clutch offers 10 times the heat dissapation as the 1308 series cone clutches with up to 750 BTU/hour at 1800 RPMs.
- 5/8-, 3/4- and 7/8-inch bore sizes (15.9, 19.1 and 22.2 mm)
- High torque with no slippage
- Fast response based on low air consumption
Order 1208 Series Pneumatic Cone Clutch
Part Number
1208-0010
1208-0012
1208-0014
Model
Clutch 1208-10
Clutch 1208-12
Clutch 1208-14
Bore Size
5/8 in
3/4 in
7/8 in
Torque at 100 PSI
635 in-lb
635 in-lb
635 in-lb
Keyway
3/16 x 3/32 in
3/16 x 3/32 in
3/16 x 3/32 in
Maximum Pressure
100 PSI
100 PSI
100 PSI
Free Air Consumption (new)
0.5 in³
0.5 in³
0.5 in³
Free Air Consumption (worn)
2.65 in³
2.65 in³
2.65 in³
Weight
8 lbs
8 lbs
8 lbs

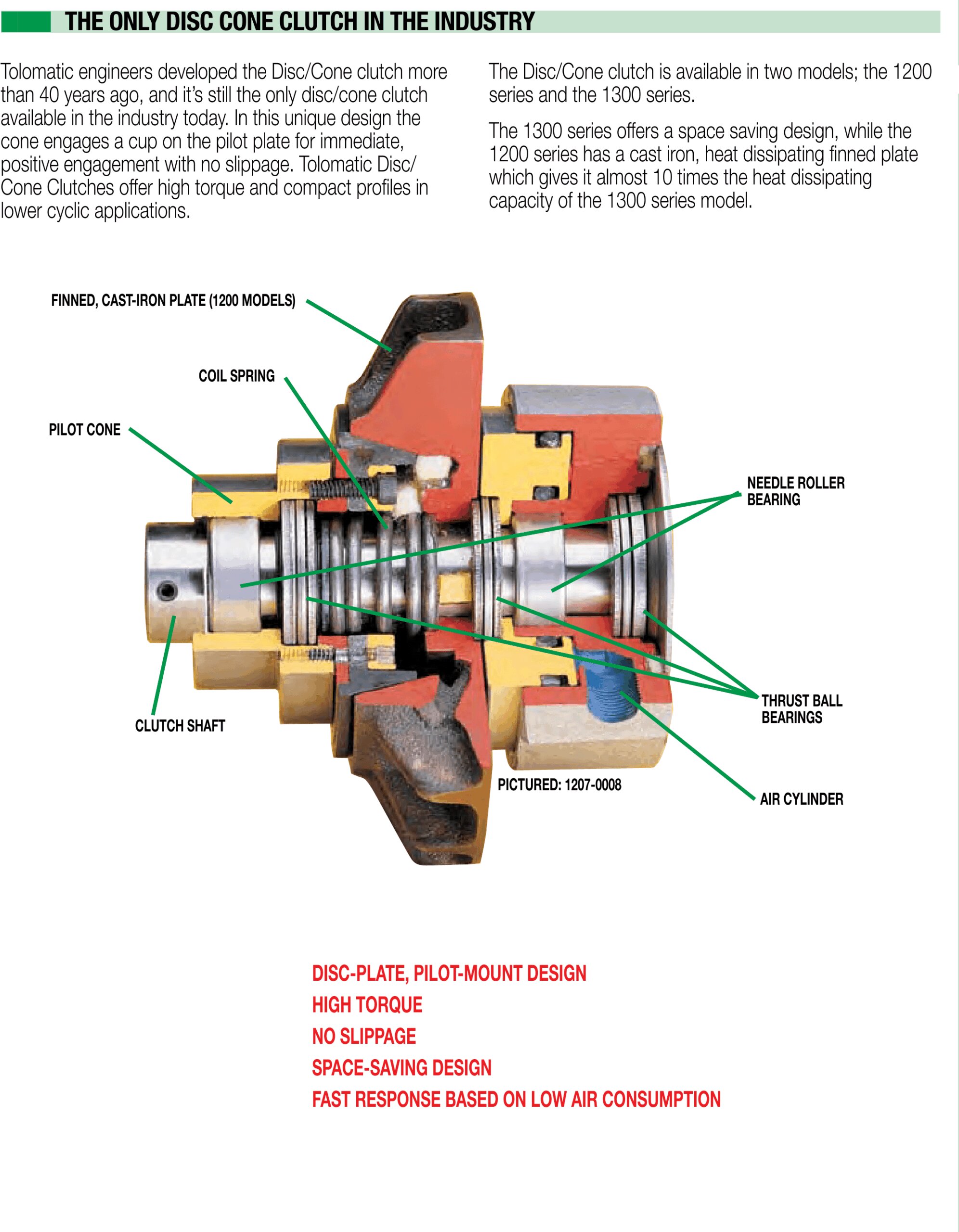

1208 Clutch Features
1208 Clutch Specs and Torque Performance
1208 Clutch Response Times, Heat Dissipation & Dimensions
Clutch Performance Comparison
