1207 Series Pneumatic Cone Clutches
The 1207 series pneumatic cone clutch offers 10 times the heat dissapation as the 1307 series cone clutches with up to 160 BTU/hour at 1800 RPMs.
- 1/2- and 5/8-inch bore sizes
- High torque with no slippage
- Fast response based on low air consumption
Order 1207 Series Pneumatic Cone Clutch
Part Number
1207-0008
1207-0010
Model
Clutch 1207-08
Clutch 1207-10
Bore Size
1/2 in
1/2 in
Torque at 100 PSI
250 in-lb
250 in-lb
Keyway
1/8 x 1/16 in
1/8 x 1/16 in
Maximum Pressure
100 PSI
100 PSI
Free Air Consumption (new)
0.24 in³
0.24 in³
Free Air Consumption (worn)
1.09 in³
1.09 in³
Weight
4.0 lb
4.0 lb

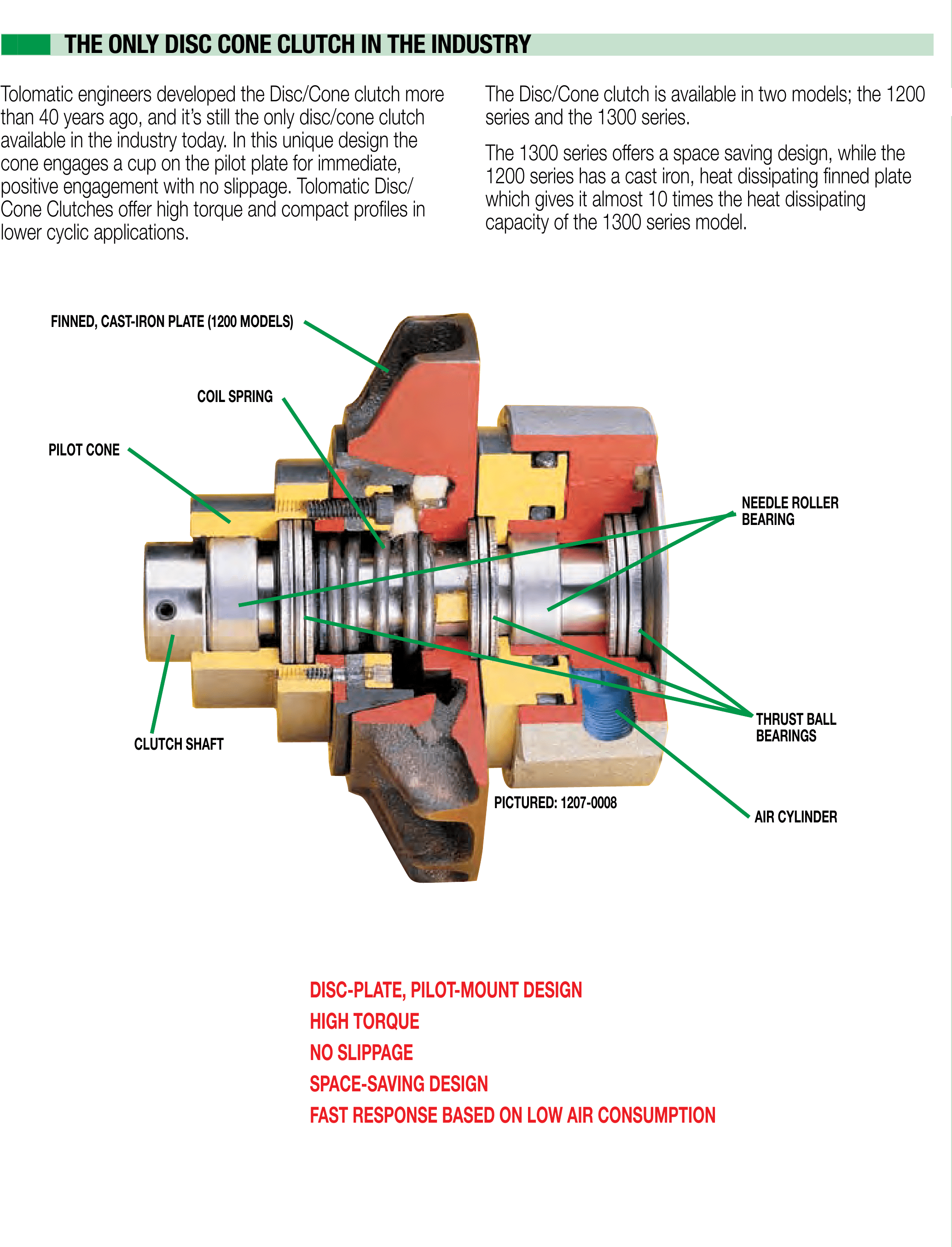

1207 Clutch Features
1207 Clutch Specs

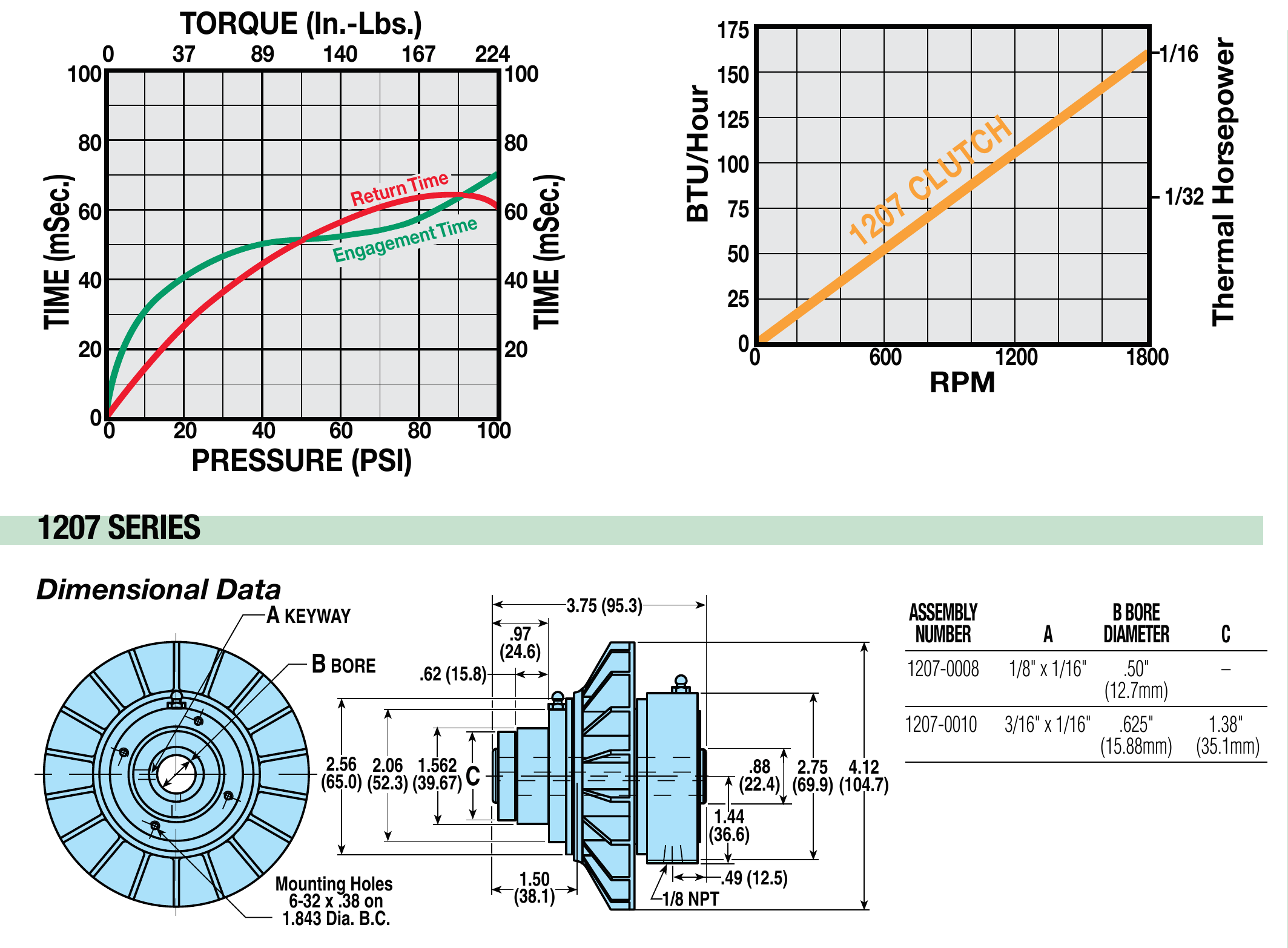

1207 Clutch Performance & Dimensions
Clutch Performance Comparison
