CSWX Compact ServoWeld® Stellantrieb mit integriertem Motor
Die ServoWeld® CSWX CSWX Stellantrieb mit integriertem Motor bietet hohe Leistung in einem kompakten Paket
Der Compact ServoWeld® Actuator (CSWX) ist die neueste Generation von ServoWeld-Aktuatoren, die hohe Kräfte in einem kleineren Gehäuse bieten. Das modulare Design des CSWX ermöglicht eine einfachere Anpassung an Projektvariabilität und unterstützt unsere globale Fertigungsstrategie. Tolomatic’s ServoWeld-Familie von leichteren integrierten Servomotor-Aktuatoren für das Widerstandspunktschweißen (RSW) bietet ein kosteneffizientes Aktuator-Design und klassenbeste Leistung.
CSWX integrated servo motor actuators offer:
- 30+ Millionen Schweißungen in typischen Schweißanwendungen bei ordnungsgemäßer Wartung
- Standard-Rollengewindetrieb mit höchster dynamischer Tragzahl für mehr Schweißungen als konkurrierende Rollengewindetriebe, Kugelgewindetriebe oder pneumatische Aktuatoren
- Schräge Motorwicklungen, die für das Schweißen entwickelt wurden, minimieren das Motorcogging für beste Kraftwiederholbarkeit
- Kompakte Antriebskonstruktion
- Kräfte bis 4,047 lbf (18 kN)
- Optionale Merkmale
- Wasserkühlung
- Kraftrückführung

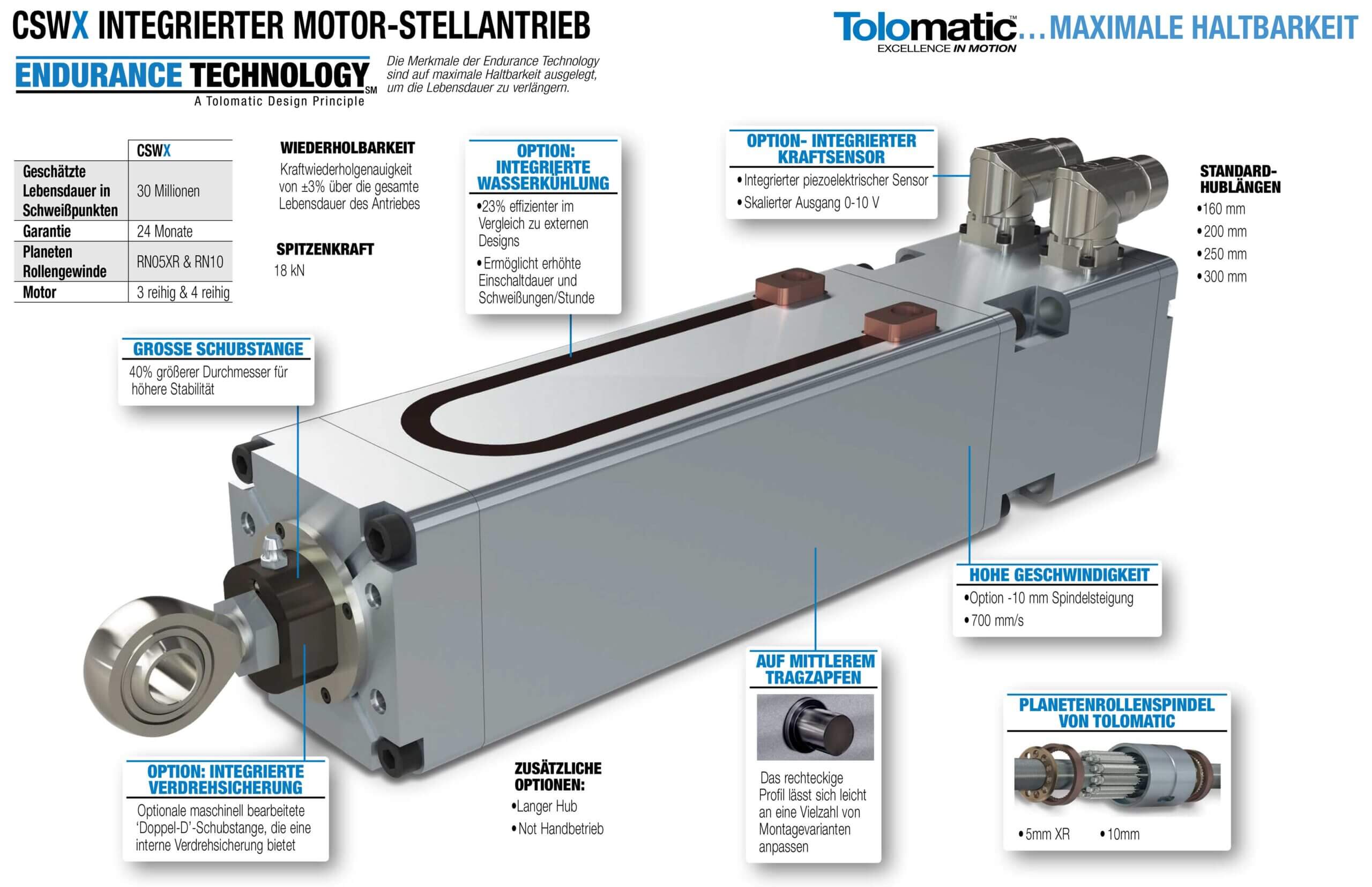

Merkmale des geführten integrierten Motoraktuators CSWX
![](https://www.tolomatic.com/wp-content/uploads/2023/12/2750-4037_03_CSWX-br^DE-guide-features-1024x648.jpg)
Typische Roboter-Installation ServoWeld
![](https://www.tolomatic.com/wp-content/uploads/2022/06/6db35230018f4bc2af34c42762ca3539-orig-743x1024.jpg)
ServoWeld CSWX
![](https://www.tolomatic.com/wp-content/uploads/2022/06/9dd69573532d4118ace5f56d54b55de4-orig-845x1024.jpg)

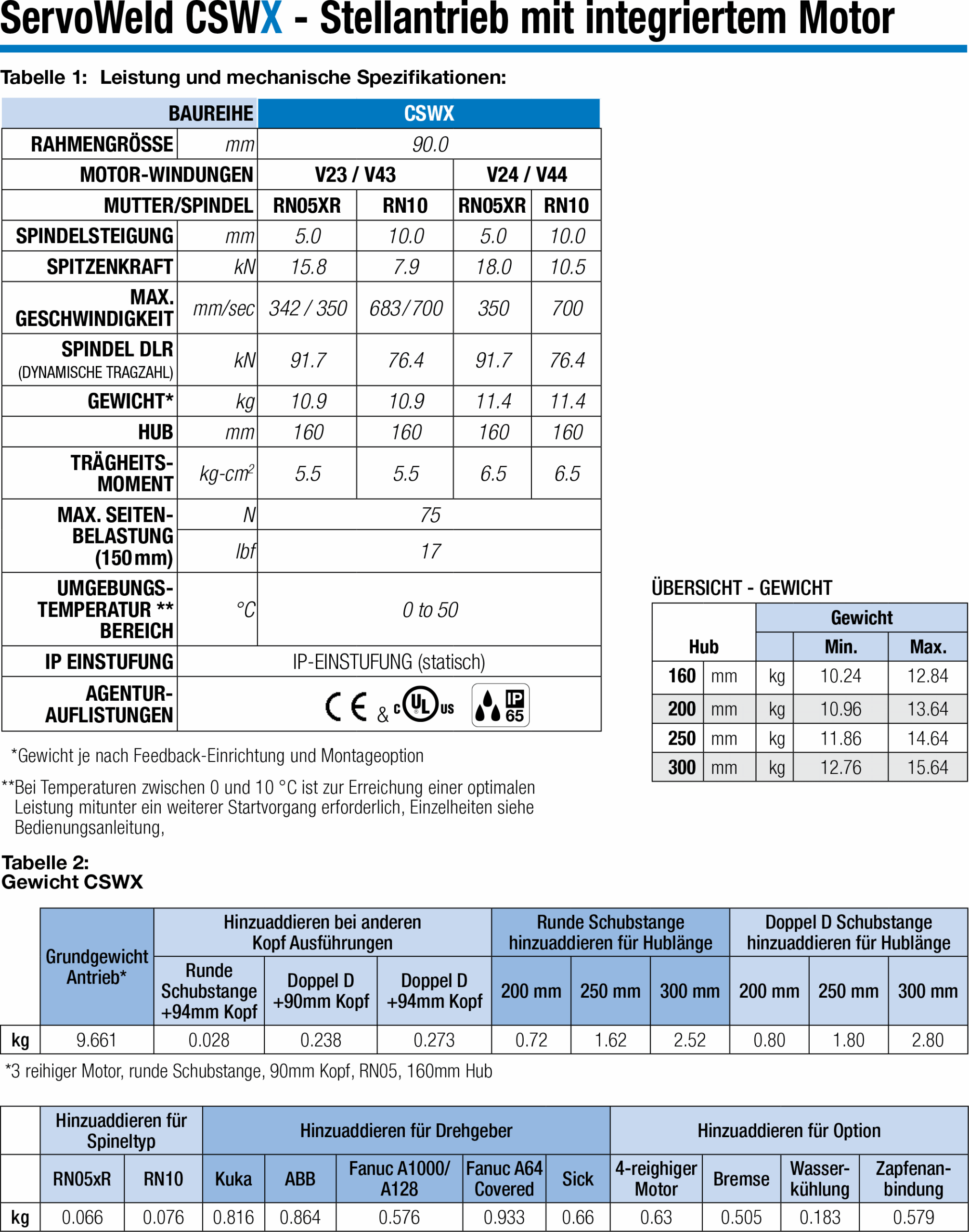

Leistung und mechanische Spezifikationen
![](https://www.tolomatic.com/wp-content/uploads/2022/06/b2618c8a6c64474f8eefa42d8659576e-orig-833x1024.jpg)

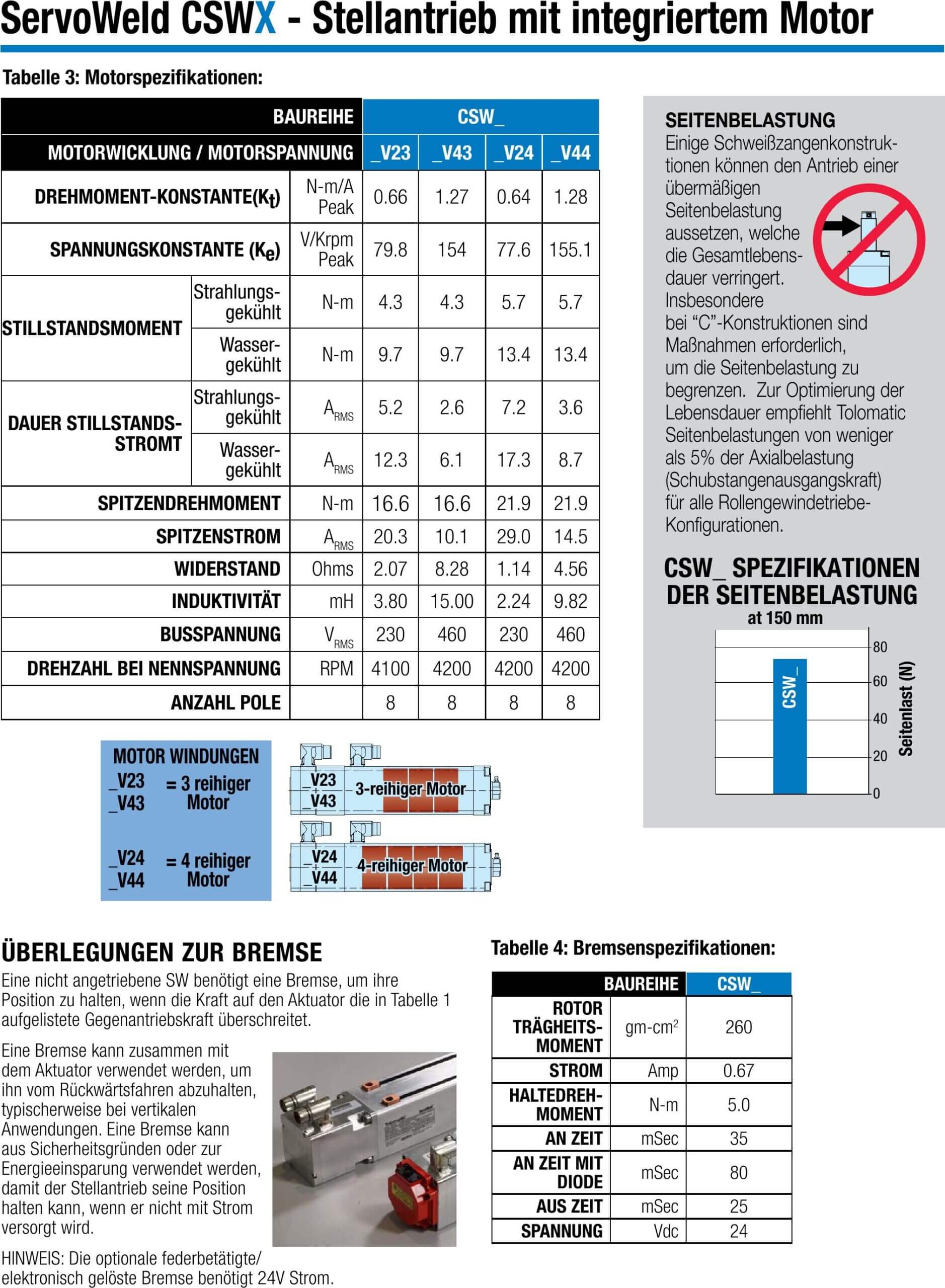

Motorspezifikationen:
![](https://www.tolomatic.com/wp-content/uploads/2022/06/2750-4037_03_CSWX-br^DE-9-754x1024.png)
An jedem Antrieb wird eine vollständige Verifizierungsprüfung durchgeführt
![](https://www.tolomatic.com/wp-content/uploads/2022/06/f540c5b035c24de081b81bd813eb6074-orig-742x1024.jpg)
CSWX Performance
![](https://www.tolomatic.com/wp-content/uploads/2022/06/06b4a0a0fb0b49a3a5168a1e951372a2-orig-1024x578.jpg)

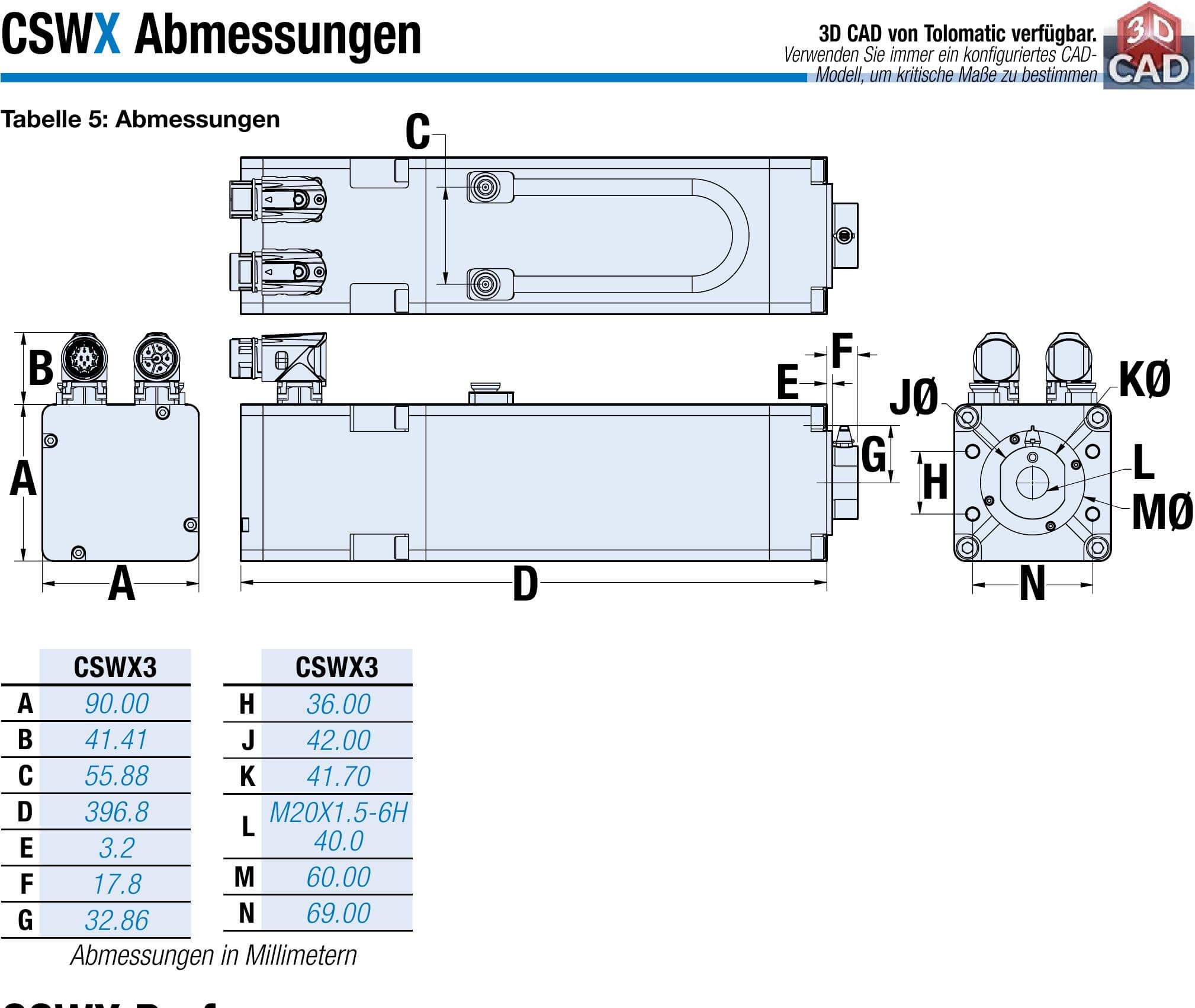

CSW & CSWX Abmessungen
![](https://www.tolomatic.com/wp-content/uploads/2022/06/2750-4037_04_CSWX-br^DE-10-1024x702.png)
